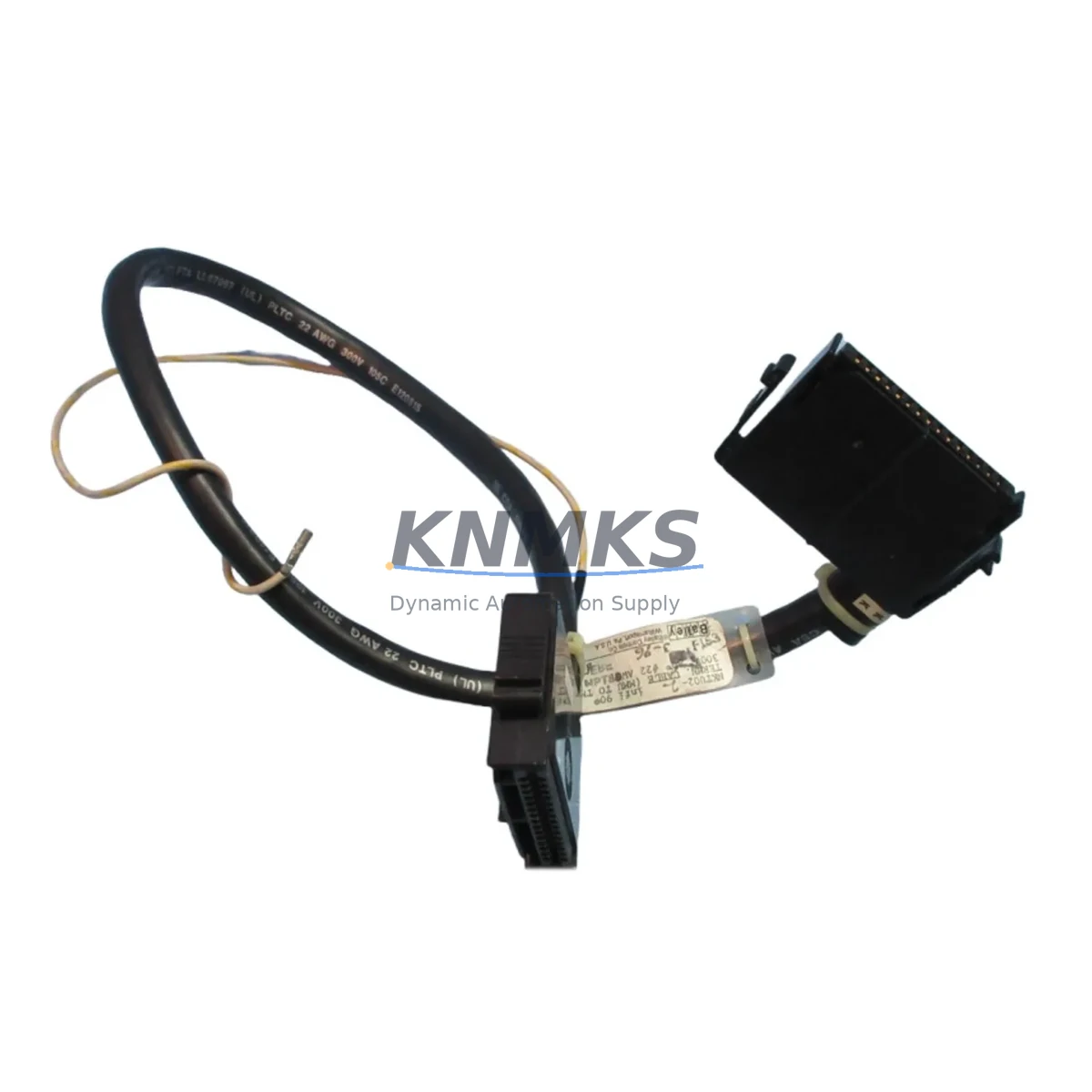

ABB L700741A3-30 Fail-Safe Analog Input Terminal Cable

Overview

ABB L700741A3-30 Fail-Safe Analog Input Terminal Cable: Fault Protection and Critical Industrial Field Reliability

The ABB Bailey L700741A3-30 is a safety-engineered analog input terminal cable purpose-built for the INFI 90 Distributed Control System platform. In continuous production environments where control loop integrity is non-negotiable — petrochemical reactors, power generation switchgear rooms, metallurgical furnace control cabinets, and water treatment SCADA panels — this terminal cable serves as the last line of defense against signal drift, surge-induced misoperation, and unplanned shutdown events. Its shielded, impedance-matched construction ensures that analog signals from field transmitters reach the controller module without distortion, even under sustained electromagnetic interference from variable frequency drives, high-voltage bus bars, or adjacent relay coils.

Designed to mate directly with ABB Bailey INFI 90 analog input modules such as the IMDSI02 and IMASI02, the L700741A3-30 maintains pin-for-pin back-to-back compatibility with original factory wiring harnesses. This means replacement can be executed during a planned maintenance window without re-termination, re-labeling, or loop recalibration — a critical advantage in facilities where control loop downtime carries six-figure-per-hour cost exposure. The cable assembly is factory-tested for continuity, insulation resistance, and shield integrity before shipment, eliminating the risk of introducing a latent fault into a live safety interlock circuit.

In high-electromagnetic-interference environments, unshielded or poorly terminated signal cables are a primary root cause of analog input noise, false alarms, and spurious trips. The L700741A3-30’s braided shield, when properly grounded at the controller end, attenuates common-mode noise by design, protecting 4–20 mA and 1–5 V analog signals from the kind of interference that causes PID controllers to hunt, safety instrumented system (SIS) inputs to register false process deviations, and operators to lose confidence in field readings. This is especially relevant in mining and mineral processing facilities where large motor starters and crusher drives generate broadband EMI across the control cabinet backplane.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable INFI 90 control cabinet is a system-level achievement, not a single-component outcome. The L700741A3-30 analog input terminal cable performs at its best when the surrounding cabinet infrastructure is equally hardened against fault conditions. In practice, this means pairing it with a properly specified ABB Bailey IMDSI02 Digital/Analog Signal Interface module, which conditions incoming field signals before they reach the controller backplane. Where power quality is a concern — particularly in facilities with diesel generators, UPS switchover transients, or shared power rails — the IMFEC11 Field Excitation Card and associated power distribution modules should be verified for correct voltage regulation and ripple suppression.

For cabinets housing multiple INFI 90 modules on a shared INFI-NET communication bus, the IMMFP02 Multi-Function Processor and its associated NTMFP01 termination unit form the communication backbone that the analog input data ultimately feeds. Any degradation in the terminal cable’s signal path — whether from connector oxidation, shield discontinuity, or mechanical stress at the cable bend radius — will manifest as noise on the IMMFP02’s analog input registers, potentially triggering nuisance alarms or, in worst cases, a safety interlock trip. Maintaining the L700741A3-30 in good condition, or replacing it proactively during scheduled turnarounds, is therefore a cabinet-level risk mitigation measure, not merely a component swap.

In dusty or humid environments such as cement plant control rooms or coastal marine installations, the NKTU01 or NTCS01 termination cable assemblies used elsewhere in the same cabinet should be inspected alongside the L700741A3-30 during any preventive maintenance cycle. Corrosion at connector pins is a common failure mode in these environments, and a single degraded cable can introduce ground loops that affect multiple analog input channels simultaneously. Stocking a spare L700741A3-30 alongside spare IMDSI02 modules and IMASI02 analog input cards is a recognized best practice for facilities operating under a zero-unplanned-downtime maintenance philosophy.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous catalytic cracking units and distillation column control loops, the L700741A3-30 carries analog signals from pressure transmitters and temperature sensors directly to the INFI 90 controller. Any signal interruption in these loops can trigger emergency shutdown system (ESD) activation. The cable’s EMI shielding prevents false trips caused by interference from high-voltage motor control centers located in adjacent electrical rooms.

Power Generation: Thermal power stations and combined-cycle gas turbine plants rely on INFI 90 DCS for boiler drum level control, turbine speed governing, and flue gas monitoring. The L700741A3-30 ensures that analog feedback signals from these critical measurement points reach the controller without attenuation or noise injection, supporting stable closed-loop control under varying load conditions.

Mining and Mineral Processing: In SAG mill and ball mill control applications, the INFI 90 system manages feed rate, bearing temperature, and motor load via analog input loops. The L700741A3-30’s robust shielding is essential in these environments, where large synchronous motors and thyristor drives generate significant conducted and radiated interference across the control cabinet wiring.

Water and Wastewater Treatment: Municipal water treatment SCADA systems integrated with INFI 90 controllers use analog input cables to monitor flow, pH, turbidity, and chlorine residual. The L700741A3-30 supports reliable signal transmission in pump station control panels exposed to high humidity and condensation, reducing the risk of measurement errors that could compromise water quality compliance.

Metallurgy and Steel Production: Electric arc furnace and continuous casting control systems demand analog input integrity under extreme thermal and electromagnetic stress. The L700741A3-30 is suited for use in control cabinets located near furnace transformer rooms, where transient overvoltages and magnetic field interference are routine operating conditions.

Port and Marine Automation: Ship-to-shore crane control systems and offshore platform DCS installations using INFI 90 hardware benefit from the L700741A3-30’s resistance to salt-air corrosion and vibration, ensuring that load cell and position encoder analog signals remain stable during continuous heavy-lift operations.

Safety and Quality FAQ

Q: What support terms coverage applies to the L700741A3-30?
A: All L700741A3-30 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, connector failure, and shield continuity faults identified under normal operating conditions. Support requests are processed directly through our technical support team at [email protected].

Q: How is each unit tested before shipment?
A: Every L700741A3-30 undergoes a pre-shipment inspection protocol that includes end-to-end continuity verification on all conductors, insulation resistance testing between shield and signal conductors, and physical inspection of connector housings and locking mechanisms. Units that do not pass all test criteria are quarantined and not dispatched.

Q: Is the L700741A3-30 a direct drop-in replacement for the original ABB Bailey cable?
A: Yes. The L700741A3-30 is dimensionally and electrically equivalent to the original ABB Bailey factory cable assembly. It connects directly to INFI 90 analog input termination boards without modification, adapter, or re-wiring. This ensures that replacement can be completed within a standard maintenance window without loop recalibration.

Q: Can long-term supply be guaranteed for facilities with multi-year maintenance contracts?
A: KNMKS maintains regional warehouse stock of the L700741A3-30 to support blanket purchase orders and scheduled maintenance programs. Customers with annual or multi-year supply requirements are encouraged to contact our sales team to discuss stocking agreements, priority allocation, and volume pricing. We support facilities operating under zero-unplanned-downtime maintenance philosophies with dedicated inventory reservation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
Assorted Brands

Model / Series

L700741A3-30
Assorted Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: ABB L700741A3-30
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
