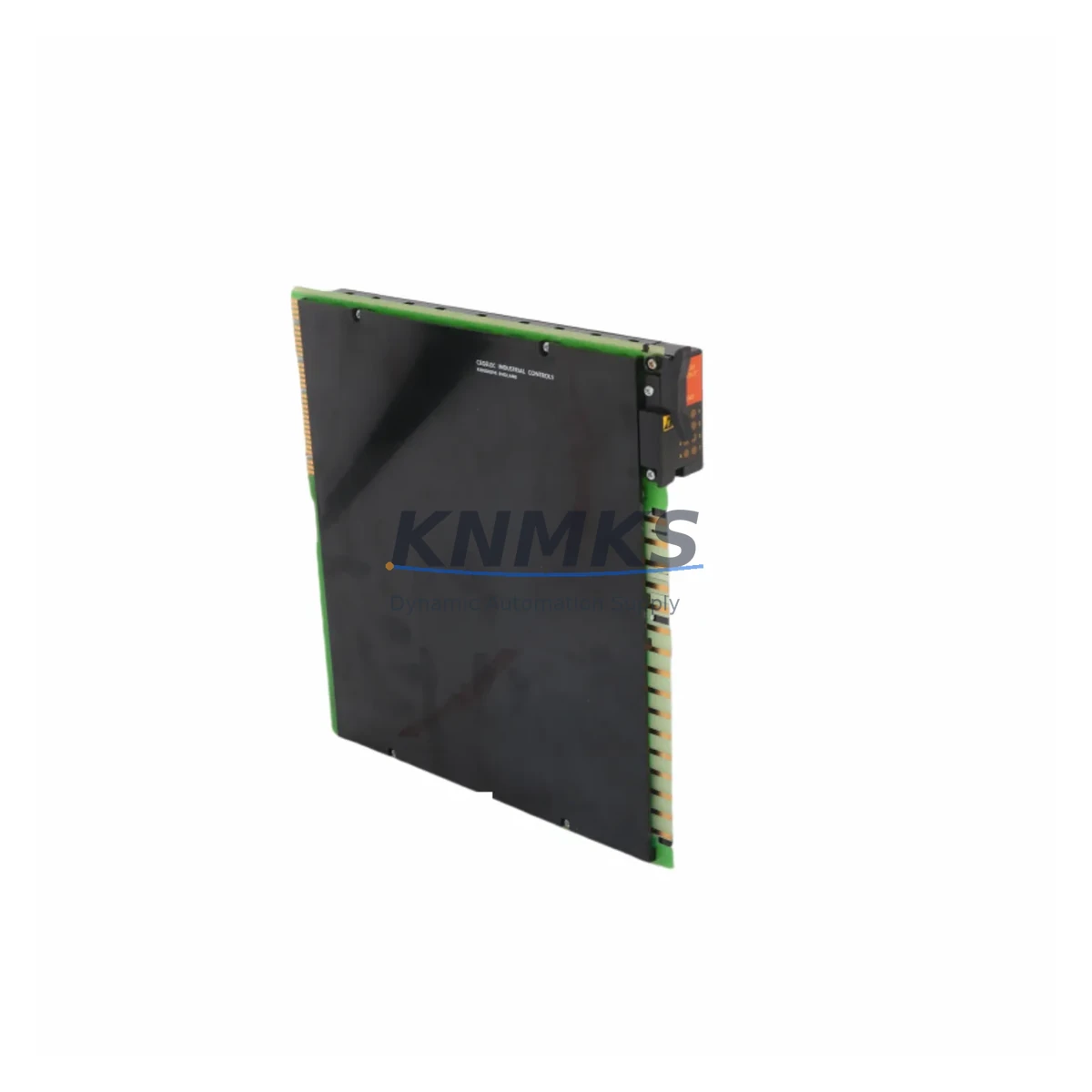

ALSTOM 8143-4002 Migration-Ready Digital Output for Legacy DCS

Overview

ALSTOM 8143-4002 Migration-Ready Digital Output for Legacy DCS

The ALSTOM 8143-4002 is a migration-ready digital output module engineered for direct replacement within the ALSTOM 8143 Series Distributed Control System. As legacy DCS platforms approach end-of-life and OEM support windows close, plant engineers and maintenance teams face mounting pressure to source verified spare parts that preserve existing control logic, wiring infrastructure, and field device compatibility. The 8143-4002 addresses this challenge by offering a fully compatible, pre-shipment tested replacement that integrates into existing 8143 Series racks without requiring backplane modifications, firmware re-flashing, or I/O address reassignment.

Before initiating a module swap, engineers must confirm several critical parameters: the backplane slot assignment and module address configured in the DCS engineering station, the output channel count and load current ratings for connected field devices, the terminal block wiring layout (sourcing vs. sinking output configuration), and the power supply rail voltage supplied by the 8143 Series power module installed in the same rack. Mismatches in any of these areas can result in output channel faults, nuisance trips, or failure to achieve ready status during post-installation diagnostics.

In retrofit scenarios where the 8143 Series rack is being partially upgraded alongside newer control hardware, the 8143-4002 can coexist with updated communication modules and I/O expansion cards within the same chassis, provided the rack’s internal bus protocol and slot addressing scheme remain consistent with the original system configuration. This makes the module particularly valuable in phased migration projects where full system replacement is deferred over multiple maintenance windows.

For sites integrating the 8143-4002 into a broader control cabinet upgrade — for example, where an 8143 Series analog input module or a dedicated signal isolator is being replaced in the same outage — the digital output module’s terminal wiring should be documented and verified against the original loop drawings before power-up. HMI faceplate assignments tied to the output channels should also be confirmed in the SCADA or DCS operator station to avoid display mismatches after the replacement is commissioned.

All units are dispatched from verified multi-region stock, supported by a support terms confirmed by quotation, and accompanied by pre-shipment functional test documentation. Global express dispatch is available for emergency breakdown scenarios where minimizing unplanned downtime is the primary operational priority.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 8143-4002 into an active retrofit project requires a structured approach to component sequencing and compatibility verification. In a typical 8143 Series control cabinet upgrade, the digital output module is replaced in coordination with adjacent components: the 8143 Series power supply module must be confirmed to deliver the correct rail voltage for the output stage, and any 8143 Series analog input modules sharing the same rack should be documented to ensure the backplane bus is not disrupted during the hot-swap or cold-swap procedure.

Where the retrofit scope extends to communication infrastructure — for example, migrating from a proprietary DCS fieldbus to a Modbus RTU or PROFIBUS DP backbone — the 8143-4002’s output channel addressing must be re-verified in the engineering tool after any communication module replacement. Signal isolators installed between the digital output channels and field actuators should also be inspected for compatibility with the output module’s drive current and voltage levels, particularly in older installations where isolator datasheets may no longer be readily available.

For projects involving I/O expansion — such as adding a new 8143 Series I/O expansion card to accommodate additional field points — the slot addressing scheme must be reviewed to ensure the 8143-4002 retains its original module address after the expansion card is inserted. Programming cable access to the DCS engineering station should be confirmed before the outage window begins, as post-replacement logic verification and forced output testing are standard commissioning steps that require a live connection to the controller.

In control cabinets where an HMI panel is directly wired to output status signals from the 8143-4002, the HMI screen configuration should be reviewed and backed up before the replacement. This ensures that operator display continuity is maintained and that any custom alarm or status indicators tied to the digital output channels are correctly mapped after the module is reinstated.

Downtime Control During System Migration

Minimizing unplanned downtime during a digital output module replacement on an 8143 Series DCS requires advance preparation across several disciplines. Before the maintenance window opens, the existing module’s channel assignments, output states, and any active interlocks should be documented from the DCS engineering station. Where process conditions allow, output channels should be placed in manual or safe-state mode to prevent unintended actuator movement during the physical swap.

The original control program logic — including output forcing tables, interlock conditions, and sequence step assignments — should be backed up to a portable engineering laptop before the module is removed. This backup serves as the reference for post-installation verification and allows rapid restoration if the replacement module requires any address or configuration adjustment.

Physical installation of the 8143-4002 should follow the rack’s slot insertion procedure, with terminal block reconnection verified against the documented wiring schedule. After power-up, a channel-by-channel output test using the DCS diagnostic tools confirms that all field devices respond correctly before the system is returned to automatic control. This structured approach consistently achieves sub-four-hour replacement cycles for experienced maintenance teams, even in complex multi-rack 8143 Series installations.

Retrofit Support FAQ

Q: Is the 8143-4002 a direct replacement for the original ALSTOM module, or are there hardware revisions to consider?
A: The 8143-4002 is supplied as a direct functional replacement for original 8143 Series installations. Hardware revision differences, if any, are evaluated during pre-shipment testing to confirm output channel performance meets OEM specifications. Customers are advised to confirm the rack firmware version with their DCS vendor if revision-specific compatibility is a concern.

Q: What wiring checks are required before installing the replacement module?
A: Verify the terminal block wiring against the original loop drawings, confirm the sourcing or sinking output configuration, and check that field device load currents are within the module’s rated output capacity. Any signal isolators in the output loop should also be inspected for compatibility.

Q: How is pre-shipment testing performed, and what documentation is provided?
A: Each 8143-4002 unit undergoes a functional output channel test prior to dispatch. Test results are documented and available upon request. Units are shipped with a test confirmation record to support incoming inspection and maintenance records.

Q: What support terms and stock availability terms apply?
A: All units are covered by a support terms confirmed by quotation from the date of dispatch. Multi-region stock is maintained to support emergency breakdown orders with global express shipping. Contact the sales team for lead time confirmation and volume availability.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ALSTOM
Assorted Brands

Model / Series

8143-4002
Legacy Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ALSTOM 8143-4002
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
