Allen-Bradley 440R-C23017 Migration-Ready Safety Relay

Overview

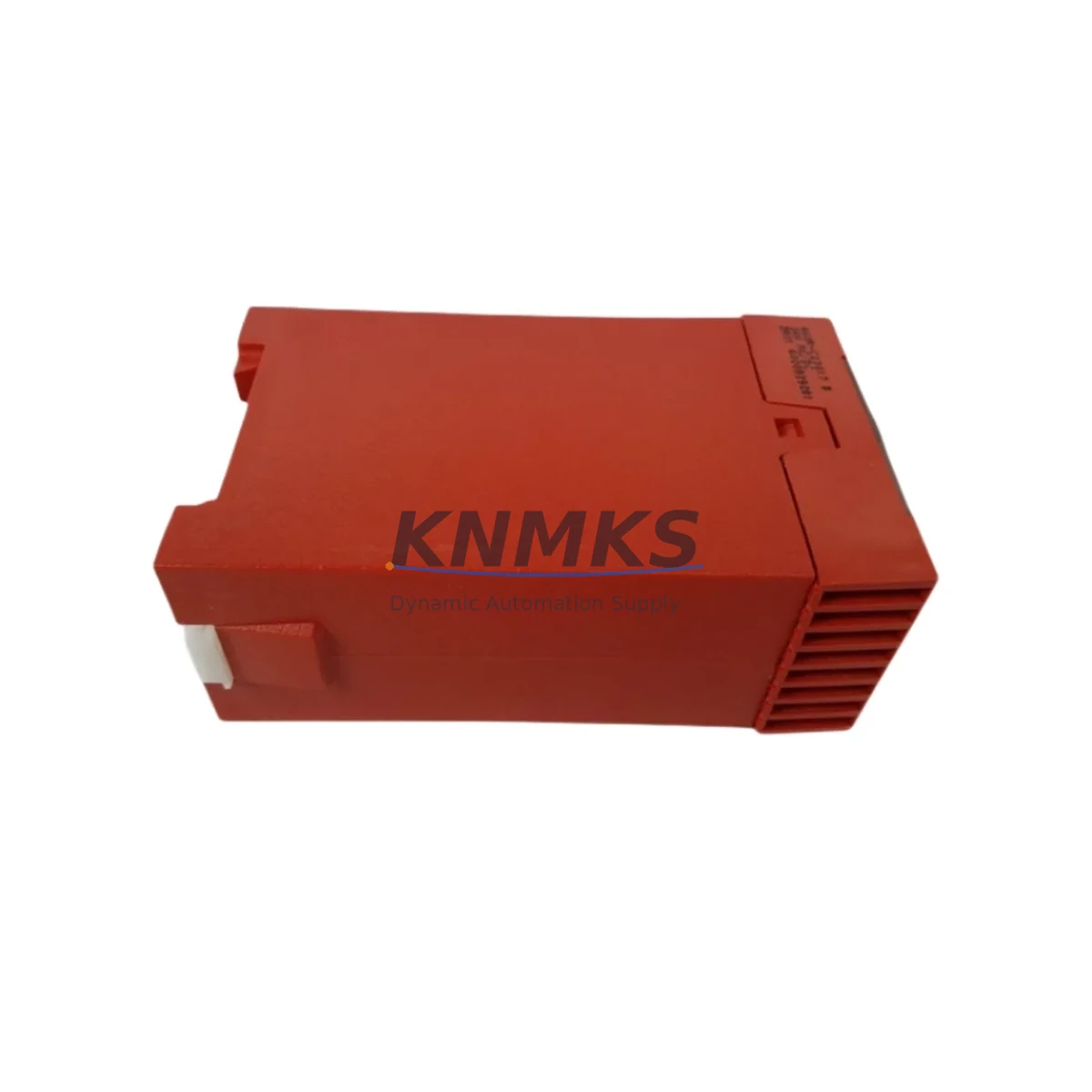

Allen-Bradley 440R-C23017 Migration-Ready Safety Relay for Legacy Control Systems

The Allen-Bradley 440R-C23017 is a dual-channel, force-guided safety relay from the Guardmaster 440R series, engineered to serve as a direct migration-ready replacement for aging safety interlock circuits in legacy control cabinets. As industrial facilities face the challenge of maintaining operational continuity while retiring end-of-life safety components, the 440R-C23017 provides a validated, drop-in upgrade path that preserves existing wiring layouts, terminal assignments, and safety logic without requiring full panel redesigns or extended commissioning windows.

The 440R-C23017 is designed for integration into safety circuits that monitor emergency stop buttons, light curtains, safety gates, two-hand control devices, and enabling switches. Its dual-channel input architecture satisfies Category 3 and Category 4 safety requirements per ISO 13849-1, making it suitable for machinery safety applications across petrochemical processing, power generation, mining extraction, water treatment, metallurgical operations, port handling equipment, and continuous manufacturing lines where unplanned downtime carries significant operational and financial consequences.

When replacing an older Guardmaster relay or a third-party equivalent, engineers must verify several critical parameters before commissioning. Supply voltage compatibility — typically 24 V DC or 115/230 V AC depending on the variant — must match the existing panel power distribution. Terminal block pitch and wiring gauge compatibility should be confirmed against the original relay footprint to avoid rewiring delays. The 440R-C23017 uses standard 35 mm DIN rail mounting, consistent with most legacy panel layouts, which eliminates the need for custom brackets or panel cutout modifications. Relay output contact ratings, including maximum switching current and voltage, must be cross-checked against the downstream contactors or solenoid valves being controlled.

In retrofit planning, it is common to pair the 440R-C23017 with the Allen-Bradley 440C-CR30 Compact GuardLogix safety controller when upgrading from a relay-based safety architecture to a programmable safety platform. For facilities retaining relay-based logic, the 440R-E13R2 expansion module can extend the number of monitored safety zones without replacing the base relay, preserving the existing safety circuit topology. When the control cabinet also houses a PowerFlex 525 or PowerFlex 755 variable frequency drive, the safety relay’s output contacts can be wired directly to the drive’s STO (Safe Torque Off) terminals, enabling coordinated motor safety shutdown without additional interface modules.

Communication continuity is another key consideration during migration. If the legacy system uses a DeviceNet or ControlNet safety network, transitioning to EtherNet/IP-based safety with a 1756-EN2TR ControlLogix communication module may be planned in parallel with the relay replacement. The 440R-C23017 operates as a standalone hardwired device and does not require network reconfiguration, making it an ideal interim solution during phased migration projects where network upgrades are scheduled separately from hardware replacements.

Firmware compatibility is not a concern for the 440R-C23017 since it is a hardwired relay device with no embedded firmware. However, if the safety relay feeds inputs to a safety PLC such as the 1756-L73S GuardLogix controller, the safety program’s input mapping and safety function block parameters should be reviewed to confirm that the relay’s response time and output contact behavior align with the existing safety function definitions. This review is typically completed during the Factory Acceptance Test (FAT) phase before on-site installation.

Installation space confirmation is straightforward: the 440R-C23017 occupies a standard relay module footprint on DIN rail, and its compact housing allows installation in densely populated control cabinets without displacing adjacent terminal blocks, power supplies, or communication modules. Pre-shipment testing at our facility includes functional verification of both input channels, output contact continuity, and reset circuit behavior, ensuring that each unit arrives ready for immediate installation and commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a thorough audit of the existing safety circuit documentation. Before removing the legacy relay, engineers should capture the current wiring diagram, terminal assignments, and safety function test records. The 440R-C23017 can then be installed on the same DIN rail position, with terminal connections mapped directly from the legacy wiring diagram in most standard configurations.

In cabinets where the safety relay operates alongside a 1756-OB16IS digital output module or a 1756-IB16 digital input module within a ControlLogix rack, the relay’s output contacts interface with the I/O module’s field wiring terminals. Confirming the I/O module’s input voltage range and current sink/source configuration prevents signal compatibility issues during commissioning. For cabinets that include a 1783-US8T Stratix unmanaged switch for local HMI communication, the relay replacement does not affect network topology, and HMI screen logic referencing safety status tags remains valid without modification.

Power supply capacity should be assessed when adding the 440R-C23017 to an existing panel. If the cabinet uses a 1606-XLP72E power supply, its 72 W output capacity should be verified against the total panel load including the new relay’s coil current draw. In most standard configurations, the 440R-C23017’s coil consumption is low enough to remain within existing power budget margins without requiring a power supply upgrade.

For facilities managing multiple safety zones, the 440R-E13R2 expansion relay can be added to the 440R-C23017 base unit to monitor additional safety inputs without duplicating the base relay infrastructure. This approach is particularly effective in phased retrofit projects where new safety zones are added incrementally as production lines are upgraded.

Downtime Control During System Migration

Minimizing production interruption during safety relay replacement requires careful pre-staging and a structured commissioning sequence. The recommended approach is to pre-wire the 440R-C23017 on a temporary DIN rail section adjacent to the legacy relay, verify all input and output connections against the wiring diagram, and perform a bench-level functional test before the scheduled maintenance window. During the maintenance window, the legacy relay is de-energized, disconnected, and replaced with the pre-staged 440R-C23017 in a single swap operation, reducing live panel work time to under 30 minutes in most configurations.

Original safety program logic in the connected safety PLC does not require modification when the 440R-C23017 is used as a direct replacement, provided that the relay’s output contact behavior — normally open, normally closed, and timing characteristics — matches the legacy device’s specifications. Safety function validation testing, including manual actuation of all monitored safety devices and verification of relay reset behavior, should be completed before returning the machine to production. All test results should be documented and retained as part of the machine’s safety file per ISO 13849-1 requirements.

Retrofit Support FAQ

Q: Is the 440R-C23017 a direct drop-in replacement for older Guardmaster relay models?
A: In most configurations, yes. The 440R-C23017 shares the same DIN rail mounting footprint and terminal layout as earlier Guardmaster 440R series relays. Minor wiring adjustments may be required depending on the specific legacy model being replaced. We recommend comparing terminal diagrams before installation.

Q: What pre-shipment testing is performed on each unit?
A: Each 440R-C23017 undergoes functional verification of both input channels, output contact continuity measurement, and reset circuit behavior testing before shipment. Units are shipped with test confirmation documentation.

Q: Does the 440R-C23017 require any firmware update or software configuration after installation?
A: No. The 440R-C23017 is a hardwired safety relay with no embedded firmware. It is fully operational immediately after correct wiring and functional testing. No programming software or network connection is required.

Q: What support terms and long-term supply support is available?
A: All units carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. We maintain stock inventory to support long-term spare parts programs, including multi-year procurement agreements for facilities managing extended maintenance cycles.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

440R-C23017

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: Allen-Bradley 440R-C23017
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
