Allen-Bradley 2711P-T12C4D1 Migration-Ready HMI for Legacy Control Systems

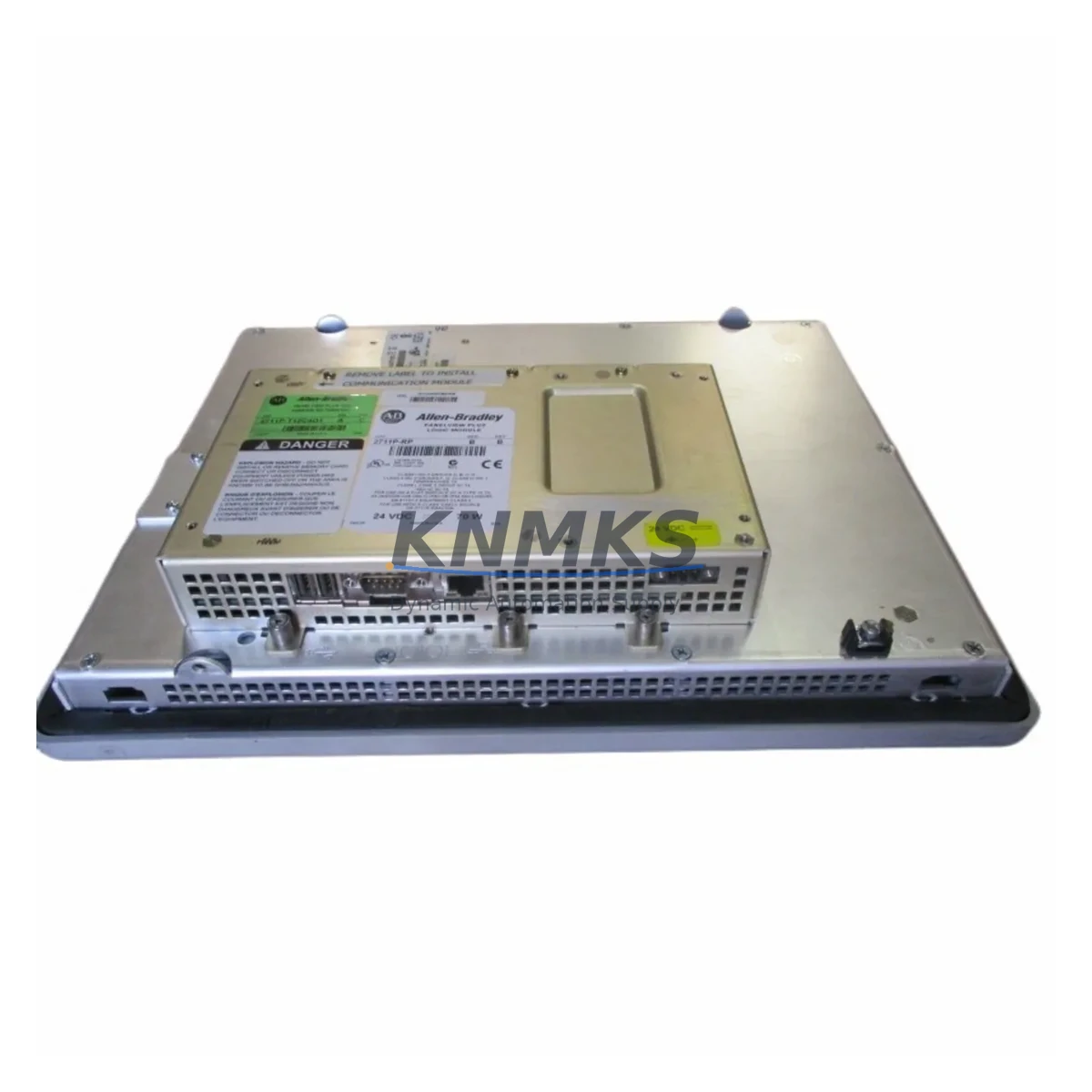

The Allen-Bradley 2711P-T12C4D1 is a 12.1-inch color TFT touch screen operator interface terminal from Rockwell Automation’s PanelView Plus 1250 series. Designed for demanding industrial environments, this unit serves as a direct migration-ready replacement for aging PanelView 1000e, PanelView 1200e, and earlier PanelView Plus generation terminals that have reached end-of-life or are no longer supported under active Rockwell Automation firmware maintenance cycles.

For facilities running legacy Allen-Bradley SLC 500, PLC-5, or early ControlLogix L5x platforms, the 2711P-T12C4D1 provides a validated upgrade path that preserves existing control logic while modernizing the operator interface layer. Its dual-port EtherNet/IP connectivity and native DH-485 support allow it to bridge older serial-based control architectures with contemporary Ethernet-based plant networks — a critical capability when phased migration must occur without full system shutdown.

When planning a retrofit around the 2711P-T12C4D1, engineers must verify several key parameters before commissioning. Power supply capacity is the first checkpoint: the unit requires a 24 VDC input, and the existing panel power supply — often a 1606-XLP or 1606-XLS series unit — must be confirmed to deliver sufficient current headroom after accounting for all co-installed modules. Terminal wiring must be reviewed against the original PanelView wiring diagram, particularly for the RS-232 and DH-485 port pinouts, which differ from earlier PanelView 550 and 900 series configurations.

Backplane interface and rack slot compatibility are not applicable to this standalone HMI terminal, but mounting cutout dimensions must be carefully measured. The 2711P-T12C4D1 uses a standard PanelView Plus 1250 panel cutout (approximately 310 mm × 248 mm), which may differ from the cutout of the unit being replaced. In many legacy installations, a panel adapter plate or cutout modification is required to achieve a clean mechanical fit without reworking the entire control cabinet door.

Module addressing and communication link configuration are handled through RSLinx Classic or RSLinx Enterprise, depending on the host controller platform. For systems running CompactLogix L3x or ControlLogix L6x/L7x controllers, the EtherNet/IP path is straightforward. For older SLC 500 or MicroLogix 1100 installations, the DH-485 network adapter — such as the 1761-NET-AIC — must be confirmed present and correctly addressed before the 2711P-T12C4D1 can establish a live data connection.

Program compatibility is a central concern in any HMI migration. Application files developed in PanelBuilder 32 for legacy PanelView terminals must be converted using FactoryTalk View ME Studio before they can be deployed to the 2711P-T12C4D1. Tag database mapping, alarm configuration, and screen navigation logic should be validated in simulation mode prior to live commissioning. HMI screen layouts may require redesign to accommodate the 2711P-T12C4D1’s 800×600 SVGA resolution if the source terminal operated at a lower display resolution.

Firmware version compatibility between the 2711P-T12C4D1 and the host ControlLogix or CompactLogix controller should be confirmed using the Rockwell Automation Product Compatibility and Download Center (PCDC). Mismatched firmware revisions between the HMI runtime and the controller’s EtherNet/IP communication module — such as the 1756-EN2T or 1756-ENBT — can cause intermittent communication faults that are difficult to diagnose during initial commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 2711P-T12C4D1 typically involves more than a simple terminal swap. In most legacy control cabinet installations, the HMI terminal is one node in a broader communication network that includes the host PLC, I/O modules, and ancillary devices. When the control system is based on a ControlLogix chassis — for example, a 1756-L71 or 1756-L74 controller paired with a 1756-EN2T EtherNet/IP communication module — the migration to the 2711P-T12C4D1 is relatively straightforward, as both devices share a common EtherNet/IP protocol layer.

For installations where the existing controller is a SLC 5/05 with a 1747-SCNR scanner or a MicroLogix 1400 with built-in EtherNet/IP, the 2711P-T12C4D1 can communicate directly over the plant Ethernet network. However, if the legacy system relies on a DH+ network — common in older SLC 5/04 and PLC-5 installations — a protocol bridge such as the 1761-NET-AIC or a third-party DH+ to EtherNet/IP gateway must be incorporated into the retrofit plan.

I/O expansion during the same retrofit window is a common practice. If the control cabinet also houses 1746-IB16 or 1746-OB16 discrete I/O modules in a SLC 500 rack, these can often be retained and addressed through the existing controller while the HMI layer is upgraded. This approach minimizes the scope of the retrofit and reduces the risk of introducing new wiring errors during the changeover.

Signal isolation is another consideration when the 2711P-T12C4D1 is installed in environments with significant electrical noise — for example, near variable frequency drives or large motor starters. In such cases, a signal isolator or surge suppressor on the RS-232 or DH-485 communication lines helps protect the HMI’s communication ports from transient damage. Programming cables such as the 1747-UIC USB-to-DH-485 adapter are typically used during commissioning to upload the converted FactoryTalk View ME application to the terminal before it is connected to the live control network.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy HMI replacement project. The 2711P-T12C4D1 supports a structured migration approach that allows the replacement terminal to be pre-configured, tested, and validated offline before the production line is taken down for the physical swap.

The recommended sequence begins with a full backup of the existing PanelView application using PanelBuilder 32 or FactoryTalk View ME, depending on the source terminal generation. The application is then converted and validated in simulation mode on an engineering workstation. Tag references, alarm setpoints, and screen navigation are verified against the original HMI specification before any physical work begins on the control cabinet.

During the physical changeover, the existing terminal is powered down and disconnected. The 2711P-T12C4D1 is mounted, wired, and powered up in isolation — without connecting to the live control network — to confirm that the unit boots correctly and the application loads without errors. Communication links are then established one at a time, starting with the EtherNet/IP connection to the host controller, and each data connection is verified before the system is returned to automatic mode.

This staged commissioning approach, combined with pre-shipment functional testing of the 2711P-T12C4D1 unit itself, typically allows the physical swap and recommissioning to be completed within a planned maintenance window of four to eight hours, depending on the complexity of the original installation. The support terms confirmed by quotation covering the replacement unit provides additional assurance that any latent hardware defects will be addressed without additional cost to the end user.

Retrofit Support FAQ

Q1: Is the 2711P-T12C4D1 a direct drop-in replacement for the PanelView Plus 1250 (2711P-T12C4A1 or 2711P-T12C4A8)?
The 2711P-T12C4D1 is functionally equivalent to other PanelView Plus 1250 12.1-inch variants and uses the same panel cutout dimensions and mounting hardware. The primary difference between catalog suffixes relates to the communication port configuration and DC input options. Application files are fully compatible across PanelView Plus 1250 variants when using FactoryTalk View ME Studio. Confirm the communication port requirements of your installation before ordering.

Q2: Can the 2711P-T12C4D1 communicate with a legacy SLC 5/04 controller over DH+?
The 2711P-T12C4D1 does not include a native DH+ port. Communication with SLC 5/04 or PLC-5 controllers over DH+ requires a protocol bridge device. The 1761-NET-AIC or a compatible DH+ to EtherNet/IP gateway can be used to establish this connection. Alternatively, if the SLC 5/04 has an available 1747-SCNR or 1747-SN remote I/O scanner, a network topology review may identify a more direct migration path.

Q3: What pre-shipment testing is performed on the 2711P-T12C4D1 before delivery?
Each unit undergoes a full functional test prior to shipment, including power-on verification, display calibration check, communication port continuity, and firmware version confirmation. Units are shipped with original or equivalent packaging to prevent transit damage. A support terms confirmed by quotation is included from the date of shipment, covering hardware defects under normal operating conditions.

Q4: How long does it typically take to receive the 2711P-T12C4D1, and is stock available?
We maintain in-stock inventory of the 2711P-T12C4D1 to support urgent replacement and planned retrofit projects. Standard lead time for in-stock units is 3–7 business days for domestic shipments. For time-critical shutdowns or emergency replacements, expedited shipping options are available. Contact our sales team to confirm current stock levels and delivery timelines for your location.
