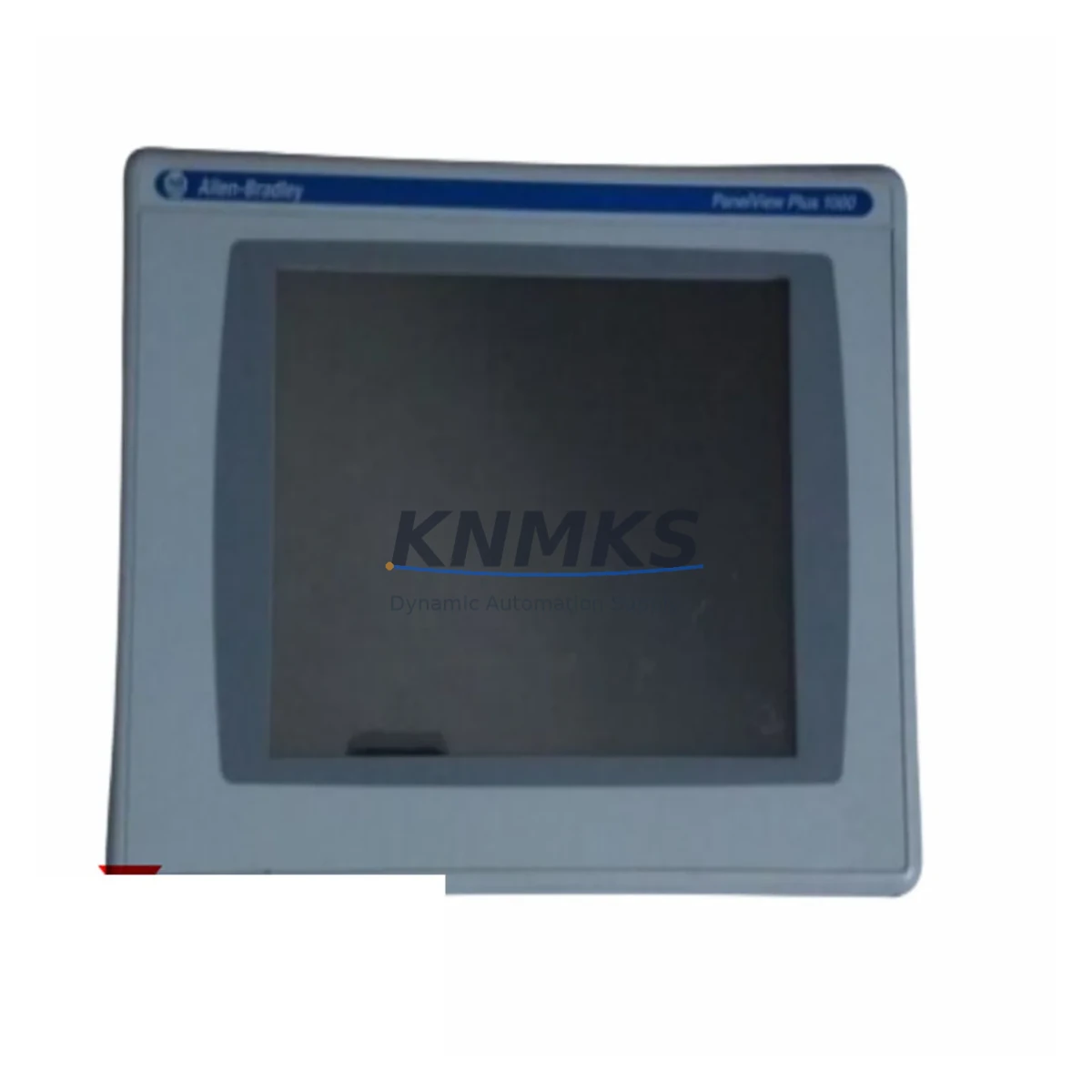

Allen-Bradley 2711P-T10C4D8 Migration-Ready HMI for Legacy Control Systems

Overview

Allen-Bradley 2711P-T10C4D8 Migration-Ready HMI for Legacy Control Systems

The Allen-Bradley 2711P-T10C4D8 is a 10.4-inch color touch terminal from the PanelView Plus 7 Standard series, engineered as a direct migration path for facilities operating legacy PanelView Plus 6 and earlier PanelView 1000/1200/1400 operator interfaces. With native EtherNet/IP communication, full ControlLogix and CompactLogix compatibility, and a form factor designed to minimize panel cutout modifications, this HMI is the preferred choice for brownfield retrofit projects where downtime must be tightly controlled and existing program logic preserved.

For automation engineers managing aging control cabinets, the 2711P-T10C4D8 addresses the most critical migration challenges: maintaining continuity of HMI screen logic, preserving tag database structures, and ensuring seamless communication with existing Logix-family controllers. The terminal supports FactoryTalk View ME application transfer, allowing engineers to migrate existing .MER runtime files with minimal rework, significantly reducing commissioning time on the plant floor.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 2711P-T10C4D8 into an existing control cabinet begins well before the physical swap. Engineers must audit the current panel layout to confirm the 88mm rear depth clearance, verify that the existing 24V DC power supply rail can sustain the terminal’s load alongside co-located devices such as the 1756-PA75 ControlLogix power supply module or a 1769-PA4 CompactLogix power supply. Terminal block wiring for the DC power input must be confirmed against the existing panel drawings before energizing the new unit.

On the communication side, the dual-port EtherNet/IP interface on the 2711P-T10C4D8 supports Device Level Ring (DLR) topology, which is a significant upgrade over single-port legacy terminals. If the existing network uses a linear EtherNet/IP topology connected to a 1756-EN2T or 1756-EN3TR communication module in the ControlLogix chassis, the IP address assignment and subnet configuration must be replicated precisely to avoid disrupting the controller’s I/O scan. Where the legacy system used a 1747-KE or 1784-U2DHP Data Highway Plus adapter for older SLC 500 controllers, a protocol migration plan must be developed — the 2711P-T10C4D8 does not natively support DH+ and will require an EtherNet/IP-to-DH+ gateway such as the 1761-NET-ENI or equivalent bridging device.

For facilities running mixed I/O architectures — combining 1756-IB16 digital input modules, 1756-OF8 analog output modules, and distributed 1734 POINT I/O nodes — the HMI tag database must be re-validated after migration. Any tag paths referencing slot numbers or module addresses in the original FactoryTalk View ME project must be audited against the current chassis configuration. If the control cabinet also houses a 1769-L33ER CompactLogix controller, the controller firmware version should be confirmed to be compatible with the FactoryTalk View ME version running on the 2711P-T10C4D8 before go-live.

Where the legacy HMI was connected to a third-party SCADA system via OPC-DA, the migration to the 2711P-T10C4D8 is an opportunity to transition to OPC-UA or FactoryTalk Historian integration, reducing long-term maintenance overhead on the communication layer.

Downtime Control During System Migration

Minimizing unplanned downtime during HMI migration requires a structured pre-commissioning approach. Before removing the legacy PanelView Plus 6 terminal, the existing .MER runtime application file must be backed up via USB to a secure engineering workstation. The FactoryTalk View ME project source (.MPA) should also be archived, as screen resolution differences between the legacy 640×480 display and the 2711P-T10C4D8’s 800×600 panel may require minor graphic rescaling — a process that can be completed offline without interrupting production.

The recommended migration sequence is: (1) back up legacy HMI application and controller program; (2) pre-configure the 2711P-T10C4D8 IP address and load the updated .MER file on the bench; (3) perform a bench-level communication test against a spare ControlLogix chassis or simulator; (4) schedule a planned maintenance window for the physical panel swap; (5) complete terminal installation, power-up, and live communication verification; (6) conduct operator acceptance testing on all critical screens before returning the line to production.

This sequence typically reduces live switchover time to under 60 minutes for a standard single-terminal replacement, protecting existing control logic, preserving alarm history continuity, and maintaining field control continuity throughout the migration window. All units are pre-tested prior to shipment to further reduce on-site commissioning risk.

Retrofit Support FAQ

Q1: Is the 2711P-T10C4D8 a direct replacement for the 2711P-T10C4D6 PanelView Plus 6?
Yes. The 2711P-T10C4D8 is the PanelView Plus 7 successor to the 2711P-T10C4D6. The panel cutout dimensions are compatible, and the EtherNet/IP communication protocol is identical. Minor bezel fitment verification is recommended, and the FactoryTalk View ME runtime application should be tested for screen resolution compatibility before deployment.

Q2: What commissioning steps are required after installation?
After physical installation, assign the correct IP address via the terminal’s configuration menu, load the pre-tested .MER runtime file via USB, verify EtherNet/IP communication with the ControlLogix or CompactLogix controller, and confirm all critical HMI screens display correct tag values. A full I/O status check and alarm acknowledgment test should be completed before returning the system to automatic mode.

Q3: Can this terminal communicate with legacy SLC 500 or PLC-5 controllers?
The 2711P-T10C4D8 communicates natively via EtherNet/IP. For legacy SLC 500 or PLC-5 systems using Data Highway Plus (DH+) or DH-485, an EtherNet/IP gateway bridge is required. This is a standard requirement for any modern HMI migration from legacy Allen-Bradley platforms and should be factored into the retrofit bill of materials.

Q4: What is the support terms and stock availability?
All units are covered by a support terms confirmed by quotation from the date of shipment. Stock is maintained for immediate dispatch. Pre-shipment functional testing is performed on every unit to verify display, communication, and power input integrity before delivery. Contact our team for lead time confirmation on volume orders.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

2711P-T10C4D8
ControlLogix Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Allen-Bradley 2711P-T10C4D8
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
