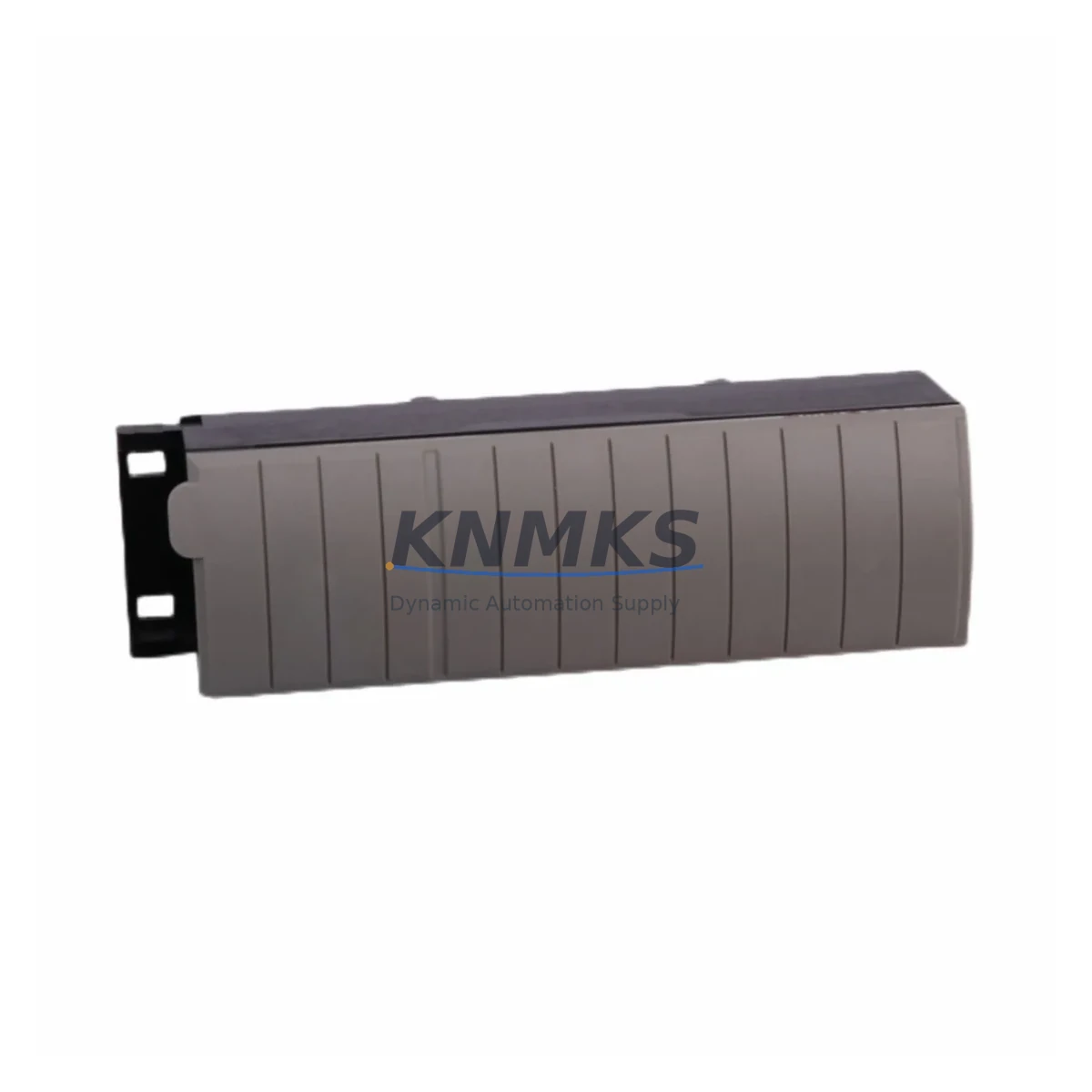

Allen-Bradley 1756-TBS6H Fail-Safe RTB for ControlLogix

Overview

Allen-Bradley 1756-TBS6H Fail-Safe RTB for ControlLogix: Fault Protection and Critical Industrial Field Reliability

The Allen-Bradley 1756-TBS6H is a 36-pin Removable Terminal Block (RTB) engineered for the ControlLogix 1756 platform, delivering fail-safe field wiring termination in the most demanding industrial control cabinet environments. Designed to withstand high electromagnetic interference, mechanical vibration, thermal cycling, and moisture ingress, the 1756-TBS6H ensures that field signal integrity is maintained without interruption — even in continuous-process facilities where unplanned downtime carries severe operational and safety consequences.

In safety-critical control architectures, the quality of every termination point directly influences the reliability of the entire safety loop. A compromised or degraded terminal block can introduce signal drift, intermittent contact resistance, or outright open-circuit faults that propagate upstream into the 1756-IB16 digital input module or the 1756-OB16E digital output module, triggering nuisance trips or — more dangerously — masking real fault conditions. The 1756-TBS6H eliminates this risk through its robust screw-clamp termination design, rated for repeated insertion and extraction cycles without degradation of contact force or electrical continuity.

The removable architecture of the 1756-TBS6H is a cornerstone of the ControlLogix 1756 platform’s maintainability strategy. Field wiring remains connected to the RTB while the I/O module is extracted for replacement or bench testing, eliminating the need to disconnect and re-terminate individual conductors during maintenance windows. This capability is especially valuable in petrochemical plants, power generation facilities, and metallurgical operations where control cabinet access is restricted and re-termination errors carry significant safety risk. When paired with the 1756-A17 chassis and a 1756-L85E controller, the 1756-TBS6H supports a fully modular, hot-swap-capable I/O architecture that minimizes mean time to repair (MTTR) across multi-rack deployments.

In high-density control cabinets where the 1756-IF16 analog input module handles process variable signals from pressure transmitters, flow meters, or temperature sensors, the 1756-TBS6H provides a stable, low-resistance termination interface that preserves signal accuracy across the full 4–20 mA or 0–10 V input range. Signal drift caused by loose or corroded terminations is a leading cause of false process alarms and PID loop instability in continuous manufacturing environments. The 1756-TBS6H’s gold-plated contact surfaces and vibration-resistant screw-clamp design address this failure mode directly, supporting long-term measurement accuracy without periodic re-torquing.

For safety instrumented systems (SIS) operating under IEC 61511 requirements, the 1756-TBS6H is compatible with the 1756-IB16S safety digital input module, enabling the construction of SIL 2-capable safety loops within the ControlLogix Safety platform. In these applications, the mechanical integrity of the RTB is not merely a convenience feature — it is a functional safety requirement. Any termination failure that prevents a safety input from reaching the 1756-L8SP safety controller during a demand event constitutes a dangerous undetected failure, directly impacting the probability of failure on demand (PFD) of the safety function. The 1756-TBS6H’s proven contact reliability supports the diagnostic coverage assumptions embedded in safety function design calculations.

Each 1756-TBS6H unit supplied by KNMKS undergoes pre-shipment functional verification, including contact resistance measurement and mechanical insertion/extraction cycle testing, before dispatch. Units are sourced from validated supply channels and are accompanied by a support terms confirmed by quotation covering manufacturing defects and contact integrity. Long-term stock availability is maintained to support multi-year spare parts programs for facilities operating ControlLogix 1756 systems across extended asset lifecycles of 10–20 years.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust ControlLogix 1756 control cabinet protection strategy requires coordinated selection of I/O modules, terminal blocks, power supplies, and communication infrastructure. The 1756-TBS6H serves as the field wiring interface layer, directly upstream of the I/O module backplane. In cabinets where the 1756-PA75 power supply provides 24 VDC rail power to the chassis, stable voltage delivery is essential to prevent contact bounce or false state transitions at the RTB level during power transients. Surge events on field wiring — common in outdoor installations near variable-frequency drives or high-voltage switchgear — can propagate through the terminal block into the I/O module if adequate surge suppression is not installed at the cabinet entry point.

In multi-rack architectures using the 1756-RM2 redundancy module, the 1756-TBS6H supports seamless primary-to-secondary controller switchover by maintaining continuous field wiring connectivity during the transition. The RTB’s mechanical stability ensures that no termination disturbance occurs during the switchover event, preserving process variable continuity and preventing spurious output state changes. For communication-intensive cabinets where the 1756-EN2T EtherNet/IP communication module handles real-time I/O data exchange, the integrity of field terminations at the RTB level directly influences the quality of process data available to the controller and upstream SCADA systems.

In high-vibration environments such as compressor stations, pump skids, or marine control panels, periodic inspection of RTB termination torque is recommended as part of the preventive maintenance schedule. The 1756-TBS6H’s screw-clamp design retains conductor position under sustained vibration, reducing the frequency of required re-torquing compared to spring-clamp alternatives in high-cycle thermal environments.

Critical Industrial Safety Applications

The 1756-TBS6H is deployed across a broad range of safety-critical and continuous-process industrial environments where control system reliability is non-negotiable:

Petrochemical and Refining: In distillation column control and emergency shutdown (ESD) systems, the 1756-TBS6H provides the field wiring interface for safety instrumented functions (SIFs) that initiate automatic process isolation on high-pressure or high-temperature demand events. Termination integrity is a functional safety requirement under IEC 61511 process sector guidelines.

Power Generation: In turbine control and boiler management systems, the RTB supports the field wiring of speed sensors, flame detectors, and valve position feedback signals. Signal continuity at the termination layer is critical to preventing nuisance trips that reduce generation availability and increase maintenance costs.

Mining and Mineral Processing: In conveyor drive control, crusher automation, and ventilation safety systems, the 1756-TBS6H operates in high-dust, high-vibration environments where contact reliability directly influences personnel safety and production continuity.

Water and Wastewater Treatment: In pump station control and chemical dosing systems, the RTB supports the field wiring of level sensors, flow transmitters, and motor control outputs in humid, corrosive cabinet environments.

Metallurgy and Steel Production: In rolling mill drives and furnace temperature control systems, the 1756-TBS6H withstands the high ambient temperatures and electromagnetic interference generated by large induction heating and arc furnace installations.

Port and Marine Operations: In crane control systems and ship-to-shore loading equipment, the RTB provides reliable field termination in salt-air, high-humidity environments where corrosion resistance and mechanical robustness are primary selection criteria.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the 1756-TBS6H?
Each 1756-TBS6H supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and contact integrity failures under normal operating conditions. Support requests are supported by our technical team with replacement dispatch within standard lead times.

Q2: What pre-shipment testing is performed on each unit?
Every 1756-TBS6H undergoes contact resistance measurement and mechanical insertion/extraction cycle verification before dispatch. Units that do not meet contact integrity specifications are quarantined and not shipped. Test records are available upon request for quality-critical procurement programs.

Q3: Is the 1756-TBS6H compatible with safety-rated I/O modules for SIL 2 applications?
Yes. The 1756-TBS6H is mechanically and electrically compatible with the 1756-IB16S safety digital input module within the ControlLogix Safety platform. Its contact reliability supports the diagnostic coverage assumptions required for SIL 2 safety function design under IEC 61511. Confirm compatibility with your specific safety function design documentation before installation.

Q4: What is the long-term supply availability for the 1756-TBS6H?
KNMKS maintains stock of the 1756-TBS6H to support multi-year spare parts programs for facilities operating ControlLogix 1756 systems. We provide sourcing support for extended asset lifecycle programs of 10–20 years, including bulk procurement for planned maintenance shutdowns and greenfield expansions.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-TBS6H
ControlLogix Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-TBS6H
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
