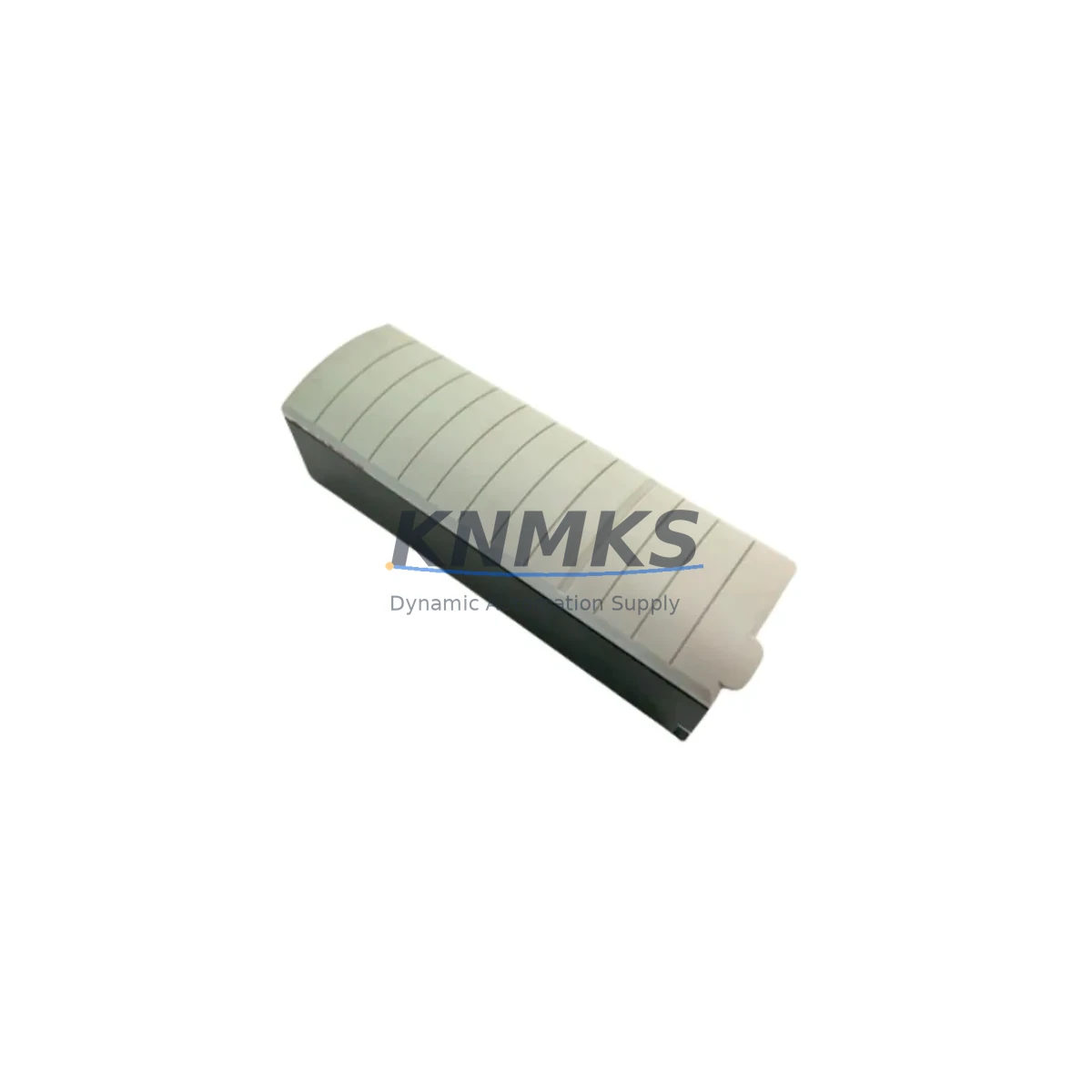

Allen-Bradley 1756-TBE Maintenance-Proven Spare Part

Overview

Allen-Bradley 1756-TBE Maintenance-Proven Spare Part for Factory Uptime

The Allen-Bradley 1756-TBE is a genuine terminal block housing designed for the ControlLogix 1756 series — one of the most widely deployed programmable automation controller (PAC) platforms in discrete manufacturing, process control, and critical infrastructure environments. As a maintenance-proven spare part, the 1756-TBE plays a foundational role in ensuring reliable I/O signal integrity across the ControlLogix backplane. Whether you are managing a scheduled annual shutdown, responding to an unplanned line stoppage, or building a proactive spare parts inventory for a multi-site facility, stocking the 1756-TBE is a low-risk, high-return decision for any maintenance or reliability engineering team.

At KNMKS, every 1756-TBE unit is sourced as an original Allen-Bradley component, subjected to pre-shipment functional verification, and backed by a support terms confirmed by quotation. We support procurement engineers and maintenance planners who require long-term supply continuity — including blanket order arrangements covering 12 to 36 months of forward demand.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 1756-TBE terminal block housing is the wiring interface between field devices and the ControlLogix I/O module. When performing a replacement or inspection of the 1756-TBE, a disciplined maintenance engineer will simultaneously verify the condition of all adjacent components in the same electrical circuit and control cabinet. Neglecting these associated components is a common cause of repeat failures and extended downtime after what should have been a straightforward spare part swap.

Begin with the 1756 series I/O modules themselves — digital input modules such as the 1756-IB16 or analog input modules such as the 1756-IF8 — confirming that the module face connector is undamaged and that no bent pins or corrosion are present before installing the replacement 1756-TBE. Next, inspect the 1756-A7 or 1756-A13 chassis backplane for signs of heat stress or connector wear, as a degraded backplane can cause intermittent I/O faults that are often misdiagnosed as terminal block failures.

Check the 1756-PA75 or 1756-PB75 power supply output voltage under load — an under-voltage condition stresses I/O modules and accelerates terminal block wear. For installations using 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules, verify that network diagnostics show no excessive retries or connection timeouts, which can indicate backplane or power integrity issues rather than a field wiring fault.

Field wiring connected to the 1756-TBE should be inspected for insulation integrity, correct torque on terminal screws, and absence of ground loops. In cabinets where signal isolators or barriers are used between field instruments and the ControlLogix I/O, confirm that isolator output levels remain within the module’s input specification. Finally, check panel fuses and circuit protection for the I/O circuit — a blown fuse on a field supply rail is frequently the root cause of the fault that led to the terminal block inspection in the first place.

For facilities running legacy ControlLogix systems alongside newer 1769 CompactLogix or 5069 Compact GuardLogix platforms, maintaining a cross-referenced spare parts list that covers terminal blocks, I/O modules, and power supplies for both platforms reduces procurement complexity and ensures that a single maintenance event does not expose gaps in your spare parts inventory.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the existing 1756-TBE, photograph the field wiring layout and label each conductor. ControlLogix I/O modules support hot-swap in many configurations, but always confirm with your system integrator’s documentation whether the specific I/O module in use supports removal under power.

Step 2 — Remove the terminal block: Disconnect field wiring from the existing 1756-TBE in sequence. Release the terminal block from the I/O module face connector using the appropriate tool. Inspect the module connector for damage before proceeding.

Step 3 — Install the replacement 1756-TBE: Seat the new terminal block firmly onto the I/O module connector. Reconnect field wiring in the documented sequence, applying correct torque to each terminal screw. Verify wire labeling matches the original documentation.

Step 4 — Functional verification: From the ControlLogix controller or RSLogix 5000 / Studio 5000 Logix Designer software, force-test each I/O point associated with the replaced terminal block. Confirm that all field signals read correctly before releasing the circuit to production.

Step 5 — Update maintenance records: Log the replacement date, part serial number, and technician ID in your CMMS. Schedule the next inspection interval based on the operating environment — typically 12 to 24 months for standard industrial environments, shorter for high-vibration or high-humidity installations.

This workflow minimizes mean time to repair (MTTR), maintains system compatibility, and ensures that the replacement is fully documented for audit and reliability analysis purposes.

Spare Parts Support FAQ

Q1: Is the 1756-TBE compatible with all 1756 series I/O modules?
The 1756-TBE is designed for use with the ControlLogix 1756 I/O module family. Compatibility depends on the specific I/O module variant — always cross-reference the module’s installation instructions or the Rockwell Automation product compatibility matrix to confirm the correct terminal block model for your specific 1756 I/O module before ordering.

Q2: How do you verify the 1756-TBE before shipment?
Every unit shipped by KNMKS undergoes a pre-shipment inspection covering physical integrity of the connector housing, terminal screw condition, and dimensional verification against OEM specifications. Units that do not pass inspection are not dispatched. All shipments include a support terms confirmed by quotation from the date of delivery.

Q3: Can KNMKS support long-term or blanket purchase orders for the 1756-TBE?
Yes. KNMKS accepts blanket orders covering 12 to 36 months of forward demand. This is particularly valuable for facilities managing multi-year maintenance contracts or operating in regions where import lead times are unpredictable. Contact our sales team to discuss volume pricing and delivery scheduling.

Q4: What should I do if my ControlLogix system shows I/O faults after replacing the terminal block?
First, verify that all field wiring is reconnected in the correct sequence and that terminal screws are torqued to specification. Next, check the I/O module status indicators and review the controller fault log in Studio 5000 Logix Designer. If faults persist, inspect the I/O module itself and the backplane connector for damage. Contact KNMKS technical support with the fault code and module catalog number for further assistance.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-TBE
ControlLogix Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-TBE
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
