Allen-Bradley 2711-K6C1 Migration-Ready HMI for Legacy PanelView Systems

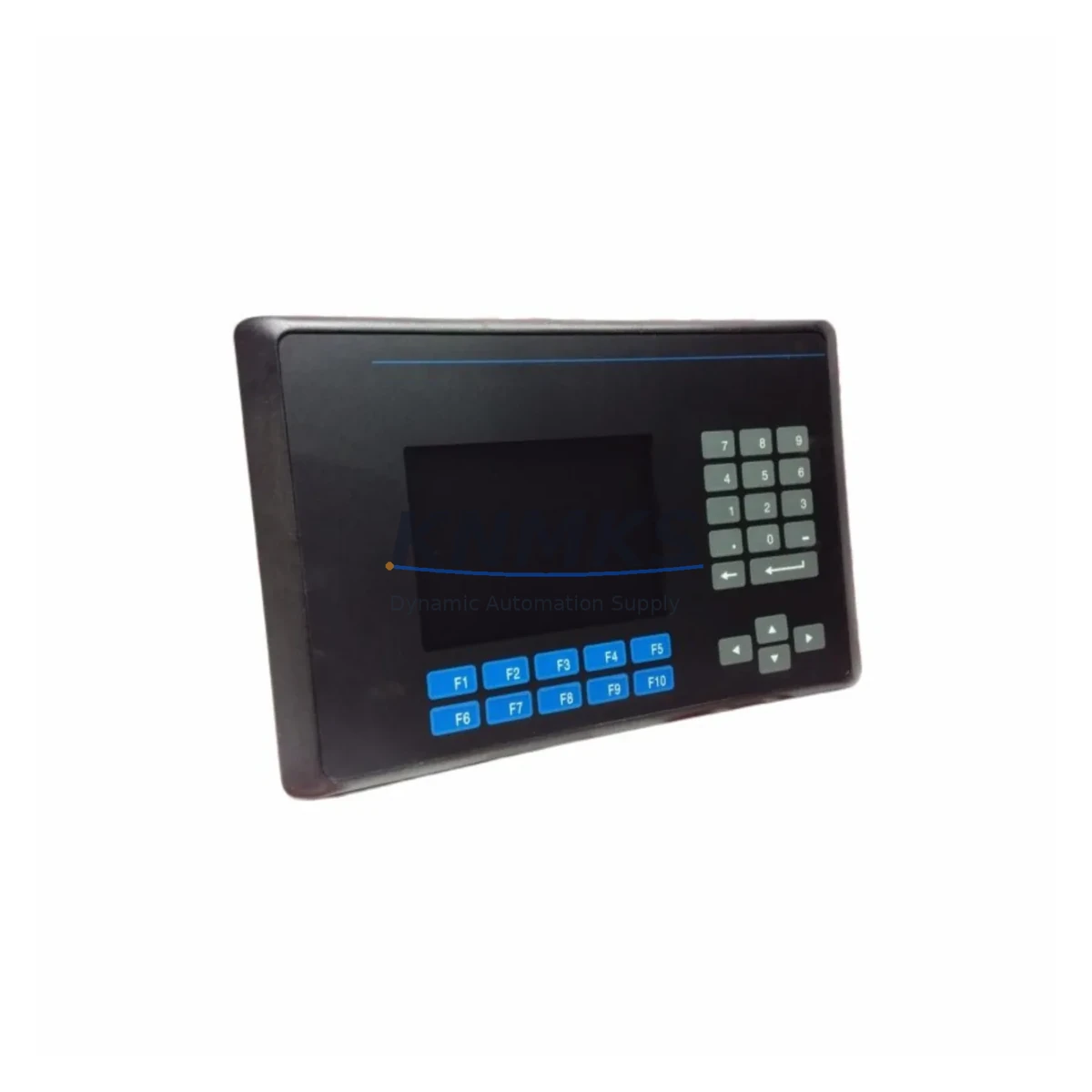

The Allen-Bradley 2711-K6C1 is a 6-inch color HMI operator terminal from the PanelView 600 series, originally designed for integration with Allen-Bradley SLC 500, PLC-5, and MicroLogix controller platforms via DH-485 and RS-232 communication links. As legacy PanelView 600 units reach end-of-life and OEM support is discontinued, the 2711-K6C1 remains a critical retrofit and replacement component for facilities operating aging control cabinets that cannot yet justify a full migration to PanelView Plus 7 or PanelView Plus 6 platforms.

This unit is supplied as a tested, migration-ready replacement. Each 2711-K6C1 is powered on, communication-verified, and functionally validated prior to shipment. For retrofit engineers managing brownfield automation systems, this means reduced commissioning risk and faster return to production. The support terms confirmed by quotation cover hardware defects and functional failures under normal industrial operating conditions, providing procurement teams with the supply continuity assurance required for long-cycle maintenance contracts.

When planning a PanelView 600 replacement, engineers must confirm the existing panel cutout dimensions — the 2711-K6C1 uses a standard bezel footprint compatible with most 600-class enclosure cutouts, but mounting depth and rear-clearance requirements should be verified against the control cabinet layout before ordering. Terminal block wiring for the 24 VDC power supply input must be confirmed against the existing power distribution rail, particularly in cabinets where a 1606-XLP or similar Allen-Bradley power supply module is shared across multiple devices. Voltage tolerance and inrush current characteristics should be reviewed to avoid nuisance tripping on older breaker configurations.

Communication link migration is one of the most time-sensitive steps in a PanelView 600 retrofit. The 2711-K6C1 supports DH-485 and RS-232 protocols natively. If the host controller is an SLC 5/03 or SLC 5/04 with an existing 1747-AIC link coupler on the DH-485 network, the replacement terminal can be addressed and configured without modifying the network topology. For systems where the controller has already been upgraded to a ControlLogix L6x or L7x chassis, a protocol bridge or a 1761-NET-AIC adapter may be required to maintain HMI communication continuity during the transition period. Engineers should document the existing node address assignments and verify that no address conflicts exist before bringing the replacement unit online.

Program and screen application compatibility is a key concern when replacing a 2711-K6C1 in a running production environment. PanelView 600 applications are developed in PanelBuilder 32 software. If the original .PBA application file is available, it can be transferred to the replacement terminal via a 2711-NC13 or 2711-NC14 programming cable connected to the terminal’s serial port. If the original application file has been lost — a common scenario in facilities managing 15–25 year old control systems — screen reconstruction from HMI printouts or PLC tag exports may be necessary. Retaining the original tag database structure from the SLC 500 program ensures that data table addresses mapped in the HMI application remain valid after the hardware swap.

For facilities undertaking a broader control cabinet upgrade that includes I/O expansion or rack reconfiguration, the 2711-K6C1 replacement is often coordinated alongside 1746-series I/O module additions or a 1747-L553 SLC 5/05 controller swap to introduce Ethernet/IP connectivity. In these scenarios, the HMI replacement is staged first to restore operator visibility, followed by the controller and I/O changes during a planned maintenance window. This sequencing minimizes total downtime and preserves the existing control logic during intermediate stages of the upgrade.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 2711-K6C1 retrofit begins with a complete audit of the existing control cabinet. Engineers should document the current DH-485 network node map, identify all devices sharing the communication link — including any 1747-SDN DeviceNet scanner modules or 1747-SCNR remote I/O scanner cards installed in the SLC 500 rack — and confirm that the replacement HMI terminal will not disrupt existing network traffic during the changeover.

Power distribution within the cabinet should be reviewed before installation. In cabinets where a 1606-XLP72E or 1606-XLP100E power supply module is feeding both the SLC 500 rack backplane and the HMI terminal, the additional inrush load of the replacement display should be factored into the available output capacity. If the power supply is operating near its rated load, a dedicated 24 VDC branch for the HMI terminal is recommended to prevent voltage sag during controller scan cycles.

For facilities where the SLC 500 rack includes 1746-NI4 analog input modules or 1746-OB16 digital output modules mapped to HMI display elements, the tag address structure in the PanelBuilder 32 application must be validated against the current SLC 500 program file before the replacement terminal is commissioned. Any discrepancies between the HMI tag database and the active PLC data table will result in display errors or incorrect operator feedback after the swap.

Where the retrofit scope includes a future migration path toward a PanelView Plus 6 or PanelView Plus 7 platform, the 2711-K6C1 replacement serves as an interim solution that maintains production continuity while the new HMI application is developed and validated in parallel. This approach allows engineering teams to convert PanelBuilder 32 screens to FactoryTalk View ME format without imposing an unplanned production outage on the existing line.

Downtime Control During System Migration

Minimizing downtime during a PanelView 600 replacement requires pre-staging the replacement 2711-K6C1 unit with the correct application file, verified communication settings, and confirmed node address before the maintenance window begins. The physical swap — disconnecting the failed or end-of-life terminal, mounting the replacement, reconnecting the DH-485 and power wiring, and restoring communication — can typically be completed within 30 to 60 minutes when all preparatory steps have been completed in advance.

To protect the original PLC program logic during the HMI swap, the SLC 500 controller should remain in RUN mode throughout the terminal replacement process. The DH-485 network will continue to operate normally while the terminal is disconnected, and the controller will maintain its scan cycle and output states without interruption. This approach eliminates the risk of inadvertent program changes or output state transitions during the hardware changeover.

For facilities where the HMI terminal is the primary operator interface for a critical process — such as a conveyor drive system controlled by a 1747-L553 SLC 5/05 or a temperature control loop managed through a MicroLogix 1400 — a temporary bypass procedure should be documented and communicated to operations personnel before the swap begins. This ensures that process control continuity is maintained at the field level even if the HMI is temporarily offline during the terminal replacement.

Post-installation verification should include a full screen navigation test, confirmation of all data table reads and writes between the HMI and the SLC 500, and a review of any alarm or event log entries generated during the changeover. Where the control system includes a 2711-NC13 programming cable connection for ongoing application maintenance, the cable connection should be tested and confirmed functional before the maintenance window is closed.

Retrofit Support FAQ

Q: Is the 2711-K6C1 a direct drop-in replacement for a failed PanelView 600 terminal?
A: Yes, for cabinets originally equipped with a 2711-K6C1 or compatible PanelView 600 variant. The physical mounting dimensions, power input requirements, and DH-485 communication interface are identical. The original PanelBuilder 32 application file must be loaded onto the replacement terminal before commissioning. If the original application file is unavailable, screen reconstruction services are available — contact [email protected] for details.

Q: What pre-shipment testing is performed on each unit?
A: Each 2711-K6C1 is powered on, display-verified, and communication-tested prior to shipment. A functional test is performed to confirm that the terminal initializes correctly and that all communication ports are operational. A test report is available on request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: Can this unit communicate with a ControlLogix or CompactLogix controller?
A: The 2711-K6C1 natively supports DH-485 and RS-232 communication. Direct EtherNet/IP communication with ControlLogix or CompactLogix controllers is not supported without a protocol bridge. A 1761-NET-AIC or equivalent adapter can be used to bridge DH-485 to DF1 for interim compatibility. For long-term ControlLogix integration, migration to a PanelView Plus platform is recommended.

Q: What is the typical lead time and inventory availability?
A: Units are maintained availability confirmed by RFQ for immediate shipment. Standard lead time is 1–3 business days for in-stock units. For bulk procurement or long-term supply agreements supporting multi-site retrofit programs, contact [email protected] or call +86 18359268345 to confirm inventory levels and pricing.
