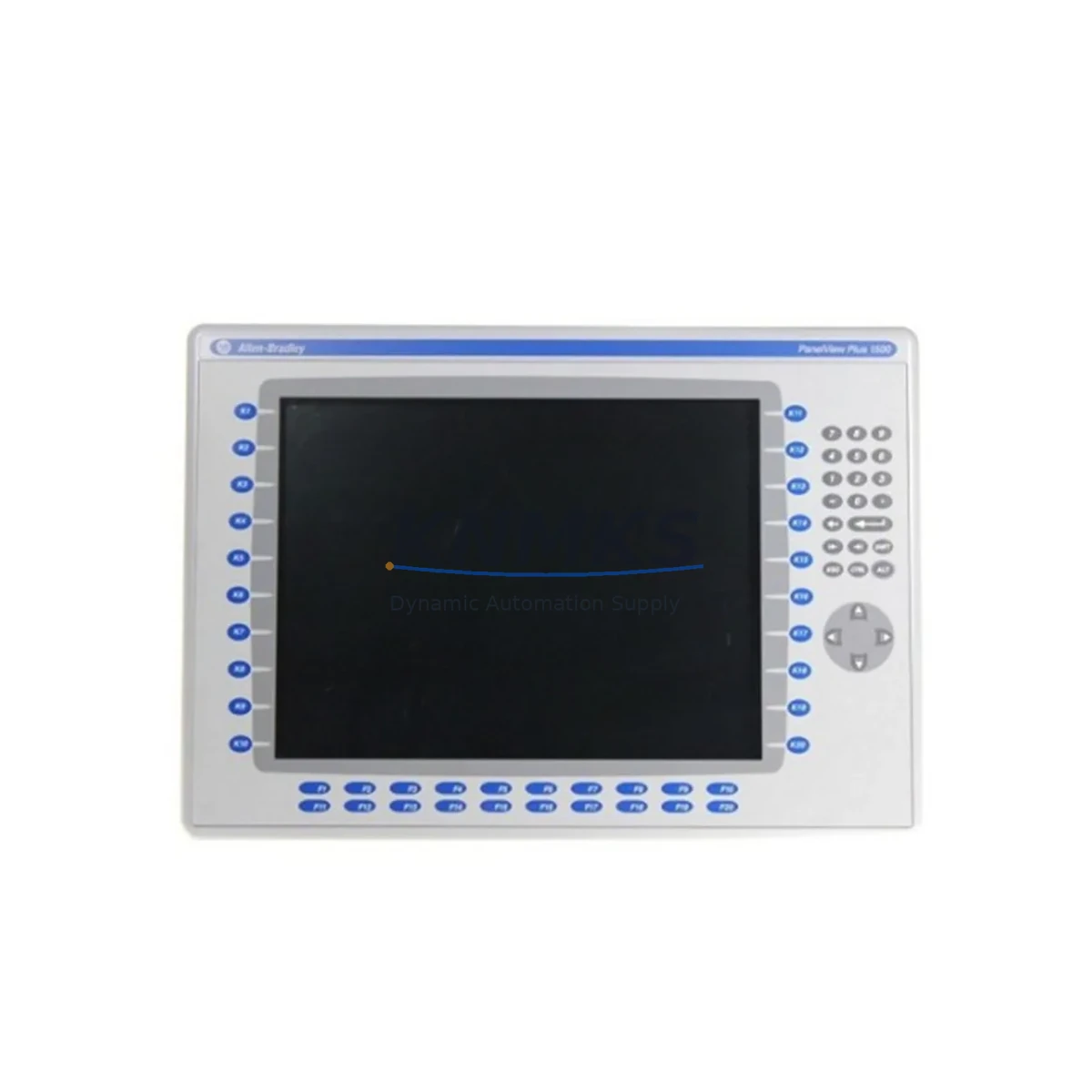

Allen-Bradley 2711P-K15C4A8 Maintenance-Proven Spare Part

Overview

Allen-Bradley 2711P-K15C4A8 Maintenance-Proven Spare Part for Factory Uptime

The Allen-Bradley 2711P-K15C4A8 is a 15-inch keypad-based HMI terminal from the PanelView Plus 6 series, engineered for demanding industrial environments where operator interface reliability directly determines production continuity. As a maintenance-proven spare part, this unit is sourced, inspected, and dispatched to support rapid field replacement in ControlLogix, CompactLogix, and legacy SLC/PLC-5 control architectures. Whether you are managing a scheduled annual overhaul, responding to an unplanned HMI failure, or building a strategic spare parts inventory for a multi-line facility, the 2711P-K15C4A8 delivers the compatibility and confidence that maintenance and procurement engineers require.

Industrial HMI terminals are among the most operator-exposed components in a control cabinet. Keypad wear, display degradation, communication faults, and power supply instability are the leading causes of PanelView Plus 6 failures in high-cycle production environments. Stocking a verified replacement unit eliminates the extended lead times associated with OEM procurement channels and ensures that your maintenance team can restore operator visibility within hours rather than days. Every unit shipped from KNMKS undergoes functional verification prior to dispatch and is covered by a support terms confirmed by quotation, giving procurement engineers a documented quality assurance baseline for internal compliance records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 2711P-K15C4A8 in a live control cabinet is rarely an isolated task. Maintenance engineers working on PanelView Plus 6 terminals should treat the HMI replacement as an opportunity to audit the surrounding electrical infrastructure and reduce the risk of secondary failures that could extend downtime beyond the initial incident.

Begin with the 24V DC power supply feeding the HMI. Units such as the Allen-Bradley 1606-XLP series or equivalent industrial DIN-rail power supplies should be load-tested and inspected for output voltage drift, which is a common cause of intermittent HMI resets and communication dropouts that are frequently misdiagnosed as HMI hardware faults. Verify that the power supply output remains within the 2711P-K15C4A8 input tolerance under full panel load.

Next, inspect the EtherNet/IP communication path. The managed switch or unmanaged switch port serving the HMI should be checked for link speed negotiation, duplex mismatch, and cable integrity. In facilities running Rockwell’s Studio 5000 environment, the 1783-US series stratix switches are commonly deployed alongside PanelView Plus 6 terminals and should be included in the PM checklist. Confirm that the HMI’s IP address, subnet mask, and gateway settings are documented before removal to accelerate recommissioning of the replacement unit.

For panels that also house a ControlLogix or CompactLogix chassis, inspect the 1756-EN2T or 1769-L series communication modules for firmware currency and connector seating. A loose backplane connection or an outdated firmware revision on the controller’s EtherNet/IP bridge module can prevent the replacement HMI from establishing a valid connection even when the terminal itself is fully functional. Similarly, review any 1756-IB16 or 1756-OB16 I/O modules in the same chassis for status indicator anomalies that may have been masked by the HMI fault.

If the control cabinet includes a 1492-J series terminal block assembly or Phoenix Contact PTFIX distribution blocks for field wiring, verify that all 24V commons and signal grounds are properly landed and that no terminal screws have loosened due to thermal cycling. Loose signal grounds are a leading cause of HMI display noise and false alarm conditions that can be incorrectly attributed to the HMI terminal itself.

Finally, check any 700-series Allen-Bradley control relays or safety relays in the same panel for contact wear, particularly on circuits that the HMI monitors for status feedback. Worn relay contacts introduce signal bounce that can generate spurious fault messages on the PanelView display, creating operator confusion and unnecessary maintenance calls after the HMI replacement is complete.

Site Replacement Workflow

The 2711P-K15C4A8 is a direct form-fit-function replacement for earlier PanelView Plus 6 units sharing the same 15-inch keypad form factor. Before removing the existing terminal, export the current application file from FactoryTalk View ME using a USB drive or network backup to ensure that the operator interface program is preserved. Confirm the firmware version running on the existing unit and load a matching or compatible firmware revision onto the replacement terminal before installation to avoid application compatibility errors during startup.

Physically, the 2711P-K15C4A8 mounts into a standard panel cutout using the integrated mounting clamps. Disconnect the 24V DC power connector and the EtherNet/IP cable before removal. After installing the replacement unit, reconnect power and communications, restore the application file, and perform a full-screen functional test covering all operator navigation paths, alarm acknowledgment sequences, and data entry functions before returning the panel to production. Document the replacement in the facility’s maintenance management system with the unit serial number and support terms start date for future reference.

For facilities managing legacy systems where the original 2711P-K15C4A8 has been discontinued through standard distribution channels, KNMKS maintains long-term inventory availability to support extended system life beyond the OEM’s standard product lifecycle. This is particularly relevant for food and beverage, pharmaceutical, and utilities facilities where control system replacement projects carry multi-year capital planning horizons and where maintaining the existing operator interface is operationally preferable to a full HMI migration.

Spare Parts Support FAQ

Q: Is the 2711P-K15C4A8 compatible with my existing FactoryTalk View ME application?
A: Yes, provided the replacement unit is loaded with a compatible firmware version. KNMKS recommends confirming the firmware revision of your existing terminal before ordering. Our technical team can advise on firmware compatibility based on your application version and controller firmware level.

Q: What pre-shipment testing does KNMKS perform on the 2711P-K15C4A8?
A: Each unit undergoes power-on functional verification and communication port integrity checks before dispatch. Units that do not pass functional verification are not shipped. A test report is available upon request for quality assurance documentation purposes.

Q: How should I manage my spare parts inventory for PanelView Plus 6 terminals?
A: For facilities operating three or more PanelView Plus 6 terminals, maintaining at least one verified spare unit on-site is recommended. HMI terminals in high-cycle or harsh environments typically exhibit a mean time between failure that justifies on-site stocking. KNMKS supports blanket order arrangements for multi-site procurement programs.

Q: What is covered under the support terms confirmed by quotation?
A: The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. KNMKS provides advance replacement support for support requests to minimize facility downtime during the return and inspection process.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

2711P-K15C4A8
ControlLogix Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Allen-Bradley 2711P-K15C4A8
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
