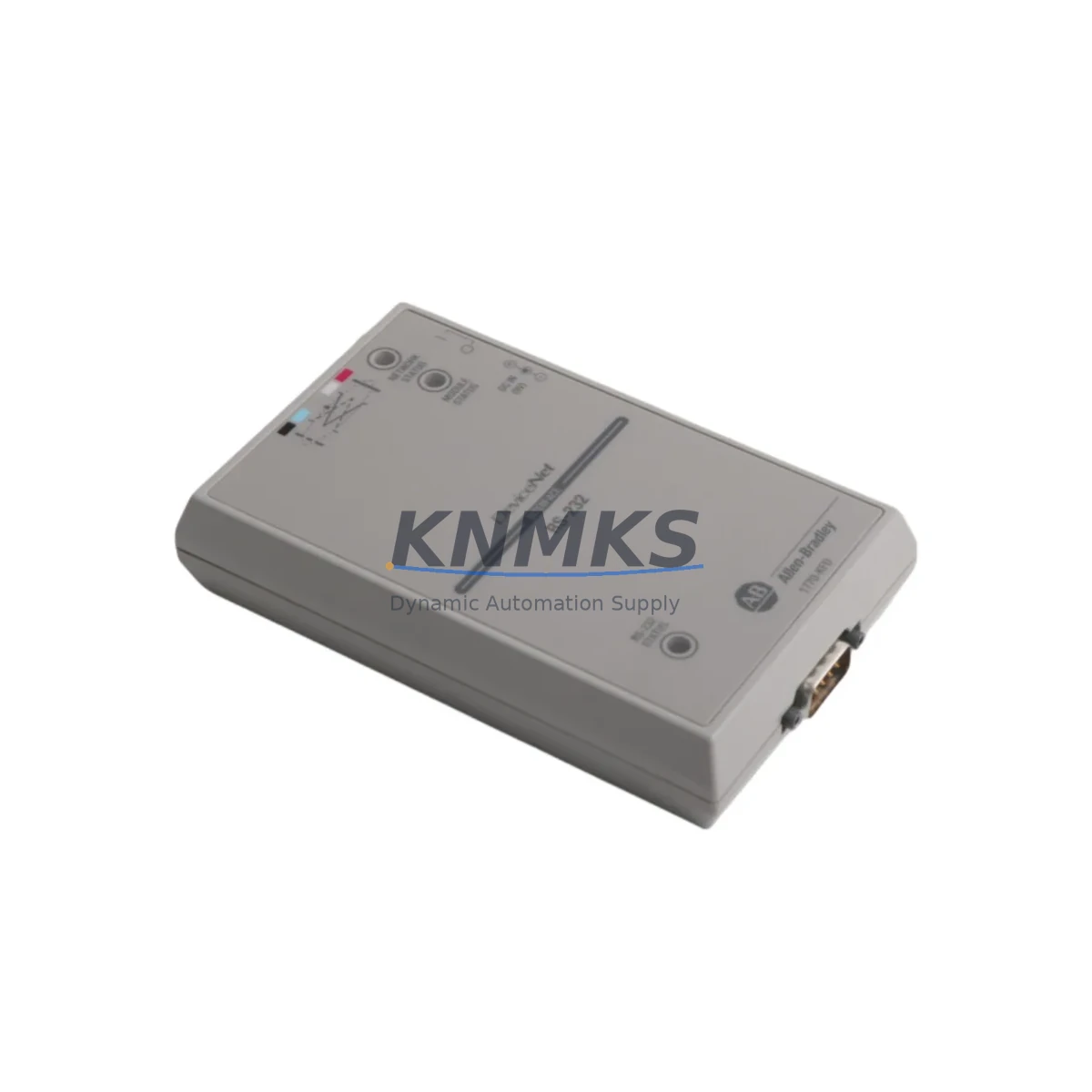

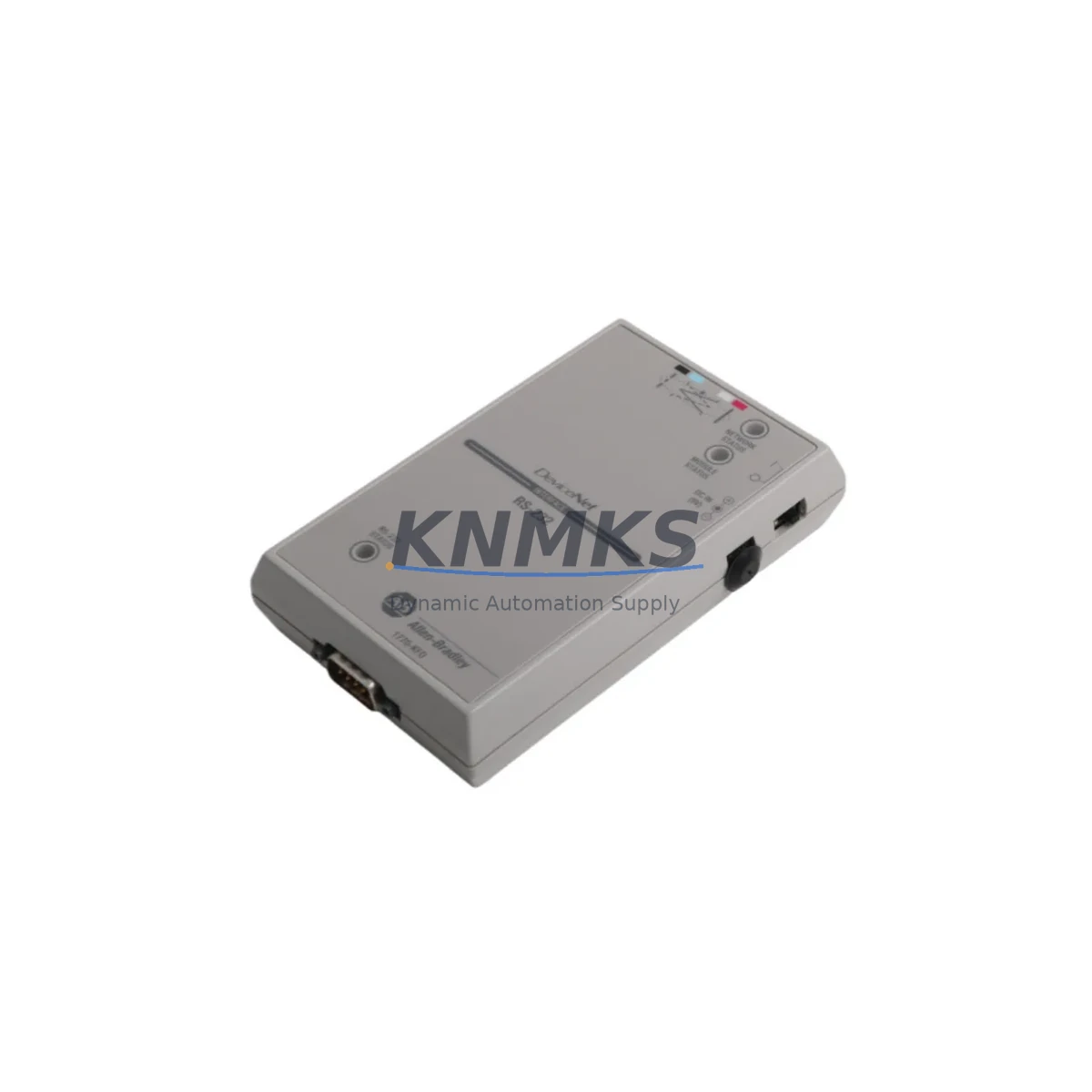

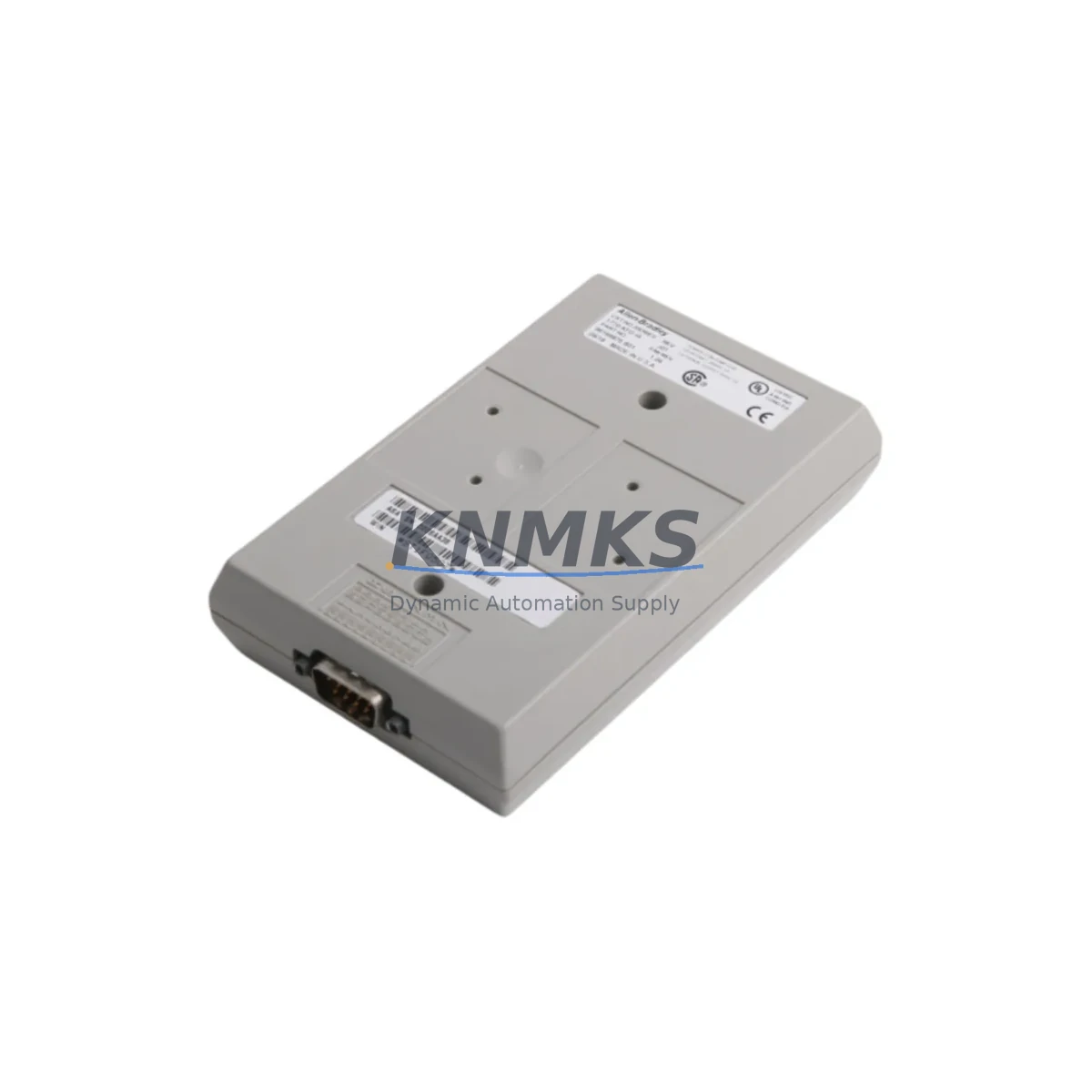

Allen-Bradley 1770-KFD Migration-Ready DH+ Interface for Legacy Control Systems

The Allen-Bradley 1770-KFD is a DH+ to RS-232 communication interface designed to bridge legacy Data Highway Plus networks with modern programming terminals, SCADA systems, and HMI platforms. As Allen-Bradley’s 1770 Series approaches end-of-life and spare parts become increasingly scarce, the 1770-KFD remains a critical component for engineers managing aging control architectures across discrete manufacturing, process automation, and utilities sectors. Whether you are maintaining an existing 1770 Series installation or planning a phased migration to a ControlLogix or CompactLogix platform, the 1770-KFD provides the communication continuity needed to keep production running without forcing an immediate full-system cutover.

Each unit is sourced from verified supply channels, pre-shipment tested for DH+ link integrity and RS-232 signal quality, and backed by a support terms confirmed by quotation. In-stock inventory supports urgent spare part requirements and planned retrofit schedules alike, with global shipping available to minimize procurement lead times.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 1770-KFD into an existing or transitional control architecture requires careful coordination across several system layers. On the programming side, RSLinx Classic must be configured with the KFD driver, and the DH+ node address assigned to the interface must be unique within the network segment. Engineers migrating from a 1770-KF2 or 1770-KF3 should document the existing node address and baud rate settings before swapping hardware to avoid communication disruptions during the changeover window.

At the controller level, the 1770-KFD is commonly used alongside SLC 5/04 and SLC 5/05 processors, which retain native DH+ ports. When the migration path leads toward a ControlLogix L6x or L7x chassis, a 1756-DHRIO module is typically added to the ControlLogix backplane to maintain DH+ connectivity during the transition period, allowing the 1770-KFD to continue serving as the programming interface while legacy SLC or PLC-5 nodes remain online. This parallel operation approach is widely used to avoid full production shutdowns during phased migrations.

For installations where the control cabinet also houses a PanelView or PanelView Plus HMI communicating over DH+, the 1770-KFD does not interfere with existing HMI communication links, as it operates as a point-to-point RS-232 device rather than a persistent DH+ node consuming network bandwidth. However, engineers should verify that the total DH+ node count remains within the 64-node limit and that the network trunk termination resistors are correctly installed at both ends of the DH+ segment.

In control cabinets undergoing I/O expansion or signal isolation upgrades, the 1770-KFD is often deployed alongside 1746-series I/O modules in SLC 500 racks, 1771-series I/O modules in PLC-5 chassis, or standalone signal isolators used to condition analog inputs from legacy field instruments. When the retrofit also involves adding remote I/O drops via a 1771-ASB adapter or upgrading communication to DeviceNet using a 1747-SDN scanner, the 1770-KFD remains the preferred programming access tool until the new platform is fully commissioned and validated.

Power supply capacity in the existing control cabinet should be reviewed when adding any new modules during a retrofit. The 1770-KFD itself draws no panel power, but associated additions such as a 1756-PA72 or 1756-PB72 power supply for a new ControlLogix chassis, or a 1746-P4 power supply for an expanded SLC 500 rack, must be accounted for in the cabinet power budget. Proper load calculation prevents nuisance tripping and ensures system stability during the commissioning phase.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any legacy PLC migration project. The 1770-KFD supports a low-risk, incremental migration strategy by maintaining full programming and monitoring access to the existing DH+ network throughout the transition. Engineers can upload and archive all existing SLC 500 or PLC-5 programs via RSLogix 500 or RSLogix 5 before any hardware changes are made, preserving the original ladder logic, data table configurations, and I/O mapping as a verified baseline.

During the cutover window, the 1770-KFD allows real-time program monitoring and online edits to the legacy controller, enabling engineers to make last-minute adjustments to timer presets, counter values, or output logic without taking the system offline. This capability is particularly valuable in continuous process environments where a full shutdown carries significant production cost.

For sites implementing a parallel-run strategy — where the new ControlLogix or CompactLogix system runs alongside the legacy SLC or PLC-5 for a validation period — the 1770-KFD provides uninterrupted access to the legacy controller for comparison monitoring and fault diagnosis. Once the new system is validated and operators are trained on the updated HMI screens, the legacy controller can be decommissioned cleanly, with the 1770-KFD retained as a diagnostic tool or transferred to another legacy node on the network.

Pre-shipment testing of the 1770-KFD ensures that the unit arrives ready for immediate deployment, reducing the risk of receiving a defective interface during a time-critical maintenance window. Combined with in-stock global availability and a support terms confirmed by quotation, the 1770-KFD supports both emergency spare part replacement and planned retrofit schedules with equal reliability.

Retrofit Support FAQ

Q: Can the 1770-KFD directly replace a 1770-KF2 or 1770-KF3 in an existing installation?
A: In most applications, yes. The 1770-KFD provides equivalent DH+ to RS-232 bridging functionality. Before replacement, document the existing KFD driver settings in RSLinx, including the COM port assignment and DH+ node address, and replicate these settings after installing the new unit. No changes to the PLC program or DH+ network configuration are required.

Q: What commissioning steps are required after installing the 1770-KFD?
A: After physical connection, open RSLinx Classic and configure a new KFD driver, selecting the correct COM port. Perform an auto-configure or manually set the baud rate to match the existing DH+ network (typically 57.6 kbps). Verify that RSWho displays the expected DH+ nodes, then open RSLogix 500 or RSLogix 5 to confirm online communication with the target controller before resuming production.

Q: Is the 1770-KFD compatible with USB-to-RS-232 adapters?
A: Compatibility depends on the adapter chipset and driver. Prolific PL2303 and FTDI-based adapters are generally reliable with RSLinx Classic. Avoid generic or unbranded adapters, as inconsistent DTR/RTS signal handling can cause communication failures. Where possible, use a native RS-232 COM port or a validated industrial-grade USB-to-serial converter.

Q: What support terms and supply terms apply to this unit?
A: Every 1770-KFD unit is covered by a support terms confirmed by quotation from the date of shipment. Each unit undergoes pre-shipment functional testing to verify DH+ link establishment and RS-232 signal integrity. In-stock inventory is maintained for immediate dispatch, supporting both emergency replacement and scheduled retrofit procurement. Contact our team for volume pricing and long-term supply agreements.
