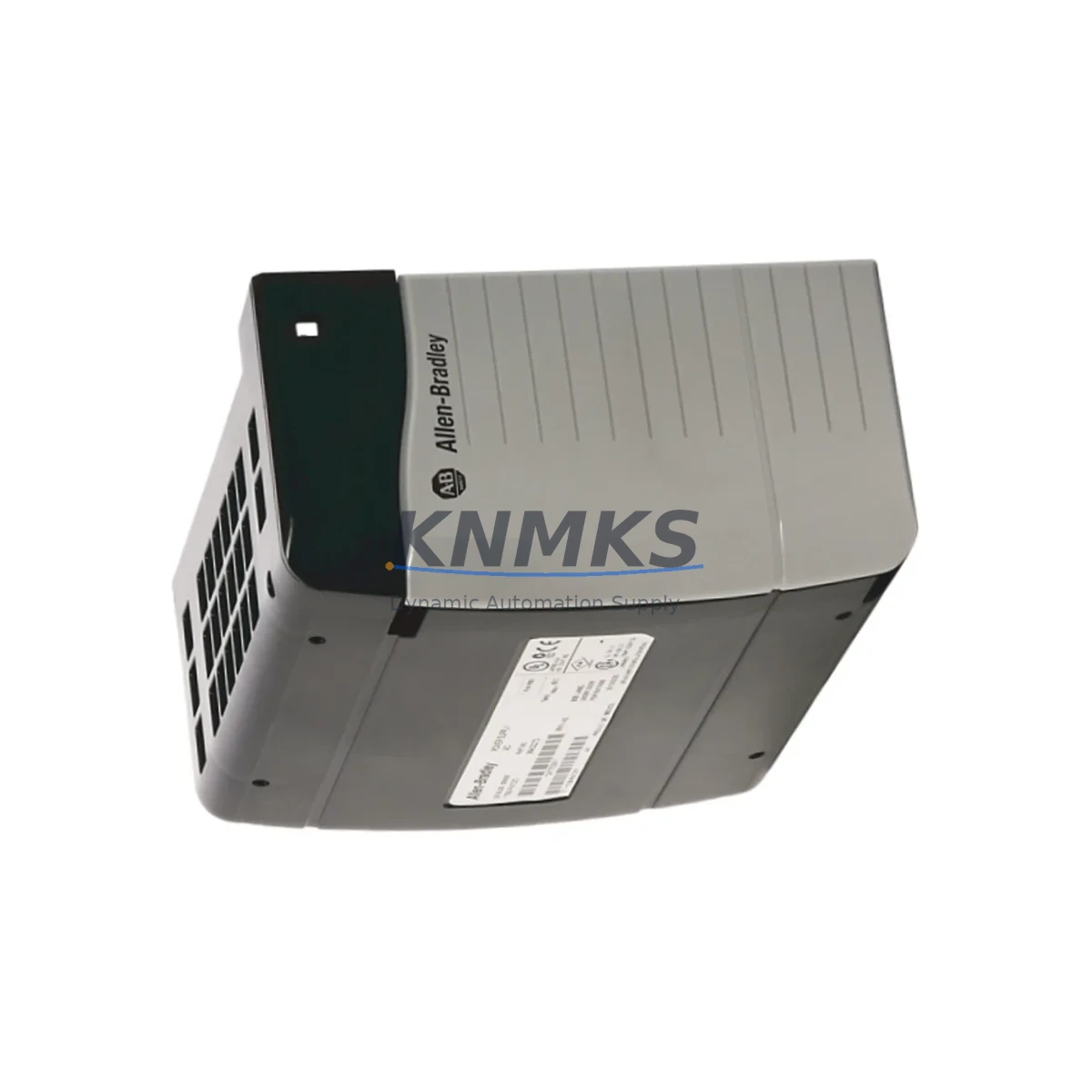

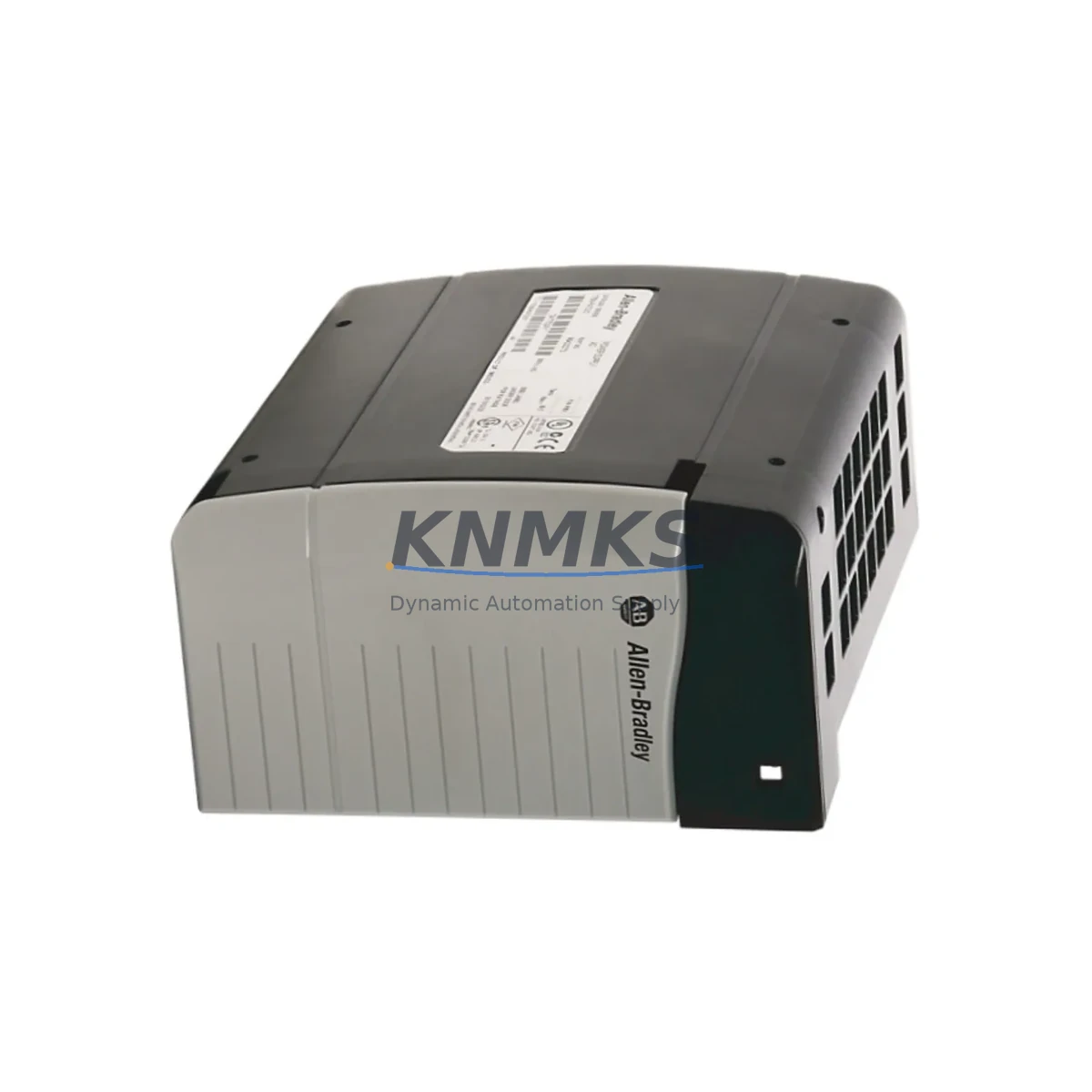

The Allen-Bradley 1756-PB50 is a 24 VDC input power supply module designed for the ControlLogix 1756 chassis platform — one of the most widely deployed PLC architectures in global manufacturing, energy, petrochemical, and infrastructure automation. As a direct OEM-grade spare, the 1756-PB50 is engineered to restore full chassis power capacity with zero configuration changes, making it the preferred choice for maintenance engineers who need to minimize unplanned downtime and restore production continuity as quickly as possible.

Whether you are managing a scheduled annual overhaul, responding to an emergency power fault, or building a proactive spare parts inventory for a critical control cabinet, the 1756-PB50 delivers the electrical reliability and long-term availability that industrial maintenance teams depend on. Each unit is tested prior to shipment, backed by a support terms confirmed by quotation, and supported by long-term supply commitments — ensuring your procurement team can plan with confidence across multi-year maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 1756-PB50 in a live ControlLogix cabinet, a disciplined maintenance engineer will not stop at the power supply alone. The 1756-PB50 feeds all backplane slots in the chassis, meaning any degradation in its output directly affects every module installed — including processor modules such as the 1756-L71 or 1756-L74, digital I/O modules like the 1756-IB16 and 1756-OB16E, and communication modules such as the 1756-EN2T EtherNet/IP bridge.

During a power supply replacement event, maintenance teams should simultaneously inspect the 1756-PSCA2 redundant power supply adapter if redundancy is configured, verify the integrity of the 24 VDC field power distribution feeding the supply input, and check all terminal block connections on the power input wiring for signs of oxidation or loose terminations. Fuse integrity on the upstream 24 VDC distribution panel should be confirmed, and any 1492-SP series supplementary protectors or branch circuit fuses protecting the control cabinet power rail should be tested.

For systems running on older firmware, this is also an appropriate moment to audit the 1756-ENBT or 1756-EN2T communication modules for firmware currency, as power cycling events can occasionally expose latent communication faults. If the cabinet includes a PanelView Plus HMI terminal, verify that the HMI power supply is on a separate, isolated circuit to prevent nuisance resets during the power supply swap. Signal isolators on analog I/O loops should also be checked for proper loop power continuity after the chassis is re-energized.

Procurement engineers sourcing the 1756-PB50 as a stocked spare should consider maintaining at least one unit per critical chassis in the facility, particularly in high-availability applications such as compressor control, turbine protection, or continuous process lines where an unplanned outage carries significant production or safety risk. Long-term supply agreements and verified-original sourcing are strongly recommended to avoid counterfeit risk in the secondary market.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the chassis model and slot count. Verify that the replacement 1756-PB50 matches the input voltage specification of the existing unit (18–32 VDC). Check the RSLogix 5000 or Studio 5000 project for any power supply diagnostic tags that may indicate the root cause of failure.

Step 2 — Safe isolation: De-energize the 24 VDC input feed to the power supply. Do not remove the power supply under live voltage. If the system is configured for redundant power using the 1756-PSCA2 adapter, the secondary supply can maintain chassis operation during hot-swap — confirm this configuration before proceeding.

Step 3 — Module removal and installation: Slide the 1756-PB50 out of the left chassis slot. Insert the replacement unit firmly until the locking tab engages. Re-energize the input feed and observe the power supply status LED — a solid green indicates normal operation.

Step 4 — System validation: Confirm all I/O modules return to their pre-fault states. Check the controller diagnostics in Studio 5000 for any fault codes. Verify communication module link status on the EtherNet/IP network. Document the replacement in the facility maintenance log with the date, technician ID, and new unit serial number.

Step 5 — Spare inventory update: Immediately initiate a reorder for the consumed spare to maintain minimum stock levels. For facilities with multiple ControlLogix chassis, a rolling inspection schedule — checking power supply output voltage and thermal performance every 12 months — is recommended to identify aging units before they cause unplanned outages.

Spare Parts Support FAQ

Q1: Is the 1756-PB50 compatible with all ControlLogix 1756 chassis sizes?
Yes. The 1756-PB50 is compatible with all standard ControlLogix chassis variants including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. It occupies the dedicated power supply slot on the left side of the chassis and does not consume a logic slot. Always verify the chassis catalog number before ordering to confirm input voltage compatibility.

Q2: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. If a unit fails within the confirmed support period, contact admin@knmks.com with the order reference and a description of the fault. A replacement or repair will be arranged promptly. Support terms does not cover damage caused by incorrect installation, overvoltage, or physical impact.

Q3: How is the 1756-PB50 tested before shipment?
Every unit undergoes a functional load test prior to dispatch. Output voltage stability, inrush current behavior, and thermal performance are verified under simulated chassis load conditions. A test report is available upon request for quality-critical procurement processes.

Q4: Can you support long-term or blanket purchase orders for ongoing maintenance programs?
Yes. KNMKS supports long-term supply agreements for facilities with recurring spare parts requirements. Blanket orders, scheduled releases, and consignment stock arrangements can be discussed with our sales team. Contact admin@knmks.com or call +86 18359268345 to discuss your facility’s annual maintenance volume and lead time requirements.
