Allen-Bradley 1756-OB16D Maintenance-Proven Spare Part for Factory Uptime

Overview

Allen-Bradley 1756-OB16D Maintenance-Proven Spare Part for Factory Uptime

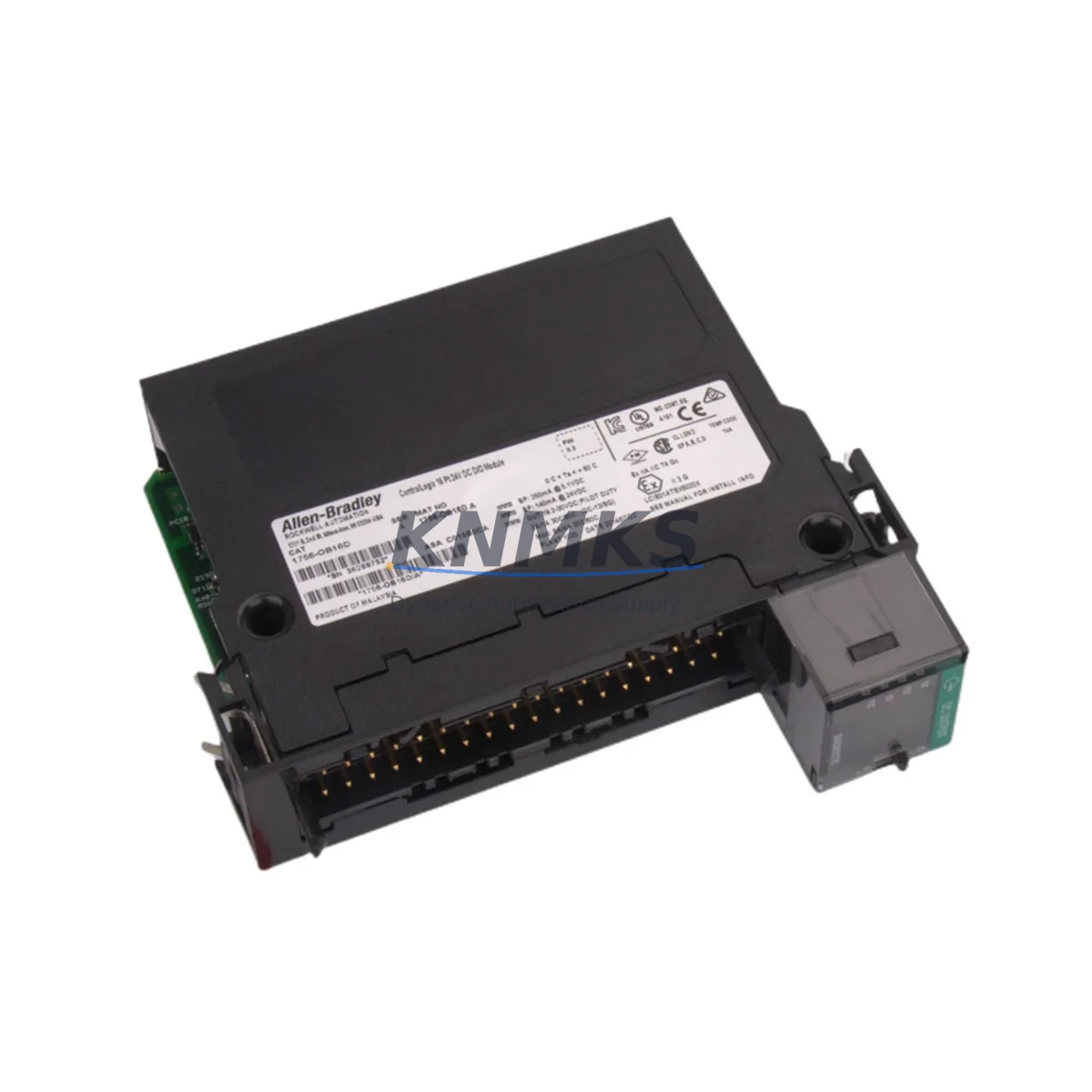

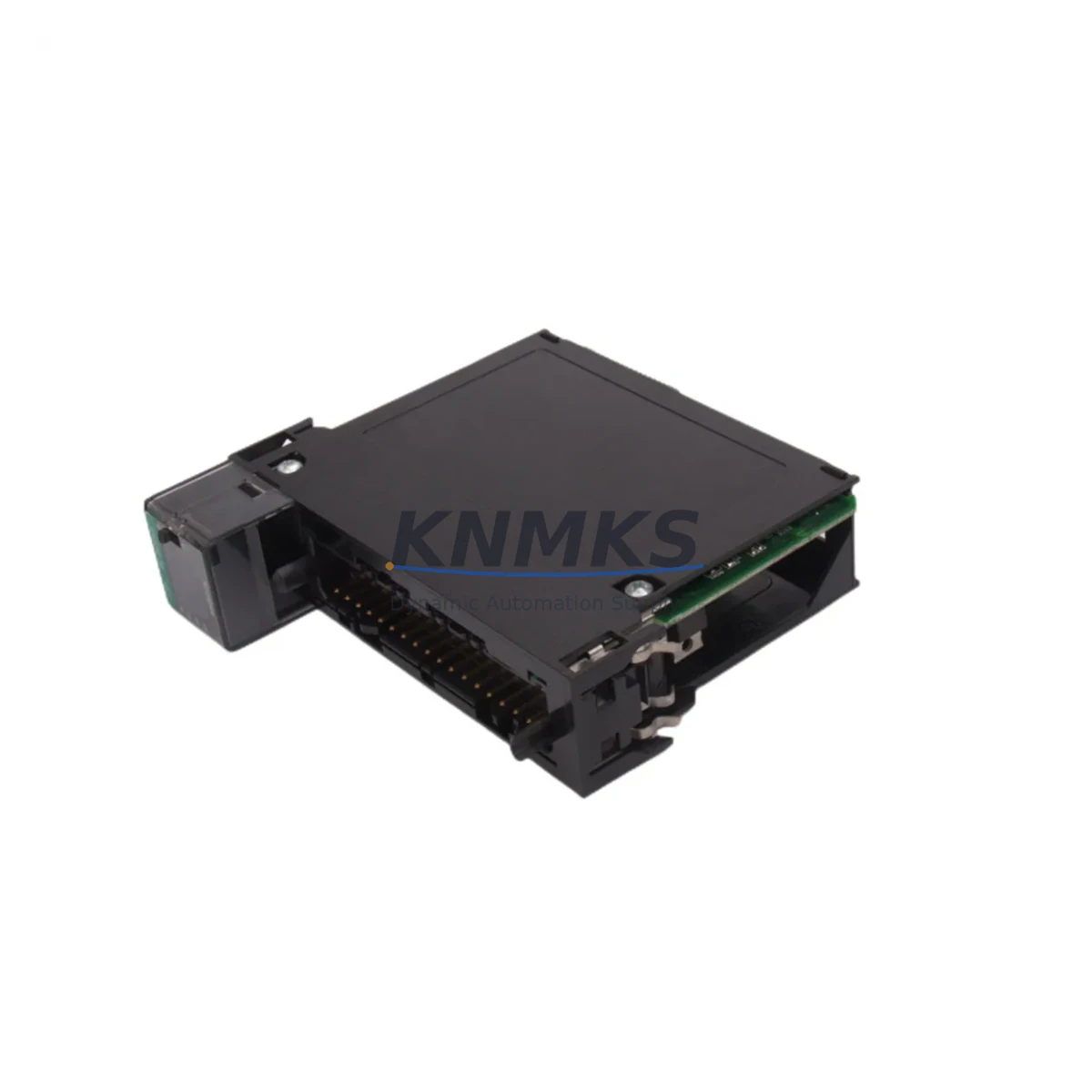

The Allen-Bradley 1756-OB16D is a 16-point, 24VDC sourcing digital output module designed for the ControlLogix 1756 chassis platform. As a maintenance-proven spare part, it is a critical component for industrial facilities that depend on continuous production uptime. Whether you are managing a scheduled annual overhaul, responding to an unplanned line stoppage, or building a strategic spare parts inventory, the 1756-OB16D delivers the compatibility, reliability, and fast-swap capability that maintenance and procurement engineers require.

Each unit supplied by KNMKS is sourced as an original Allen-Bradley component, fully tested prior to shipment, and backed by a support terms confirmed by quotation. We support long-term supply continuity for facilities running legacy and current-generation ControlLogix systems alike.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1756-OB16D output module is flagged during a fault isolation routine or scheduled inspection, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough site assessment should include the field-side wiring harness and terminal blocks connected to the output circuit, as loose or corroded terminations are a common root cause of intermittent output faults that are incorrectly attributed to the module.

The 24VDC field power supply feeding the output commons should be verified for voltage stability and load capacity. A degraded or undersized power supply — such as an aging 1756-PA72 or 1756-PB72 ControlLogix power supply — can cause erratic output behavior that mimics module failure. Replacing the output module without addressing a marginal power supply will result in repeat failures.

Field-side protection components are equally important. The blade fuses or electronic fuse modules protecting each output group should be inspected and replaced as part of the same maintenance event. For applications using relay output expansion, the associated 1756-OW16I or similar relay output modules in adjacent slots should be checked for contact wear and coil integrity.

In systems where the 1756-OB16D drives solenoid valves, motor starters, or pilot lights through a marshalling panel, the intermediate terminal strips and DIN-rail mounted signal isolators should be inspected for insulation degradation. Communication health between the 1756-OB16D and the ControlLogix processor — typically a 1756-L7x or 1756-L8x series CPU — should be confirmed via RSLogix 5000 or Studio 5000 I/O tree diagnostics before declaring the replacement complete.

For facilities maintaining a minimum spare parts inventory, KNMKS recommends holding at least one 1756-OB16D alongside a matched 1756-IB16 digital input module, ensuring both sides of a discrete I/O loop can be restored without a secondary procurement delay. Pairing these with a spare 1756-EN2T EtherNet/IP communication module covers the most common single-point failure scenarios in a ControlLogix cabinet.

Site Replacement Workflow

The 1756-OB16D supports hot-swap replacement within a powered ControlLogix chassis, which significantly reduces mean time to repair (MTTR) in production environments. Before initiating a swap, the maintenance technician should document the current module configuration using Studio 5000 or export the I/O configuration from the controller project file. This ensures that the replacement module inherits the correct output tag mappings, fault states, and program-controlled output behaviors without requiring a full controller download.

After seating the replacement 1756-OB16D, the system will automatically re-establish backplane communication and the controller will push the stored configuration to the new module. Field-side output verification — confirming that each of the 16 output points energizes correctly under program control — should be completed before returning the line to production. Any discrepancy in output response should prompt a re-inspection of the field wiring rather than a second module replacement.

For facilities migrating from older 1756-OB16 (non-diagnostics) modules to the 1756-OB16D, the upgrade provides point-level diagnostic feedback that enables predictive maintenance strategies, reducing unplanned downtime over the long term. The physical form factor and wiring interface are compatible, making the transition straightforward without chassis or wiring modifications.

Spare Parts Support FAQ

Q: Is the 1756-OB16D you supply an original Allen-Bradley component?
A: Yes. All 1756-OB16D units supplied by KNMKS are original Allen-Bradley (Rockwell Automation) components. Each unit undergoes functional testing prior to shipment and is covered by a support terms confirmed by quotation from the date of delivery.

Q: How do I confirm compatibility with my existing ControlLogix chassis and firmware?
A: The 1756-OB16D is compatible with all 1756 ControlLogix chassis sizes (4, 7, 10, 13, and 17 slots) and is supported across a wide range of RSLogix 5000 and Studio 5000 firmware revisions. If you require compatibility confirmation for a specific controller firmware version or chassis revision, please contact our technical team with your controller catalog number and firmware version before ordering.

Q: What is your lead time and can you support long-term or blanket purchase orders?
A: In-stock units are typically shipped within 1–3 business days. For facilities requiring ongoing supply continuity — particularly for legacy ControlLogix systems approaching end-of-life — KNMKS supports blanket purchase agreements and scheduled delivery programs. Contact admin@knmks.com to discuss volume pricing and supply planning.

Q: What testing is performed before shipment?
A: Each 1756-OB16D is tested for backplane communication integrity, output point functionality across all 16 channels, and diagnostic reporting accuracy. Units that do not pass full functional verification are not shipped. Test records are available upon request for quality-critical procurement processes.
