Allen-Bradley 1756-L8SP Maintenance-Proven Spare Part for Factory Uptime

Overview

Allen-Bradley 1756-L8SP Maintenance-Proven Spare Part for Factory Uptime

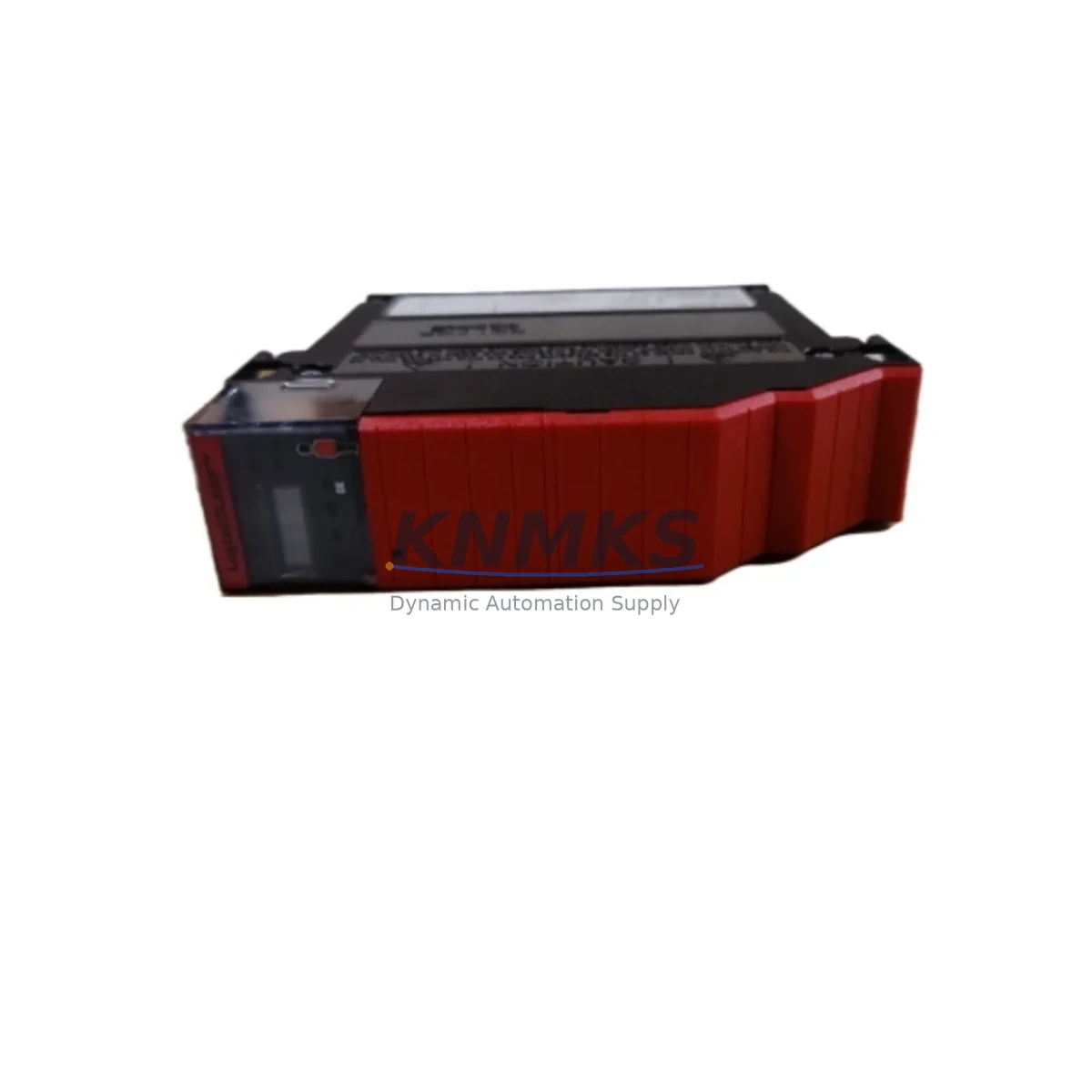

The Allen-Bradley 1756-L8SP is a ControlLogix Safety Partner Co-Processor designed to work in tandem with standard ControlLogix controllers to execute safety-rated logic in SIL 2 and SIL 3 applications. In petrochemical plants, power generation facilities, mining operations, water treatment systems, and port automation environments, the 1756-L8SP serves as the backbone of safety-critical control architectures where unplanned downtime carries significant operational and safety risk. Maintaining a verified, pre-tested spare of the 1756-L8SP in your on-site inventory is one of the most effective strategies for reducing mean time to repair (MTTR) and ensuring continuous production.

At KNMKS, every 1756-L8SP unit is sourced as an original Allen-Bradley component, subjected to pre-shipment functional verification, and backed by a support terms confirmed by quotation. Our global logistics network supports urgent dispatch to multi-site facilities across Asia, Europe, the Middle East, and the Americas, ensuring that your maintenance team is never left waiting for a critical spare during an unplanned shutdown event.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1756-L8SP Safety Co-Processor is flagged during a routine control cabinet inspection or fails during a safety function demand, the replacement workflow extends beyond the co-processor itself. Maintenance engineers should treat the event as an opportunity to audit the entire safety loop and associated infrastructure within the ControlLogix chassis.

Begin by verifying the condition of the paired 1756-L8x standard controller — the 1756-L8SP operates as a partner to the primary CPU, and any firmware mismatch or hardware degradation in the standard controller will prevent the safety task from executing correctly after replacement. Inspect the 1756-PA75 or 1756-PB75 chassis power supply for output voltage stability; an aging power supply delivering marginal voltage is a common root cause of co-processor faults that are initially misdiagnosed as module failures.

Check the 1756-IB16 or 1756-OB16 digital I/O modules assigned to safety-rated field devices — sensors, emergency stop circuits, and light curtains — to confirm that wiring integrity and channel diagnostics are within specification. If the system includes 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules, verify that network latency and connection counts are within the limits defined in the safety application program, as communication faults can trigger safety task inhibits that mimic co-processor failures.

For systems using 1756-RM or 1756-RM2 redundancy modules in a high-availability architecture, confirm that the redundancy qualification status is healthy before returning the chassis to service. Additionally, inspect 1492-CABLE series pre-wired connection cables and terminal block assemblies connected to safety I/O for signs of insulation wear, loose terminations, or corrosion — particularly in high-vibration or high-humidity industrial environments. A comprehensive spare parts strategy for a ControlLogix safety system should include at minimum one spare 1756-L8SP, one spare power supply, and one spare EtherNet/IP communication module to cover the most statistically probable failure modes during a planned annual maintenance window.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Export and archive the current safety application project from Studio 5000 Logix Designer. Record the firmware revision of the existing 1756-L8SP and confirm that a matching or compatible firmware image is available for the replacement unit. Notify the process safety officer and obtain the required permit-to-work before de-energizing the chassis.

Step 2 — Safe Removal: Place the safety controller in Program mode and inhibit the safety task. Remove the 1756-L8SP from its chassis slot following Rockwell Automation’s ESD handling guidelines. Do not remove the module while the chassis is energized unless the system design explicitly supports hot-swap for this module type.

Step 3 — Installation and Firmware Update: Insert the replacement 1756-L8SP into the same chassis slot. Power up the chassis and allow the module to complete its self-test sequence. Using Studio 5000 Logix Designer, update the module firmware to the required revision and download the safety application. The safety task will require a safety signature verification before it can be placed in Run mode.

Step 4 — Functional Verification: Perform a full proof test of all safety functions associated with the 1756-L8SP, including emergency stop response, safety gate interlocks, and any SIL-rated shutdown sequences. Document the test results in the plant’s safety management system before returning the system to normal operation.

Step 5 — Spare Parts Replenishment: Immediately initiate a procurement order for a replacement 1756-L8SP to restore your on-site spare inventory. KNMKS maintains stock of 1756-L8SP units with short lead times to support urgent replenishment requirements.

Spare Parts Support FAQ

Q1: What is the expected service life of the 1756-L8SP, and when should I plan for replacement?
The 1756-L8SP is designed for long-service industrial environments, but Rockwell Automation’s product lifecycle policy should be monitored for active, limited, or discontinued status. For systems in continuous operation, a proactive replacement cycle of 7–10 years is commonly adopted by maintenance engineers in petrochemical and power generation facilities. KNMKS can supply both current-production and legacy-stock units to support long-term spare parts planning horizons of 12–36 months.

Q2: How do I verify compatibility between a replacement 1756-L8SP and my existing ControlLogix chassis and controller?
Compatibility is determined by the firmware revision of the 1756-L8SP relative to the paired standard controller and the version of Studio 5000 Logix Designer used to develop the safety application. KNMKS provides firmware revision documentation with each unit and can advise on compatibility based on your existing system configuration. Pre-shipment functional testing is performed on every unit before dispatch.

Q3: Can the 1756-L8SP be used as a direct replacement for older ControlLogix safety co-processors?
The 1756-L8SP is the current-generation safety partner co-processor for the ControlLogix 5580 platform. Migration from earlier platforms such as the GuardLogix 1756-LSP requires a safety application re-validation and may involve hardware and firmware changes. KNMKS can provide technical guidance on migration pathways and supply the appropriate spare parts for both legacy and current-generation systems.

Q4: What does the support terms confirmed by quotation from KNMKS cover, and what is the process for a support terms claim?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Each unit is pre-shipment tested and ships with a test report. In the event of a support terms claim, KNMKS provides a replacement unit with priority dispatch to minimize site downtime. Contact our technical support team at admin@knmks.com or +86 18359268345 to initiate a support terms claim or request a spare parts quotation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-L8SP
ControlLogix Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-L8SP
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
