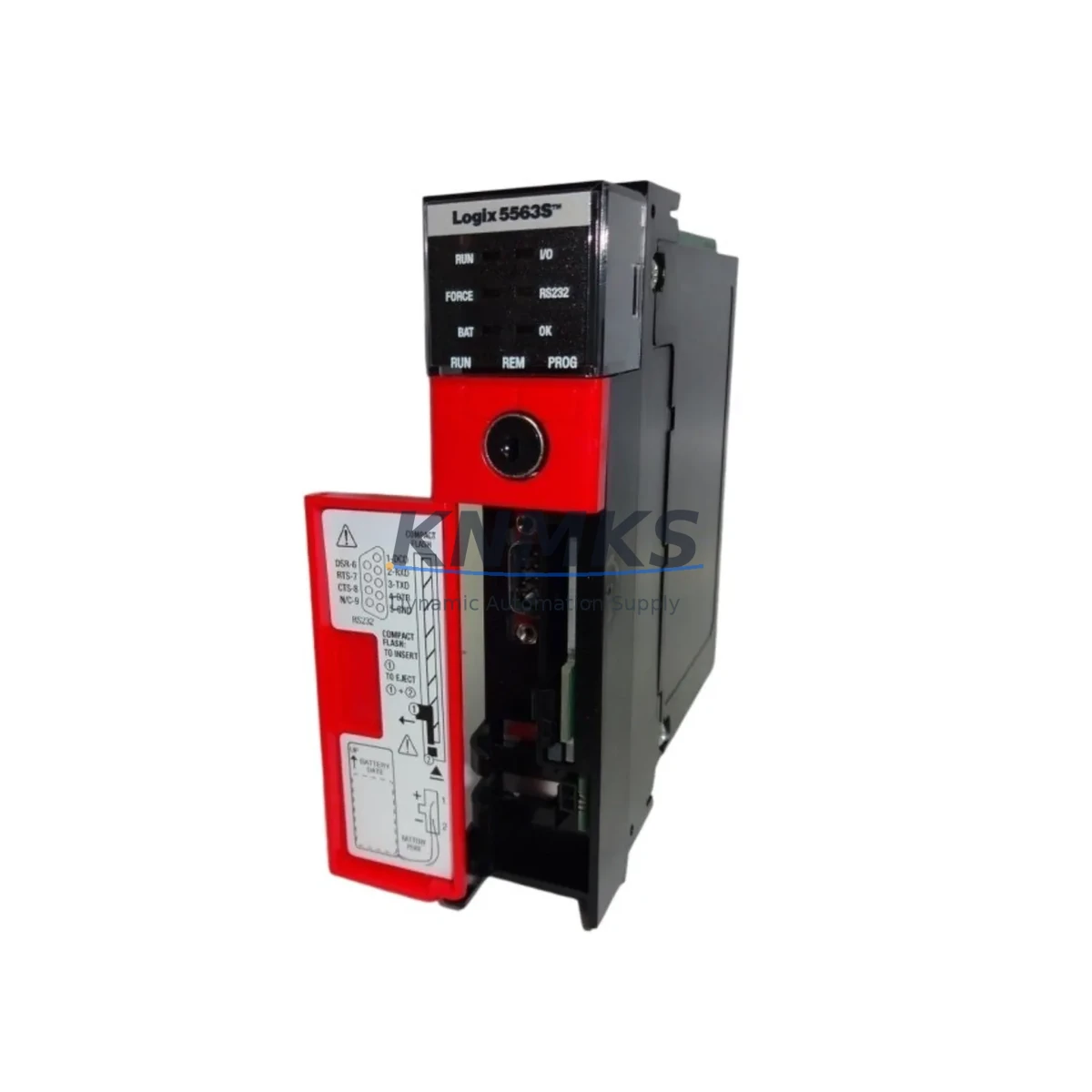

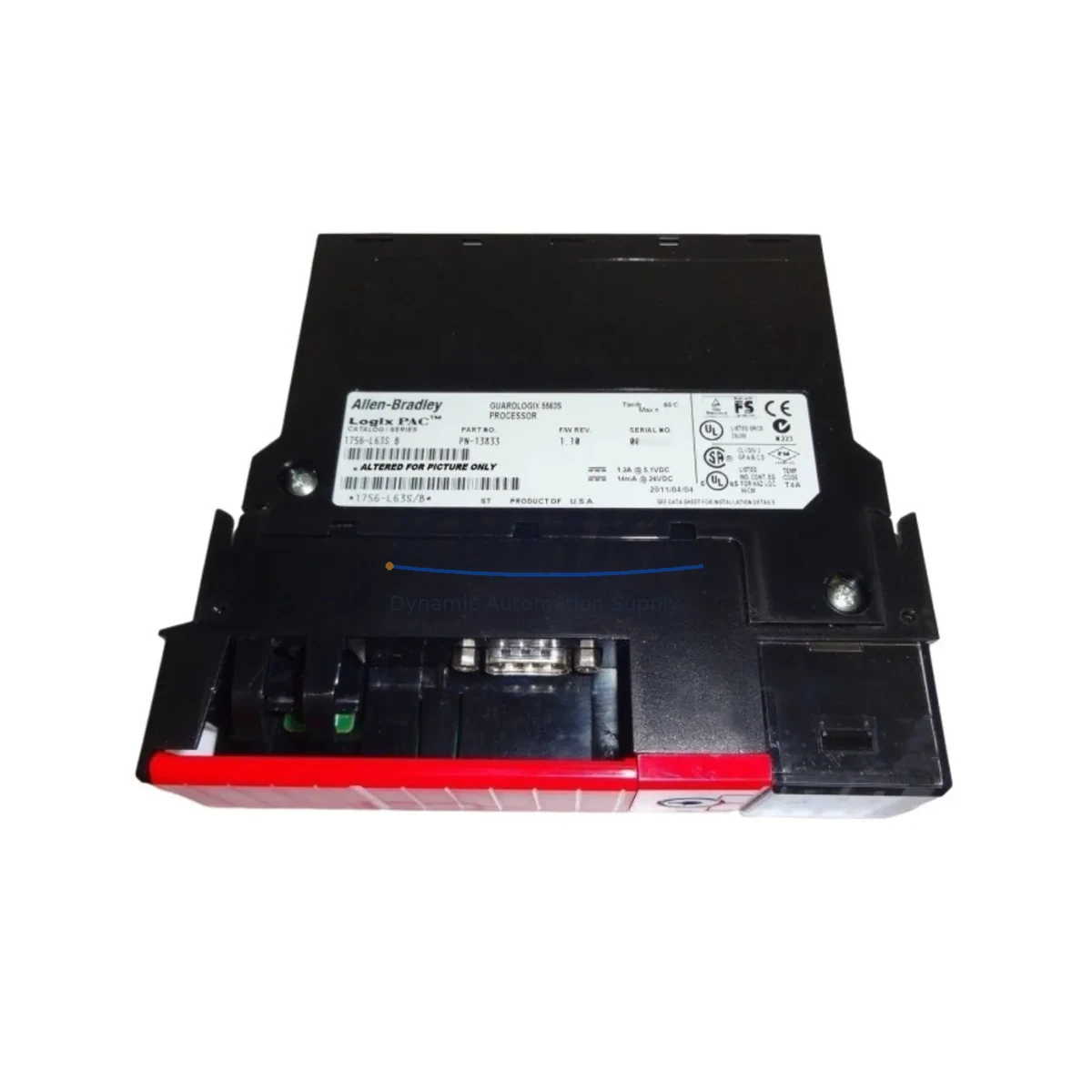

Allen-Bradley 1756-L63S Fail-Safe Safety Processor

Overview

Allen-Bradley 1756-L63S Fail-Safe Safety Processor: Fault Protection for Critical Industrial Control

The Allen-Bradley 1756-L63S is a SIL 2-rated ControlLogix Safety Processor engineered for mission-critical industrial control environments where unplanned downtime, control loop interruption, or safety system failure is not an option. Designed to operate within the Rockwell Automation ControlLogix platform, the 1756-L63S integrates safety and standard control into a single chassis architecture, eliminating the need for separate safety controllers while maintaining full IEC 61508 and IEC 61511 compliance for process safety applications.

In continuous production facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and port automation systems — the 1756-L63S delivers deterministic scan-time performance and fault-tolerant execution that keeps safety interlocks active even under abnormal operating conditions. Its dual-port EtherNet/IP communication architecture supports redundant network topologies, reducing the risk of communication anomalies that could compromise safety loop integrity or trigger nuisance trips in high-availability systems.

For control cabinet deployments in high electromagnetic interference (EMI) environments — such as those adjacent to variable frequency drives, large motor starters, or high-current bus systems — the 1756-L63S benefits from the ControlLogix chassis’s inherent shielding and the platform’s robust noise immunity design. When paired with the 1756-PA75R redundant power supply module, the processor maintains continuous operation through power fluctuations, voltage sags, and surge events that would otherwise cause controller faults or memory corruption in less robust systems.

Signal integrity is preserved across the safety I/O network through compatibility with 1791DS series Safety I/O modules, which provide local diagnostics, cross-fault detection, and discrepancy monitoring for dual-channel safety inputs. This architecture directly mitigates the risk of signal drift, wiring faults, and sensor failures propagating undetected into the safety logic — a critical requirement in SIL 2 safety instrumented functions (SIFs) governing emergency shutdown (ESD), fire and gas detection, and burner management systems.

In thermally demanding or vibration-prone installations — such as offshore platforms, cement plants, or steel mill control rooms — the 1756-L63S operates reliably across its full rated temperature range. The ControlLogix backplane architecture distributes heat efficiently across the chassis, and when combined with the 1756-A10 or 1756-A17 chassis with proper slot utilization, thermal management within the control cabinet is optimized to prevent processor throttling or premature component aging.

For safety-critical communication architectures, the 1756-L63S supports CIP Safety protocol over EtherNet/IP, enabling certified safety data exchange with remote safety I/O, safety drives, and safety-rated operator interfaces. Integration with 1756-EN2TR dual-port EtherNet/IP communication modules provides Device Level Ring (DLR) topology support, ensuring that a single cable fault does not disrupt the safety network — a key protection against unplanned shutdowns in ring-topology plant networks.

Spare part availability and long-term supply continuity are essential considerations for facilities operating on extended maintenance cycles. KNMKS maintains verified inventory of the 1756-L63S and compatible ControlLogix components, with each unit subject to pre-shipment functional testing and inspection. All units are supplied with a support terms confirmed by quotation, supporting procurement teams in meeting their spare parts governance and asset reliability requirements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet built around the 1756-L63S demands a layered protection strategy across power, I/O, communication, and thermal management subsystems. The 1756-PA75R redundant AC power supply module is the recommended primary power source, providing seamless switchover during mains disturbances and protecting the processor from voltage transients that could corrupt safety task execution. For DC-powered cabinets in remote field installations, the 1756-PB75R DC power supply offers equivalent redundancy with wide input voltage tolerance.

Safety I/O integrity is maintained through 1791DS-IB8XOBV4 Safety I/O modules, which perform continuous self-diagnostics and cross-channel verification — essential for dual-channel ESD and fire-and-gas interlock circuits. For standard process I/O in the same chassis, 1756-IF16 analog input modules provide high-resolution signal acquisition with configurable filtering to suppress noise from adjacent power equipment.

Network resilience is achieved by deploying 1756-EN2TR dual-port EtherNet/IP modules in Device Level Ring topology, ensuring that a single point of cable failure does not isolate the safety controller from remote I/O or SCADA systems. For legacy serial device integration within the same control architecture, 1756-MVI series communication modules bridge Modbus RTU, PROFIBUS, or DNP3 protocols into the ControlLogix backplane without compromising the safety partition.

Critical Industrial Safety Applications

The 1756-L63S is deployed across a wide range of safety-critical industrial sectors where control system failure carries significant operational, environmental, or personnel safety consequences.

In petrochemical and refinery environments, the processor governs emergency shutdown systems (ESD), high-integrity pressure protection systems (HIPPS), and burner management systems (BMS), where SIL 2 certification is a regulatory and insurance requirement. Its deterministic safety task execution ensures that shutdown commands are issued within the required response time even under maximum I/O load.

In power generation and substation automation, the 1756-L63S manages turbine protection, generator interlock, and load-shedding logic, where millisecond-level response to abnormal conditions prevents equipment damage and grid instability. Its dual EtherNet/IP ports support integration with energy management systems and SCADA platforms without bridging the safety and standard control partitions.

In mining and mineral processing operations — including conveyor systems, crusher controls, and ventilation safety — the processor’s vibration resistance and wide operating temperature range support reliable deployment in underground and surface installations subject to mechanical shock, dust ingress, and temperature extremes.

In water and wastewater treatment facilities, the 1756-L63S controls chemical dosing interlocks, pump protection, and overflow prevention systems, where a control failure could result in regulatory non-compliance or environmental incidents. Its long-term platform support from Rockwell Automation ensures spare part availability across multi-decade facility lifecycles.

In metallurgical and steel mill environments, the processor manages high-current motor protection interlocks, furnace safety systems, and rolling mill emergency stops in the presence of extreme EMI, radiated heat, and mechanical vibration — conditions that challenge less robust control platforms.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide for the Allen-Bradley 1756-L63S?
All 1756-L63S units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. This covers functional defects identified under normal operating conditions and supports your spare parts governance and asset reliability programs.

Q2: Is the 1756-L63S tested before shipment?
Yes. Each unit undergoes pre-shipment functional inspection and verification at our facility. Testing confirms processor boot integrity, communication port functionality, and firmware version compatibility before the unit is released for shipment.

Q3: Is the 1756-L63S compatible with existing ControlLogix chassis and I/O modules?
The 1756-L63S is compatible with all standard ControlLogix chassis (1756-A4 through 1756-A17) and operates alongside standard 1756-series I/O modules within the same chassis. Safety I/O functions require 1791DS-series Safety I/O modules. Firmware compatibility should be verified against your Studio 5000 project version prior to installation.

Q4: Can KNMKS support long-term or repeat procurement of the 1756-L63S for ongoing maintenance programs?
Yes. KNMKS maintains ongoing inventory of the 1756-L63S and compatible ControlLogix components to support planned maintenance, emergency replacement, and capital project procurement. Contact our sales team at admin@knmks.com or +86 18359268345 to discuss volume requirements, lead times, and supply continuity arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-L63S
ControlLogix Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-L63S
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
