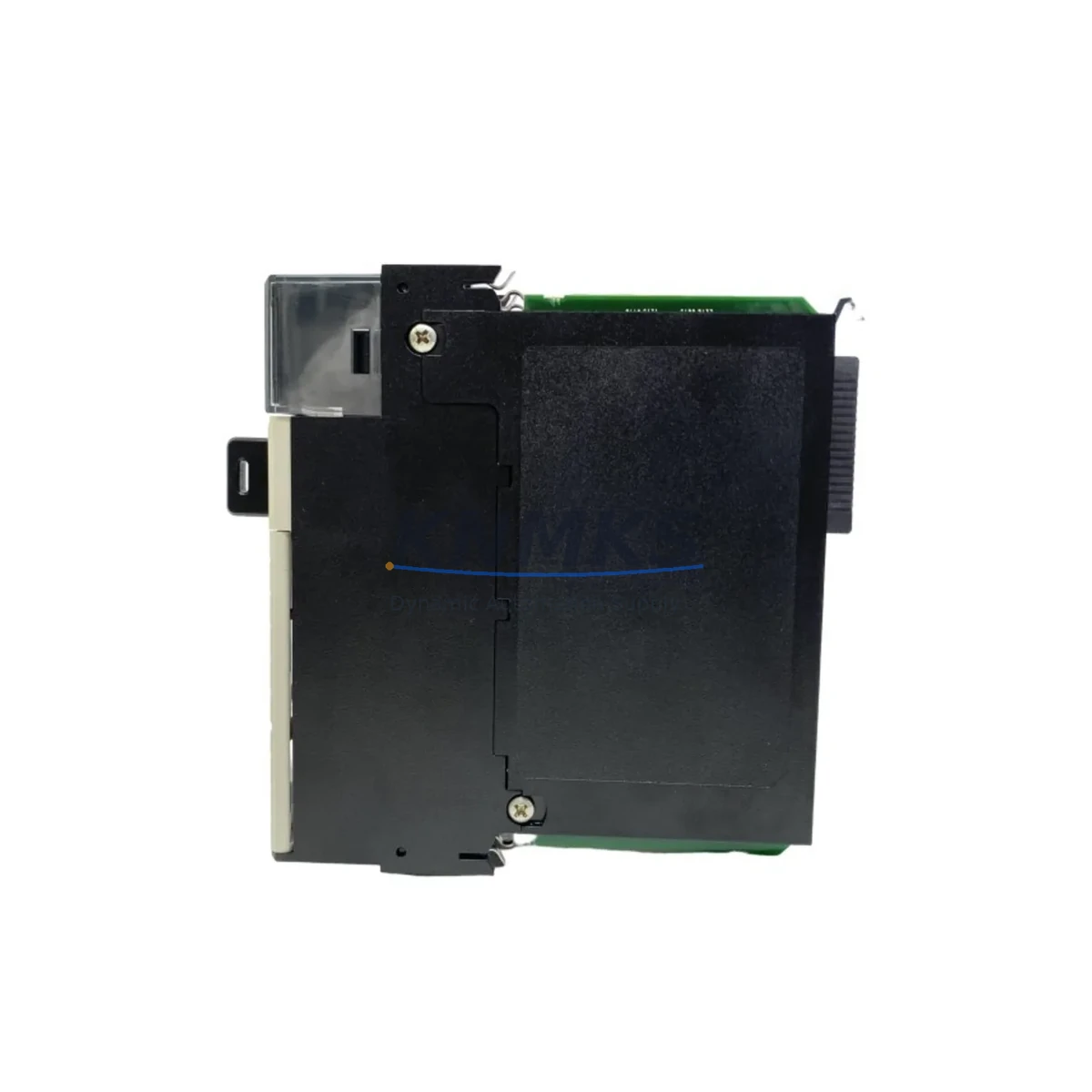

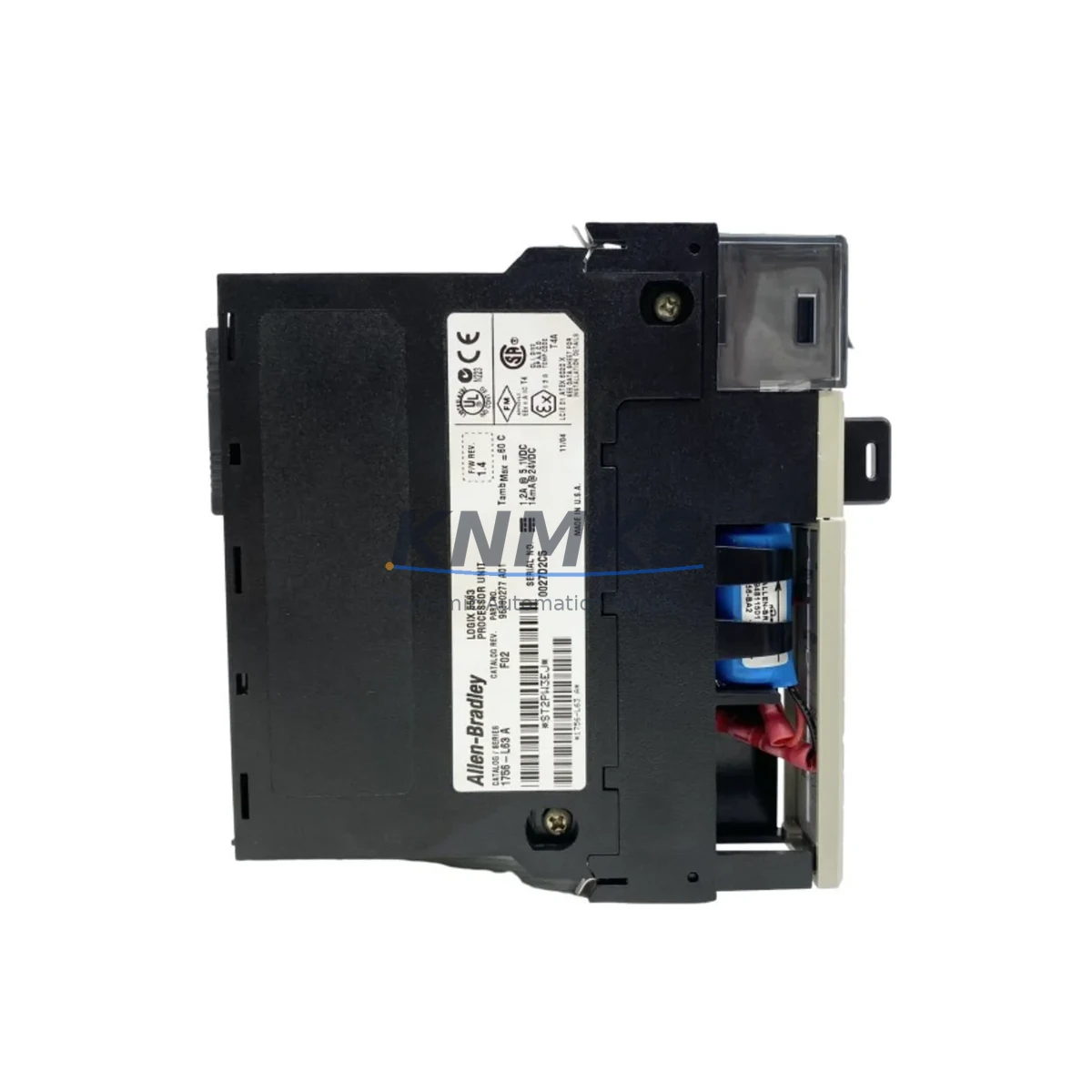

Allen-Bradley 1756-L63/A Fail-Safe PAC Processor

Overview

Allen-Bradley 1756-L63/A Fail-Safe PAC Processor: Fault-Tolerant Control for Critical Industrial Sites

The Allen-Bradley 1756-L63/A is a high-performance ControlLogix Programmable Automation Controller (PAC) processor engineered for mission-critical industrial environments where control interruption is not an option. With 8MB of user memory and a robust hardware architecture, this processor delivers deterministic scan-time execution, advanced diagnostics, and seamless integration with safety-rated I/O and communication modules — making it a cornerstone of fail-safe control cabinet design across continuous process, discrete manufacturing, and hazardous-area applications.

Designed to operate reliably in the presence of high electromagnetic interference, voltage transients, and mechanical vibration, the 1756-L63/A maintains stable program execution even under the most demanding field conditions. Its non-volatile memory retention and battery-backed SRAM ensure that critical control logic and configuration data survive unexpected power interruptions without data corruption or unplanned restart sequences. This capability is essential in petrochemical, power generation, and mining environments where a single unplanned shutdown can result in significant safety risk and production loss.

The processor supports redundant chassis configurations when paired with the 1756-RM2/A Redundancy Module, enabling hot-standby failover with sub-100ms switchover time. This architecture eliminates single points of failure in the control backbone, ensuring that safety interlocks, emergency shutdown sequences, and process control loops remain active even during primary controller faults. For applications requiring SIL 2 or SIL 3 compliance, the 1756-L63/A integrates directly with the 1756-L61S GuardLogix Safety Controller within the same ControlLogix chassis, sharing backplane resources while maintaining independent safety program execution.

Signal integrity is maintained through the processor’s high-speed backplane communication at 100Mbps, which minimizes latency between the CPU and distributed I/O modules such as the 1756-IB16 digital input module and 1756-OB16E digital output module. In environments with significant electrical noise — common in heavy motor drive installations, arc furnace control rooms, and variable frequency drive (VFD) panels — the ControlLogix backplane architecture provides inherent isolation that prevents noise-induced signal drift and spurious output activation.

Power supply stability is equally critical. The 1756-L63/A is designed to operate with the 1756-PA75 or 1756-PB75 power supply modules, which provide regulated, filtered DC power to the chassis backplane. These supplies incorporate surge suppression and brownout protection, ensuring that momentary grid disturbances — common in industrial facilities with large inductive loads — do not cause processor resets or memory corruption. For sites with frequent power quality issues, pairing the processor with an uninterruptible power supply (UPS) module further extends operational continuity.

Communication redundancy is supported through the 1756-EN2T EtherNet/IP communication module, enabling the processor to maintain real-time data exchange with SCADA systems, historian servers, and remote I/O adapters over a standard Ethernet backbone. The EtherNet/IP protocol’s implicit messaging capability ensures that time-critical control data is delivered with deterministic latency, while explicit messaging supports configuration, diagnostics, and asset management functions without impacting control performance.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet built around the 1756-L63/A processor requires a layered protection strategy that addresses power quality, signal integrity, thermal management, and communication reliability simultaneously. At the power layer, the 1756-PA75 AC power supply provides regulated 1.2A at 5VDC and 2A at 24VDC to the ControlLogix chassis, with built-in surge suppression that protects the processor from line transients generated by large motor starters and capacitor bank switching events common in heavy industrial facilities.

For digital I/O protection, the 1756-IB16 16-point 24VDC input module incorporates optical isolation on each input channel, preventing ground loops and common-mode voltage spikes from propagating into the processor backplane. On the output side, the 1756-OB16E electronically fused output module provides per-point short-circuit protection and diagnostic feedback, enabling the processor to detect and respond to field wiring faults without requiring manual cabinet inspection — a critical capability in unmanned remote installations such as pipeline pump stations and offshore platforms.

Communication integrity is maintained through the 1756-EN2T EtherNet/IP module, which supports Device Level Ring (DLR) topology for network-level redundancy. In facilities where network cable damage is a risk — such as mining operations with heavy mobile equipment — DLR topology ensures that a single cable break does not interrupt communication between the processor and remote I/O adapters or SCADA systems. For legacy serial device integration, the 1756-MVI56E communication module from ProSoft Technology provides protocol conversion between the ControlLogix backplane and Modbus RTU, DNP3, or IEC 60870-5-101 field devices.

Thermal management within the control cabinet is equally important for long-term processor reliability. The 1756-L63/A generates approximately 4.5W of heat dissipation, which must be accounted for in cabinet thermal calculations alongside the heat output of power supplies, I/O modules, and communication cards. Proper cabinet ventilation, filtered air circulation, and thermostat-controlled cooling fans ensure that the processor operates within its rated 0°C to 60°C ambient temperature range even in high-ambient industrial environments such as steel mill control rooms and cement plant electrical houses.

Critical Industrial Safety Applications

The Allen-Bradley 1756-L63/A is deployed across a wide range of critical industrial safety applications where control system reliability directly impacts personnel safety, environmental compliance, and production continuity.

In petrochemical and refinery environments, the processor serves as the primary controller for distillation column control, compressor anti-surge protection, and fired heater fuel gas management. Its ability to execute safety interlocks with deterministic scan times ensures that emergency shutdown (ESD) sequences are triggered within defined response times when process variables exceed safe operating limits. Integration with the GuardLogix safety platform allows the same chassis to host both standard process control and SIL 2-rated safety functions, reducing hardware footprint and simplifying cabinet design.

In electric power generation and substation automation, the 1756-L63/A controls turbine governor systems, generator excitation control, and bus transfer schemes. Its EtherNet/IP communication capability enables real-time data exchange with energy management systems (EMS) and SCADA platforms using IEC 61850 GOOSE messaging via protocol gateways, supporting modern digital substation architectures.

In mining and mineral processing, the processor manages conveyor drive sequencing, crusher control, and flotation cell automation. Its vibration resistance and wide operating temperature range make it suitable for installation in surface and underground electrical rooms where mechanical shock, dust ingress, and temperature extremes are routine operating conditions. The processor’s diagnostic capabilities enable predictive maintenance programs by logging fault history and I/O status data that maintenance teams can analyze to identify developing equipment issues before they cause unplanned downtime.

In water and wastewater treatment, the 1756-L63/A controls pump station sequencing, chemical dosing systems, and filtration process automation. Its support for redundant EtherNet/IP networks ensures that remote pump stations remain in communication with central SCADA systems even in the event of primary network path failures, maintaining regulatory compliance and preventing overflow events.

In port and maritime applications, the processor controls ship-to-shore crane drives, container handling equipment, and vessel mooring systems. Its tolerance for high-humidity environments and resistance to conducted and radiated EMI from high-power drive systems make it a reliable choice for marine electrical installations where conventional PLCs may experience spurious faults.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 1756-L63/A?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional performance issues identified under normal operating conditions consistent with Rockwell Automation’s published specifications. If the unit fails to perform as specified within the confirmed support period, we provide repair, replacement, or documented resolution support at our discretion. Support requests are processed within 5 business days of unit receipt at our facility.

Q2: How is each unit tested before shipment?
Every 1756-L63/A unit undergoes a multi-stage pre-shipment inspection that includes visual inspection for physical damage, power-on functional test to verify processor boot sequence and memory integrity, backplane communication test using a ControlLogix chassis and test I/O modules, and firmware version verification. Units that do not pass all test stages are quarantined and not offered for sale. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the 1756-L63/A compatible with existing ControlLogix 1756 chassis and I/O modules?
Yes. The 1756-L63/A is fully compatible with all standard ControlLogix 1756-series chassis (4-slot through 17-slot), all 1756-series I/O modules, and all 1756-series communication modules. It is also compatible with the Studio 5000 Logix Designer programming environment (v16.00 and later) and RSLogix 5000 (v16.00 and later). Firmware upgrades are supported via ControlFLASH utility. Compatibility with GuardLogix safety modules requires firmware version 18.00 or later.

Q4: Can you support long-term supply and replacement for this SKU?
Yes. We maintain ongoing inventory of the 1756-L63/A and related ControlLogix components to support long-term maintenance and replacement programs for installed base customers. For customers with large installed fleets, we offer reserved stock agreements that guarantee unit availability for defined periods. Our sourcing network covers new, tested surplus, and factory-refurbished units, ensuring supply continuity even for discontinued or allocation-constrained SKUs. Contact our technical sales team to discuss long-term supply arrangements tailored to your maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-L63/A
ControlLogix Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-L63/A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
