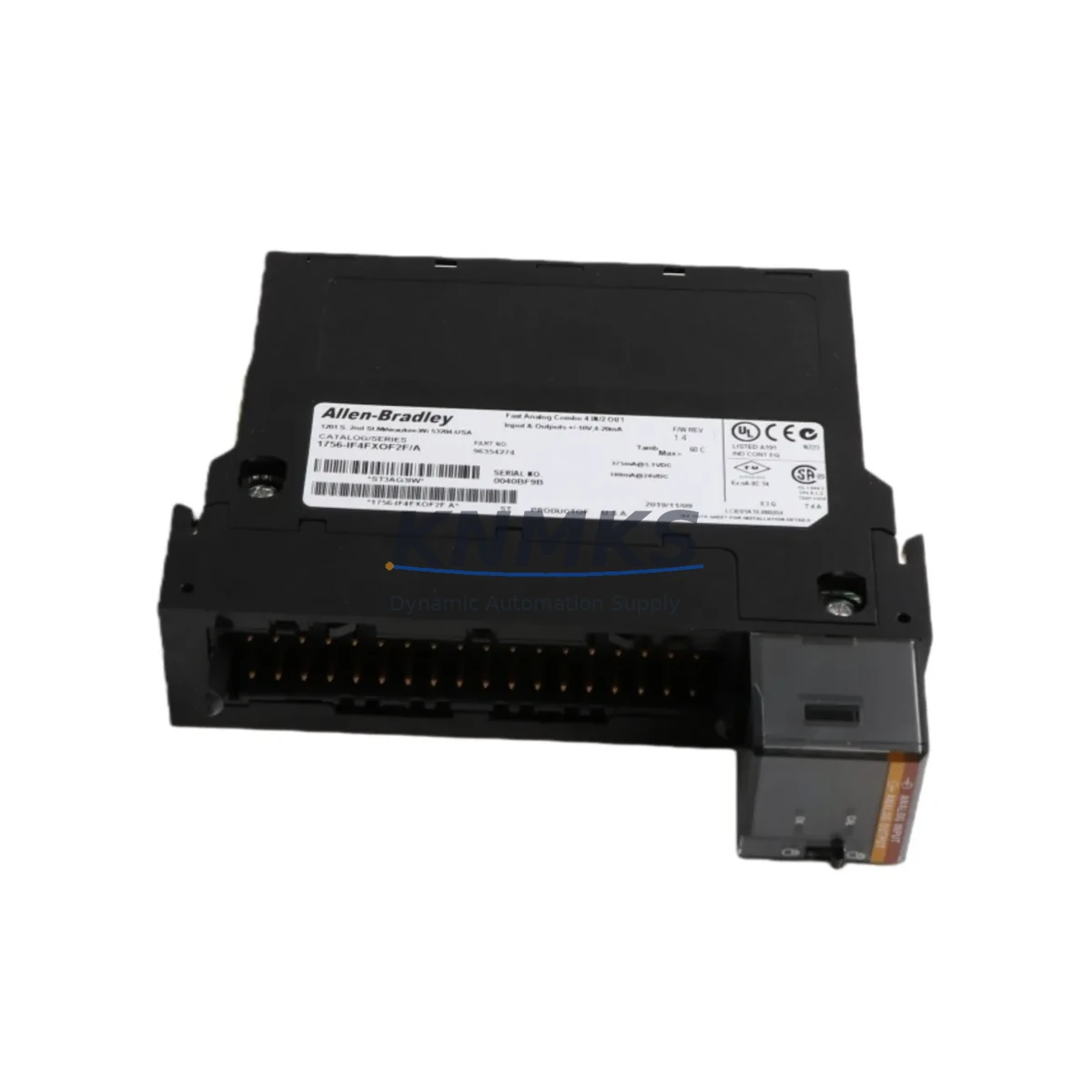

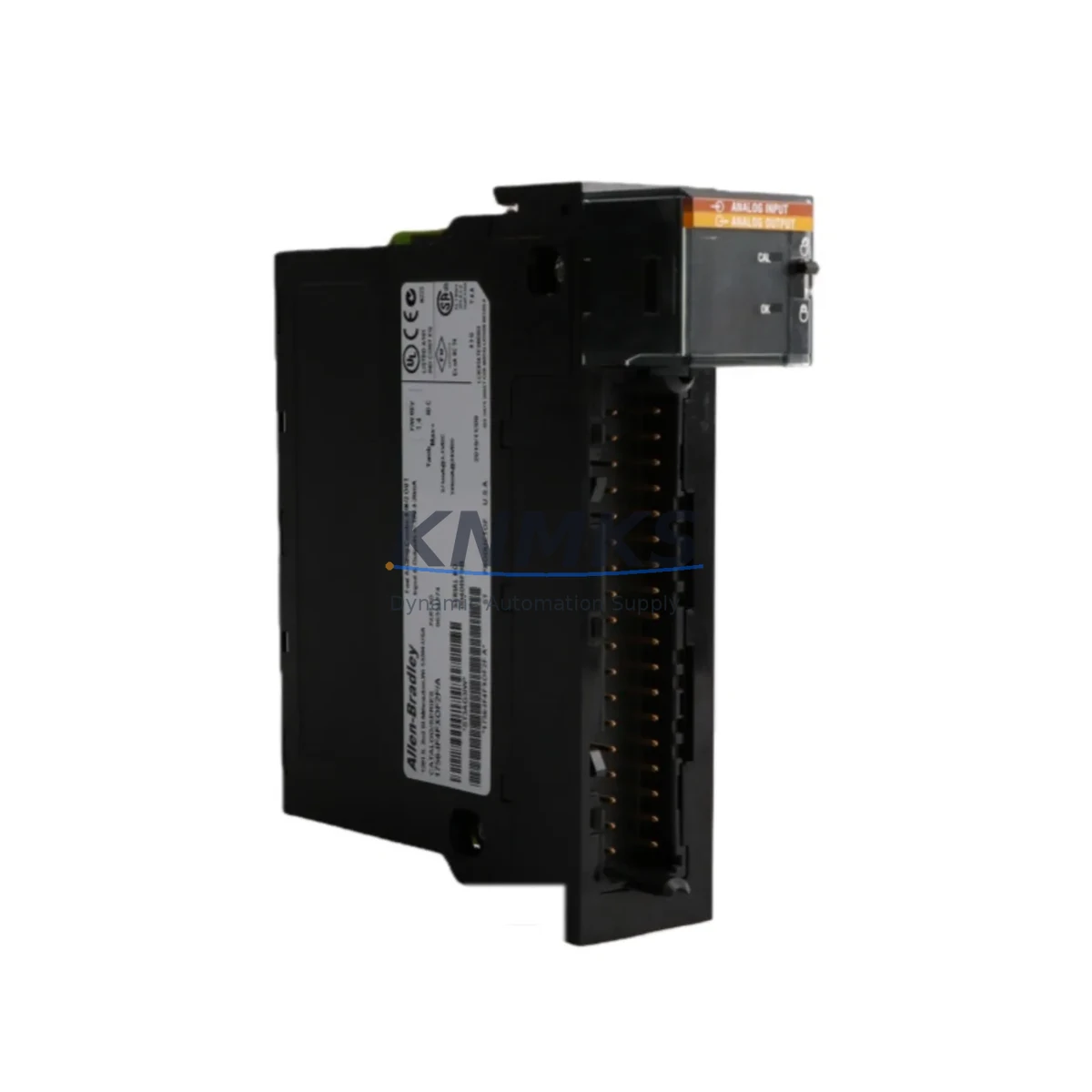

Allen-Bradley 1756-IF4FXOF2F Migration-Ready HART Analog I/O

Overview

Allen-Bradley 1756-IF4FXOF2F Migration-Ready HART Analog I/O for Legacy Control Systems

The Allen-Bradley 1756-IF4FXOF2F is a HART-enabled analog combination I/O module designed for the ControlLogix 1756 platform. As legacy DCS and PLC systems reach end-of-life, this module serves as a critical migration component for facilities transitioning from older analog I/O architectures — including retired SLC 500 and PLC-5 analog racks — to modern ControlLogix-based control infrastructure. With four HART-capable analog inputs and two analog outputs in a single 1756 backplane slot, the 1756-IF4FXOF2F reduces slot count, simplifies wiring consolidation, and supports field device diagnostics without additional hardware.

For engineers managing brownfield upgrades, this module is fully compatible with the standard 1756 chassis family, including the 1756-A4, 1756-A7, 1756-A10, and 1756-A13 rack sizes. It operates alongside the 1756-L8x and 1756-L7x ControlLogix controllers and integrates directly into existing Studio 5000 Logix Designer projects. The module’s HART pass-through capability allows simultaneous process control and field device communication, making it suitable for petrochemical, power generation, and water treatment applications where smart transmitter diagnostics are mandatory.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1756-IF4FXOF2F into a legacy control environment requires systematic pre-migration planning. Before removing the existing analog I/O module, engineers should document all channel assignments, scaling parameters, and engineering unit conversions stored in the original program. When migrating from a SLC 500 rack using 1746-NI4 input modules, the terminal wiring layout differs from the 1756 removable terminal block format — a 1756-TBNH terminal block should be pre-wired and verified against the original field loop drawings before the cutover window begins.

Power budget verification is essential. The 1756-IF4FXOF2F draws power from the 1756 chassis backplane via the 1756-PA75 or 1756-PB75 power supply. When adding this module to an existing chassis alongside 1756-EN2T EtherNet/IP communication modules and 1756-OB16I digital output modules, the total backplane current draw must be recalculated to confirm the power supply is not overloaded. Exceeding the rated backplane current will cause intermittent module faults and unpredictable I/O behavior.

For facilities running legacy HART multiplexers or standalone HART modems, the 1756-IF4FXOF2F’s native HART pass-through eliminates the need for external HART infrastructure on the migrated loops. This simplifies the control cabinet layout and reduces the number of discrete components requiring maintenance. During the retrofit, the 1756-IA16 digital input module and 1756-OA16 digital output modules already installed in the chassis can remain in place, minimizing disruption to the digital I/O portion of the control system.

Address assignment must be confirmed in the Studio 5000 project before going online. The module slot number in the 1756 chassis determines its logical address in the controller tag database. If the slot position differs from the original design, all rung references to the analog I/O tags must be updated and verified before the program is downloaded to the 1756-L83E or equivalent controller. A full offline simulation using the Studio 5000 emulator is recommended prior to live commissioning.

Downtime Control During System Migration

Minimizing production downtime during a ControlLogix analog I/O retrofit requires a structured cutover strategy. The preferred approach is to pre-configure the 1756-IF4FXOF2F offline — including channel scaling, HART enable flags, and alarm limits — using a bench test setup before the scheduled maintenance window. This allows the module to be installed and brought online within the maintenance window without requiring extended configuration time at the panel.

Original program logic should be preserved in a backup copy of the Studio 5000 project before any modifications are made. Tag renaming or address remapping should be completed and peer-reviewed offline. During the cutover, the field loops should be placed in manual mode at the DCS or SCADA level to maintain process stability while the analog module is swapped. Once the 1756-IF4FXOF2F is installed and the program is downloaded, each channel should be verified against the live field signal before returning loops to automatic control.

For critical process loops — such as reactor feed flow or boiler drum level — a temporary bypass using a portable HART communicator or loop calibrator allows the field transmitter to remain powered and communicating during the module swap. This approach protects the original program logic, maintains field control continuity, and reduces the risk of process upsets caused by signal interruption during the retrofit.

All modules supplied by KNMKS are tested prior to shipment and covered by a support terms confirmed by quotation. In-stock availability supports rapid deployment for emergency replacements and planned retrofit projects alike.

Retrofit Support FAQ

Q: Can the 1756-IF4FXOF2F directly replace a 1746-NI4 in a SLC 500 system?
A: Not as a direct drop-in — the 1756-IF4FXOF2F is a ControlLogix 1756 platform module and requires a 1756 chassis. However, it is the recommended migration target when upgrading a SLC 500 analog I/O rack to ControlLogix. Wiring must be re-terminated to the 1756-TBNH terminal block format, and the program logic must be rewritten in Studio 5000 to reference the new tag structure.

Q: What wiring changes are required when installing this module?
A: The 1756-IF4FXOF2F uses a removable terminal block (1756-TBNH or 1756-TBSH). Field loop wiring from the existing analog marshalling panel should be re-terminated to match the module’s channel pinout as documented in Rockwell publication 1756-UM533. Shield grounding and loop power supply connections should be verified against the original loop drawings before energizing.

Q: Is the module compatible with the current version of Studio 5000?
A: Yes. The 1756-IF4FXOF2F is supported in Studio 5000 Logix Designer v21 and all subsequent versions. The module’s Add-On Profile (AOP) is available through the Rockwell Automation Product Compatibility and Download Center (PCDC) and should be installed before adding the module to the project.

Q: Does KNMKS provide pre-shipment testing and support terms coverage?
A: Yes. Every 1756-IF4FXOF2F unit shipped by KNMKS undergoes functional testing prior to dispatch. All units are covered by a support terms confirmed by quotation from the date of shipment. In-stock inventory is maintained to support both emergency replacement orders and scheduled retrofit projects with short lead times.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-IF4FXOF2F
ControlLogix Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-IF4FXOF2F
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
