Allen-Bradley 1756-IF16H/A Migration-Ready HART Analog Input

Overview

Allen-Bradley 1756-IF16H/A Migration-Ready HART Analog Input for Legacy Control Systems

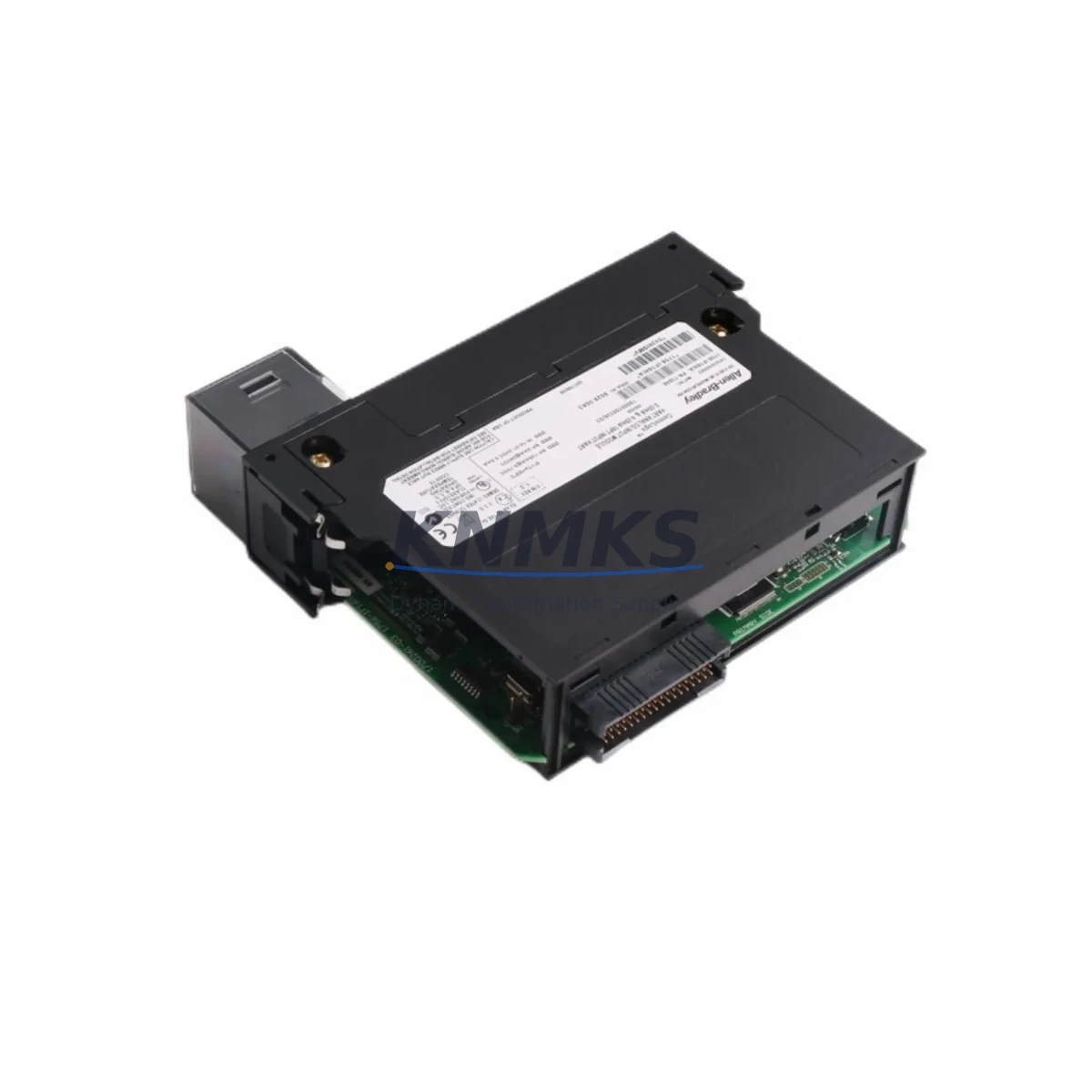

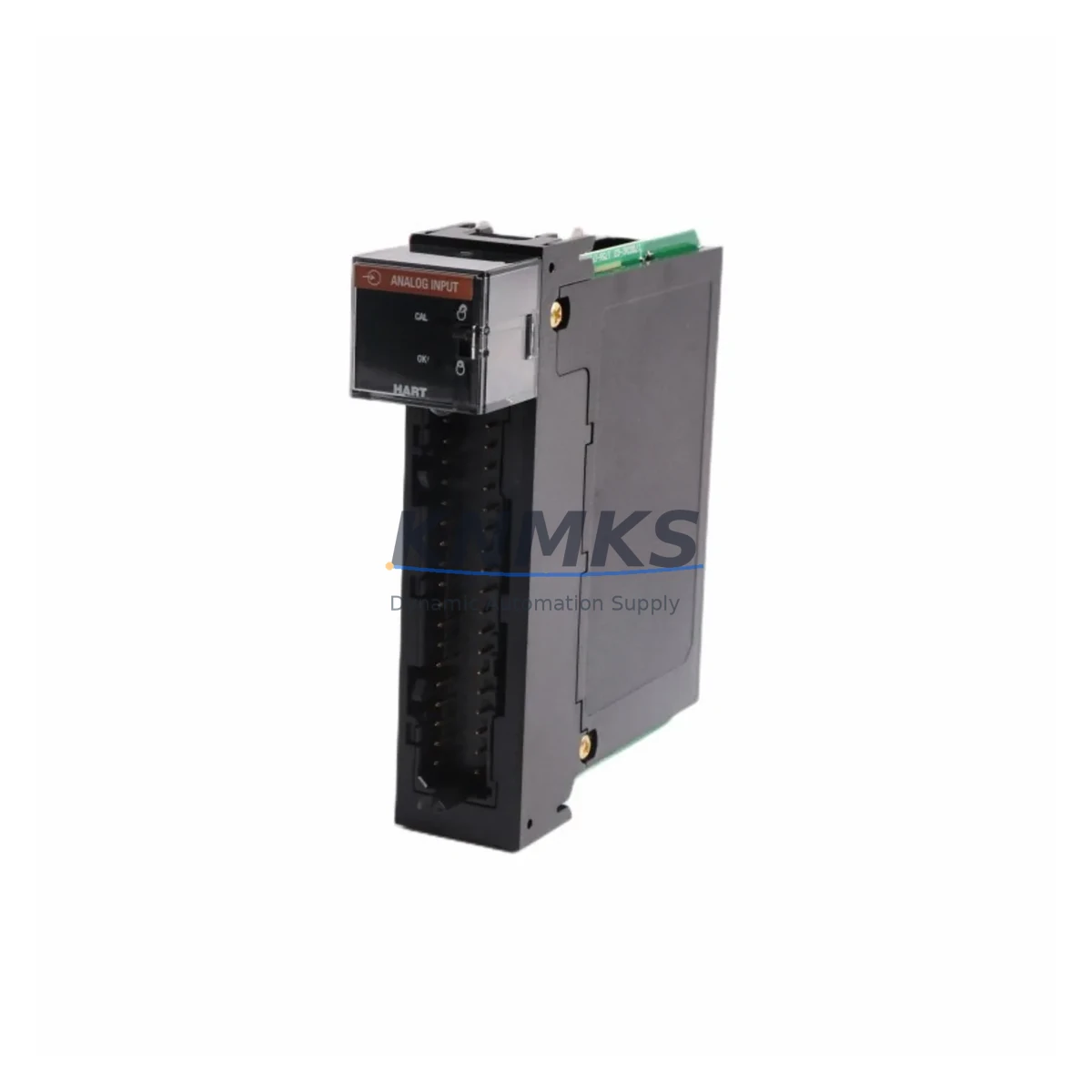

The Allen-Bradley 1756-IF16H/A is a 16-channel HART-enabled analog input module designed for the ControlLogix 1756 platform. As legacy DCS and PLC installations across petrochemical, power generation, water treatment, and mining facilities reach end-of-life, the 1756-IF16H/A has become a critical spare part and migration component for engineers tasked with modernizing aging control architectures without full system replacement. This module supports HART protocol pass-through communication, enabling simultaneous process variable acquisition and device diagnostics over standard 4–20 mA wiring — a key advantage when upgrading from older analog-only I/O platforms such as the 1771 PLC-5 or SLC 500 series.

Each 1756-IF16H/A module occupies a single slot in the 1756 ControlLogix chassis and is compatible with all standard 1756 backplanes, including the 1756-A4, 1756-A7, 1756-A10, and 1756-A17. Before installation in a retrofit project, engineers must verify available chassis slot count, backplane power budget, and module addressing within the RSLogix 5000 or Studio 5000 Logix Designer project. The module draws power from the 1756 chassis backplane and does not require an external field power supply for the HART communication layer, simplifying wiring in congested control cabinets.

When replacing a legacy 1756-IF16 (non-HART) or migrating from a 1771-IFE analog input module, terminal wiring must be re-verified against the 1756-IF16H/A wiring diagram. The module uses a 1756-TBNH or 1756-TBSH removable terminal block, which allows pre-wired field connections to be transferred without disturbing field cabling — a significant advantage for minimizing downtime during hot-cutover migrations. Confirm that the existing terminal block series is compatible before scheduling the cutover window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1756-IF16H/A into an existing control system requires a structured retrofit plan that accounts for both hardware and software dependencies. In a typical ControlLogix-based control cabinet, the 1756-IF16H/A shares the backplane with a 1756-L7x or 1756-L8x series controller, a 1756-EN2T or 1756-EN3TR EtherNet/IP communication module, and potentially a 1756-OF8 analog output module serving the same process loop. Engineers must calculate the total backplane current draw across all installed modules to confirm the 1756-PA75 or 1756-PB75 power supply can support the additional load introduced by the 1756-IF16H/A.

For facilities migrating from older PLC-5 or SLC 500 platforms, the 1756-IF16H/A is typically deployed alongside a 1756-DHRIO or 1756-DNB communication bridge module to maintain legacy device network connectivity during a phased migration. In these scenarios, the HART pass-through capability of the 1756-IF16H/A allows field instruments — such as Rosemount 3051 pressure transmitters or Fisher FIELDVUE digital valve controllers — to be interrogated via AMS Device Manager without requiring a separate HART multiplexer, reducing panel space requirements and wiring complexity.

HMI integration is a critical step often underestimated in retrofit projects. When the 1756-IF16H/A replaces a legacy analog input module, all associated FactoryTalk View SE or ME faceplates must be reviewed to confirm that tag paths, engineering unit scaling, and alarm setpoints are correctly mapped to the new module’s tag structure. If the project was originally developed in RSLogix 5000 version 16 or earlier, verify that the module profile is supported by the installed version of Studio 5000 before proceeding with the hardware swap.

Programming cable access is also a practical consideration during on-site commissioning. A 1756-USB or 1784-U2DHP USB-to-DH+ programming cable may be required to connect a laptop to the controller for online edits and module configuration. Ensure the commissioning engineer has the correct cable and driver version installed before the scheduled maintenance window to avoid delays.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any control system migration involving the 1756-IF16H/A. The recommended approach is to pre-configure the replacement module offline using Studio 5000 before the scheduled maintenance window. This includes setting channel scaling, HART enable/disable per channel, filter frequency, and RPI (Requested Packet Interval) to match the existing module configuration. A full offline backup of the controller project — including all force conditions, I/O configuration, and motion groups — must be completed and verified before any hardware is removed from the chassis.

During the cutover, the removable terminal block design of the 1756-IF16H/A allows the pre-wired field connections to be transferred in a single step, reducing the risk of wiring errors under time pressure. After module insertion, perform an online comparison between the downloaded project and the controller’s running program to confirm no unintended changes were introduced. Monitor all 16 input channels for valid process values before releasing the system back to operations, and document the as-found and as-left configuration for the site’s change management records.

For critical process loops where continuous monitoring is required, consider using a temporary HART handheld communicator (such as the Emerson 475 Field Communicator) to verify transmitter output at the field terminal before and after the module swap. This confirms that the field wiring integrity is maintained throughout the migration and provides an independent reference for the first scan of process values after the new module comes online.

Retrofit Support FAQ

Q: Is the 1756-IF16H/A a direct drop-in replacement for the 1756-IF16?
A: Yes, the 1756-IF16H/A is backward compatible with the 1756-IF16 in terms of chassis slot, backplane interface, and terminal block. The primary difference is the addition of HART protocol support on all 16 channels. The module profile in Studio 5000 must be updated to the 1756-IF16H/A type to enable HART functionality; existing analog I/O tag structures remain compatible.

Q: What commissioning steps are required after installing the 1756-IF16H/A?
A: After physical installation, add the module to the Studio 5000 I/O tree and download the updated project to the controller. Verify channel scaling, HART device recognition, and process variable readings against field instrument documentation. Update FactoryTalk View HMI faceplates if tag paths have changed, and confirm alarm setpoints are correctly configured before returning the loop to automatic control.

Q: Can the 1756-IF16H/A be used to replace analog input modules from legacy DCS platforms?
A: The 1756-IF16H/A is designed exclusively for the ControlLogix 1756 platform and cannot be installed directly into a third-party DCS chassis. However, in migration projects where a legacy DCS is being replaced by a ControlLogix system, the 1756-IF16H/A serves as the target analog input module, with field wiring re-terminated to the 1756-TBNH terminal block and the control strategy re-implemented in Studio 5000.

Q: What support terms and pre-shipment testing does KNMKS provide for the 1756-IF16H/A?
A: All 1756-IF16H/A modules supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. Each unit undergoes pre-shipment functional testing to verify backplane communication, channel integrity, and HART pass-through operation before dispatch. In-stock units are available for same-week shipment to support urgent maintenance and unplanned downtime recovery scenarios.
