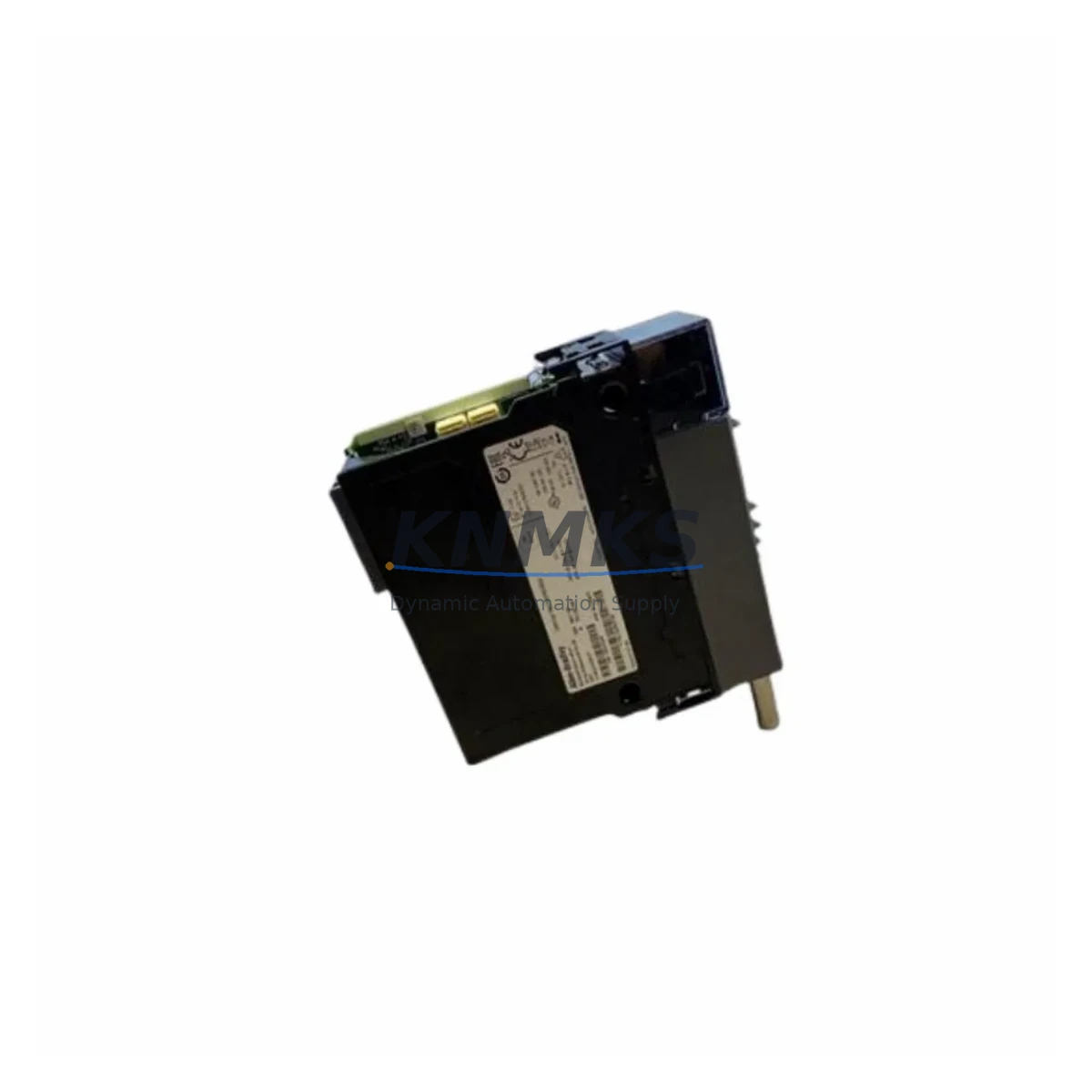

Allen-Bradley 1756-CN2R Fail-Safe ControlNet Redundancy Module

Overview

Allen-Bradley 1756-CN2R Fail-Safe ControlNet Redundant Module: Fault-Protected Industrial Control Reliability

The Allen-Bradley 1756-CN2R is a dual-port ControlNet communication module engineered for the ControlLogix 1756 chassis platform, purpose-built to sustain uninterrupted network communication in safety-critical and continuous-process industrial environments. Designed with hardware-level redundancy at its core, the 1756-CN2R eliminates single points of failure across the ControlNet media layer — a decisive advantage in petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical lines, and port automation infrastructure where any unplanned communication interruption translates directly into production loss, safety risk, or regulatory non-compliance.

Unlike standard single-port ControlNet adapters, the 1756-CN2R maintains dual coaxial trunk connections simultaneously. If one cable segment experiences a fault — whether from physical damage, connector corrosion, electromagnetic interference, or surge-induced signal degradation — the module automatically sustains communication through the redundant path without controller intervention, without I/O scan interruption, and without triggering a safety interlock false trip. This self-healing behavior is fundamental to any control architecture where the cost of a communication dropout exceeds the cost of the module itself many times over.

In high-electromagnetic-interference environments such as variable frequency drive (VFD) rooms, arc furnace control cabinets, and high-voltage switchgear panels, the 1756-CN2R’s shielded dual-port design and onboard surge suppression circuitry provide a measurable layer of protection against transient voltage spikes and conducted noise that would otherwise corrupt ControlNet data frames, cause node dropouts, or force the 1756-L series ControlLogix controller into a faulted state. When paired with the 1756-PSCA2 redundant power supply chassis adapter and a properly grounded 1756-A17 or 1756-A10 chassis, the entire backplane power and communication architecture achieves the kind of layered fault tolerance demanded by IEC 61511 functional safety assessments.

Field deployments in dusty, humid, or thermally stressed enclosures — common in cement plants, offshore platforms, and tropical port facilities — benefit from the 1756-CN2R’s extended operating temperature range and conformal coating options available on select catalog revisions. When installed alongside the 1756-IB16 or 1756-OB16E I/O modules within the same ControlLogix chassis, the module ensures that field device status data reaches the controller scan cycle without latency spikes or dropped updates, preserving the deterministic scan behavior that safety interlocks and emergency shutdown (ESD) systems depend upon.

For facilities operating legacy ControlNet topologies built around the 1784-PCIC or 1784-U2CN network interface cards, the 1756-CN2R provides a validated migration path that preserves existing network node addressing, scheduled bandwidth allocations, and unscheduled messaging configurations — eliminating the need for a full network redesign during a controller platform upgrade. This backward compatibility significantly reduces commissioning risk and engineering hours when modernizing aging DCS or PLC architectures in brownfield sites.

Every 1756-CN2R unit supplied by KNMKS undergoes pre-shipment functional verification including ControlNet node enumeration testing, dual-port failover simulation, and firmware revision confirmation. Units are shipped with original Rockwell Automation packaging where available, and all stock is sourced through verified industrial supply channels. A support terms confirmed by quotation covering manufacturing defects and operational failure under normal industrial service conditions is included with every unit.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust ControlLogix control cabinet built around the 1756-CN2R demands a coordinated protection strategy across power, communication, and I/O layers. The 1756-PSCA2 redundant power supply chassis adapter ensures that a single power supply failure does not interrupt backplane voltage to the communication module or the controller — a critical safeguard in facilities where cabinet power quality is compromised by large motor starts or capacitor bank switching. Upstream, a 1606-XLP power supply with active power factor correction and wide-range AC input provides clean, regulated 24 VDC to field devices and I/O modules, absorbing grid-side voltage sags that would otherwise propagate into the control system.

On the I/O side, the 1756-IB16 DC input module and 1756-OB16E electronically fused output module share the same chassis backplane as the 1756-CN2R, meaning that any communication disruption on the ControlNet segment directly affects the scan cycle integrity of these field I/O points. The redundant media architecture of the 1756-CN2R ensures that field device status — limit switches, pressure transmitters, solenoid valve feedback — continues to update the controller without interruption even during a cable fault event. For installations requiring intrinsic safety barriers or HART signal conditioning, the 1492-AIFM analog interface module family provides a clean signal path between field instruments and the ControlLogix analog I/O modules, reducing ground loop noise that can masquerade as process signal drift.

In architectures where the ControlLogix controller also manages a DeviceNet or EtherNet/IP segment alongside ControlNet, the 1756-ENBT or 1756-EN2T EtherNet/IP bridge module can be installed in the same chassis to provide supervisory SCADA connectivity without competing for ControlNet scheduled bandwidth. This multi-network coexistence is a common requirement in modernized petrochemical DCS migration projects where legacy ControlNet field devices must coexist with newer EtherNet/IP smart instruments during a phased cutover.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous catalytic cracking units, compressor control panels, and fired heater management systems, the 1756-CN2R sustains the deterministic ControlNet scan cycle that ESD and burner management systems (BMS) depend upon. A communication dropout in these environments can trigger a spurious shutdown costing tens of thousands of dollars per hour in lost production. The module’s automatic redundant media failover eliminates this risk without requiring operator intervention or controller restart.

Power Generation and Substation Automation: Turbine control systems, excitation regulators, and protection relay coordination panels in thermal and hydroelectric power plants require communication modules that maintain scan integrity during high-voltage switching transients. The 1756-CN2R’s EMC-hardened design and surge-suppressed BNC ports provide the signal integrity margin needed to sustain ControlNet communication during bus fault events and capacitor bank energization.

Mining and Mineral Processing: Conveyor drive control, crusher automation, and flotation cell management systems in underground and open-pit mining operations expose control hardware to extreme dust loading, vibration, and temperature cycling. The 1756-CN2R’s sealed module housing and conformal coating options protect internal circuitry from conductive dust ingress and condensation, extending mean time between failures (MTBF) in environments where maintenance access is costly and infrequent.

Water and Wastewater Treatment: Pump station automation, chemical dosing control, and SCADA-integrated treatment plant management systems rely on ControlNet communication to coordinate distributed I/O across large geographic footprints. The 1756-CN2R’s support for long coaxial cable runs (up to 1,000 meters per segment with repeaters) and its redundant media architecture make it well-suited for multi-building water treatment facilities where cable routing through outdoor conduit exposes the network to physical damage risk.

Metallurgy and Steel Production: Rolling mill automation, ladle furnace control, and continuous casting machine management systems operate in environments with extreme electromagnetic interference from high-current bus bars and induction heating equipment. The 1756-CN2R’s IEC 61000-4-5 surge immunity rating and shielded dual-port design provide the noise rejection margin required to maintain reliable ControlNet communication in these electrically hostile environments.

Port and Maritime Automation: Ship-to-shore crane control, automated stacking crane (ASC) systems, and vessel traffic management infrastructure require communication modules that maintain operation through salt-air corrosion, vibration from heavy machinery, and power quality disturbances from diesel generator sets. The 1756-CN2R’s wide operating temperature range and redundant media architecture support continuous operation in these demanding outdoor and semi-outdoor installations.

Safety and Quality FAQ

Q: What support terms coverage is provided with the 1756-CN2R supplied by KNMKS?
A: Every 1756-CN2R unit carries a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and operational failure under normal industrial service conditions. Support requests are processed directly through KNMKS with replacement or repair turnaround prioritized to minimize customer downtime.

Q: What pre-shipment testing is performed on each unit?
A: Each 1756-CN2R undergoes a pre-shipment functional verification protocol including ControlNet node enumeration testing on a live 1756 chassis, dual-port redundant media failover simulation, firmware revision confirmation against the customer’s specified revision requirements, and visual inspection for connector integrity and housing condition. Test records are available upon request.

Q: Is the 1756-CN2R compatible with all ControlLogix chassis and controller revisions?
A: The 1756-CN2R is compatible with all 1756-series chassis (A4 through A17) and all ControlLogix controller families including the 1756-L6x, 1756-L7x, and 1756-L8x series. Firmware compatibility with specific RSLogix 5000 or Studio 5000 project revisions should be confirmed against Rockwell Automation’s Product Compatibility and Download Center (PCDC) prior to installation. KNMKS technical support can assist with firmware revision matching for specific project requirements.

Q: Can KNMKS support long-term spare parts supply for the 1756-CN2R?
A: Yes. KNMKS maintains stock of the 1756-CN2R and related ControlLogix communication modules to support multi-year spare parts programs for facilities with extended maintenance cycles. Long-term supply agreements covering 12–36 month forward stocking commitments are available for customers managing large ControlLogix installed bases across multiple sites. Contact [email protected] to discuss a tailored spare parts strategy.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-CN2R
ControlLogix Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-CN2R
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
