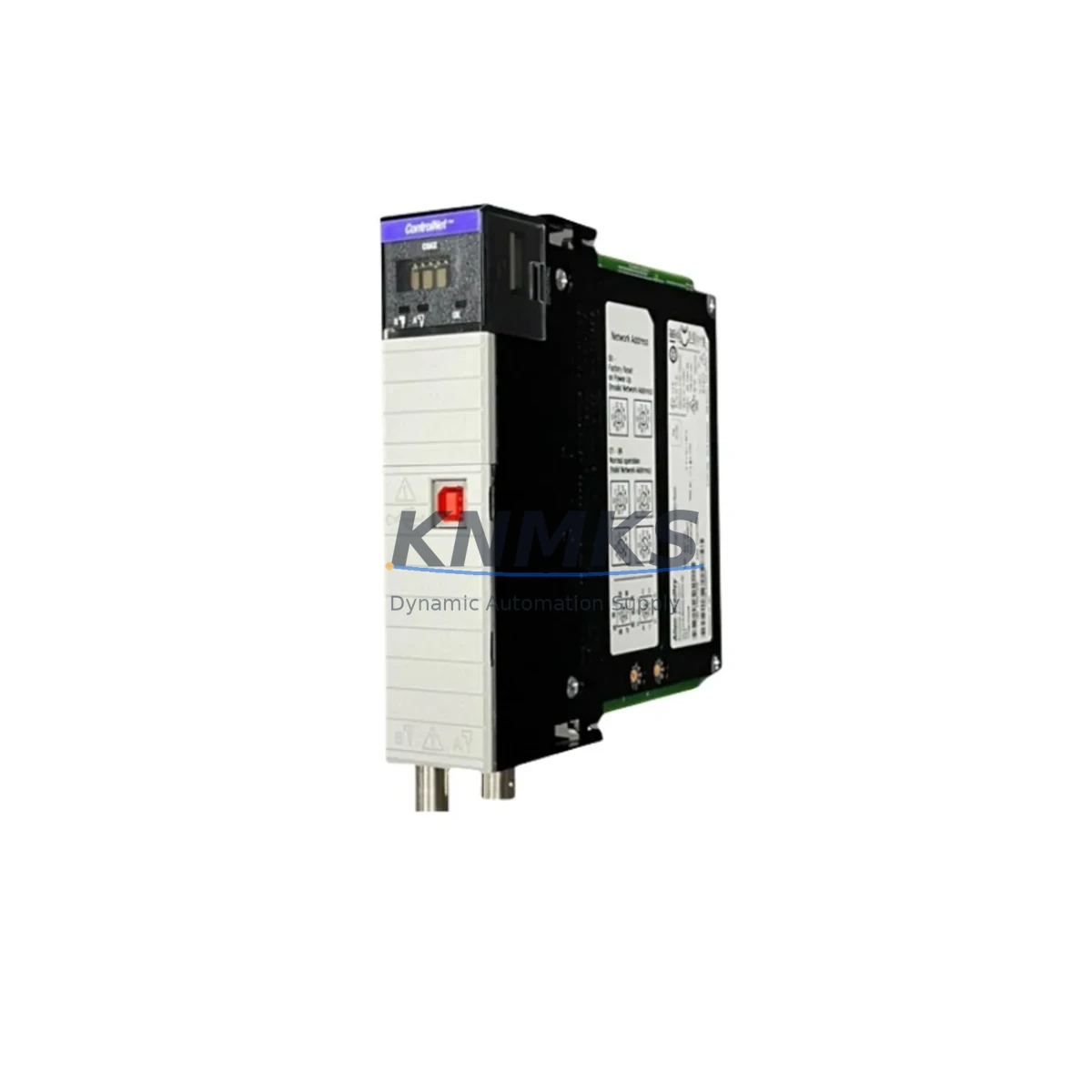

Allen-Bradley 1756-CN2/C Fail-Safe ControlNet Module

Overview

Allen-Bradley 1756-CN2/C Fail-Safe ControlNet Module: Fault Protection and Critical Industrial Field Reliability

The Allen-Bradley 1756-CN2/C is a dual-port ControlNet communication module engineered for the ControlLogix 1756 platform, purpose-built to sustain uninterrupted control loop integrity in the most demanding industrial environments. Where process continuity is non-negotiable — continuous chemical production, power generation interlocks, heavy-load switchgear cabinets, and high-EMI drive rooms — the 1756-CN2/C delivers deterministic, scheduled ControlNet communication that eliminates the signal drift, timing jitter, and network collisions that trigger unplanned shutdowns.

Unlike standard communication bridges, the 1756-CN2/C operates on a producer/consumer network model with time-scheduled and unscheduled messaging, ensuring that safety-critical I/O data arrives within defined scan windows regardless of network load. This architecture is fundamental to maintaining safe state transitions in interlock systems where a missed update can cascade into a full process trip.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 1756-CN2/C as the ControlNet backbone in a critical control cabinet requires a layered protection strategy across power, communication, and I/O subsystems. In high-load cabinets driving variable frequency drives, motor control centers, or large solenoid banks, transient surges on the 24 VDC bus can propagate into the backplane if the power supply is undersized or unprotected. Pairing the 1756-CN2/C with a 1756-PA75 or 1756-PB75 ControlLogix power supply provides regulated, filtered backplane power that isolates the communication module from upstream voltage fluctuations.

For applications requiring redundant control paths, the 1756-CN2/C integrates directly with 1756-RM2 redundancy modules, enabling automatic controller switchover without dropping ControlNet scheduled connections — a critical requirement in continuous process plants where a controller failover must be transparent to field devices. On the I/O side, 1756-IB16 digital input modules and 1756-OB16E electronically fused output modules share the same chassis backplane, and their data is transported over ControlNet with the deterministic timing that the 1756-CN2/C enforces.

In environments with significant electromagnetic interference — such as cabinets co-located with large inverter drives or arc furnace controls — the ControlNet coaxial cable infrastructure supported by the 1756-CN2/C provides inherently better noise immunity than unshielded twisted-pair Ethernet alternatives. Where the network spans long distances across plant floors, ControlNet repeaters and fiber-optic media converters extend the segment without signal degradation, maintaining the scheduled scan integrity that the 1756-CN2/C depends on for safe operation. Additionally, integrating a 1756-ENBT or 1756-EN2T EtherNet/IP bridge module in the same chassis allows remote diagnostics and asset management over the plant network without interrupting the ControlNet safety-critical data path.

Critical Industrial Safety Applications

The Allen-Bradley 1756-CN2/C is deployed across the full spectrum of process-critical and safety-adjacent industrial sectors:

Petrochemical and Refining: In continuous distillation columns, reactor feed control, and emergency shutdown (ESD) pre-interlock systems, the 1756-CN2/C maintains deterministic scan cycles that ensure valve position feedback and pressure transmitter data reach the ControlLogix controller within the required safety response time. Any communication delay in these loops risks overpressure events or uncontrolled exothermic reactions.

Electric Power Generation and Substation Automation: Turbine governor control, excitation system interlocks, and bus transfer schemes rely on sub-100 ms response times. The scheduled ControlNet connections managed by the 1756-CN2/C provide the timing predictability that power system protection engineers require, reducing the risk of false trips or delayed fault isolation.

Mining and Mineral Processing: Conveyor interlock chains, crusher protection systems, and slurry pump sequencing in dusty, high-vibration environments demand communication hardware that does not drift or lose connections under mechanical stress. The 1756-CN2/C’s industrial-grade construction and coaxial network interface resist the particulate ingress and vibration profiles common in underground and open-pit mining operations.

Water and Wastewater Treatment: Pump station sequencing, chlorination dosing interlocks, and SCADA-connected remote I/O panels in humid, corrosive atmospheres benefit from the 1756-CN2/C’s humidity tolerance and its ability to maintain scheduled connections across geographically distributed ControlNet segments.

Metallurgy and Steel Production: In electric arc furnace (EAF) controls, rolling mill drive coordination, and ladle transfer car sequencing, the extreme EMI generated by high-current switching makes ControlNet’s coaxial physical layer — managed by the 1756-CN2/C — significantly more robust than alternatives susceptible to common-mode noise injection.

Port Logistics and Heavy Lifting: Ship-to-shore crane control systems, automated stacking cranes, and bulk material handling conveyors require communication modules that maintain network integrity during high-inertia load transitions and outdoor temperature swings. The 1756-CN2/C’s wide operating temperature range and vibration resistance make it a reliable choice for these mobile and semi-mobile control platforms.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 1756-CN2/C?
Every 1756-CN2/C unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers functional failure under normal operating conditions and includes replacement or repair support. Support requests are processed directly through our technical team without third-party intermediaries.

Q2: How is the module tested before shipment?
All units undergo full functional pre-shipment verification, including backplane communication checks, ControlNet port integrity tests, and firmware version confirmation. This process ensures that every module arrives ready for immediate installation without requiring on-site burn-in testing, minimizing commissioning time in critical production environments.

Q3: Is the 1756-CN2/C compatible with all ControlLogix chassis and firmware versions?
The 1756-CN2/C is compatible with all standard 1756 ControlLogix chassis (4, 7, 10, 13, and 17-slot) and is supported across a wide range of RSLogix 5000 / Studio 5000 firmware versions. For specific firmware compatibility with your controller series revision, our technical team can confirm compatibility prior to order placement based on your existing system configuration.

Q4: Can long-term supply agreements be arranged for ongoing spare parts needs?
Yes. KNMKS maintains dedicated inventory reserves for critical ControlLogix communication modules including the 1756-CN2/C, supporting supply agreements of 12 to 36 months. This is particularly relevant for plants operating legacy ControlNet architectures where OEM availability has become constrained. Contact our sales team to discuss volume pricing, scheduled delivery, and consignment stocking options tailored to your maintenance and MRO requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-CN2/C
ControlLogix Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-CN2/C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
