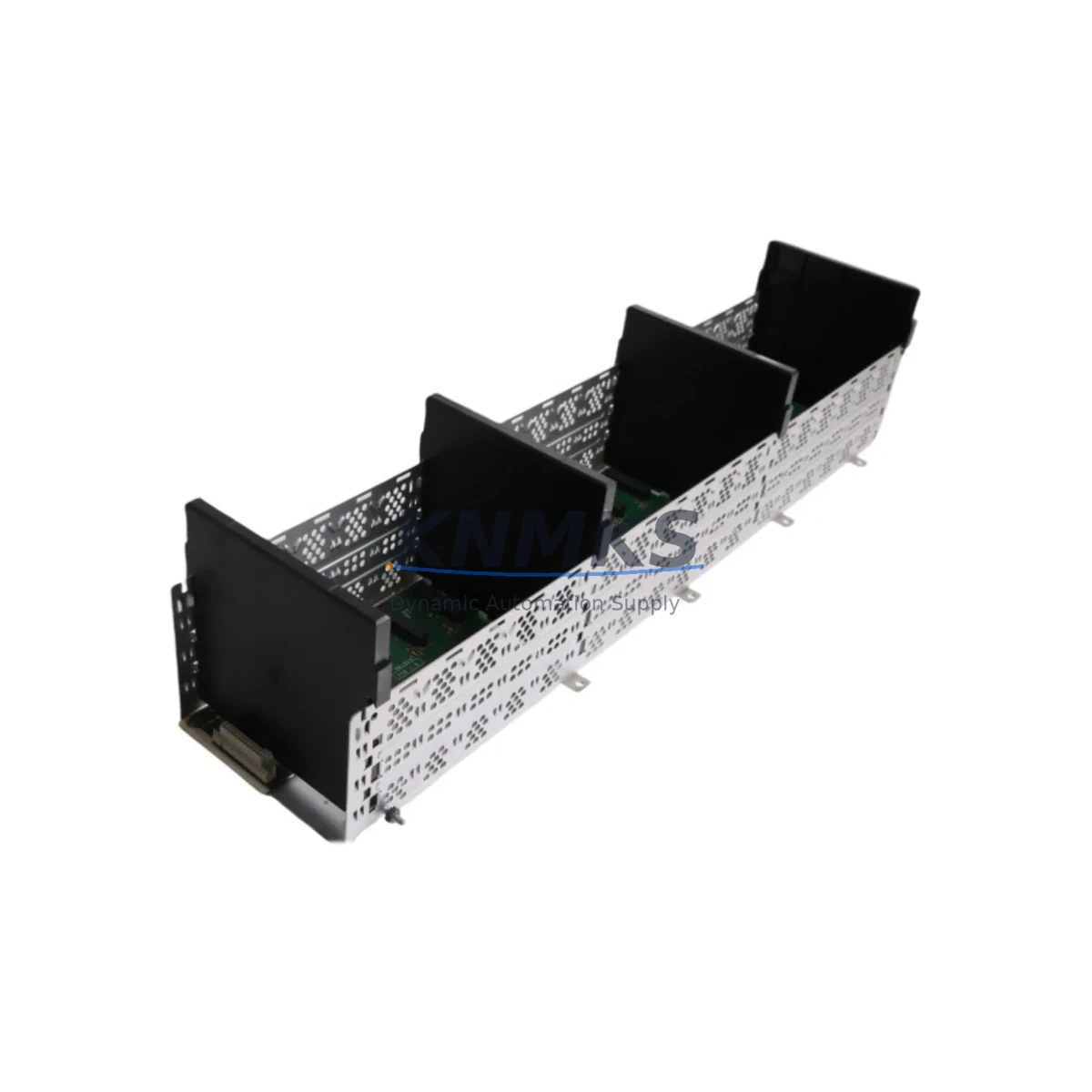

Allen-Bradley 1756-A17 Fail-Safe PLC Backplane for Industrial Control

Overview

Allen-Bradley 1756-A17 Fail-Safe PLC Backplane for Industrial Control Reliability

The Allen-Bradley 1756-A17 is a 17-slot ControlLogix chassis backplane engineered for mission-critical industrial automation environments where control interruption is not an option. Designed to support the full ControlLogix I/O and controller module ecosystem, the 1756-A17 delivers robust, fail-safe backplane communication across all installed modules — ensuring deterministic data exchange even under high electromagnetic interference, heavy vibration, elevated ambient temperatures, and dusty or humid field conditions common to petrochemical plants, power generation facilities, mining operations, and continuous process manufacturing sites.

In high-density control cabinets where multiple ControlLogix processors, communication bridges, and I/O modules share a single chassis, backplane integrity is the foundation of system reliability. The 1756-A17’s 17-slot architecture provides maximum module density for complex safety interlock systems, redundant control loops, and multi-axis motion control applications — reducing the need for additional chassis and minimizing inter-chassis communication latency that can introduce signal drift or timing errors in time-critical sequences.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully integrated ControlLogix control cabinet, the 1756-A17 backplane serves as the structural and communication backbone for a layered protection architecture. A properly specified 1756-PA72 or 1756-PB72 power supply module provides regulated, filtered DC power to all chassis slots — protecting against input voltage fluctuations, brownouts, and surge events that could otherwise corrupt backplane communication or cause unexpected controller faults. For sites with unstable utility power or frequent switching transients, pairing the chassis with an upstream surge protection device and a UPS-backed power feed is strongly recommended.

Communication integrity across the control network is maintained through EtherNet/IP bridge modules such as the 1756-EN2T or 1756-EN2TR, which provide redundant ring topology support for critical process networks — eliminating single points of network failure that could isolate the controller from field I/O during a cable fault or switch failure. In high-EMI environments such as variable frequency drive (VFD) rooms or arc furnace control buildings, shielded Ethernet cabling and proper cabinet grounding are essential complements to the 1756-A17’s inherent noise immunity.

For safety-rated applications requiring SIL 2 or SIL 3 compliance, the 1756-A17 chassis is fully compatible with the 1756-L8xS GuardLogix safety controller, which integrates standard and safety control within a single chassis — reducing cabinet footprint and simplifying safety circuit validation. Discrete safety I/O modules such as the 1756-IB16S and 1756-OB16S can be installed alongside standard I/O in the same 1756-A17 chassis, enabling consolidated safety interlock management for emergency stop circuits, light curtains, and safety gate monitoring without requiring a separate safety chassis.

For applications requiring controller redundancy — such as continuous chemical reactors, offshore platform control systems, or power substation automation — the 1756-RM2 redundancy module pair can be installed across two 1756-A17 chassis to provide automatic, bumpless controller switchover in the event of a primary controller fault, ensuring zero-interruption control continuity for the most critical production assets.

Critical Industrial Safety Applications

The Allen-Bradley 1756-A17 is deployed across the most demanding industrial sectors where control system failure carries significant safety, environmental, and financial consequences:

Petrochemical and Refining: In distillation column control, compressor anti-surge systems, and fired heater burner management, the 1756-A17 chassis hosts the ControlLogix controllers and safety I/O modules that execute critical process shutdowns and pressure relief interlock sequences. Its tolerance for elevated ambient temperatures and hydrocarbon-laden atmospheres (when installed in appropriate NEMA 4X or Ex-rated enclosures) makes it a preferred platform for hazardous area control rooms.

Electric Power Generation and Transmission: Turbine governor control, generator excitation systems, and substation protection relay coordination all demand deterministic, high-availability control platforms. The 1756-A17’s support for redundant controller configurations and high-speed backplane communication ensures that protection relay trip signals and load-shedding commands are executed within the millisecond response windows required by grid protection standards.

Mining and Mineral Processing: Conveyor interlock systems, crusher protection circuits, and flotation cell control in underground and surface mining operations expose control hardware to extreme vibration, coal dust, and humidity. The 1756-A17, installed in sealed, climate-controlled enclosures with positive-pressure purging, provides the structural rigidity and backplane reliability needed to maintain continuous production without unplanned shutdowns caused by module seating failures or backplane communication errors.

Water and Wastewater Treatment: Pump station control, chlorination dosing systems, and SCADA-integrated treatment plant automation rely on the ControlLogix platform for its EtherNet/IP integration capabilities and long-term parts availability. The 1756-A17’s 17-slot capacity accommodates the full range of analog input, digital output, and communication modules required for comprehensive plant-wide control from a single chassis.

Port and Maritime Logistics: Ship-to-shore crane control, automated stacking crane systems, and vessel mooring winch control demand control platforms that can withstand salt-laden air, wide temperature swings, and high-cycle mechanical loads. The 1756-A17 chassis, combined with conformal-coated I/O modules, provides the corrosion resistance and mechanical stability required for reliable crane and hoist automation in coastal and offshore environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 1756-A17?
The support terms confirmed by quotation cover all manufacturing defects, backplane communication failures, and functional faults under normal operating conditions. Each unit undergoes pre-shipment functional verification to confirm backplane integrity and slot connectivity before dispatch. Support requests are supported with direct technical assistance and replacement unit coordination to minimize your site downtime.

Q2: How is each 1756-A17 unit tested before shipment?
Every 1756-A17 chassis is subject to a pre-shipment inspection that includes visual inspection for physical damage, backplane connector integrity verification, and functional communication testing with compatible ControlLogix power supply and controller modules. Units that do not pass all inspection criteria are quarantined and not shipped.

Q3: Is the 1756-A17 compatible with both older and newer ControlLogix controllers?
Yes. The 1756-A17 is backward and forward compatible across the ControlLogix 1756 platform, supporting L6x, L7x, and L8x series controllers as well as GuardLogix safety controllers. It is also compatible with the full range of 1756-series I/O, communication, and motion modules, making it suitable for both legacy system maintenance and new system builds.

Q4: Can you guarantee long-term supply and spare part availability for the 1756-A17?
We maintain dedicated stock of the 1756-A17 to support both immediate replacement needs and planned maintenance programs. For customers with multi-site operations or long-term maintenance contracts, we offer blanket order arrangements and reserved stock agreements to ensure supply continuity. Contact our sales team to discuss your specific spare part planning requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1756-A17
ControlLogix Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Allen-Bradley 1756-A17
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
