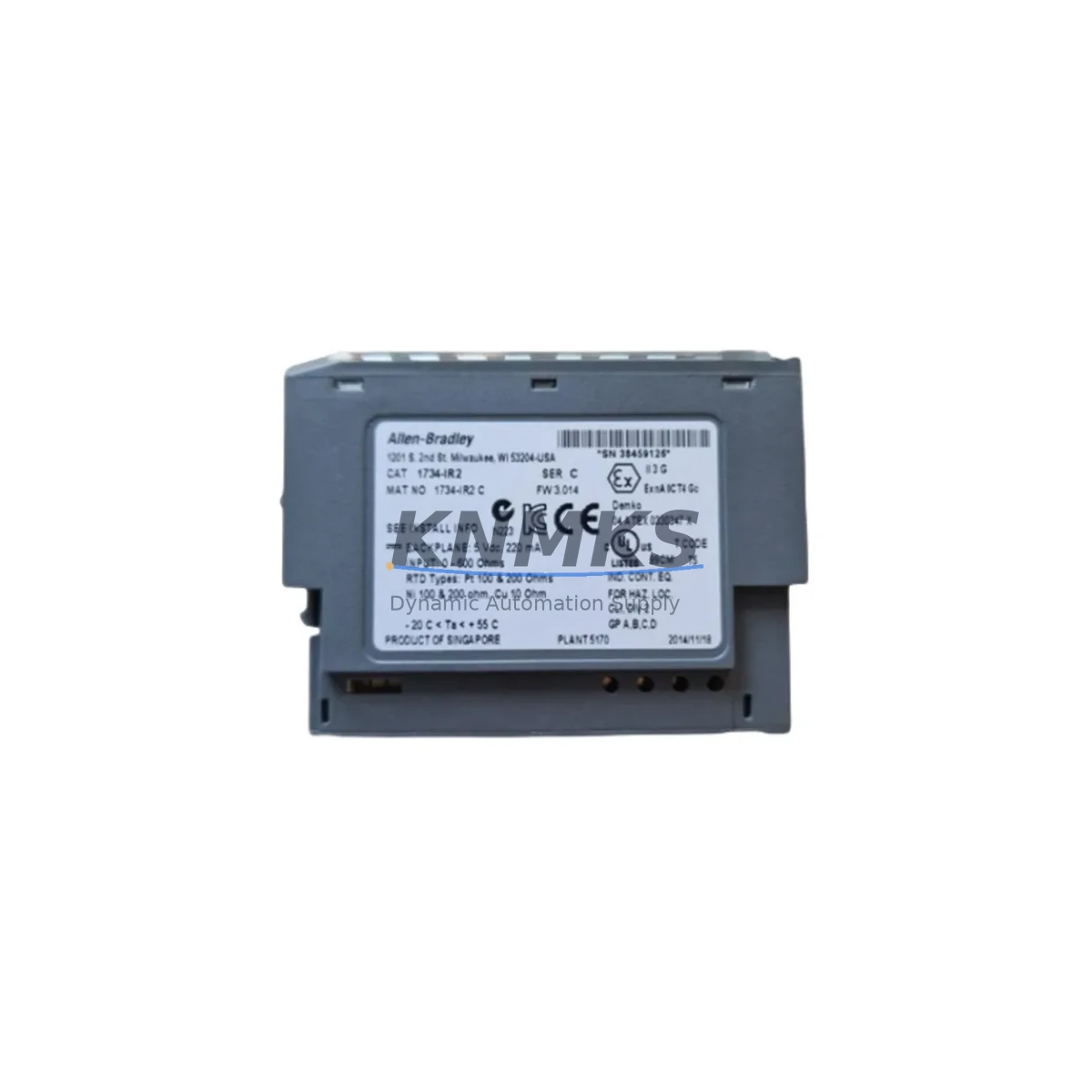

Allen-Bradley 1734-IR2 Migration-Ready RTD Input for Legacy Control

Overview

Allen-Bradley 1734-IR2 Migration-Ready RTD Input for Legacy Control Systems

The Allen-Bradley 1734-IR2 is a 2-channel RTD (Resistance Temperature Detector) input module designed for the 1734 POINT I/O platform, widely deployed across petrochemical plants, power generation facilities, water treatment stations, and discrete manufacturing lines. As legacy control architectures approach end-of-life, the 1734-IR2 serves as a validated, migration-ready replacement that preserves existing wiring infrastructure while enabling seamless integration into modernized ControlLogix and CompactLogix control environments.

For facilities operating aging SLC 500 or PLC-5 systems with legacy analog input cards, the 1734-IR2 provides a direct upgrade path into the POINT I/O ecosystem without requiring full panel redesigns. Its compact DIN-rail footprint and modular terminal base design allow engineers to retrofit individual I/O points rather than replacing entire racks, significantly reducing both capital expenditure and planned downtime windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1734-IR2 into a legacy control cabinet begins with a thorough audit of the existing I/O architecture. Engineers should first confirm the available slot count on the installed 1734-AENT EtherNet/IP adapter or 1734-ACNR ControlNet adapter, as each POINT I/O segment supports a defined maximum node count. If the existing adapter is at capacity, adding a secondary 1734-AENT adapter with its own IP address may be required before the 1734-IR2 can be commissioned.

Terminal base selection is equally critical. The 1734-IR2 requires a compatible 1734-TB or 1734-TBS terminal base, and the wiring configuration — 2-wire, 3-wire, or 4-wire — must be confirmed against the installed RTD sensor type before any field connections are made. Mismatched wiring configurations are a common source of calibration error during initial commissioning and can introduce measurement offsets that are difficult to diagnose without a reference meter on-site.

For facilities migrating from SLC 500 platforms, the legacy 1746-NR4 analog RTD input card typically handles four channels per slot. When transitioning to the 1734-IR2 (2 channels per module), planners should account for the increased slot count required and verify that the new POINT I/O segment has sufficient physical space within the control cabinet. In many retrofit projects, a 1734-TOP or 1734-TOPS power distribution module is added alongside the 1734-IR2 to ensure stable 24 VDC bus power across the expanded I/O segment.

Program migration from RSLogix 500 to Studio 5000 requires remapping all analog input tags associated with the legacy RTD card. The 1734-IR2 presents its channel data as scaled engineering-unit values directly in the controller tag database, eliminating the raw-count scaling routines common in older SLC 500 programs. HMI screens referencing legacy tag addresses — particularly on PanelView Plus terminals — must be updated to reflect the new tag structure before the system is returned to automatic control.

Communication link verification is essential when the 1734-IR2 is added to an existing EtherNet/IP network segment. Network engineers should confirm that the 1734-AENT adapter’s IP address, subnet mask, and connection parameters are correctly configured in the controller’s I/O tree, and that the module’s electronic data sheet (EDS) file is installed in Studio 5000. A 1784-U2DHP USB-to-DH+ programming cable or a standard Ethernet programming connection can be used to download the updated program and verify live channel readings before the system is handed back to operations.

Downtime Control During System Migration

Minimizing unplanned downtime during a POINT I/O retrofit requires a structured cutover plan. The recommended approach is to pre-configure the 1734-IR2 module and its terminal base on a bench test rig, verify all channel readings against a calibrated RTD simulator, and confirm Studio 5000 tag mapping before the scheduled maintenance window begins. This pre-commissioning step typically reduces on-site installation time to under two hours per module.

During the cutover, the existing RTD field wiring should be documented with photographs and labeled before disconnection. If the legacy system uses a 1746-NR4 with screw-terminal wiring, a temporary patch panel can be used to maintain sensor continuity while the new 1734-TB terminal base is installed. Once the 1734-IR2 is seated and the terminal base is wired, the controller program can be downloaded with the I/O forced to the last known good values, allowing a controlled transition without process upsets.

Post-installation, a full loop check against the process historian or SCADA system confirms that all RTD channels are reading within expected engineering-unit ranges. Any firmware updates to the 1734-AENT adapter should be applied during the same maintenance window to avoid compatibility issues with newer Studio 5000 releases. With pre-tested hardware, documented wiring, and a staged program download, most 1734-IR2 retrofit installations are completed within a single planned shutdown, protecting production continuity and reducing the risk of extended unplanned outages.

Retrofit Support FAQ

Q: Can the 1734-IR2 directly replace a 1746-NR4 in an SLC 500 system?
A: The 1734-IR2 is not a direct plug-in replacement for the 1746-NR4, as it belongs to the POINT I/O platform rather than the SLC 500 fixed I/O rack. However, it is the recommended functional replacement when migrating RTD input channels from an SLC 500 to a ControlLogix or CompactLogix architecture. A 1734-AENT adapter and compatible terminal base are required as part of the migration assembly.

Q: What wiring changes are needed when retrofitting from a 1771-IR PLC-5 RTD card?
A: The 1771-IR uses a 1771 I/O chassis with a dedicated backplane connector, while the 1734-IR2 uses a modular 1734-TB terminal base with individual screw terminals per channel. Field wiring must be re-terminated at the new terminal base. 3-wire and 4-wire RTD configurations are supported natively; 2-wire configurations require a jumper at the terminal base. All wiring should be verified with a calibrated RTD simulator before the system is returned to service.

Q: Is pre-shipment testing performed on the 1734-IR2 before dispatch?
A: Yes. Every 1734-IR2 unit supplied by KNMKS undergoes full functional verification prior to shipment, including channel-level RTD simulation across the supported resistance range. Units are shipped with a support terms confirmed by quotation from the date of dispatch, covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability for the 1734-IR2?
A: KNMKS maintains stock inventory of the 1734-IR2 to support urgent retrofit and spare parts requirements. Standard orders are processed and dispatched within 1–3 business days. For large-quantity or multi-site procurement, please contact our sales team to confirm availability and arrange consolidated shipment.
