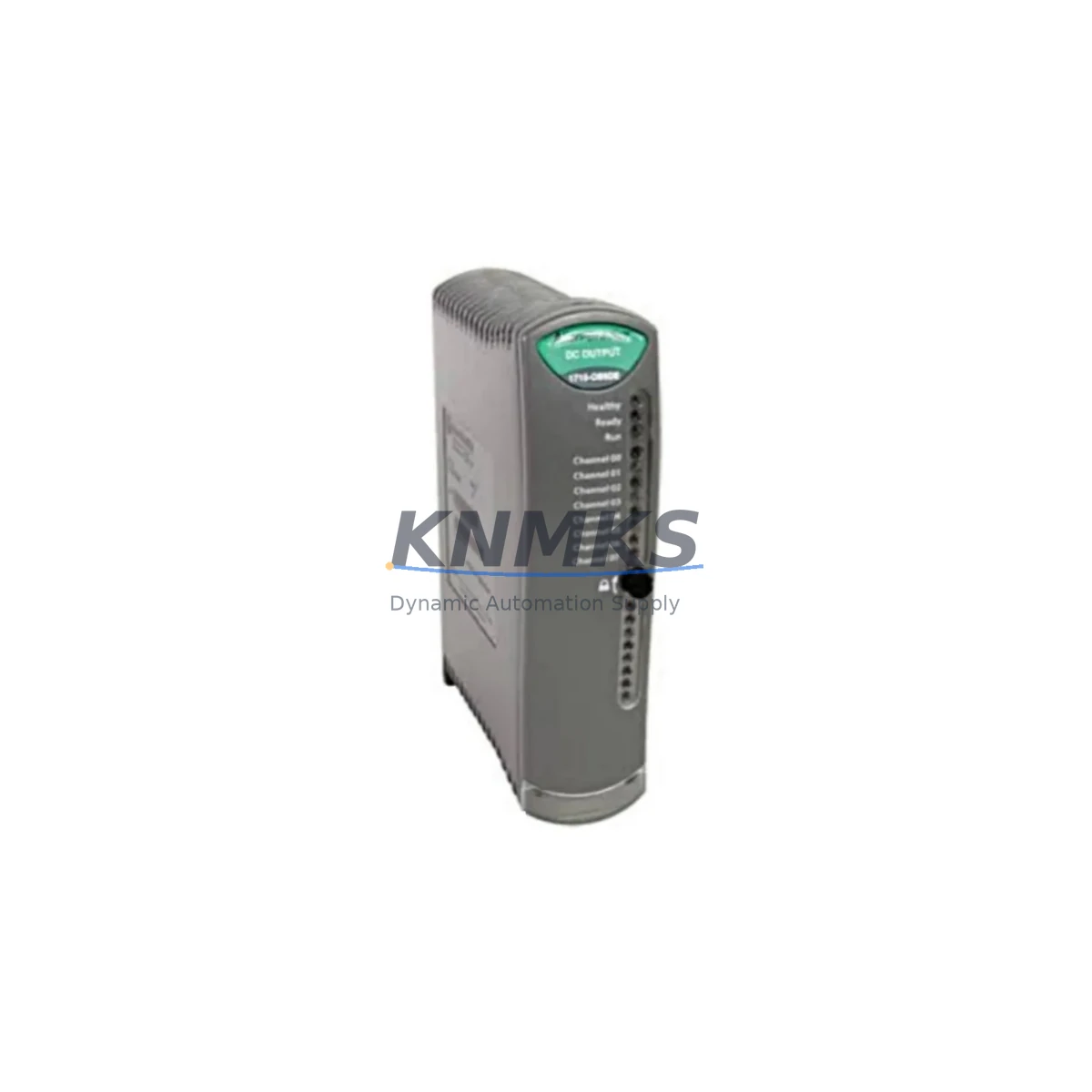

Allen-Bradley 1715-OB8DE Fail-Safe Redundant DO Module

Overview

Allen-Bradley 1715-OB8DE Fail-Safe Redundant DO Module: Fault-Tolerant Output Control for Critical Industrial Sites

In high-stakes industrial environments where a single output failure can trigger cascading shutdowns, unplanned downtime, or safety incidents, the Allen-Bradley 1715-OB8DE delivers the fault-tolerant digital output performance that critical control systems demand. Designed as part of Rockwell Automation’s 1715 Redundant I/O system, this 8-point redundant digital output module provides dual-path signal integrity, ensuring that even in the event of a module-level fault, the control loop remains active and the field device continues to receive its commanded state. For engineers managing continuous production lines, safety interlocks, or high-availability control cabinets, the 1715-OB8DE is a proven solution that eliminates single points of failure at the output stage.

The 1715-OB8DE is engineered for direct integration with ControlLogix and GuardLogix controller platforms, operating within the 1715 Redundant I/O adapter framework. Each output channel supports electronic fuse protection, providing surge and short-circuit immunity that is essential in environments with heavy motor loads, solenoid valves, or relay coils that generate inductive kickback. The module’s diagnostics are fully transparent to the controller — channel-level fault detection, open-load detection, and output verification are all reported back through the 1715-AENTR adapter, giving maintenance teams real-time visibility into output health without requiring a physical inspection of the cabinet.

For facilities operating in petrochemical processing, power generation, mining, water treatment, or metallurgical production, the 1715-OB8DE addresses the core challenge of maintaining control continuity under adverse conditions. High electromagnetic interference from variable frequency drives, arc furnaces, or high-current bus bars can corrupt signal integrity in conventional output modules. The 1715-OB8DE’s redundant architecture ensures that even if one output path is degraded by EMI-induced noise or a transient voltage spike, the secondary path maintains the commanded output state. This dual-path design is particularly valuable in safety interlock circuits where a false de-energization of a valve or actuator could trigger an emergency shutdown sequence.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 1715-OB8DE effectively requires a holistic approach to control cabinet protection. The module operates within the 1715 Redundant I/O system, which means it must be paired with the 1715-AENTR EtherNet/IP redundant adapter — a dual-port adapter that maintains two independent communication paths to the ControlLogix backplane, ensuring that a network cable fault or switch failure does not interrupt I/O communication. In high-availability cabinets, engineers typically deploy two 1715-AENTR adapters in a Device-Level Ring (DLR) topology, providing automatic network failover in under 3 milliseconds.

On the power supply side, the 1715-OB8DE’s 24V DC field power should be sourced from a redundant power supply arrangement. Rockwell’s 1715-PSCA2 power supply conditioner and redundant power feed architecture prevent output module de-energization during a primary PSU fault — a critical consideration in continuous process plants where an unexpected output drop can trigger emergency shutdown procedures. Pairing the 1715-OB8DE with a 1756-PA75R redundant chassis power supply on the ControlLogix side further eliminates controller-level power as a single point of failure.

For the controller platform, the 1715-OB8DE integrates seamlessly with GuardLogix 5580 safety controllers, enabling the output module’s channels to be mapped to safety-rated output tasks within Studio 5000 Logix Designer. This configuration is commonly used in SIL 2 interlock circuits for burner management systems, compressor anti-surge control, and turbine trip circuits. When used alongside a 1715-IB16D redundant digital input module on the same 1715 adapter, engineers can build fully redundant input-to-output safety loops without introducing any non-redundant I/O segments.

In cabinets with high inductive load switching — such as those controlling large solenoid valve banks or motor starter coils — installing dedicated surge suppression terminal blocks between the 1715-OB8DE outputs and field wiring significantly reduces the risk of inductive transients feeding back into the module’s output drivers. This wiring practice, combined with the module’s built-in electronic fusing, creates a two-layer protection strategy that extends module service life in demanding field environments. For installations requiring analog feedback alongside digital control, the 1715-IF16 redundant analog input module can be integrated on the same 1715 adapter to provide closed-loop process monitoring without adding non-redundant I/O segments to the safety architecture.

Critical Industrial Safety Applications

The 1715-OB8DE is deployed across a wide range of critical industrial sectors where output reliability is non-negotiable. In petrochemical and refinery operations, the module controls emergency isolation valves (EIVs) and blowdown valves within safety instrumented systems (SIS). The redundant output architecture ensures that a valve receives its de-energize command even if one output path fails — a requirement under IEC 61511 for SIL-rated final elements. The module’s open-load detection capability is particularly valuable here, as it can identify a broken solenoid coil wire before a demand event occurs, allowing maintenance to replace the field device during a planned outage rather than discovering the fault during an emergency.

In power generation and substation automation, the 1715-OB8DE is used to control circuit breaker trip coils, transformer cooling fans, and auxiliary relay panels. The bumpless switchover capability of the 1715 redundant system means that a module replacement or firmware update can be performed without interrupting the output state — a critical requirement in grid-connected facilities where an unexpected breaker trip can cause significant generation loss and grid instability.

In mining and mineral processing, where conveyor systems, crusher drives, and slurry pump stations operate in high-dust, high-vibration environments, the 1715-OB8DE’s robust construction and sealed module housing provide reliable operation without the signal degradation that affects conventional output modules exposed to conductive dust ingress. The module’s diagnostic transparency allows remote monitoring of output health from the control room, reducing the need for technicians to enter hazardous areas for routine I/O health checks.

In water and wastewater treatment, the module controls pump station start/stop circuits, chemical dosing valve actuators, and UV disinfection system interlocks. The 24V DC sourcing output configuration is compatible with the majority of field actuators used in water infrastructure, and the module’s 2A per channel rating supports direct control of larger solenoid valves without requiring intermediate relay amplification. In metallurgical and steel production environments, where arc furnace operations generate extreme EMI levels, the 1715-OB8DE’s dual-path redundancy ensures that output commands are executed reliably even when one communication or power path is temporarily degraded by electromagnetic interference.

Safety and Quality FAQ

Q1: Does the 1715-OB8DE ship with a support terms confirmed by quotation, and what does it cover?
Yes. Every 1715-OB8DE unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. All units undergo a full functional test prior to shipment, including output channel verification, electronic fuse response testing, and communication handshake validation with a 1715-AENTR adapter. Support requests are supported with direct technical assistance and expedited replacement dispatch.

Q2: How is compatibility with my existing ControlLogix or GuardLogix system verified before shipment?
The 1715-OB8DE is compatible with all ControlLogix and GuardLogix controller families that support the 1715 Redundant I/O system via the 1715-AENTR adapter. KNMKS technical staff verify firmware revision compatibility and adapter configuration requirements based on your existing system’s controller series and Studio 5000 project version before order confirmation. If your system uses an older 1715-AENTR firmware revision, we advise on the appropriate module firmware to ensure seamless integration without requiring a controller project upgrade.

Q3: Can the 1715-OB8DE be replaced online without shutting down the control system?
Yes. The 1715 Redundant I/O system supports online module replacement (hot-swap) when the redundant partner module is healthy and active. During replacement, the partner module maintains all output states, ensuring zero interruption to field devices. KNMKS provides pre-shipment configuration documentation and step-by-step replacement guidance to support your maintenance team in executing the swap safely and efficiently, minimizing exposure time and eliminating the need for a planned production shutdown.

Q4: What is KNMKS’s stock availability and lead time for the 1715-OB8DE?
KNMKS maintains dedicated inventory of the 1715-OB8DE to support urgent spare parts requirements and planned maintenance programs. Standard orders ship within 1–3 business days. For large-volume or project-based procurement, KNMKS offers reserved stock agreements to guarantee availability across multi-phase installation schedules. Long-term supply continuity is a core commitment — even for modules approaching end-of-life status from the OEM, KNMKS sources and quality-tests verified stock to extend your system’s operational lifespan.
