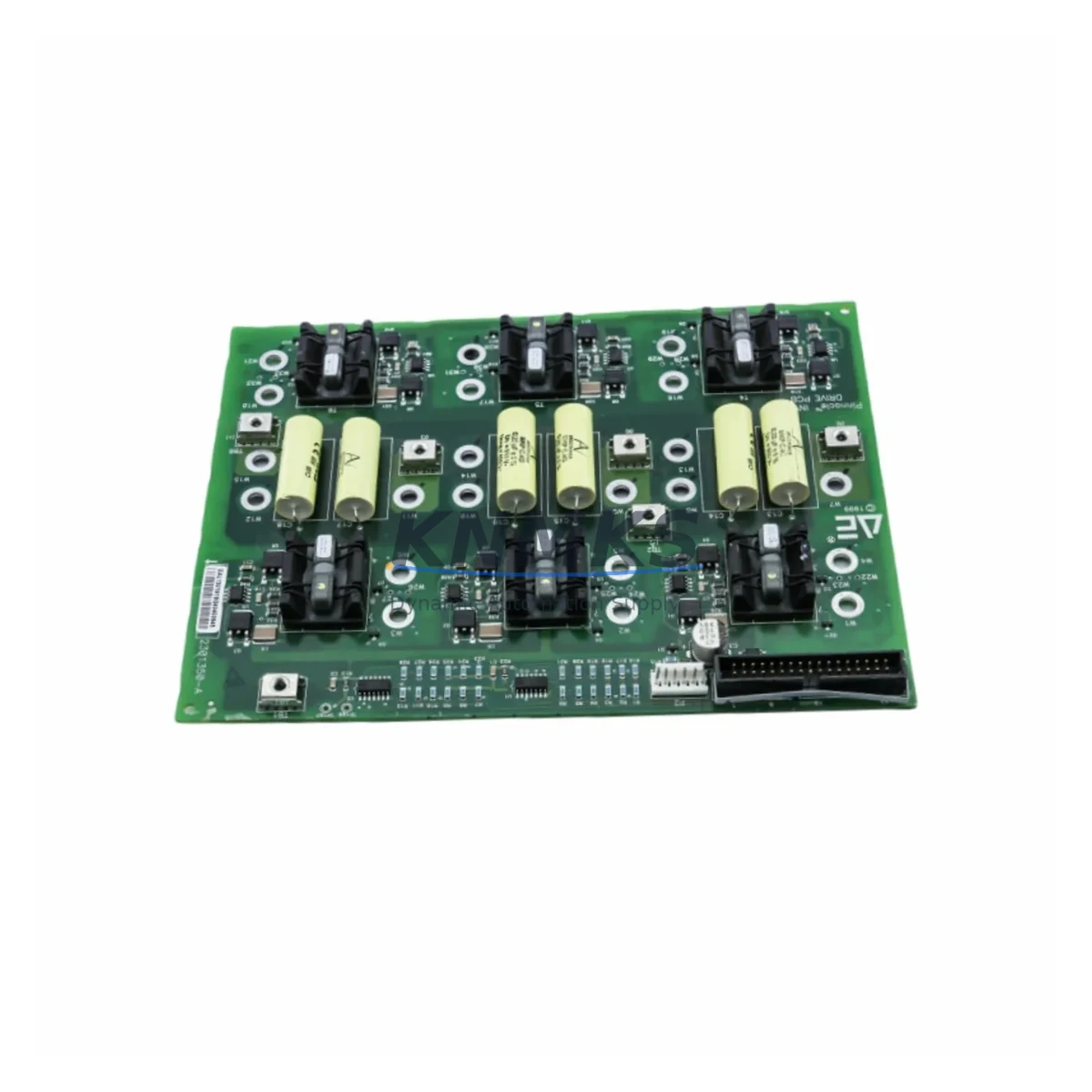

Advanced Energy 2301350-A Fail-Safe RF Drive Board

Overview

Advanced Energy 2301350-A Fail-Safe RF Drive Board: Fault-Protected Reliability for Critical Industrial Control

The Advanced Energy 2301350-A (cross-reference: 90157017 / 173733-001 / TTLD13-11 / FIMS-F / 3881-020024-12) is a precision-engineered RF Inverter Drive Board from the Advanced Energy Pinnacle series, purpose-built for continuous, fail-safe operation in demanding semiconductor fabrication, industrial plasma processing, and high-frequency power conversion environments. Designed to sustain stable RF output under extreme electromagnetic interference, thermal cycling, and voltage fluctuation, this drive board is a cornerstone component in control cabinets where unplanned downtime carries severe operational and safety consequences.

In critical production lines — from semiconductor etch chambers to industrial coating systems — the RF drive stage is the heart of the power delivery chain. Any instability in the drive board translates directly into process drift, arc events, output power collapse, or catastrophic interlock trips. The 2301350-A addresses these failure modes with hardened gate drive circuitry, robust thermal management architecture, and tightly controlled switching characteristics that maintain output fidelity even when upstream power quality degrades or downstream load impedance shifts unexpectedly.

KNMKS maintains verified stock of the Advanced Energy 2301350-A, fully outgoing-tested prior to shipment, with a support terms confirmed by quotation and fast global logistics support. Every unit is inspected against original Advanced Energy specifications to ensure drop-in compatibility with Pinnacle RF generators and associated control systems.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully protected RF power delivery cabinet, the Advanced Energy 2301350-A drive board does not operate in isolation. Its fail-safe performance depends on — and contributes to — a layered protection architecture that spans the entire control chain. At the power input stage, a properly rated Advanced Energy Pinnacle DC Bus Capacitor Assembly buffers voltage ripple and absorbs transient energy that would otherwise propagate into the drive stage and cause erratic switching behavior or gate oxide stress. Upstream of the capacitor bank, a dedicated EMI line filter module suppresses conducted interference from the facility power grid, ensuring the drive board receives clean, stable DC rails even in electrically noisy industrial environments.

The RF output stage relies on the drive board’s precise timing signals to control the IGBT or MOSFET power module — the high-frequency switching element that converts DC bus energy into RF output. Any timing jitter, gate signal distortion, or drive voltage sag introduced by a degraded drive board will manifest as output power instability, increased harmonic content, or outright switching failure. The 2301350-A’s hardened gate drive outputs maintain signal integrity under load, protecting the power module from shoot-through events and reducing the risk of catastrophic switch failure during high-duty-cycle operation.

At the system control level, the drive board interfaces with the Advanced Energy Pinnacle RF Generator Control PCB — the supervisory board responsible for power setpoint management, fault logging, and interlock coordination. A reliable drive board ensures that control commands are executed faithfully, that fault signals are generated promptly when anomalies are detected, and that the generator can execute a safe, controlled shutdown rather than an uncontrolled trip. In facilities where the RF generator is integrated into a safety instrumented system (SIS) or process interlock loop, the integrity of the drive board is a direct contributor to functional safety performance.

For cabinet thermal management, pairing the 2301350-A with a properly maintained heat sink assembly and thermal interface material is essential. Drive boards operating in high-ambient-temperature enclosures — common in foundry, chemical processing, and heavy industrial settings — are subject to accelerated thermal aging if junction temperatures are not controlled. Periodic inspection of the thermal interface and heat sink condition is a recommended maintenance practice for any installation where the Pinnacle generator operates at sustained high power levels.

Critical Industrial Safety Applications

The Advanced Energy 2301350-A RF Inverter Drive Board is deployed across a wide range of safety-critical and continuous-process industrial environments where RF power delivery reliability is non-negotiable.

In semiconductor fabrication, plasma etch and CVD deposition chambers depend on stable, precisely controlled RF power to maintain process uniformity and yield. A drive board failure mid-process results in wafer loss, chamber contamination, and extended recovery downtime — costs that far exceed the value of maintaining a qualified spare. Facilities operating Advanced Energy Pinnacle generators in etch, deposition, or ion implantation applications should maintain at least one verified 2301350-A spare in their critical spares inventory.

In industrial plasma coating and surface treatment systems — used in automotive, aerospace, and medical device manufacturing — the RF drive stage governs the energy density delivered to the plasma discharge. Inconsistent drive performance leads to coating adhesion failures, surface treatment non-uniformity, and product rejection. The 2301350-A’s stable gate drive characteristics support consistent plasma ignition and sustained discharge across the full power range of the Pinnacle generator.

In petrochemical and chemical processing facilities, RF-based heating and plasma systems are increasingly used for process intensification and waste treatment. These environments combine high ambient temperatures, corrosive atmospheres, and stringent safety requirements — conditions that demand components with proven reliability and documented failure modes. The 2301350-A’s industrial-grade construction and Advanced Energy’s established quality standards make it a trusted choice for these demanding applications.

In power generation and heavy industrial settings, where RF systems support induction heating, plasma cutting, or high-frequency welding, unplanned generator downtime disrupts production schedules and triggers costly maintenance callouts. Stocking a tested, support terms-backed 2301350-A replacement ensures that maintenance teams can restore generator operation quickly, without waiting for OEM lead times that can extend to weeks or months for obsolete or long-lifecycle components.

Safety and Quality FAQ

Q1: What support terms coverage does the Advanced Energy 2301350-A carry when purchased from KNMKS?
Every 2301350-A shipped by KNMKS is covered by a support terms confirmed by quotation from the date of delivery. This support terms covers functional defects identified under normal operating conditions consistent with the original Advanced Energy Pinnacle generator application. Support requests are supported by KNMKS’s technical team, with replacement or repair options available to minimize your downtime.

Q2: How is each unit tested before shipment?
All 2301350-A units undergo a 100% outgoing functional inspection prior to dispatch. Testing verifies gate drive output integrity, power stage switching characteristics, and board-level electrical continuity against Advanced Energy original specifications. Units that do not meet acceptance criteria are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 2301350-A compatible with all Pinnacle RF generator variants, and can it replace cross-reference part numbers?
The 2301350-A is the primary part number for this drive board assembly within the Advanced Energy Pinnacle series. It is directly interchangeable with cross-reference numbers 90157017, 173733-001, TTLD13-11, FIMS-F, and 3881-020024-12. If your generator uses any of these part numbers, the 2301350-A is the correct replacement. For application-specific compatibility questions, KNMKS’s technical team can assist with verification before purchase.

Q4: Can KNMKS support long-term supply for this component, including for legacy or end-of-life Pinnacle systems?
Yes. KNMKS specializes in long-lifecycle industrial automation spare parts, including components for legacy and discontinued systems. We maintain strategic stock of the 2301350-A and actively source additional inventory to support customers with extended maintenance horizons. For facilities managing Pinnacle generators beyond the OEM support window, KNMKS provides a reliable, tested supply chain alternative with consistent quality standards and documented traceability.
