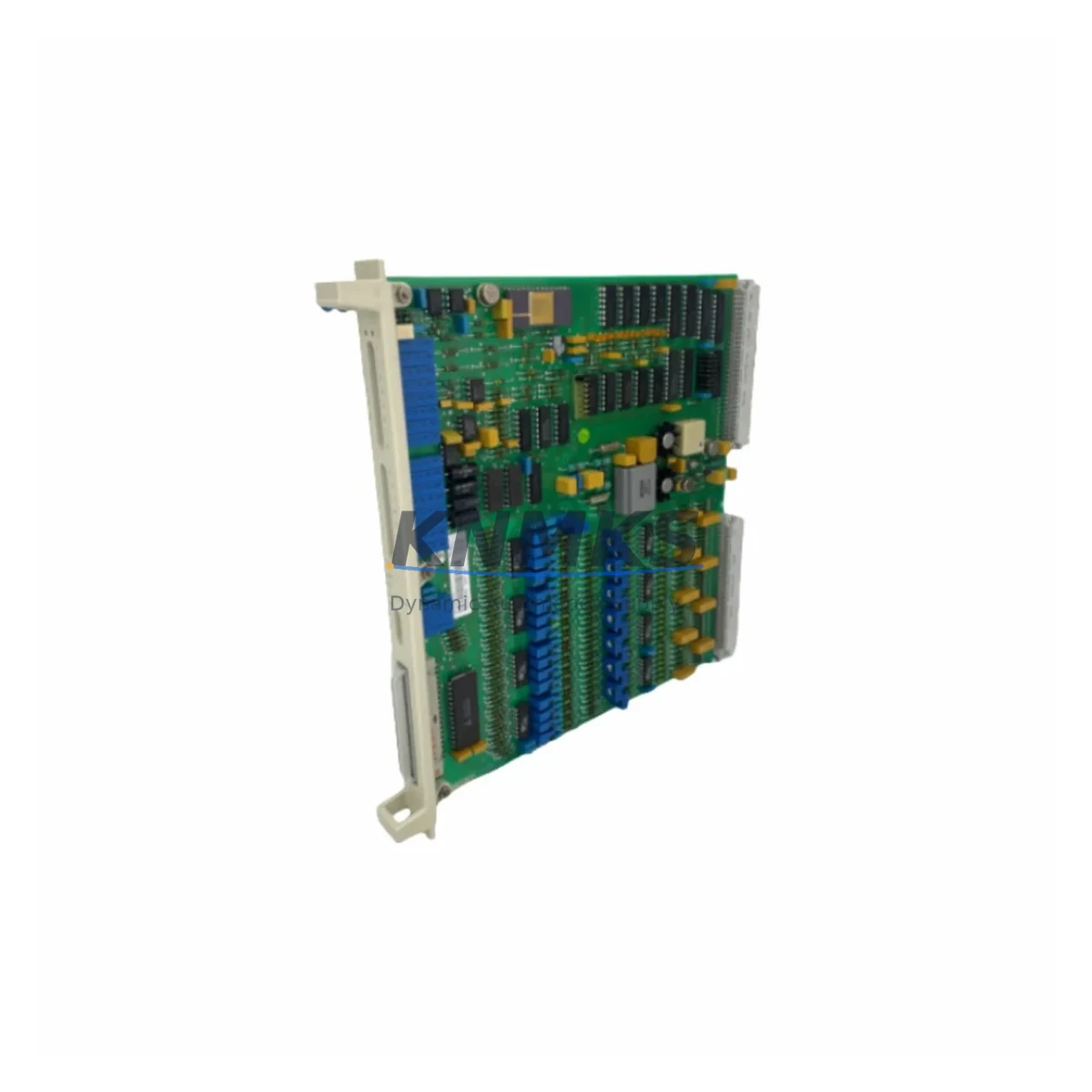

ABB YXU168F Migration-Ready PROFIBUS DP Module for Legacy DCS

Overview

ABB YXU168F Migration-Ready PROFIBUS DP Module for Legacy DCS

The ABB YXU168F is a PROFIBUS DP communication module engineered for the AC800F Freelance distributed control system platform. As legacy Freelance DCS installations approach end-of-life support cycles, the YXU168F has become a critical spare part for facilities managing phased migration strategies, emergency replacements, and long-term control system continuity. Whether you are replacing a failed unit on an active production line or pre-positioning stock ahead of a planned retrofit, the YXU168F provides a verified drop-in solution with full PROFIBUS DP protocol compatibility and rack-level interoperability within the AC800F architecture.

Industrial sites running AC800F Freelance controllers frequently encounter the YXU168F in applications spanning chemical processing, oil and gas separation, power generation auxiliaries, and water treatment automation. The module handles PROFIBUS DP master and slave communication roles, enabling the controller to interface with field devices including remote I/O stations, variable frequency drives, intelligent valve positioners, and third-party instrumentation. When a YXU168F fails or reaches its operational limit, the downstream impact extends beyond the module itself — PROFIBUS segment integrity, field device polling cycles, and HMI data refresh rates are all affected until a verified replacement is installed and commissioned.

Before installing a replacement YXU168F, engineers should confirm the following parameters against the existing system configuration: backplane slot assignment and module address settings within the AC800F rack, PROFIBUS DP baud rate and bus termination status, GSD file version compatibility with the current Freelance Engineering Tool (FET) project, and the firmware revision of the replacement unit relative to the installed AC800F controller firmware. In systems where the YXU168F operates alongside an AC800F PM803F process module or a CI854 PROFIBUS DP interface, slot sequencing and redundancy configuration must be preserved during the swap to avoid triggering a controller restart or segment fault.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful YXU168F retrofit within an AC800F Freelance system requires a structured approach that accounts for both hardware compatibility and software configuration integrity. The AC800F platform uses a modular rack architecture where the YXU168F occupies a dedicated communication slot. Before the replacement unit is inserted, the engineering team should export the current FET project configuration and document the existing PROFIBUS DP network topology, including segment length, number of slaves, and termination resistor placement at both ends of the bus cable.

In installations where the AC800F controller is paired with a TB820V2 termination unit or a TP830 power supply module, the physical rack layout must be reviewed to confirm that adjacent modules are not affected by the removal of the YXU168F. The TB820V2 termination unit, in particular, carries field wiring connections that may need to be temporarily isolated during the module swap. Similarly, if the system includes a CI840A DeviceNet interface or a CI858 DriveBus module in adjacent slots, the rack power budget should be recalculated to confirm that the replacement YXU168F does not introduce a power draw conflict.

For sites that have integrated the AC800F with a third-party SCADA platform via OPC DA or OPC UA, the PROFIBUS DP segment managed by the YXU168F typically feeds real-time process values into the OPC server tag database. After the replacement module is installed and the PROFIBUS segment is re-established, the OPC server connection should be verified to confirm that all mapped tags are returning live data. In systems using an ABB System 800xA integration layer, the Freelance DCS node hosting the YXU168F may require a soft restart of the communication task rather than a full controller reboot, which significantly reduces process interruption time.

Sites managing a broader migration from AC800F to a newer control platform should treat the YXU168F replacement as an interim measure within a phased decommissioning plan. During this phase, it is common to also address aging AF100 fieldbus interface modules, replace deteriorating PROFIBUS DP trunk cables, and audit the GSD file library within the FET project to ensure all slave device definitions remain current. Pre-positioning a spare YXU168F alongside a spare PM803F process module and a set of TB820V2 termination units provides a complete emergency response kit for the most failure-prone components in the AC800F rack.

Downtime Control During System Migration

Minimizing unplanned downtime during a YXU168F replacement requires preparation that begins before the failed module is removed from the rack. The first priority is to place the affected PROFIBUS DP segment into a controlled fault state rather than allowing the controller to enter an uncontrolled alarm cascade. In AC800F Freelance systems, this is typically achieved by setting the affected communication task to a maintenance mode within the FET online environment, which suspends polling on the PROFIBUS segment without triggering a full controller failover.

Once the replacement YXU168F is physically installed, the commissioning sequence should follow a defined order: power-on confirmation, backplane communication handshake with the AC800F controller, PROFIBUS DP segment initialization, slave device enumeration, and finally, HMI faceplate verification for all process variables associated with the segment. In redundant AC800F configurations, the standby controller should be held in a synchronized but non-active state during the replacement to prevent an automatic switchover that could complicate the commissioning sequence.

For planned maintenance windows, the YXU168F replacement can typically be completed within a two-hour window when all preparatory steps — including spare module pre-testing, FET project backup, and field device isolation — are completed in advance. Pre-shipment testing of the replacement YXU168F against a known-good AC800F rack configuration eliminates the risk of receiving a non-functional unit and discovering the fault only after the original module has been removed. All units supplied are pre-shipment tested and covered by a support terms confirmed by quotation, supporting both emergency replacement scenarios and planned maintenance cycles.

Retrofit Support FAQ

Q: Is the YXU168F a direct drop-in replacement for an existing unit in an AC800F rack?
A: Yes. The YXU168F is designed for direct rack insertion into the AC800F Freelance platform without requiring hardware adapters or field wiring modifications. The module address and PROFIBUS DP configuration are retained in the FET project and are re-applied to the replacement unit during the commissioning scan. Confirm the firmware revision of the replacement unit is compatible with the installed AC800F controller firmware before insertion.

Q: What commissioning steps are required after installing a replacement YXU168F?
A: After physical installation, perform a PROFIBUS DP segment scan within the Freelance Engineering Tool to confirm all slave devices are recognized. Verify module address assignment, check bus termination status at both segment ends, and confirm that HMI tags associated with the segment are returning live process values. In systems integrated with ABB System 800xA, restart the communication task rather than performing a full controller reboot where possible.

Q: Can the YXU168F be used in systems that are being migrated from AC800F to a newer ABB platform?
A: Yes. The YXU168F is commonly used as an interim replacement during phased migrations from AC800F to newer ABB control platforms. It maintains PROFIBUS DP segment integrity during the transition period, allowing the migration to proceed in stages without requiring a simultaneous replacement of all field devices on the segment. This approach preserves existing GSD file configurations and field wiring while the new control platform is commissioned in parallel.

Q: What support terms and testing coverage is provided with the YXU168F?
A: All YXU168F units are pre-shipment tested against AC800F rack compatibility and PROFIBUS DP communication function before dispatch. A support terms confirmed by quotation is included, covering functional defects identified under normal operating conditions. In-stock units are available for immediate global dispatch, supporting both emergency replacement requirements and planned maintenance schedules.
