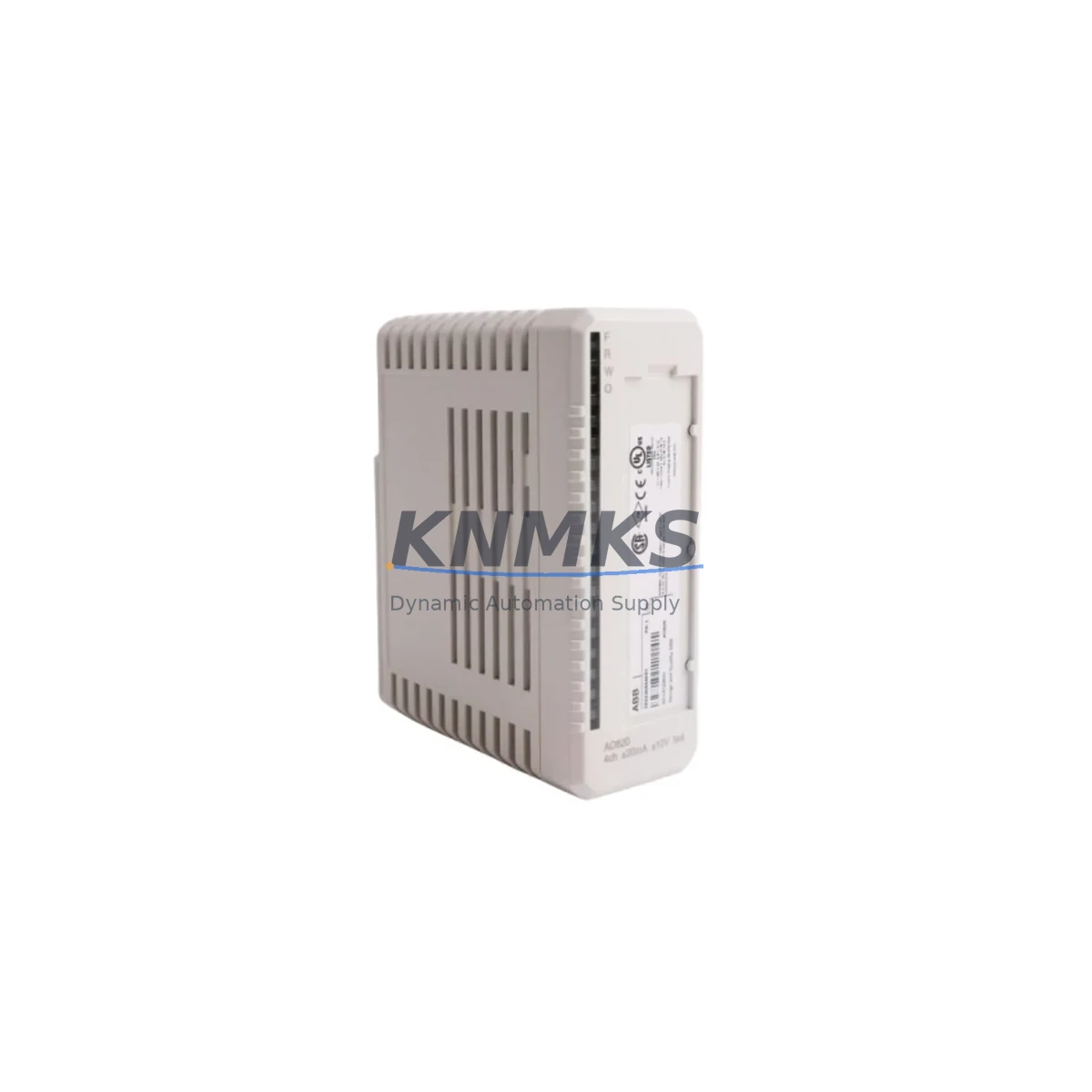

ABB YPQ203A 3ASD510001C17 Fail-Safe DCS Processor

Overview

ABB YPQ203A 3ASD510001C17 Fail-Safe DCS Processor: Fault Protection and Critical Industrial Field Reliability

The ABB YPQ203A (3ASD510001C17) is a high-integrity processor module engineered for the AC800M Distributed Control System platform — one of ABB’s most widely deployed DCS architectures in continuous process industries. Designed to operate at the heart of safety-critical control cabinets, this module delivers deterministic scan cycle execution, robust fault isolation, and fail-safe behavior that prevents unplanned shutdowns and protects personnel and assets in demanding industrial environments.

In continuous production facilities — petrochemical refineries, power generation plants, metallurgical smelters, and water treatment stations — control interruptions are not merely costly; they are potentially catastrophic. The YPQ203A addresses this reality by maintaining stable CPU operation across wide temperature ranges, high-vibration mechanical environments, and electrically noisy cabinets where signal drift and communication anomalies are constant threats. Its architecture supports redundant configuration with the ABB PM866 processor module, enabling hot-standby failover that eliminates single points of failure in the control loop.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system — not a single component. The YPQ203A processor operates most effectively when paired with a complete protection architecture. In high-load DCS cabinets, power quality is the first line of defense: the ABB PSTX soft starter and dedicated 24VDC panel power supply units condition incoming power and suppress voltage spikes before they reach the processor backplane. Surge events that bypass primary protection are further attenuated by ABB SACE circuit breakers installed at the cabinet feed, preventing transient energy from propagating into the AC800M rack.

On the I/O side, the YPQ203A communicates with field instruments through ABB AI810 and AO810 analog I/O modules, which provide galvanic isolation between field wiring and the processor bus — a critical safeguard in environments with ground loops, long cable runs, or high-voltage proximity. For digital safety interlocks, ABB DI810 digital input modules interface with emergency stop circuits and safety relay outputs, ensuring that trip signals reach the processor without latency or signal conditioning errors.

Communication integrity is maintained through the AC800M’s redundant Modulebus backplane. In installations where PROFIBUS DP is used for field device communication, the ABB CI854 PROFIBUS DP communication interface module provides a dedicated, isolated communication path that prevents bus faults from impacting processor execution. This layered architecture — processor, I/O isolation, power conditioning, and communication redundancy — forms a complete cabinet protection strategy that minimizes the risk of control interruption, spurious trips, and unplanned downtime.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous distillation and reaction control, the YPQ203A manages critical process variables — temperature, pressure, flow — with deterministic scan cycles that prevent runaway conditions. Its fail-safe output behavior ensures that on any processor fault, control valves and safety interlocks revert to their safe-state positions, protecting both the process and personnel.

Power Generation: Thermal and hydroelectric power plants rely on AC800M-based DCS for turbine governor control, boiler management, and grid synchronization. The YPQ203A’s hot-standby redundancy capability ensures that a processor fault does not interrupt generation output, avoiding costly grid instability events and regulatory penalties.

Mining & Mineral Processing: High-vibration, dust-laden environments in underground and open-pit mining operations demand hardware that maintains signal integrity without frequent maintenance intervention. The YPQ203A’s robust mechanical design and EMI tolerance make it suitable for crusher control, conveyor interlocking, and ventilation safety systems.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate 24/7 with strict regulatory compliance requirements. The YPQ203A supports continuous pump sequencing, chemical dosing control, and alarm management — with the reliability needed to meet environmental discharge standards without manual intervention.

Metallurgy & Steel: Electric arc furnace control, rolling mill automation, and ladle handling systems generate extreme electromagnetic interference. The YPQ203A’s EMC-compliant design and isolated communication interfaces maintain control loop stability in these high-interference environments, preventing signal drift that could cause material quality defects or equipment damage.

Port & Marine: Ship-to-shore crane control systems and vessel automation platforms require DCS processors that tolerate salt-air corrosion, humidity cycling, and vibration from heavy machinery. The YPQ203A, deployed within sealed and climate-controlled control cabinets, provides the processing reliability needed for safe cargo handling and propulsion control.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the YPQ203A 3ASD510001C17?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified DCS processor functions within the confirmed support period, KNMKS will provide a replacement or repair at no additional cost. Support requests are processed with priority to minimize control system downtime.

Q2: What outgoing tests are performed before shipment?
Every YPQ203A unit undergoes a 100% functional test prior to dispatch. This includes power-on verification, communication interface checks, and processor execution validation. Units that do not pass functional testing are not shipped. A test report is available upon request for critical installation projects.

Q3: Is the YPQ203A 3ASD510001C17 compatible with existing AC800M DCS installations?
Yes. The YPQ203A is a direct replacement module for compatible AC800M processor slots. It is designed to operate with existing ABB AC800M I/O modules, communication interfaces, and engineering tools including ABB Control Builder M. Compatibility should be verified against the specific firmware version and hardware revision of the target system before installation.

Q4: Can long-term supply be guaranteed for ongoing maintenance and spare parts programs?
KNMKS maintains dedicated stock of the YPQ203A 3ASD510001C17 to support long-term spare parts programs for facilities with extended maintenance cycles. For customers requiring guaranteed availability over 12–36 month horizons, blanket order arrangements and reserved stock agreements are available. Contact our technical sales team to discuss your specific supply continuity requirements.
