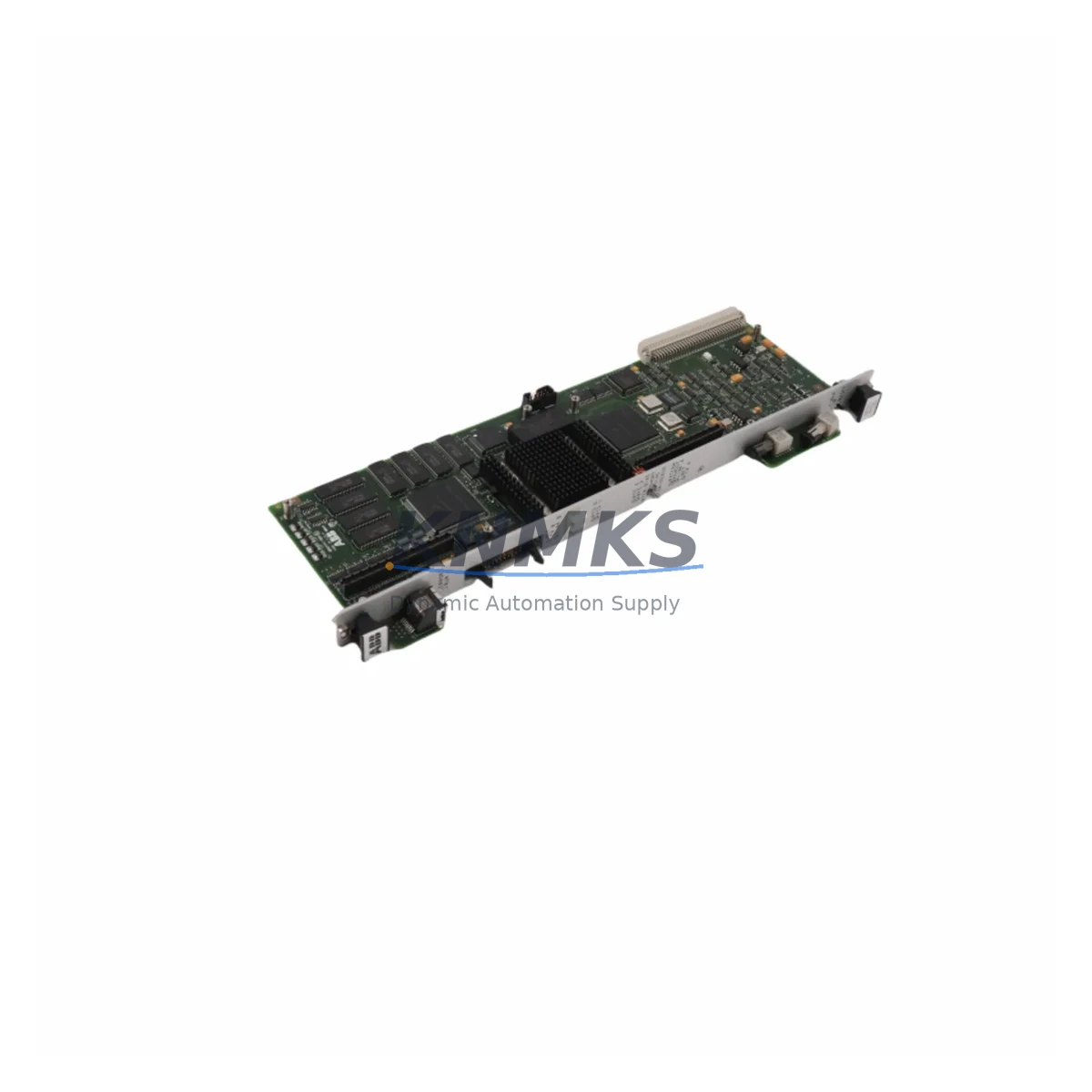

ABB 086444-005 Migration-Ready Signal Card for Legacy DCS

Overview

ABB 086444-005 Migration-Ready Signal Card for Legacy DCS Systems

The ABB 086444-005 is a signal conditioning card originally engineered for the ABB ADVANT Distributed Control System (DCS) platform, and remains one of the most critical replacement modules for facilities undertaking phased migrations from legacy ADVANT OCS and Master Series controllers to modern ABB AC800M or AC800F architectures. With multi-region stock maintained for immediate dispatch, this module supports both emergency breakdown replacements and scheduled outage windows, minimizing unplanned downtime in continuous process industries including oil & gas, pulp and paper, power generation, and chemical processing.

Each 086444-005 unit is pre-tested prior to shipment, verified against original ABB factory specifications, and supplied with a support terms confirmed by quotation covering functional integrity under normal operating conditions. The module ships in its original form factor, ensuring compatibility with existing ADVANT S100 I/O backplanes and rack assemblies without mechanical modification.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the ABB 086444-005 in an operating ADVANT DCS environment requires careful pre-migration planning across several interdependent system layers. Before pulling the existing module, engineering teams should document the current module address configuration as defined in the ADVANT AMPL database or ABB Control Builder project. Address conflicts introduced during hot-swap or cold-replacement procedures are among the most common causes of extended commissioning delays.

Power budget verification is a critical early step. The ADVANT S100 rack power supply — typically an ABB DSQC or PS100-series unit — must have sufficient headroom to support the replacement 086444-005 alongside any other modules sharing the same rack segment. If the existing power supply is already operating near capacity, or if the rack also houses communication modules such as the ABB DSMB 176 MasterBus 300 interface or an INSUM network adapter, a power audit should be completed before the replacement window opens.

Terminal block wiring should be photographed and labeled before disconnection. The 086444-005 uses a standard ADVANT S100 terminal unit, and field wiring — including 4–20 mA analog loops, thermocouple inputs, or RTD circuits — can typically be reconnected without modification. However, if the retrofit is part of a broader migration toward an ABB AC800M controller with S800 I/O modules, the wiring transition to CI830 PROFIBUS DP adapters or CI854 PROFIBUS PA links will require new terminal mapping and updated loop drawings.

HMI screen updates are frequently overlooked during signal card replacements. If the plant runs ABB Operate IT or an older ADVANT Operator Station (OS), tag names and signal paths tied to the 086444-005 channel assignments must be verified against the current graphics database. Any channel renumbering introduced during the replacement will propagate to alarm lists, trend displays, and historian archives. Coordinating with the DCS software team before the outage window prevents post-restart HMI discrepancies.

For sites migrating from ADVANT to AC800M in phases, the 086444-005 often remains in service on legacy S100 racks while new S800 I/O stations are commissioned in parallel. In this hybrid configuration, the ABB AF100 Fieldbus — or its successor, the PROFIBUS DP segment — bridges the two I/O generations. Ensuring that the AF100 communication module and the new CI854A PROFIBUS interface are both correctly addressed and that the Control Builder project reflects the dual-rack topology is essential before cutover. Sites that also operate ABB Freelance 2000 or AC31 controllers in adjacent control cabinets should verify that the shared MasterBus 300 segment is not overloaded after the 086444-005 is returned to service.

Downtime Control During System Migration

Minimizing control system downtime during an ABB 086444-005 replacement begins with a structured pre-outage checklist. The replacement window should be scheduled during a planned maintenance shutdown rather than forced by an emergency failure, wherever possible. Having a pre-tested, in-stock 086444-005 unit available — rather than waiting on a repair cycle or new-build lead time — is the single most effective downtime reduction measure available to maintenance teams managing aging ADVANT infrastructure.

Before the outage window opens, the full ADVANT AMPL project or Control Builder application should be backed up to the Engineering Workstation and to an offline archive. This protects the original program logic, I/O configuration, and alarm parameter sets in the event that the replacement procedure introduces unexpected configuration drift. The backup should include the current OS graphics database and historian tag list.

During the physical swap, the rack should be de-energized at the local rack power switch rather than at the main panel, preserving power to adjacent racks and maintaining control continuity on unaffected process loops. After the 086444-005 is seated and the terminal unit reconnected, the rack is re-energized and the module allowed to complete its self-test sequence before the I/O configuration is re-downloaded from the EWS. If the control cabinet also contains an ABB DSPC 110 processor module or a DSDP 150 pulse counter card sharing the same S100 backplane, confirm that those modules have not lost their configuration during the power cycle.

Post-installation verification should confirm that all analog input channels are reading within expected engineering unit ranges, that alarm limits are active, and that the historian is logging correctly. A 30-minute observation period before returning the process loop to automatic control is recommended. If the replacement is part of a phased migration to AC800M, the parallel I/O architecture allows the new controller to shadow the legacy ADVANT outputs during this observation window, providing an additional layer of process protection.

Retrofit Support FAQ

Q1: Is the ABB 086444-005 a direct drop-in replacement for a failed unit in an ADVANT S100 rack?
Yes. The 086444-005 is slot-compatible with existing ADVANT S100 I/O racks. No mechanical modification to the rack or backplane is required. After physical installation, re-download the I/O configuration from the Engineering Workstation and verify module address assignment in the AMPL database or Control Builder project before returning the loop to service.

Q2: Can this module be used during a phased migration from ADVANT to ABB AC800M?
Yes. The 086444-005 is commonly retained in service on legacy S100 racks during phased AC800M migrations, operating in parallel with new S800 I/O stations. This hybrid topology allows process continuity while new controller segments are commissioned. Ensure the AF100 or PROFIBUS DP communication link between the legacy and new I/O segments is correctly configured in the Control Builder project.

Q3: What pre-shipment testing is performed, and what does the support terms confirmed by quotation cover?
Each 086444-005 unit is functionally tested against ABB factory specifications before dispatch. The support terms confirmed by quotation cover functional failure under normal operating conditions and excludes damage caused by incorrect installation, overvoltage, or environmental factors outside the module’s rated operating range. Contact [email protected] for RMA procedures.

Q4: How quickly can the module be dispatched, and is multi-region stock available?
Yes. Multi-region stock is maintained to support both emergency breakdown replacements and scheduled outage windows globally. Standard dispatch is same-day or next business day for in-stock units. Contact [email protected] or call +86 18359268345 to confirm current stock availability and lead time for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

086444-005
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 086444-005
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
