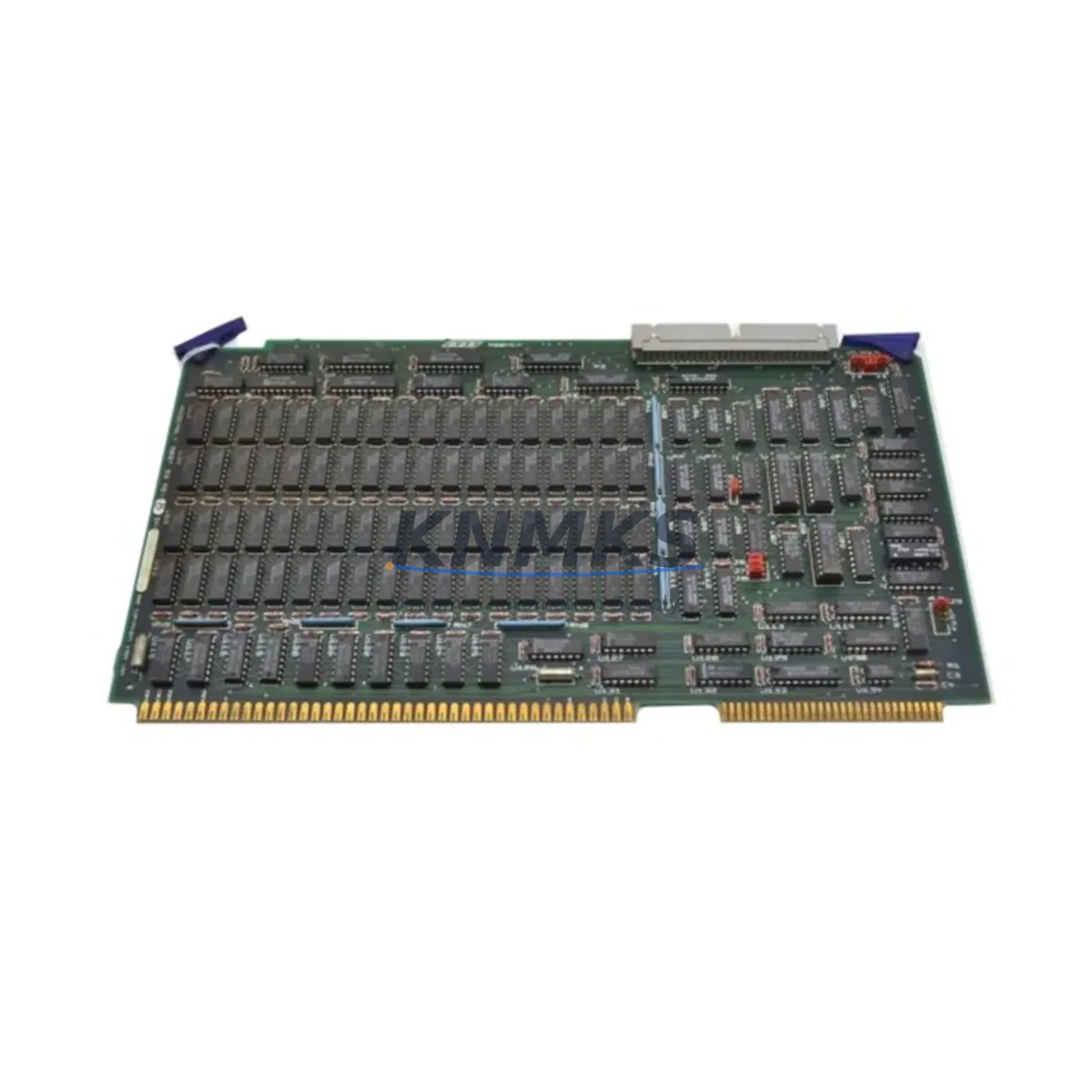

ABB 1948022A1 Migration-Ready CPU Memory for Legacy Control Systems

The ABB 1948022A1 is a CPU memory module designed for the AC800M Distributed Control System (DCS) platform — one of ABB’s most widely deployed process automation architectures in power generation, oil & gas, chemical processing, and water treatment facilities. As legacy AC800M installations age and original spare parts become increasingly difficult to source, the 1948022A1 serves as a critical component for system continuity, enabling engineers to extend the operational life of existing control infrastructure without committing to a full platform migration.

For facilities running aging AC800M controllers such as the PM864A, PM865A, or PM891, maintaining a verified stock of CPU memory modules is essential. The 1948022A1 is compatible with the standard AC800M backplane architecture and integrates directly into existing rack configurations without requiring firmware re-flashing in most deployment scenarios. Before installation, engineers should confirm the firmware version running on the target controller — particularly when migrating from earlier AC800M hardware revisions — to ensure memory addressing and program execution remain consistent with the existing control logic.

When planning a retrofit or spare-part replacement using the 1948022A1, the following verification steps are recommended: confirm available power budget on the existing power supply module (such as the SD821 or SD822 series), verify backplane slot compatibility and module address assignment, and review terminal wiring documentation to ensure no I/O mapping conflicts arise during hot-swap or cold-replacement procedures. If the facility is also upgrading communication infrastructure — for example, transitioning from legacy PROFIBUS DP links to PROFINET or Modbus TCP — the 1948022A1 should be validated alongside the communication interface modules (CI854A, CI857, or CI858) to confirm protocol stack compatibility.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1948022A1 into an existing AC800M system requires a structured retrofit plan. Begin by auditing the current rack configuration: identify the number of occupied backplane slots, the installed power supply module capacity, and the physical dimensions of the control cabinet to confirm installation space. The AC800M rack (TB820V2 or equivalent) must have an available slot with correct addressing configured in the engineering tool (ABB Control Builder M).

If the retrofit is part of a broader control cabinet upgrade — for example, replacing a failed PM864A controller while simultaneously expanding I/O capacity — engineers should also account for the AI810, AO810V2, or DI810 I/O modules already installed in the rack. These modules retain their configuration in non-volatile memory, but their channel assignments must be re-verified after the CPU memory module is replaced to prevent signal mapping errors during restart.

For facilities migrating from older INFI 90 or Advant OCS platforms to AC800M, the 1948022A1 plays a role in the target architecture. In such migrations, the engineering team must also plan for HMI screen updates (typically in ABB 800xA or Operate IT), communication link reconfiguration, and signal isolator replacement where legacy 4–20 mA loops interface with new digital I/O modules. Programming cables (TK212A or USB-to-serial adapters) and a verified backup of the original application program are mandatory prerequisites before any memory module swap.

Downtime risk is further reduced when a pre-tested 1948022A1 module — loaded with the correct firmware and a validated program image — is staged and ready before the maintenance window opens. This approach, combined with a parallel verification of the SD821 power supply output voltage and the CI854A communication interface link status, allows most replacements to be completed within a single planned shutdown cycle.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any facility replacing CPU memory modules in an active production environment. The 1948022A1 supports a structured cold-replacement workflow: power down the affected controller node, remove the existing memory module, install the 1948022A1, restore the program backup via Control Builder M, and perform a controlled restart with I/O verification before returning the loop to automatic mode.

To protect original program logic, always export and archive the current application program, hardware configuration, and communication settings before beginning any hardware replacement. If the facility uses ABB 800xA as the supervisory layer, confirm that the OPC server connections and alarm management configurations remain intact after the controller restart. For systems with redundant controller pairs, the 1948022A1 can be installed in the standby node first, allowing a bumpless switchover to validate the replacement before the primary node is touched — effectively reducing process impact to near zero.

Field commissioning should include a full I/O loop check, communication link verification (particularly for PROFIBUS DP segments connected via CI854A), and a review of any interlock logic that references the replaced controller node. Document all steps and retain the replaced module for failure analysis if required. Our team performs pre-shipment functional testing on every 1948022A1 unit, and each module ships with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions.

Retrofit Support FAQ

Q1: Is the ABB 1948022A1 a direct replacement for the original module in AC800M systems?
Yes. The 1948022A1 is designed as a direct replacement for the same part number in AC800M DCS racks. No hardware modification is required. Confirm firmware compatibility with your current Control Builder M version before installation.

Q2: What commissioning steps are required after installing the 1948022A1?
After physical installation, restore the application program backup using ABB Control Builder M, verify module address assignment in the hardware configuration, perform an I/O loop check, and confirm communication link status on all connected CI-series interface modules before returning the system to automatic control.

Q3: Can the 1948022A1 be used in systems that are being migrated from PROFIBUS to PROFINET?
Yes, provided the communication interface modules (e.g., CI857 for PROFINET) are also updated and correctly configured. The 1948022A1 itself is protocol-agnostic at the memory level; protocol handling is managed by the communication interface modules in the same rack.

Q4: What support terms and pre-shipment testing does this module include?
Every ABB 1948022A1 unit we supply undergoes pre-shipment functional testing and ships with a support terms confirmed by quotation. In-stock units are available for immediate dispatch. Contact our team for lead time confirmation and volume availability.
