ABB YPG111A Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB YPG111A Maintenance-Proven Spare Part for Factory Uptime

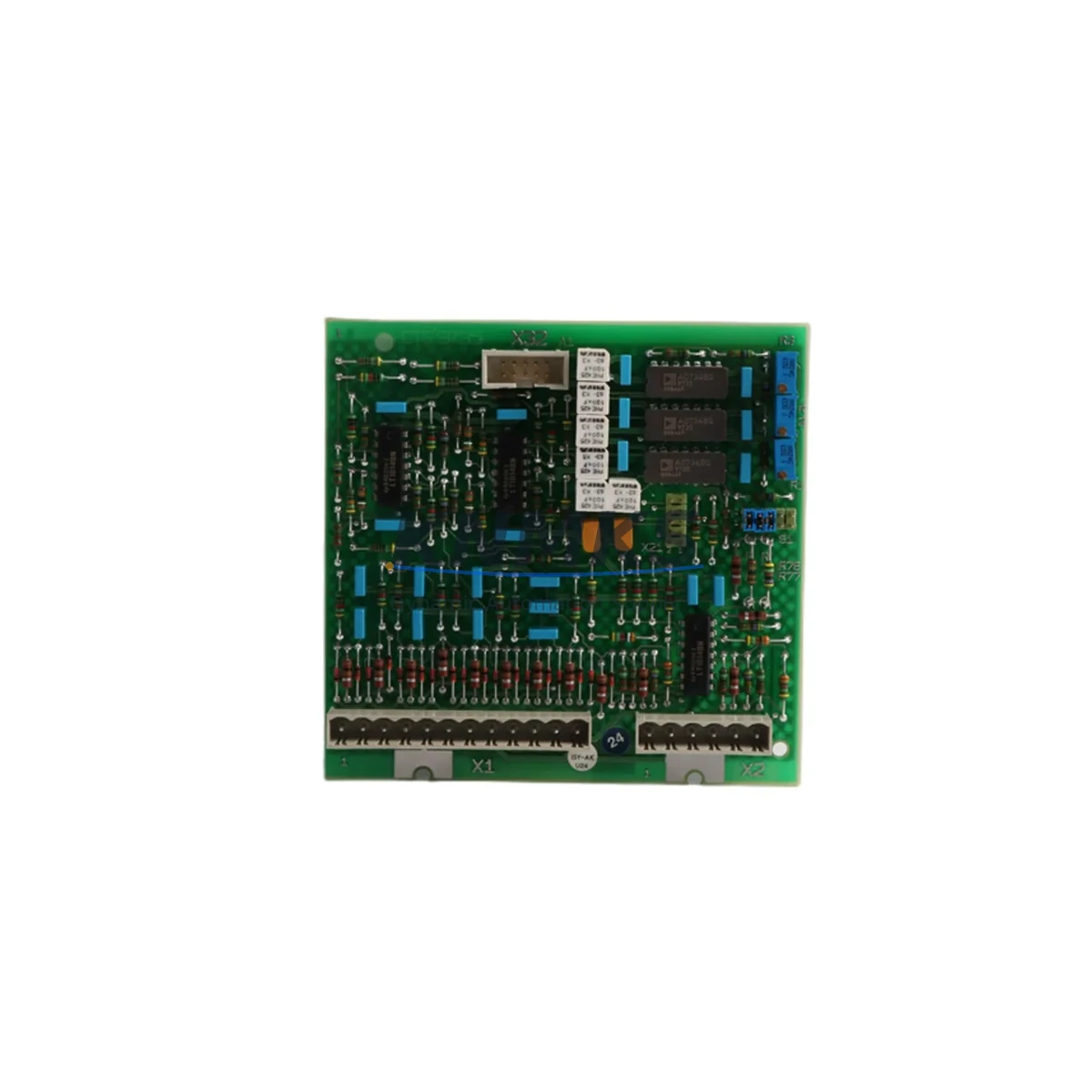

The ABB YPG111A is a backplane communication module designed for use within the ABB AC800M and AC800F Distributed Control System (DCS) platforms. As a critical interface component between the processor unit and I/O modules, the YPG111A plays a central role in maintaining real-time data exchange across the control backplane. For maintenance engineers managing aging DCS infrastructure, keeping a verified YPG111A spare on the shelf is a fundamental element of any uptime-first maintenance strategy.

In industrial facilities running continuous processes — including power generation, oil and gas, pulp and paper, and chemical manufacturing — an unplanned failure of a backplane communication module can cascade into full controller isolation, triggering emergency shutdowns and costly production losses. The YPG111A, sourced as an original ABB component, provides a direct, firmware-compatible replacement that eliminates the configuration risk associated with third-party substitutes.

Each unit supplied by KNMKS is individually tested prior to shipment and covered by a support terms confirmed by quotation, giving procurement engineers the confidence to stock this module as a long-term spare without concern for shelf-life degradation or compatibility drift.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a YPG111A communication fault is detected — typically surfacing as a backplane bus error, controller isolation alarm, or intermittent I/O dropout in the ABB System 800xA engineering station — the replacement workflow should extend beyond the module itself. A disciplined maintenance engineer will treat this event as a trigger for a broader cabinet inspection.

Begin by verifying the 24 VDC backplane power supply rail. Modules such as the ABB SD821 or SD822 power supply units are common companions in AC800M cabinets, and a marginal supply voltage is a frequent root cause of communication module degradation. Confirm output voltage is within ±1% of nominal before inserting the replacement YPG111A.

Next, inspect the TB820V2 or TB840A I/O terminal base units seated on the same backplane segment. Loose or corroded terminal connections on these bases can introduce signal noise that stresses the communication module. Clean and re-torque all terminal screws to manufacturer specification during the same maintenance window.

If the AC800M controller communicates with field devices over PROFIBUS or FOUNDATION Fieldbus, check the associated CI854A or CI857 fieldbus communication interface modules. A failing fieldbus interface can generate bus traffic anomalies that appear as YPG111A faults in diagnostic logs — replacing the communication module without addressing the fieldbus interface will result in repeat failures.

For cabinets that include AI810 or AO810V2 analog I/O modules, verify that signal isolation is intact and that 4–20 mA loop currents are within range. Degraded signal isolation can introduce ground loops that affect backplane communication integrity. Where signal isolation is suspect, a dedicated signal isolator or barrier should be added to the maintenance checklist.

Finally, inspect the PM864 or PM866 processor module firmware version. ABB periodically releases firmware updates that improve backplane communication stability. If the YPG111A replacement is being performed as part of a scheduled annual overhaul, this is the appropriate time to align firmware versions across all modules in the rack to eliminate version-mismatch communication errors.

Procurement engineers should consider stocking the YPG111A alongside the CI854A fieldbus interface and at least one SD821 power supply as a minimum viable spare kit for AC800M systems. This three-component kit covers the most common failure modes that result in controller downtime in process industry applications.

Site Replacement Workflow

Step 1 — Fault Confirmation: Confirm the YPG111A fault via System 800xA diagnostic view. Document the fault code and timestamp before proceeding.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedure. Place the affected controller in manual or backup control mode if process conditions permit.

Step 3 — Module Extraction: Release the backplane locking lever and slide the YPG111A out of its slot. Avoid touching backplane connector pins. Place the faulty module in an ESD-safe bag for return analysis.

Step 4 — Replacement Insertion: Insert the new YPG111A into the same slot. Ensure the module is fully seated and the locking lever is engaged. No DIP switch or jumper configuration is required — the module adopts its address from the backplane slot position.

Step 5 — Power Restoration and Verification: Restore backplane power. Monitor System 800xA for module online status. Confirm all downstream I/O modules on the affected backplane segment return to normal communication within 60 seconds.

Step 6 — Documentation: Record the replacement in the site maintenance log. Update the spare parts inventory and initiate a reorder if the YPG111A buffer stock falls below the minimum defined level.

This hot-swap-compatible replacement process typically achieves full system restoration in under 15 minutes, minimizing production impact and avoiding the extended downtime associated with full controller reconfiguration.

Spare Parts Support FAQ

Q1: Is the YPG111A compatible with all AC800M processor variants?
The YPG111A is designed for use across the AC800M processor family, including PM851, PM856, PM860, PM861, PM864, and PM866 variants, as well as AC800F controllers. Compatibility is determined by backplane slot type rather than processor firmware version. If your system uses a non-standard backplane configuration, contact our technical team with your full system BOM for confirmation before ordering.

Q2: How does KNMKS verify the YPG111A before shipment?
Each YPG111A unit undergoes functional testing on a live AC800M backplane test bench prior to packaging. The test confirms backplane communication handshake, module identification, and power draw within specification. A test report is available upon request. All units are shipped in ESD-safe packaging with a support terms confirmed by quotation from the date of invoice.

Q3: What is the recommended stock level for the YPG111A in a multi-cabinet DCS installation?
For installations with three or more AC800M controller cabinets, we recommend maintaining a minimum of two YPG111A units in local spare stock. For single-cabinet installations in critical process applications, one unit is the minimum. Given the module’s role in backplane communication, a stockout during an unplanned failure event carries significant downtime risk. KNMKS supports long-term supply agreements for customers requiring guaranteed stock availability.

Q4: Can the YPG111A replace older or discontinued ABB backplane communication modules?
The YPG111A is the current production variant for its backplane slot type within the AC800M series. For older AC800M installations using earlier communication module variants, physical and firmware compatibility should be verified against the ABB hardware compatibility matrix before substitution. KNMKS technical staff can assist with cross-reference verification. Do not substitute modules across incompatible backplane generations without engineering confirmation, as this may result in communication faults or controller isolation.
