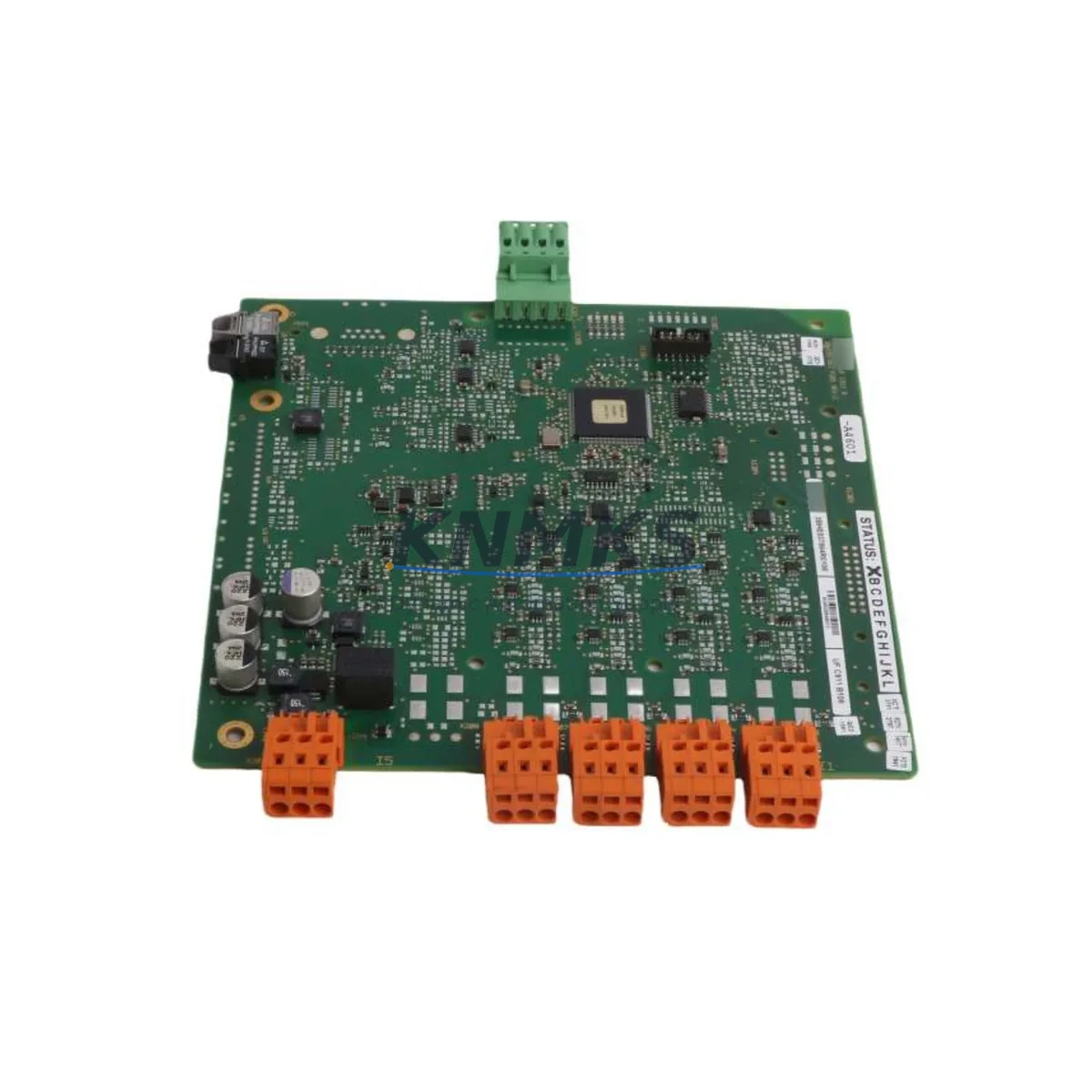

ABB XZC827A102 Migration-Ready DCS Processor for AC800M

Overview

ABB XZC827A102 Migration-Ready DCS Processor for AC800M Legacy Control Systems

The ABB XZC827A102 (alternate part number 3BHE038368R0102) is a safety-enhanced DCS processor module engineered for the AC800M controller platform. Designed to serve as a direct migration-ready replacement for discontinued or end-of-life processor variants within the AC800M family, this module supports facilities undergoing legacy DCS modernization, control cabinet upgrades, and system-wide migration from older Advant OCS or MOD 300 architectures to the current AC800M ecosystem.

For maintenance engineers and automation managers planning a processor swap, the XZC827A102 addresses the most critical compatibility checkpoints: backplane interface alignment, power rail capacity, module addressing, firmware revision matching, and communication link continuity. Before installation, engineers should verify that the existing PM865 or PM866 processor slot dimensions accommodate the XZC827A102 form factor, and that the S800 I/O bus or PROFIBUS DP segment connected to the rack remains uninterrupted during the changeover window.

Power supply capacity is a frequent oversight during processor migration. The XZC827A102 draws from the 24 VDC rail supplied by the SD821 or SD822 power supply modules installed in the AC800M rack. Before hot-swap or cold-swap replacement, confirm that the combined load of all installed modules — including CI854 PROFIBUS communication interfaces, DI810 digital input modules, and AO810 analog output modules — does not exceed the rated output of the existing power supply. If the rack is near capacity, a parallel SD823 redundant power supply should be staged prior to the cutover.

Terminal wiring and I/O channel mapping must be documented before the legacy processor is removed. Field wiring connected through TB820 or TB825 termination units should be photographed and labeled at the marshalling cabinet level. Any changes to module slot assignments in the AC800M rack will require corresponding updates in the Control Builder M engineering tool, including re-mapping of hardware unit addresses and re-compilation of the application program. Engineers should retain a backup of the existing .apw project file and confirm that the replacement processor accepts the same firmware baseline — typically version 5.1 or later for full compatibility with the current Control Builder M release.

HMI screen bindings and OPC DA/UA server tag paths referencing the legacy processor node must be reviewed in parallel. If the plant uses ABB System 800xA as the supervisory layer, the AC800M node configuration in the 800xA engineering workplace should be updated to reflect the new processor serial number and hardware revision. Communication links over MMS (Manufacturing Message Specification) or IEC 61850 GOOSE messaging, where applicable, should be tested in simulation mode before live cutover to confirm that peer controllers and remote I/O stations continue to receive valid process values.

Installation space confirmation is straightforward for like-for-like replacements within the same AC800M rack generation, but mixed-generation racks — particularly those combining older TP830 termination panels with newer CI873 IEC 61850 communication interfaces — may require a rack audit before the XZC827A102 is installed. Confirm that the backplane connector on the target slot is free of corrosion or mechanical damage, and that the rack’s DIN rail mounting depth is compatible with the module’s rear connector depth.

All units supplied by KNMKS are tested for power-on self-test (POST) completion, backplane communication handshake, and firmware version verification prior to shipment. Each XZC827A102 is shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained across regional warehouses to support emergency replacement orders with short lead times.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AC800M processor retrofit begins with a complete rack audit. Engineers should document every module installed in the target rack, including the CI854 PROFIBUS DP communication interface, any CI860 FOUNDATION Fieldbus HSE linking devices, and the SD822 power supply module. The XZC827A102 occupies the same physical slot as the PM865 or PM866 processor it replaces, so no mechanical modifications to the cabinet are required in standard configurations.

Signal isolation is a consideration when the existing marshalling cabinet includes third-party signal isolators or galvanic separators between field instruments and the S800 I/O modules. These isolators should be verified for loop power compatibility with the replacement processor’s I/O scan cycle. If the plant uses a TB825 termination unit for thermocouple or RTD inputs connected to AI810 analog input modules, the cold junction compensation settings in the Control Builder M hardware configuration must be preserved during the migration.

For facilities migrating from an older Advant OCS or MOD 300 platform to the AC800M ecosystem, the XZC827A102 serves as the target processor in a phased migration strategy. In this scenario, a CI854 PROFIBUS DP module is typically used to bridge legacy remote I/O stations during the transition period, allowing the new AC800M processor to communicate with existing field devices while the I/O infrastructure is progressively replaced with S800 modules. A programming cable (TK212A or USB-to-serial adapter with appropriate driver) is required for initial firmware verification and local diagnostics before the module is inserted into the live rack.

Where the control system includes redundant processor pairs, the XZC827A102 should be staged as the standby unit first, with the primary processor remaining active. After confirming that the standby unit achieves synchronization with the primary — verified through the Control Builder M online diagnostic view — a controlled switchover can be performed to validate seamless failover behavior before the legacy primary is decommissioned.

Downtime Control During System Migration

Minimizing unplanned downtime during a DCS processor replacement requires a structured pre-cutover checklist. Before removing the legacy PM865 or PM866 processor, the engineering team should export the full application program from Control Builder M, archive the hardware configuration file, and confirm that the backup copy is accessible from a local engineering workstation — not solely from a network share that may be unavailable during the cutover window.

For processes that cannot tolerate a full control interruption, the XZC827A102 supports a cold-standby replacement strategy in non-redundant rack configurations. Field outputs can be held at their last valid state by configuring the DO810 digital output modules for “hold last value” behavior in the event of a processor communication loss. Analog outputs connected to AO810 modules should be reviewed for their fallback behavior — either hold last value or drive to a defined safe state — and this configuration should be confirmed in the Control Builder M I/O configuration before the cutover begins.

Communication continuity on the PROFIBUS DP segment is maintained by ensuring that the CI854 interface module remains powered and active during the processor swap. In racks where the CI854 is installed in a separate slot from the processor, the PROFIBUS master function continues to poll field devices during the brief period when the processor slot is unpowered, provided the CI854 has sufficient autonomous buffering. This behavior should be validated in a test environment before relying on it in a live plant cutover.

Post-installation commissioning should follow a structured sequence: power-on self-test confirmation, firmware version check via Control Builder M online view, hardware unit address verification, application program download, I/O channel scan confirmation, HMI tag validation, and communication link status check. Documenting each step with timestamps and engineer sign-off reduces the risk of incomplete commissioning and provides an audit trail for safety-critical applications.

Retrofit Support FAQ

Q1: Is the XZC827A102 a direct drop-in replacement for the PM865 or PM866 processor in an existing AC800M rack?
The XZC827A102 occupies the same backplane slot and uses the same physical connector as the PM865 and PM866 in standard AC800M racks. However, a direct application program transfer requires that the firmware version on the XZC827A102 is compatible with the Control Builder M project file version. Engineers should verify firmware compatibility before the cutover and plan for a re-compilation step if the project was created under an older firmware baseline.

Q2: What commissioning steps are required after installing the XZC827A102 in a live system?
After physical installation, the required commissioning sequence includes: POST confirmation, firmware version verification via Control Builder M, hardware unit address re-mapping if the slot position has changed, application program download, I/O channel scan, HMI tag path validation, and communication link status check for all CI854 PROFIBUS DP and CI873 IEC 61850 interfaces. A full functional test of critical control loops should be completed before returning the unit to automatic control.

Q3: How is the XZC827A102 tested before shipment, and what does the support terms confirmed by quotation cover?
Each unit undergoes power-on self-test (POST) completion verification, backplane communication handshake testing, and firmware version confirmation prior to shipment. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized firmware modifications.

Q4: What is the typical lead time, and is stock available for emergency replacement orders?
KNMKS maintains regional warehouse stock of the XZC827A102 to support emergency replacement requirements. Standard orders are processed within 1–3 business days. For critical plant situations requiring expedited shipment, contact the sales team directly to confirm current stock availability and express shipping options.
