ABB XU04 Migration-Ready Signal I/O for Legacy Control Systems

Overview

ABB XU04 Migration-Ready Signal I/O for Legacy Control Systems

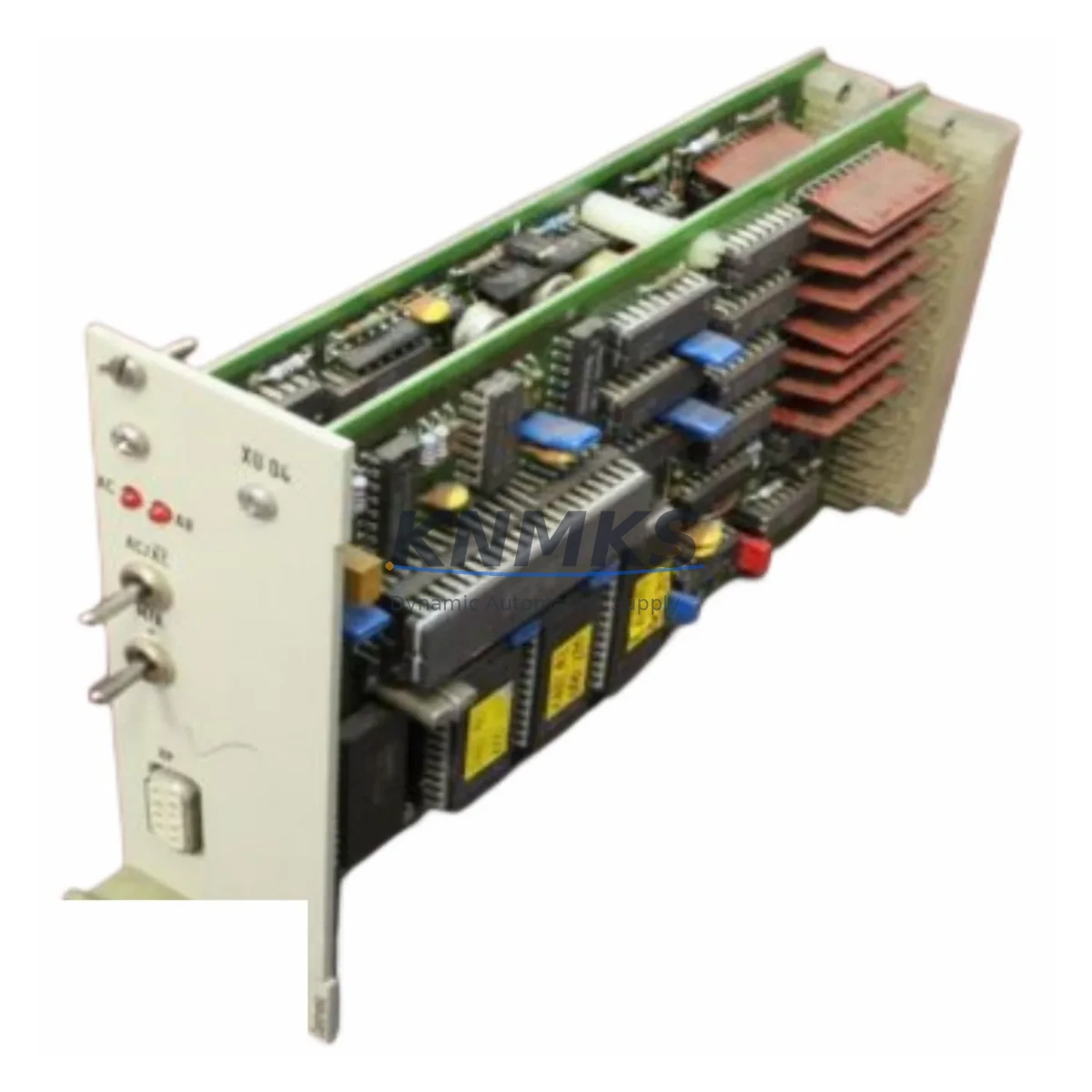

The ABB XU04 (also referenced as XU 04) is a signal input/output module engineered for direct integration into legacy distributed control system (DCS) environments, with primary compatibility targeting the H&B Contronic CS100 and CS200 control platforms. As industrial facilities accelerate the retirement of end-of-life DCS hardware, the XU04 has become a critical component in retrofit projects where maintaining signal integrity, minimizing rewiring scope, and preserving existing program logic are non-negotiable requirements.

For engineers managing a Contronic-based control cabinet upgrade, the XU04 offers a wiring-compatible footprint that reduces the risk of terminal reassignment errors during cutover. Before installation, engineers must verify the backplane slot addressing scheme against the existing rack configuration — particularly when the XU04 is being inserted into a populated CS200 rack alongside modules such as the XU02 analog input module or the XD01 digital output module. Slot address conflicts are among the most common causes of extended commissioning time in legacy DCS migrations.

Power supply capacity is another critical pre-installation checkpoint. The XU04 draws from the rack’s internal 24 VDC bus, and in aging Contronic installations, the PS01 or PS02 power supply modules may already be operating near their rated output. A load audit of the existing power supply before adding the XU04 is strongly recommended. If the audit reveals insufficient headroom, a parallel power supply module should be provisioned before the migration window opens.

Terminal wiring compatibility is generally maintained between XU04 and the legacy signal conditioning boards it replaces, but field engineers should cross-reference the terminal strip layout against the original as-built drawings. Signal isolators — particularly those used on thermocouple or RTD inputs — may need recalibration after module substitution to ensure measurement accuracy is preserved. In installations where the original signal isolators are also end-of-life, concurrent replacement with modern DIN-rail signal isolators is advisable to avoid a second maintenance window.

Communication link continuity is essential during migration. The XU04 communicates over the Contronic internal bus, and any interruption to the bus topology during module swap must be managed through the system’s hot-standby or manual bypass procedures. Where the control system interfaces with an HMI running on a legacy SCADA platform, the HMI tag database should be validated against the new module’s I/O map before the cutover to prevent alarm flooding or incorrect process variable display on operator screens.

Firmware version compatibility between the XU04 and the Contronic system controller — typically the CC01 or CC02 central controller module — must be confirmed prior to commissioning. Mismatched firmware revisions can result in module non-recognition or degraded diagnostic reporting. Where firmware updates are required on the central controller, these should be staged and tested in a shadow environment before being applied to the live system.

Installation space within the control cabinet should be measured against the XU04’s physical dimensions before the migration is scheduled. In densely populated Contronic racks, adjacent modules may need to be temporarily removed to allow proper seating of the XU04 on the backplane connector. A programming cable compatible with the Contronic engineering workstation is required for post-installation parameter verification and I/O forcing during commissioning.

All units supplied by KNMKS are pre-tested against functional specifications prior to dispatch. Each XU04 is covered by a support terms confirmed by quotation from the date of shipment, with in-stock availability supporting rapid deployment for both planned retrofit projects and emergency spare requirements.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful XU04 retrofit begins well before the maintenance window opens. The bill of materials for a typical Contronic rack upgrade will commonly include the XU04 signal I/O module alongside the XU02 analog input module for process variable acquisition, the XD01 digital output module for actuator control, and the XA01 analog output module for control signal generation. Where the existing rack is approaching end-of-life across multiple slot positions, a phased replacement strategy — starting with the highest-criticality I/O modules — reduces the risk of cascading failures during the transition period.

Power infrastructure should be assessed in parallel. If the PS01 power supply module is already flagged for replacement, coordinating its swap with the XU04 installation eliminates a second planned outage. Similarly, if the control cabinet includes legacy signal isolators on high-accuracy measurement loops, replacing them with modern DIN-rail isolators during the same retrofit window improves long-term measurement reliability without adding a separate maintenance event.

For facilities where the Contronic system interfaces with a third-party SCADA or HMI platform via a serial communication gateway, the gateway configuration should be reviewed to confirm that the XU04’s I/O addresses are correctly mapped. In some legacy installations, the communication module — such as a Contronic CM01 serial interface module — may require parameter updates to reflect the new module’s address assignments. This step is frequently overlooked and is a common source of post-cutover communication faults.

Where the retrofit scope extends to the control program, the existing ladder logic or function block diagram should be backed up to an offline archive before any hardware changes are made. The backup should be stored on a separate medium from the engineering workstation to protect against workstation failure during the migration window. Post-installation, I/O forcing via the programming cable allows individual channels to be verified against field instruments before the system is returned to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime during a Contronic DCS migration requires a structured cutover plan with clearly defined rollback criteria. For the XU04 installation, the recommended approach is to complete all pre-installation checks — slot address verification, power supply load audit, terminal wiring review, and firmware compatibility confirmation — during a pre-outage preparation phase, so that the actual installation window is limited to physical module swap and commissioning verification.

Where the process permits, a partial cutover strategy can be employed: the XU04 is installed and addressed in the rack while the legacy module remains in service on a parallel terminal strip, allowing the new module’s I/O to be verified against live process signals before the final switchover. This approach is particularly effective for critical measurement loops where signal continuity cannot be interrupted.

HMI screen validation should be completed in a simulation environment before the cutover. Operator screens that reference the replaced module’s I/O tags should be tested against the XU04’s tag assignments to confirm that process variable displays, alarm setpoints, and trend histories are correctly mapped. Unvalidated HMI screens are a leading cause of extended post-cutover troubleshooting time.

Post-installation, a structured commissioning checklist — covering channel-by-channel I/O verification, alarm function testing, communication link confirmation, and a timed observation period under automatic control — provides documented evidence that the migration has been completed successfully. KNMKS supplies functional test records for each XU04 unit, supporting the customer’s internal commissioning documentation requirements.

Retrofit Support FAQ

Q: Is the ABB XU04 a direct replacement for the legacy H&B Contronic XU-series signal I/O modules?
A: The XU04 is designed as a compatible replacement for XU-series signal I/O modules used in Contronic CS100 and CS200 systems. Terminal wiring layout and backplane interface are compatible with the original rack architecture. Slot address configuration should be verified against the existing rack map before installation.

Q: What commissioning steps are required after installing the XU04 in a legacy Contronic rack?
A: After physical installation, the module address must be confirmed via the Contronic engineering workstation. Channel-by-channel I/O verification using I/O forcing is recommended before returning the system to automatic control. Firmware compatibility between the XU04 and the central controller (CC01/CC02) should be confirmed prior to commissioning.

Q: Does KNMKS provide functional testing before shipment?
A: Yes. All XU04 units are functionally tested prior to dispatch. Test records are available upon request. Each unit is covered by a support terms confirmed by quotation from the date of shipment, with in-stock availability for both planned retrofit projects and emergency spare requirements.

Q: What should be checked if the XU04 is not recognized by the Contronic system after installation?
A: The most common causes are slot address conflict, firmware version mismatch between the XU04 and the central controller, or an incomplete backplane connection. Verify the slot address assignment, confirm firmware compatibility, and reseat the module on the backplane connector. If the issue persists, contact KNMKS technical support for remote diagnostic assistance.
