ABB VV11 Migration-Ready Analog Output for Legacy Control Systems

Overview

ABB VV11 Migration-Ready Analog Output for Legacy Control Systems

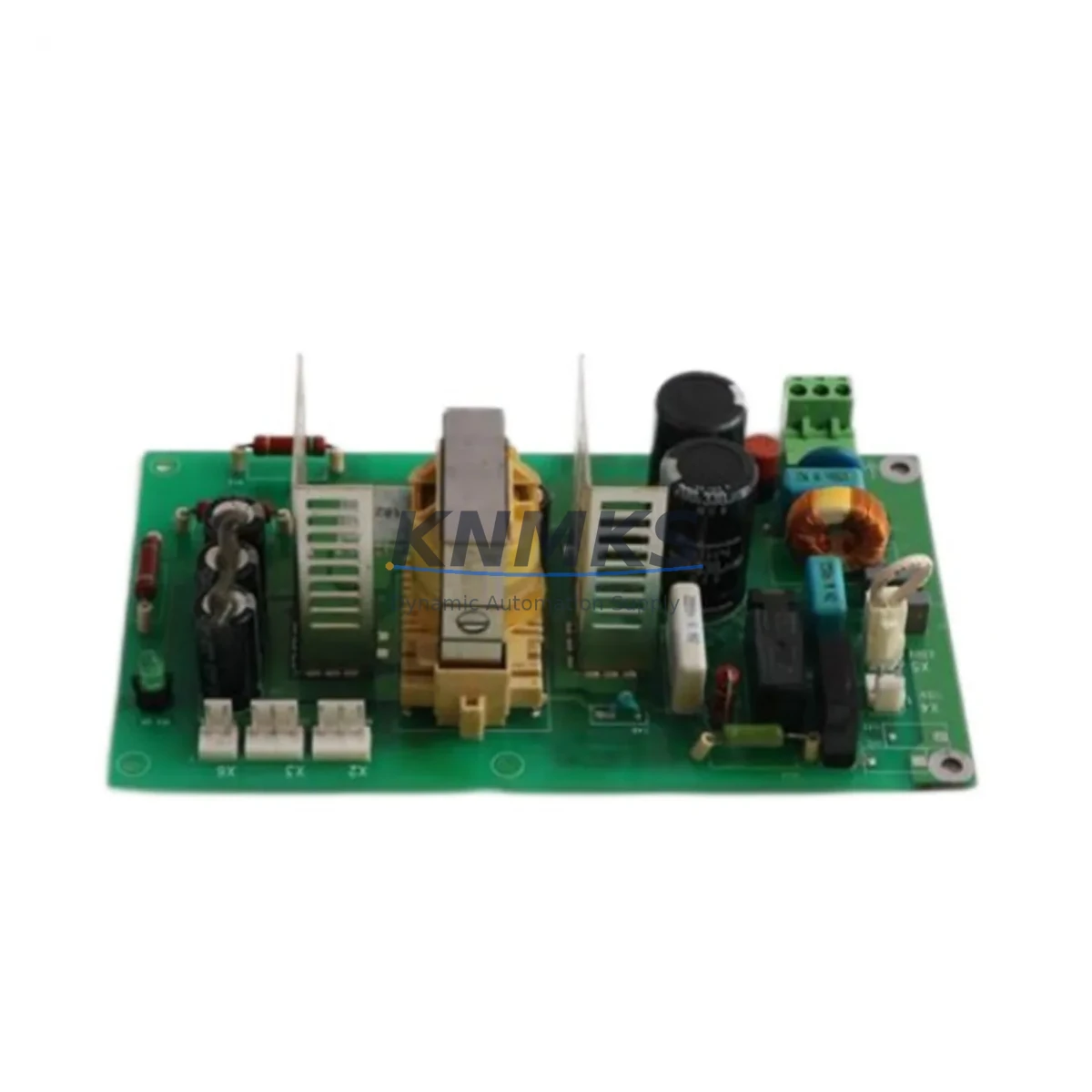

The ABB VV11 (SKU: VV11 / VV 11) is a proven analog output module engineered for direct integration into H&B Contronic distributed control system (DCS) architectures. As legacy Contronic platforms approach end-of-life and original spare parts become increasingly scarce, the VV11 serves as a verified migration-ready replacement that preserves existing wiring infrastructure, backplane slot assignments, and process signal ranges — minimizing retrofit risk and unplanned downtime across petrochemical, power generation, and continuous process industries.

For engineers managing aging control cabinets built around the H&B Contronic platform, sourcing a functionally equivalent analog output card is often the critical bottleneck in a system restoration or partial upgrade project. The VV11 addresses this directly: it maintains the standard 4–20 mA output signal range, retains the original terminal block pinout compatible with Contronic field wiring, and fits the standard Contronic rack slot without mechanical modification. This means field technicians can execute a hot-swap replacement with minimal re-engineering of the existing loop architecture.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful Contronic retrofit begins well before the replacement module arrives on site. Engineers should audit the existing control cabinet to confirm available rack slots, verify the backplane bus revision, and document the current module address assignments to avoid address conflicts after installation of the VV11. In multi-rack configurations, the Contronic rack and backplane assembly must be inspected for bus termination integrity, as degraded backplane connectors are a common root cause of intermittent faults in aging systems.

Power budget verification is equally critical. The Contronic power supply module — typically a dedicated 24 VDC rail feeding the I/O rack — must have sufficient headroom to support the VV11’s operating current draw alongside existing modules. If the power supply is already operating near capacity, a parallel power supply module may be required before the analog output card replacement proceeds.

On the signal side, field wiring connected to the original analog output card should be inspected for insulation integrity and correct polarity before the VV11 is energized. Loop resistance across the 4–20 mA circuit must fall within the module’s specified load range to ensure accurate output. Where signal isolation is required between the DCS output and field devices, a signal isolator or loop-powered isolator should be inserted in the wiring path — a common requirement in installations where the field device ground reference differs from the DCS cabinet ground.

For sites running Contronic alongside a supervisory SCADA or HMI layer, the engineering team should confirm that the HMI faceplate tag assignments and alarm limits remain valid after the module swap. In most standard replacement scenarios, the Contronic controller program logic and HMI screen configurations do not require modification, as the VV11 presents an identical functional interface to the controller. However, if the site is simultaneously migrating from a legacy Contronic controller to a modern ABB System 800xA or AC500 PLC platform, the I/O mapping, function block library, and communication link configuration will require a structured migration plan developed in advance of the physical hardware change.

Sites undertaking a broader control system upgrade — for example, replacing a Contronic process station with an AC500 controller while retaining existing field wiring — should also evaluate the programming cable and engineering workstation compatibility. The Contronic programming environment differs from ABB Automation Builder used for AC500, and parallel engineering environments may need to be maintained during the transition period to support both legacy and new platform segments of the plant.

Downtime Control During System Migration

Minimizing production downtime during a Contronic analog output module replacement requires a structured pre-outage preparation protocol. Before the planned maintenance window, the site team should export and archive the current Contronic controller program, including all function block configurations, loop tuning parameters, and alarm setpoints. This backup ensures that if an unexpected fault occurs during the module swap, the original program logic can be restored without relying on memory or incomplete documentation.

During the replacement window, the affected analog output loop should be placed in manual control at the DCS operator station before the VV11 is physically removed. This prevents the field actuator — typically a control valve or variable speed drive — from responding to an undefined output signal during the module changeover. Once the VV11 is seated in the rack and the backplane connector is fully engaged, the module address switches should be verified against the documented address map before power is restored to the rack.

Post-installation commissioning should follow a defined loop check sequence: confirm the module powers up without fault indication, verify the output signal at the field terminal using a calibrated loop calibrator, and confirm the field device responds correctly across the full 4–20 mA range before returning the loop to automatic control. For critical process loops, a staged return to automatic — beginning at a fixed manual setpoint close to the current process value — reduces the risk of process upset during the transition.

Where the site schedule permits, pre-staging the VV11 on a bench test rack with a representative load resistor and a Contronic controller in a test environment allows the engineering team to validate module behavior and address configuration before the live system outage. This approach is particularly valuable for first-of-type replacements where the site team has limited prior experience with the VV11 in the specific Contronic platform revision installed at the facility.

Retrofit Support FAQ

Q1: Is the ABB VV11 a direct replacement for the original H&B Contronic analog output module?
A: Yes. The VV11 is designed as a functionally compatible replacement for the original H&B Contronic analog output card. It uses the same backplane interface, terminal wiring layout, and 4–20 mA output signal standard. In standard replacement scenarios, no modification to the existing Contronic rack, field wiring, or controller program is required. Module address DIP switches should be verified and set to match the original module’s address assignment before installation.

Q2: What pre-shipment testing is performed on the VV11?
A: All VV11 units are functionally tested prior to shipment. Testing covers power-on self-diagnostics, output signal accuracy across the full 4–20 mA range, and backplane interface integrity. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Test records are available upon request for quality-critical procurement processes.

Q3: How do I confirm the correct module address configuration for my Contronic system?
A: Module address assignment in the Contronic platform is typically configured via DIP switches on the module front panel or PCB. The correct address for the replacement VV11 should be read from the original module before removal, or retrieved from the site’s as-built documentation or Contronic engineering database. If documentation is unavailable, the address can be determined by reading the Contronic controller’s I/O configuration using the Contronic engineering workstation software connected to the live controller.

Q4: Is stock available for immediate shipment, and what are the lead times?
A: The VV11 is maintained availability confirmed by RFQ for prompt dispatch. Standard orders are processed and shipped within 1–3 business days. For urgent plant breakdown situations, expedited handling is available — contact the sales team directly to confirm current stock levels and arrange priority shipment. All units are covered by a support terms confirmed by quotation from the date of shipment.
