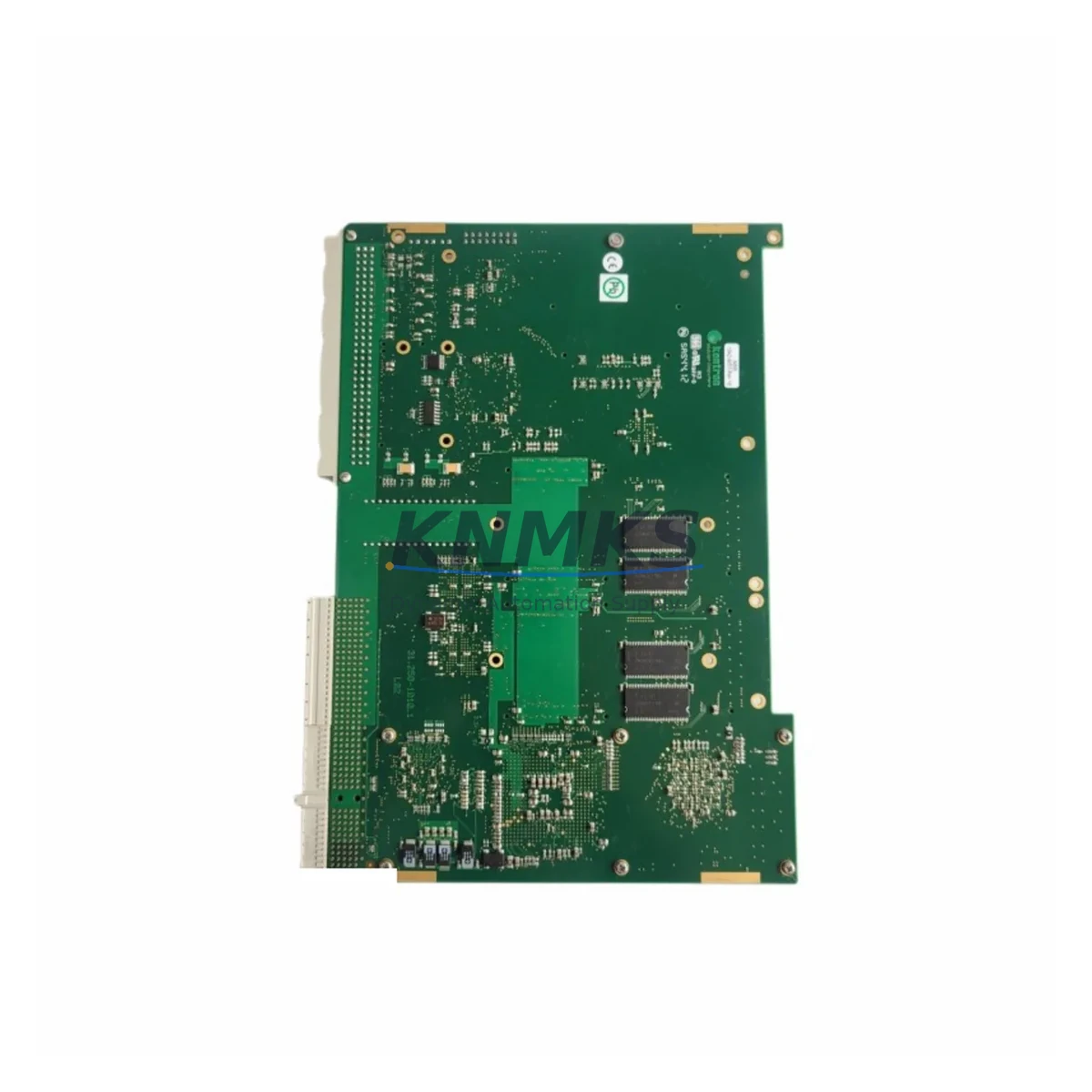

ABB UNS 0867A-P HIEE405246R0002 Migration-Ready CEX-Bus Card

Overview

ABB UNS 0867A-P HIEE405246R0002 Migration-Ready CEX-Bus Card for Legacy Control Systems

The ABB UNS 0867A-P (part number HIEE405246R0002) is a CEX-Bus extension card designed for the ABB AC800M Distributed Control System platform. As legacy DCS installations age and original spare parts become increasingly difficult to source, this module serves as a critical migration-ready replacement for facilities managing end-of-life control infrastructure. Whether you are extending an existing AC800M rack, replacing a failed CEX-Bus interface, or planning a phased retrofit of your process control architecture, the UNS 0867A-P provides a verified drop-in solution with full compatibility confirmation prior to shipment.

Industrial facilities operating ABB Advant, MOD 300, or early AC800M-generation systems frequently encounter the challenge of sourcing CEX-Bus interface cards as the original supply chain contracts. The UNS 0867A-P addresses this gap directly, supporting continuity of the CEX-Bus backplane communication layer that interconnects controller modules, I/O expansion units, and communication interfaces within the AC800M rack assembly. Before installation, engineers should confirm the backplane slot assignment, verify that the existing PM865 or PM866 controller firmware version supports the card revision, and review the rack power budget to ensure the additional card load does not exceed the PS800 power supply capacity.

Terminal wiring and field signal integrity are preserved during replacement because the CEX-Bus card operates at the backplane level rather than at the field terminal block. However, technicians should document the existing module address configuration and cross-reference it against the Control Builder M project file before removing the legacy card. Any changes to module addressing will require a corresponding update in the hardware configuration tree and a controlled download to the controller — a step that must be coordinated with the operations team to minimize process disruption.

For facilities running Profibus DP or FOUNDATION Fieldbus H1 segments through the AC800M platform, the communication link topology should be reviewed as part of the retrofit plan. The CEX-Bus extension card does not directly terminate fieldbus segments, but its correct installation is a prerequisite for the CI854 Profibus interface module or the CI862 FOUNDATION Fieldbus interface to maintain their logical addresses within the controller rack. A mismatch in slot position or card revision can cause the fieldbus master to lose its configured node address, resulting in communication faults across the entire segment.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AC800M retrofit begins with a complete rack audit. Technicians should photograph the existing slot layout, record the serial numbers of all installed modules, and export the current hardware configuration from Control Builder M before any physical work begins. This baseline documentation protects the project if an unexpected compatibility issue arises during commissioning.

In a typical AC800M cabinet, the UNS 0867A-P CEX-Bus card works alongside the PM865 or PM866 process controller module, which handles the primary control execution. The rack may also contain an SM810 or SM811 serial communication module for legacy serial device integration, a CI854A Profibus DP master for field instrument communication, and one or more AI810 or AO810 analog I/O modules for process signal termination. When the CEX-Bus extension card is replaced, all of these modules continue to operate through the backplane, but their logical presence in the hardware tree must be confirmed after the controller restarts.

For cabinets that include an OP810 operator panel or a connection to an external ABB 800xA Information Management server, the HMI graphic displays should be reviewed after the retrofit to confirm that all dynamic data points are refreshing correctly. A CEX-Bus card replacement does not alter the OPC DA or OPC UA data path, but a controller restart during the swap will cause a brief interruption in the historian data stream that should be noted in the maintenance log.

Where the existing installation includes a TB820 ModuleBus modem for remote I/O expansion, the ModuleBus segment addressing should be re-verified after the CEX-Bus card is seated and the controller has completed its startup sequence. The TB820 communicates over a separate optical or electrical ModuleBus link, but its logical registration in the controller hardware tree depends on the CEX-Bus layer being fully operational first.

Downtime Control During System Migration

Minimizing unplanned downtime during a CEX-Bus card replacement requires a structured change management approach. The recommended sequence is: export and back up the Control Builder M project, place the controller in manual or fallback mode if process conditions allow, remove the legacy card, seat the replacement UNS 0867A-P, power-cycle the rack, and confirm hardware tree recognition before returning the controller to automatic mode.

If the process cannot tolerate a controller restart, a hot-standby configuration using a redundant PM866 controller pair can allow the CEX-Bus card replacement to proceed on the passive controller first, followed by a controlled switchover. This approach keeps the active control loop running throughout the maintenance window and limits the process impact to the switchover transient only.

Original program logic stored in the controller’s non-volatile memory is not affected by a CEX-Bus card swap, provided the controller is not forced into a cold restart. Engineers should confirm the restart mode setting in Control Builder M before proceeding and ensure that the battery backup on the PM865 or PM866 is functional to protect the program image during the power cycle.

Field calibration data for connected instruments does not reside on the CEX-Bus card and is not at risk during the replacement. However, any analog input or output modules that were in a forced or overridden state should be documented before the restart so that the overrides can be reapplied immediately after the controller comes back online.

Retrofit Support FAQ

Q: Is the UNS 0867A-P HIEE405246R0002 a direct replacement for all CEX-Bus extension card variants in the AC800M platform?
A: The HIEE405246R0002 revision is compatible with the standard AC800M rack family. Customers should confirm the hardware revision of the card being replaced and cross-reference it with the installed controller firmware version. Our technical team can assist with compatibility verification before order confirmation.

Q: What pre-shipment testing is performed on this module?
A: Each UNS 0867A-P unit is function-tested and visually inspected before dispatch. Test records are available upon request. The module ships with a support terms confirmed by quotation covering functional defects from the date of receipt.

Q: Can this card be installed without a full controller shutdown?
A: In a non-redundant AC800M configuration, a rack power cycle is required to seat and register the new CEX-Bus card. In a redundant PM866 configuration, the replacement can be performed on the passive controller with a controlled switchover, reducing process impact. Consult your site safety and change management procedures before proceeding.

Q: What is the stock availability and lead time?
A: The UNS 0867A-P HIEE405246R0002 is held in verified inventory and ships within 1–3 business days. For volume requirements or long-term supply agreements covering extended maintenance cycles, contact our sales team directly.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

UNS 0867A-P HIEE405246R0002
AC800M Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB UNS 0867A-P HIEE405246R0002
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
