ABB 3BHB007030R0103 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3BHB007030R0103 Maintenance-Proven Spare Part for Factory Uptime

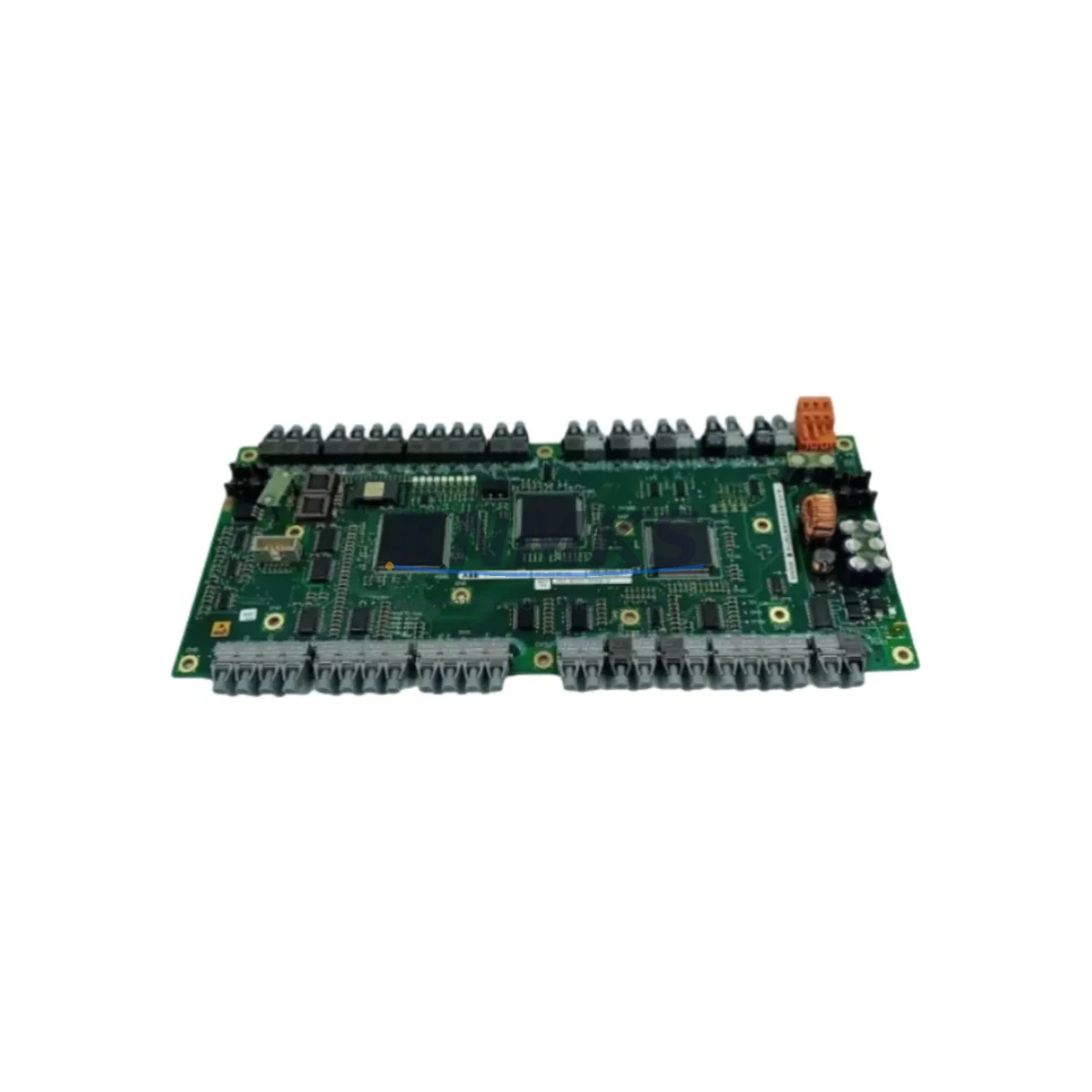

The ABB 3BHB007030R0103 (UFC760BE103) is a DCS status board designed for the ABB AC800M controller platform — one of the most widely deployed distributed control systems in power generation, pulp and paper, oil and gas, and heavy process industries. When this board fails or degrades, the entire controller node can lose supervisory visibility, triggering unplanned shutdowns and costly production interruptions. Stocking a verified replacement is the single most effective measure a maintenance team can take to protect continuous operation.

At KNMKS, every 3BHB007030R0103 unit is sourced as an original ABB component, subjected to pre-shipment functional testing, and dispatched with a support terms confirmed by quotation. Our inventory is maintained specifically for maintenance engineers and procurement teams who cannot afford lead-time uncertainty on critical spare parts. Whether you are responding to an emergency fault, executing a scheduled annual overhaul, or building a strategic spare parts buffer for a multi-site AC800M installation, this board ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A DCS status board failure rarely occurs in isolation. When the 3BHB007030R0103 is flagged during a fault investigation or routine cabinet inspection, experienced maintenance engineers know to audit the surrounding electrical environment before committing to a single-component replacement. The AC800M controller backplane — typically the TB820V2 or TB840A termination board — should be inspected for oxidized contacts, loose ribbon connectors, and signs of thermal stress. A compromised backplane can cause recurring status board failures even after a new unit is installed.

Power quality is equally critical. The AC800M controller draws regulated 24 VDC from the cabinet power supply rail; if the SD802 or SD803 power supply module is delivering voltage outside the ±5% tolerance band, the status board’s onboard logic may behave erratically or fail prematurely. Always verify supply voltage at the controller rail with a calibrated meter before and after board replacement.

Communication integrity should be confirmed as part of the same maintenance window. The CI854A or CI858 communication interface modules connected to the same controller node should be checked for active alarms, CRC error counts, and link-state indicators. A degraded fieldbus segment can generate spurious status faults that are misdiagnosed as board failures. Similarly, the SA811F or SA812F signal conditioning modules upstream of the I/O clusters should be verified for correct channel mapping and signal range.

For sites running extended AC800M installations, the annual maintenance checklist should include inspection of the SB821 or SB822 battery backup units, verification of the RCU cabinet cooling fans, and a review of the event log for any recurring watchdog resets. Procurement teams supporting multi-site operations are encouraged to negotiate blanket supply agreements for the 3BHB007030R0103 and associated boards to eliminate single-event sourcing risk and reduce emergency procurement premiums.

Site Replacement Workflow

Before removing the 3BHB007030R0103 from service, export the current controller configuration from ABB Control Builder M and confirm a verified backup exists on the engineering workstation. Power down the controller node following the AC800M hardware shutdown sequence — do not hot-swap the status board without confirming the specific firmware revision supports live insertion, as unsupported hot-swap can corrupt the controller’s non-volatile memory.

With the node de-energized, discharge any residual capacitance, don ESD wrist strap and mat, and carefully extract the board using the ejector levers. Inspect the backplane connector pins for deformation or contamination before seating the replacement 3BHB007030R0103. After re-energizing, allow the controller to complete its self-test sequence — typically 45 to 90 seconds — before reconnecting to the DCS network. Confirm all I/O channels report healthy status in the operator station before returning the loop to automatic control.

This workflow minimizes downtime to under 30 minutes for a prepared maintenance team and eliminates the risk of configuration loss or network instability that can extend an unplanned outage to several hours. For legacy AC800M installations approaching end-of-support, KNMKS can advise on compatible retrofit paths and long-term spare parts strategies to extend system life by 5 to 10 years without a full DCS migration.

Spare Parts Support FAQ

Q: Is the 3BHB007030R0103 compatible with all AC800M controller variants?
A: The UFC760BE103 status board is compatible with the AC800M PM8xx controller family, including PM851, PM856, PM860, PM861, PM864, and PM866 variants. Compatibility with earlier PM800-series hardware should be verified against the controller’s hardware revision and firmware version before installation. Contact our technical team with your controller nameplate data for confirmation.

Q: What testing is performed before shipment?
A: Every 3BHB007030R0103 unit undergoes functional verification on a dedicated test bench prior to dispatch. The test confirms board power-up, self-test completion, and communication handshake with the controller backplane. A test report is available on request. All units ship with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Q: Can KNMKS support long-term or multi-unit supply agreements?
A: Yes. We support 12-month and 36-month blanket purchase agreements for the 3BHB007030R0103 and related AC800M spare parts. This is particularly valuable for multi-site operators and OEM maintenance contractors who need guaranteed availability without repeated spot-market sourcing. Contact [email protected] to discuss volume pricing and delivery scheduling.

Q: What should I do if the replacement board does not resolve the fault?
A: If installing a new 3BHB007030R0103 does not clear the fault, the root cause is likely upstream — check the backplane connector integrity, the 24 VDC supply rail voltage, and the communication interface module status. Review the AC800M event log for fault codes that predate the status board alarm. Our technical support team can assist with fault isolation remotely; contact [email protected] with the controller event log export and cabinet layout for a rapid diagnosis.
