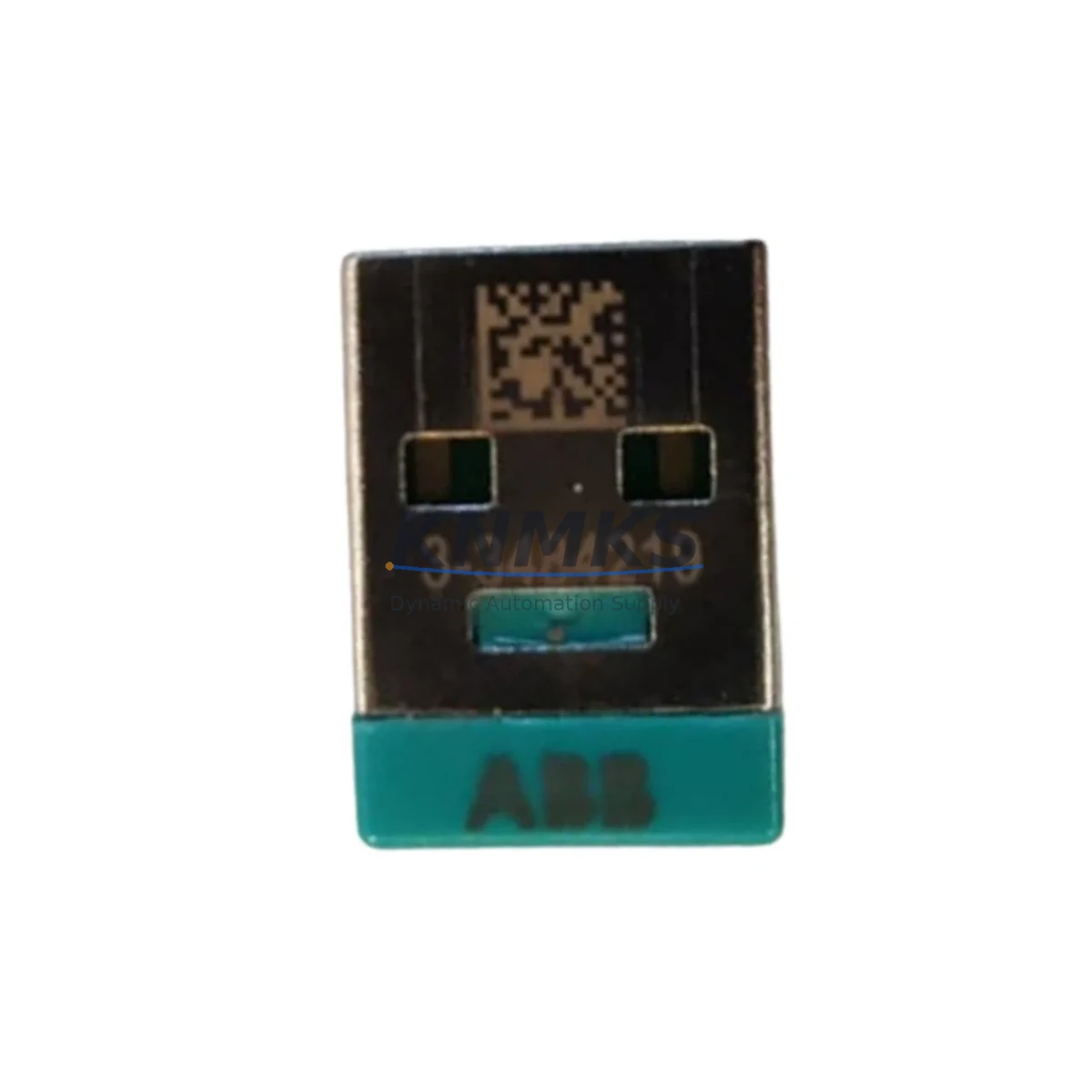

ABB 3BHE016842R0101 UAD144A101 Migration-Ready License Dongle

Overview

ABB 3BHE016842R0101 UAD144A101 Migration-Ready License Dongle: Legacy System Migration and Compatible Upgrade

The ABB 3BHE016842R0101 (UAD144A101) is a hardware license dongle designed for the AC800M controller platform and Symphony Plus distributed control system. As legacy DCS installations approach end-of-support milestones, this dongle plays a critical role in enabling software license continuity during control system retrofits, panel upgrades, and platform migrations. Whether you are replacing a failed dongle in an operating plant or executing a planned migration from an older Advant OCS or MOD 300 architecture to the current AC800M ecosystem, this unit provides the license authentication required to maintain full software functionality without interrupting the control logic or HMI configuration.

Before installing a replacement dongle, engineers must verify several key parameters: the USB or parallel port interface type on the target controller module, the firmware version of the AC800M CPU (PM865, PM866, or PM891 series), and whether the existing Control Builder M project file is licensed to the original dongle serial number. In multi-controller cabinets, the dongle assignment must be confirmed against the hardware configuration in the Control Builder M project to avoid license mismatch errors at runtime. If the plant is running a Symphony Plus S+ Operations HMI, the license server configuration must also be updated to recognize the replacement dongle before the HMI client sessions are restarted.

For sites migrating from older Advant Controller 450 or AC70 platforms, the 3BHE016842R0101 dongle is typically deployed alongside the PM866 or PM891 processor module, the TB840A or TB842A communication interface for PROFIBUS DP integration, and the SD821 or SD822 power supply modules within the S800 I/O system. During the migration, the original program logic exported from the legacy platform must be re-compiled in Control Builder M, and the dongle must be present and recognized before the download can be executed. Engineers should also confirm that the CI854B or CI857 fieldbus communication modules are correctly addressed in the new hardware tree before attempting a live cutover.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 3BHE016842R0101 dongle requires a structured pre-migration audit of the existing control cabinet. The PM866 or PM891 processor module must be confirmed as the target host, and the backplane slot assignment must be documented before the old dongle is removed. In cabinets running redundant controller configurations, both the primary and secondary PM modules may require individual license dongles, and the redundancy switchover behavior must be tested after the replacement to confirm that the standby controller correctly inherits the license state.

The S800 I/O system connected to the AC800M typically includes AI810 analog input modules, AO810 analog output modules, DI810 digital input modules, and DO810 digital output modules. During a retrofit, the I/O module addresses defined in the Control Builder M hardware configuration must match the physical DIP switch or rotary switch settings on each module. Any mismatch will cause the controller to report I/O configuration errors at startup, which can delay commissioning. The TB840A PROFIBUS DP interface module, if present, must also be re-addressed and its GSD file re-imported if the fieldbus segment topology has changed during the cabinet upgrade.

For plants that include an 800xA System or a standalone S+ Operations HMI station, the license dongle replacement must be coordinated with the license server administrator. The dongle serial number is typically bound to the software license file, and ABB’s license management tool must be used to transfer or re-host the license before the new dongle is activated. Failure to complete this step before the cutover will result in the HMI entering a grace period or read-only mode, which can affect operator visibility during the critical post-migration commissioning window.

Downtime Control During System Migration

Minimizing downtime during a dongle replacement or full DCS migration requires a phased approach. In the first phase, the replacement 3BHE016842R0101 dongle should be bench-tested in an offline AC800M controller with the same firmware version as the production unit. The Control Builder M project should be loaded and the license validated before the unit is brought to site. This offline verification step eliminates the most common cause of extended downtime: discovering a firmware incompatibility or license mismatch only after the production controller has been taken offline.

In the second phase, the production controller should be placed in manual or local control mode, with all critical process interlocks confirmed as active through the field instrumentation rather than the DCS logic. The dongle swap itself typically takes less than five minutes, but the subsequent controller restart, I/O scan, and communication link re-establishment with the CI854B PROFIBUS interface and the S+ Operations HMI can take fifteen to thirty minutes depending on the size of the hardware configuration. A pre-prepared commissioning checklist covering module status LEDs, communication link indicators, HMI tag update rates, and alarm system response should be completed before the unit is returned to automatic control.

For sites where continuous operation is mandatory, a hot-standby redundant controller configuration using dual PM891 modules provides the safest migration path. In this configuration, the dongle on the standby controller can be replaced and validated while the primary controller remains in service, and the switchover can be executed with sub-second interruption to the control output signals. All replacement units supplied by KNMKS are pre-tested against the target firmware version and shipped with a test report confirming license recognition and communication link validation.

Retrofit Support FAQ

Q1: Can the 3BHE016842R0101 dongle directly replace a failed dongle from an older AC800M revision without reprogramming?
In most cases, yes — provided the replacement dongle carries the same license type and the Control Builder M project file does not have a hardware-locked serial number binding. If the original license was bound to a specific dongle serial, ABB’s license transfer process must be completed before the replacement unit will be recognized. KNMKS can advise on the license transfer procedure based on your specific project configuration.

Q2: What wiring or terminal changes are required when replacing the dongle in an existing cabinet?
The 3BHE016842R0101 is a plug-in dongle with no field wiring connections. However, the surrounding cabinet work — including the PM866 or PM891 processor module seating, backplane connector condition, and power supply rail voltage from the SD821 or SD822 — should be inspected during the replacement to identify any latent issues that could affect post-replacement stability.

Q3: How is compatibility with the S+ Operations HMI verified before shipment?
Each unit supplied by KNMKS is bench-tested in an AC800M controller running the target firmware version. The test confirms that the dongle is recognized by Control Builder M and that the license server handshake completes successfully. A test report is included with each shipment, and the dongle serial number is documented for your maintenance records.

Q4: What is the support terms coverage and lead time for the 3BHE016842R0101?
All units carry a support terms confirmed by quotation covering hardware defects and license recognition failures. Stock is maintained for immediate dispatch, with standard lead times of 3–7 business days for international shipments. Emergency same-day dispatch is available for critical plant situations. Contact KNMKS at [email protected] or +86 18359268345 to confirm current stock availability.
