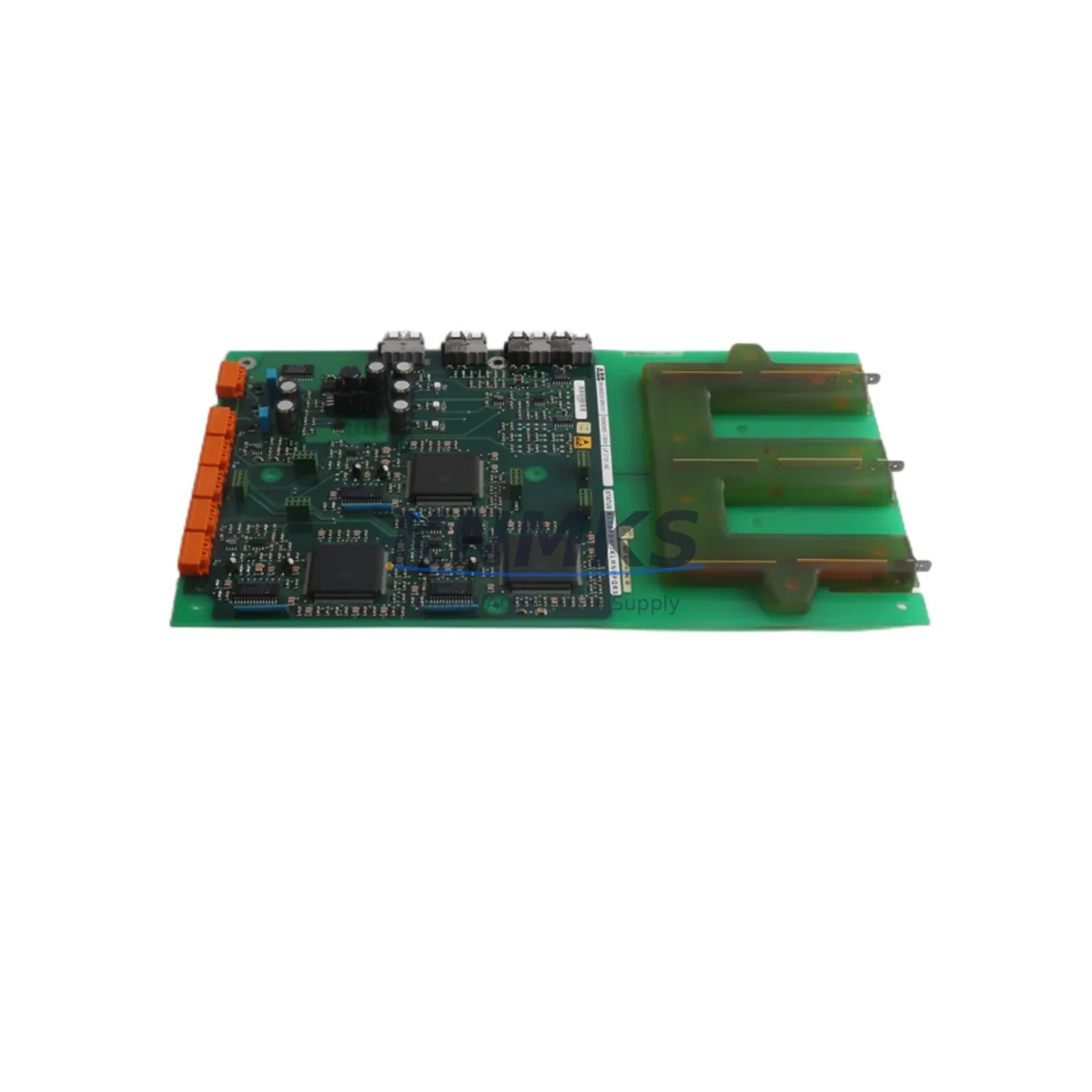

ABB 3BHB002916R0101 UFC721AE Maintenance-Proven Spare Part

Overview

ABB 3BHB002916R0101 UFC721AE Maintenance-Proven Spare Part for Factory Uptime

The ABB 3BHB002916R0101 (UFC721AE) is an original voltage scaling card designed for ABB’s AC800M and AC450 Distributed Control System (DCS) platforms. In industrial maintenance environments where unplanned downtime translates directly to production loss, having a verified, ready-to-ship spare of this module is a cornerstone of any responsible spare parts strategy. This card handles critical analog signal conditioning within the DCS I/O subsystem, and its failure — whether from aging, electrical transient damage, or environmental stress — can halt an entire process line.

KNMKS supplies the 3BHB002916R0101 as a tested, original-source spare with full support terms confirmed by quotation coverage. Each unit undergoes pre-shipment functional verification to confirm signal integrity and board-level health before dispatch. Whether you are responding to an emergency shutdown, executing a scheduled annual overhaul, or building a proactive spare parts inventory for your control room, this module ships with full traceability documentation to support your maintenance records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies the 3BHB002916R0101 UFC721AE as a fault point — whether through DCS diagnostics, a field calibration anomaly, or a routine I/O health check — the replacement workflow rarely ends with the card alone. Experienced engineers know that a voltage scaling card failure is often symptomatic of broader stress in the analog signal chain or the power distribution network feeding the I/O rack.

Before or alongside replacing the UFC721AE, it is sound practice to inspect the AI810 or AI820 analog input modules in the same rack, as these share the signal conditioning path and may exhibit drift or offset errors if the scaling card has been operating in a degraded state. Similarly, the SA811F or SA801F power supply modules that feed the AC800M I/O backplane should be checked for output voltage stability — a marginal power supply can accelerate card failures and cause intermittent faults that are difficult to diagnose without replacing the obvious component first.

The TB820V2 or TB840A communication interface modules connected to the same controller node should also be verified for firmware version compatibility and communication health, particularly if the DCS has been running without a scheduled firmware audit. In aging AC800M installations, the PM861A or PM864A processor modules are worth inspecting for battery status and memory integrity as part of the same maintenance window — combining these checks reduces future downtime risk significantly.

For sites running signal isolation between field instruments and the DCS, the signal isolator barriers (such as MTL or P+F units) upstream of the UFC721AE input should be tested for loop resistance and isolation integrity. A degraded isolator can inject noise or offset into the scaling card input, causing calibration errors that appear to originate from the card itself. Finally, inspect the terminal blocks and field wiring connections at the marshalling cabinet — loose or corroded terminations are a common root cause of analog signal faults in older installations and are easily overlooked when the focus is on the module itself.

Procurement engineers building or refreshing a spare parts list for AC800M-based systems should consider stocking the 3BHB002916R0101 alongside one or two analog I/O modules and a power supply spare as a minimum viable DCS spare kit. This approach ensures that the most common single-point failure modes can be addressed within a single maintenance shift without waiting for emergency procurement.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use the ABB DCS engineering workstation (Control Builder M or System 800xA) to confirm the fault is isolated to the UFC721AE card. Check the hardware status tree for I/O module error codes and verify that the fault clears when the card is reseated or swapped in simulation mode.

Step 2 — Safe Isolation: Follow your site’s LOTO (Lockout/Tagout) procedure for the affected I/O rack. Confirm the backplane power is de-energized before removing the card. Note the slot address and any jumper or DIP switch settings on the existing card before extraction.

Step 3 — Compatibility Verification: Confirm the replacement 3BHB002916R0101 carries the same revision suffix and hardware marking as the removed unit. Cross-reference the ABB spare parts catalog or your site’s as-built documentation. KNMKS provides the hardware revision on request prior to shipment to avoid on-site compatibility surprises.

Step 4 — Installation and Commissioning: Insert the UFC721AE into the correct backplane slot, restore power, and observe the DCS status display for module recognition. Run a channel-by-channel analog input verification against known field signal values to confirm scaling accuracy before returning the loop to automatic control.

Step 5 — Documentation: Update your CMMS (Computerized Maintenance Management System) with the replacement date, new module serial number, and test results. Retain the KNMKS test report and support terms certificate with the maintenance record for audit purposes.

This workflow is designed to minimize mean time to repair (MTTR) and ensure the replaced module is fully validated before the process loop is returned to service — reducing the risk of a repeat fault or a nuisance trip caused by an improperly commissioned spare.

Spare Parts Support FAQ

Q1: How long is the support terms on the 3BHB002916R0101, and what does it cover?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of dispatch. The support terms covers functional defects — if the module fails to perform its specified voltage scaling function under normal operating conditions, we will replace or repair the unit at no additional cost. The support terms does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling on site.

Q2: Can the UFC721AE replace older or discontinued ABB voltage scaling cards in legacy AC450 or Advant systems?
In most cases, yes. The 3BHB002916R0101 UFC721AE is backward-compatible with several earlier ABB DCS I/O architectures, including AC450 and selected Advant OCS configurations. However, compatibility depends on the specific backplane revision and firmware version of your controller. We recommend providing your system’s hardware revision and controller firmware version when enquiring, so we can confirm compatibility before shipment.

Q3: Do you offer long-term supply agreements for critical DCS spare parts?
Yes. KNMKS supports long-term supply arrangements for maintenance teams managing aging ABB DCS installations. We can reserve stock, provide scheduled delivery against annual maintenance plans, and issue advance notification if a part approaches end-of-availability. Contact [email protected] to discuss a supply agreement tailored to your site’s maintenance calendar.

Q4: What testing is performed before shipment, and can I receive a test report?
Every 3BHB002916R0101 unit undergoes functional verification prior to dispatch, including power-on self-test confirmation and signal path integrity checks. A test report is available upon request and can be included with the shipment documentation. This supports your incoming inspection process and provides a baseline record for your CMMS.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHB002916R0101-UFC721AE
AC800M Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB 3BHB002916R0101-UFC721AE
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
