ABB TU890 3BSC690075R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB TU890 3BSC690075R1 Maintenance-Proven Spare Part for Factory Uptime

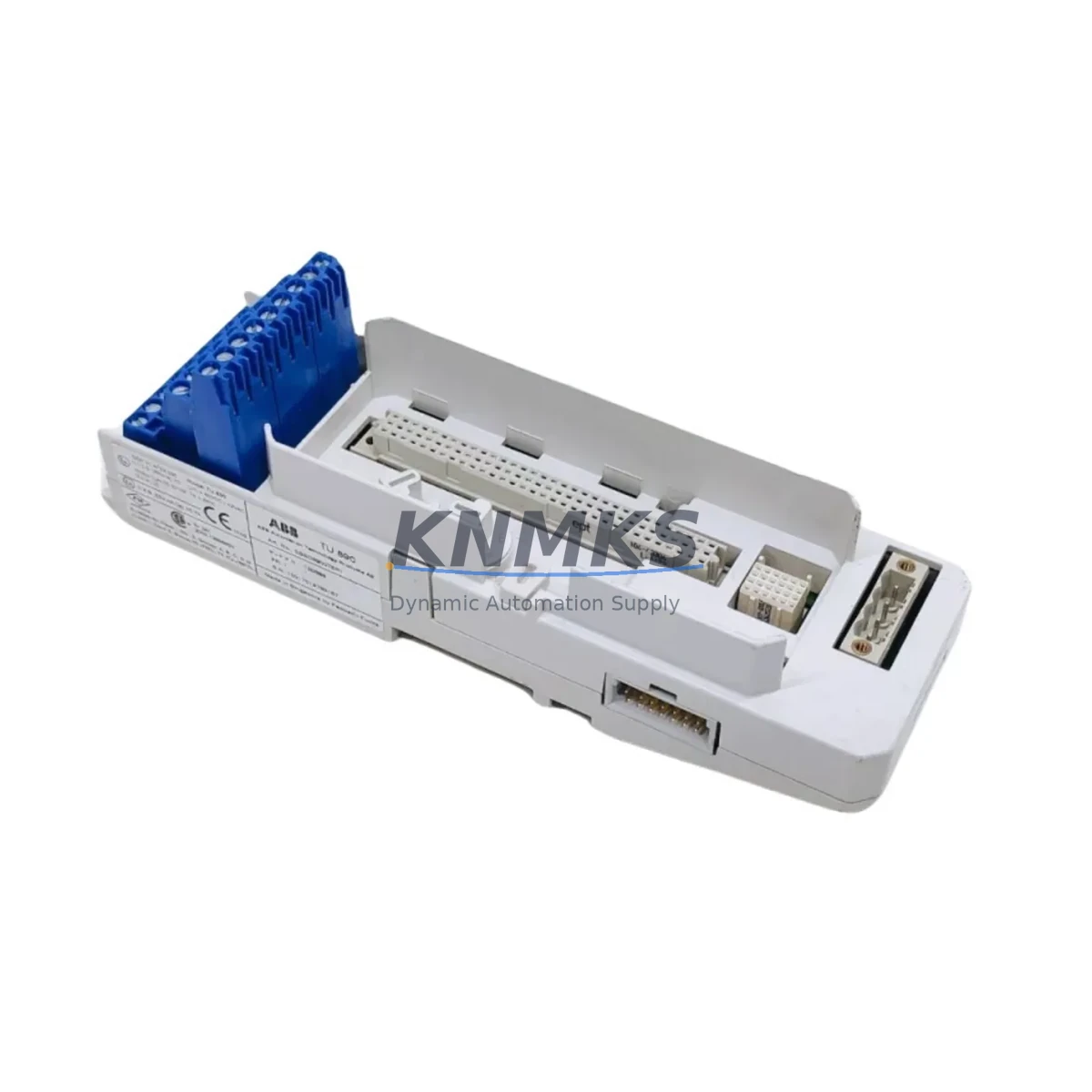

The ABB TU890 (part number 3BSC690075R1) is a field-proven termination unit designed for the ABB S800 I/O series, fully compatible with AC800M Distributed Control System architectures. As a direct-mount termination unit, the TU890 provides the critical interface between S800 I/O modules and field wiring, making it an indispensable component in any DCS cabinet where signal integrity and wiring continuity are non-negotiable. For maintenance engineers managing aging AC800M installations, holding a verified spare TU890 availability confirmed by RFQ is not optional — it is a fundamental element of a zero-downtime maintenance strategy.

Whether you are conducting a scheduled annual shutdown, responding to an unplanned I/O fault, or executing a phased migration from legacy S800 hardware to a newer control platform, the TU890 3BSC690075R1 delivers the mechanical and electrical compatibility required to restore operations without re-engineering the field wiring infrastructure. Each unit supplied by KNMKS is sourced from verified channels, inspected prior to shipment, and backed by a support terms confirmed by quotation — giving procurement engineers the confidence to commit to long-term spare parts programs without supplier risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a TU890 3BSC690075R1 is flagged for replacement during a cabinet inspection or fault isolation routine, experienced maintenance engineers know that the termination unit is rarely the only component that warrants attention. The S800 I/O architecture distributes signals across tightly integrated hardware layers, and a single wiring fault or module failure can cascade across adjacent components if the root cause is not fully isolated before the replacement unit is commissioned.

During a TU890 replacement, the following components should be systematically inspected as part of the same maintenance window. The S800 I/O module seated on the TU890 — whether an AI810 analog input, AO810V2 analog output, DI810 digital input, or DO810 digital output — should be removed, visually inspected for burn marks or connector damage, and tested independently before reinstallation. The CI854A PROFIBUS DP communication interface module or equivalent fieldbus coupler connected to the same I/O cluster should be checked for firmware version compatibility and communication error logs, as a degraded TU890 connection can generate spurious fieldbus faults that persist even after the termination unit is replaced.

Field wiring connected to the TU890 terminal block should be re-torqued to manufacturer specification — loose terminals are a leading cause of intermittent signal faults in high-vibration environments. If the installation is in a humid or chemically aggressive environment, inspect the TB820V2 ModuleBus modem and adjacent SA801F power supply module for signs of corrosion or capacitor aging. The SA801F, which provides 24 VDC to the S800 I/O rail, is a common wear item in long-running installations and should be included in any blanket spare parts program alongside the TU890.

For installations where signal isolation is critical — particularly in mixed analog/digital cabinets serving process control loops — verify that any signal isolators or galvanic barriers in the field wiring circuit remain within calibration tolerance. A failing isolator can introduce offset errors that are incorrectly attributed to the I/O module or termination unit. Similarly, inspect the cabinet fusing and MCB protection for the I/O power rail: a nuisance trip on the 24 VDC supply fuse is often the first symptom of an aging power module rather than a wiring fault.

If the plant operates a PP865 or PP886 operator panel (HMI) integrated with the AC800M controller, confirm that the HMI alarm history is reviewed for any latent I/O fault codes that predate the TU890 failure — these logs frequently reveal whether the termination unit failure was sudden or progressive, which informs the broader spare parts stocking decision.

Site Replacement Workflow

Replacing a TU890 3BSC690075R1 in an active AC800M DCS installation requires a structured approach to minimize loop interruption and avoid introducing new faults during the swap. The following workflow reflects best practice for maintenance engineers executing an unplanned or scheduled termination unit replacement:

Step 1 — Isolation and Documentation: Before removing the faulty TU890, photograph the existing field wiring layout and record terminal assignments against the as-built wiring diagram. Confirm that the I/O module seated on the unit is placed in a safe state (outputs de-energized, inputs acknowledged in the DCS) to prevent spurious process actions during disconnection.

Step 2 — Module Removal: Remove the S800 I/O module from the TU890 by releasing the module latch. Set the module aside on an ESD-safe surface. Disconnect field wiring from the terminal block, labeling each conductor if the existing labels are worn or absent.

Step 3 — TU890 Replacement: Remove the faulty TU890 from the DIN rail or backplane mounting position. Install the replacement TU890 3BSC690075R1, ensuring the rail clip is fully engaged and the unit is seated flush. Reconnect field wiring to the correct terminal positions, re-torquing each screw to the specified value.

Step 4 — Module Reinstallation and Verification: Reseat the S800 I/O module onto the replacement TU890. Power up the I/O rail and confirm that the module status LED indicates normal operation. Verify signal values in the DCS against known field references (e.g., a 4 mA loop signal should read 0% on the corresponding AI channel).

Step 5 — System Confirmation: Clear any latched fault alarms in the AC800M controller and confirm that all affected control loops have returned to normal operation. Update the maintenance log with the replacement date, part number, and post-replacement test results. Flag the TU890 spare parts stock for replenishment to maintain the minimum holding quantity.

This workflow is compatible with both hot-swap capable S800 configurations and installations requiring a full I/O rail power cycle. Consult the AC800M Hardware Configuration manual for your specific firmware version to confirm hot-swap eligibility before proceeding without a process shutdown.

Spare Parts Support FAQ

Q1: Is the TU890 3BSC690075R1 compatible with all S800 I/O modules?
The TU890 is designed for use with the ABB S800 I/O series and is mechanically and electrically compatible with standard S800 single-width I/O modules including AI810, AO810V2, DI810, DO810, DI811, and related variants. Always verify the module-to-termination-unit compatibility matrix in the ABB S800 I/O Hardware Product Manual (3BSE020924) before installation, particularly for newer module revisions introduced after 2018.

Q2: What does the support terms confirmed by quotation cover, and how is it validated?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each TU890 unit is visually inspected and continuity-tested before dispatch. In the event of a support terms claim, KNMKS requires the original invoice number and a brief fault description. Replacement or credit is processed within a standard lead time agreed at the time of claim. The support terms does not cover damage resulting from incorrect installation, overvoltage events, or mechanical impact.

Q3: How should I structure a long-term spare parts holding program for TU890 units?
For AC800M installations with more than 10 S800 I/O racks, a minimum holding of 2–4 TU890 units per site is recommended, scaled to the number of critical process loops served by S800 I/O. Plants with extended lead-time risk (remote locations, single-source supply chains, or aging ABB S800 hardware under end-of-life status) should consider a blanket stock agreement with KNMKS to secure annual allocation at a fixed price. This approach eliminates spot-buy premium costs and ensures availability during peak demand periods such as annual turnaround seasons.

Q4: Can the TU890 3BSC690075R1 be used as a direct replacement for older TU890 variants without re-engineering field wiring?
In the majority of AC800M installations, the TU890 3BSC690075R1 is a form-fit-function replacement for earlier TU890 production batches. Field wiring terminal assignments and module mounting geometry are consistent across production revisions. However, if the existing installation uses a non-standard cable harness or a third-party marshalling panel, verify terminal pitch and connector type before committing to a bulk replacement order. KNMKS technical support can assist with compatibility verification based on your site documentation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

TU890 3BSC690075R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB TU890 3BSC690075R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
