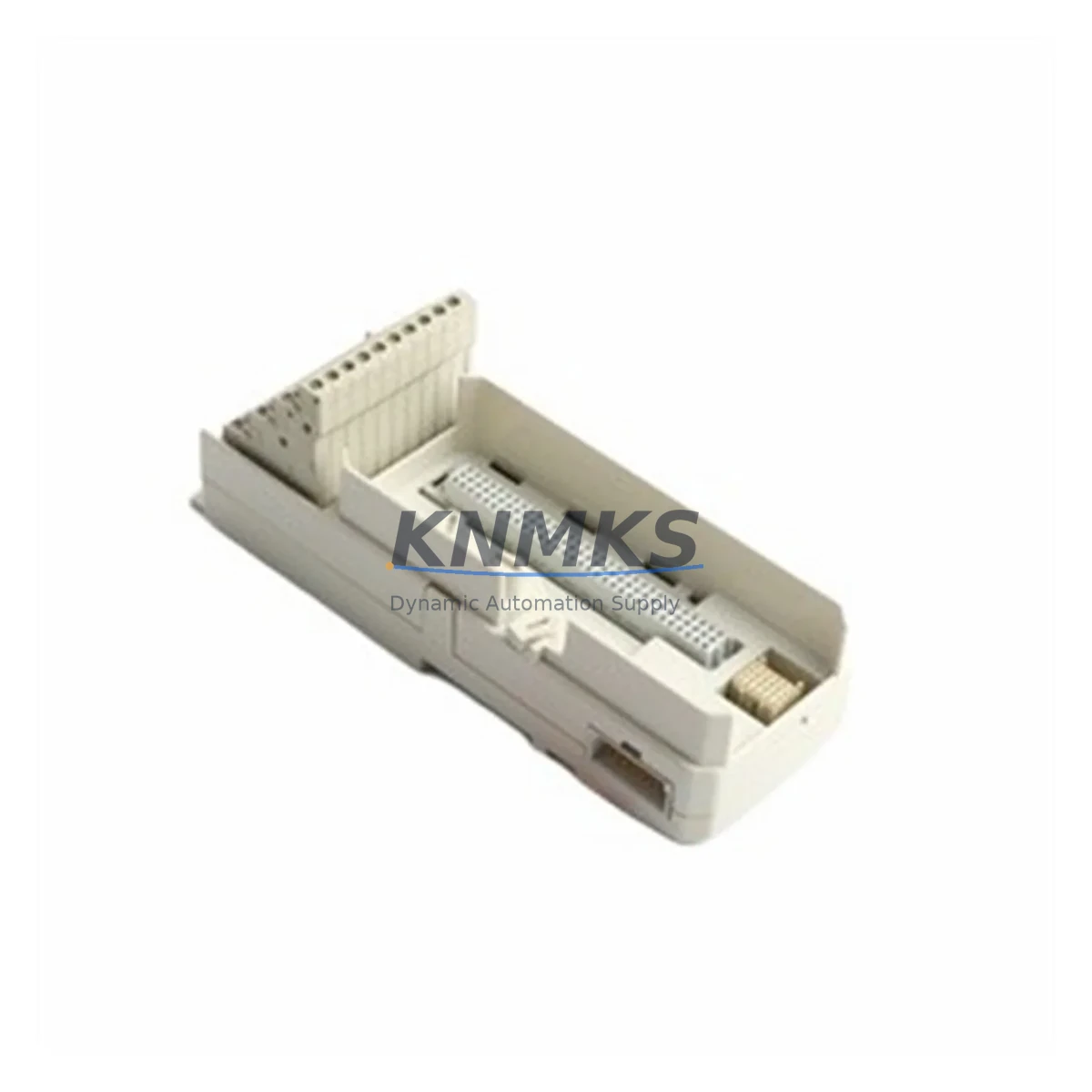

ABB TU818V1 3BSE069209R1 Fail-Safe I/O Termination Unit

Overview

ABB TU818V1 3BSE069209R1 Fail-Safe I/O Termination Unit: Fault Protection and Critical Industrial Field Reliability

The ABB TU818V1 (3BSE069209R1) is a ruggedized, safety-rated I/O termination unit engineered for ABB’s S800 I/O series within AC800M-based Distributed Control Systems. Designed to serve as the critical interface between field wiring and S800 I/O modules, the TU818V1 eliminates the risk of signal interruption, wiring-induced faults, and termination degradation in demanding continuous-process environments. Whether deployed in petrochemical refineries, power generation facilities, metallurgical plants, or offshore installations, this termination unit delivers the structural integrity and electrical reliability that safety-critical control loops demand.

In high-stakes industrial environments, the termination layer is often the most overlooked vulnerability in a control cabinet. Loose field connections, corrosion-induced resistance drift, and vibration-loosened terminals can introduce signal errors that propagate through the entire I/O chain — triggering nuisance trips, masking real process alarms, or causing unplanned shutdowns. The TU818V1 addresses these failure modes through its robust mechanical design, secure screw-terminal field wiring interface, and full compatibility with ABB S800 I/O modules such as the AI810 analog input module and the DI810 digital input module, ensuring that every signal path from field instrument to controller remains stable, traceable, and fault-tolerant.

The unit’s design supports installation in control cabinets subject to high electromagnetic interference (EMI), common in variable frequency drive (VFD) environments, motor control centers, and arc furnace control rooms. Its shielded termination architecture and grounding provisions reduce susceptibility to conducted and radiated interference, protecting the integrity of 4–20 mA analog loops and discrete digital signals alike. When paired with ABB’s TB820V2 ModuleBus modem or the CI854B PROFIBUS DP communication interface, the TU818V1 forms part of a coherent, interference-resistant I/O backbone that maintains communication stability even under severe electrical noise conditions.

For control cabinets operating in dusty, humid, or thermally challenging environments — such as those found in cement plants, water treatment facilities, and coastal marine installations — the TU818V1’s sealed terminal design and conformal-coating-compatible construction reduce the risk of insulation breakdown, contact oxidation, and moisture ingress. This directly supports long mean-time-between-failure (MTBF) performance and reduces the frequency of unplanned maintenance interventions. When used alongside ABB’s SD833 power supply module, the overall cabinet power and signal distribution architecture achieves the redundancy and surge tolerance required for 24/7 continuous operation.

Surge and transient protection is a critical consideration for field-connected termination units. The TU818V1’s terminal block design accommodates external surge protection devices, allowing integrators to install DIN-rail-mounted transient voltage suppressors in line with field cables entering from outdoor or exposed cable trays. This is particularly important in mining, port crane control, and open-pit extraction environments where lightning-induced surges and ground potential differences pose a persistent threat to I/O module longevity. Protecting the termination layer protects the entire I/O module investment — including the S800 modules mounted directly above.

From a spare parts and lifecycle management perspective, the TU818V1 3BSE069209R1 is a direct-replacement unit for aging S800 DCS installations. Many facilities running ABB Advant, Symphony Plus, or early AC800M systems require periodic termination unit replacement due to terminal wear, label degradation, or mechanical damage from repeated field wiring changes. Stocking the TU818V1 as a certified spare eliminates extended lead times and ensures that maintenance teams can execute hot-swap replacements during planned outages without compromising system availability. Each unit shipped by KNMKS undergoes pre-shipment functional verification and is backed by a support terms confirmed by quotation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable S800-based control cabinet is built on the coordinated performance of multiple components working in concert. The TU818V1 termination unit anchors the field wiring layer, but its effectiveness is amplified when the surrounding cabinet architecture is equally robust. The ABB AI810 analog input module, mounted directly onto the TU818V1, converts field sensor signals with 12-bit resolution and provides channel-level diagnostics that flag open-circuit and short-circuit faults before they escalate into process upsets. For discrete safety interlock circuits, the ABB DI810 digital input module paired with the TU818V1 provides the fast scan rates and input filtering needed to reliably capture emergency stop and limit switch signals in high-noise environments.

Power quality within the control cabinet is equally critical. The ABB SD833 24 VDC power supply module provides regulated, redundancy-capable power to the S800 I/O bus, ensuring that voltage sags, brownouts, or upstream power disturbances do not propagate into the I/O layer. For communication integrity, the ABB CI854B PROFIBUS DP interface module maintains deterministic fieldbus communication between the AC800M controller and remote I/O stations, with built-in diagnostics that detect cable faults and address conflicts before they cause controller timeouts. Where ModuleBus extension is required, the ABB TB820V2 modem extends the S800 I/O bus over optical fiber, eliminating ground loop interference in large cabinet arrays or inter-building installations. Together with the TU818V1, these components form a complete, fault-tolerant I/O infrastructure capable of sustaining continuous operation in the most demanding industrial environments.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous distillation, catalytic cracking, and pipeline control applications, the TU818V1 supports the termination of safety instrumented system (SIS) field wiring, maintaining the integrity of pressure, temperature, and flow transmitter loops that feed emergency shutdown (ESD) logic. Signal stability at the termination layer is non-negotiable when a single erroneous reading can trigger a plant-wide shutdown or, worse, mask a genuine hazardous condition.

Power Generation and Substation Control: Turbine control systems, boiler management systems, and substation automation panels rely on stable I/O termination to maintain generator synchronization and protection relay coordination. The TU818V1’s EMI-hardened design withstands the high magnetic field environments present near large transformers and bus bars, ensuring that analog feedback signals from actuators and sensors remain accurate throughout the generation cycle.

Mining and Mineral Processing: Conveyor control, crusher automation, and flotation cell management systems in underground and open-pit mining operations expose control hardware to extreme vibration, coal dust, and humidity. The TU818V1’s robust mechanical construction and secure terminal clamping prevent the connection loosening and signal drift that commonly cause nuisance trips in these environments, reducing costly conveyor stoppages and ore processing interruptions.

Water and Wastewater Treatment: SCADA-integrated pump stations, chemical dosing systems, and filtration control panels require reliable I/O termination to maintain regulatory compliance and process continuity. The TU818V1 supports the accurate termination of level, flow, and pH transmitter signals in environments where condensation and chemical vapors accelerate terminal corrosion on inferior hardware.

Metallurgy and Steel Production: Electric arc furnace control, rolling mill automation, and continuous casting systems generate extreme EMI and thermal stress. The TU818V1’s compatibility with ABB’s S800 safety-rated I/O architecture makes it suitable for integration into furnace interlock and cooling water control loops where failure to detect a fault condition can result in equipment damage or personnel injury.

Safety and Quality FAQ

Q1: What support terms coverage does the ABB TU818V1 3BSE069209R1 carry?
Every TU818V1 unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and terminal integrity. Support requests are processed with priority to minimize any impact on your production continuity.

Q2: What pre-shipment testing is performed on each unit?
Each TU818V1 undergoes a pre-shipment inspection that includes visual examination for mechanical integrity, terminal condition verification, and functional compatibility checks against S800 I/O module mounting standards. Units are packaged in anti-static, shock-protected packaging to prevent transit damage to the terminal block and module interface connectors.

Q3: Is the TU818V1 3BSE069209R1 a direct drop-in replacement for existing S800 DCS installations?
Yes. The TU818V1 3BSE069209R1 is a direct mechanical and electrical replacement for compatible S800 termination units in AC800M-based DCS architectures. No firmware changes or controller reconfiguration are required for like-for-like replacement. It is compatible with the full range of S800 I/O modules including AI810, DI810, AO810V2, and DO810 variants.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
KNMKS maintains dedicated inventory of ABB S800 series components including the TU818V1, supporting both immediate replacement needs and scheduled maintenance programs. For facilities managing multi-year DCS lifecycle plans, we offer reserved stock arrangements and advance procurement support to ensure that critical spare parts remain available regardless of OEM production status changes.
