ABB TRL810K2 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB TRL810K2 Maintenance-Proven Spare Part for Factory Uptime

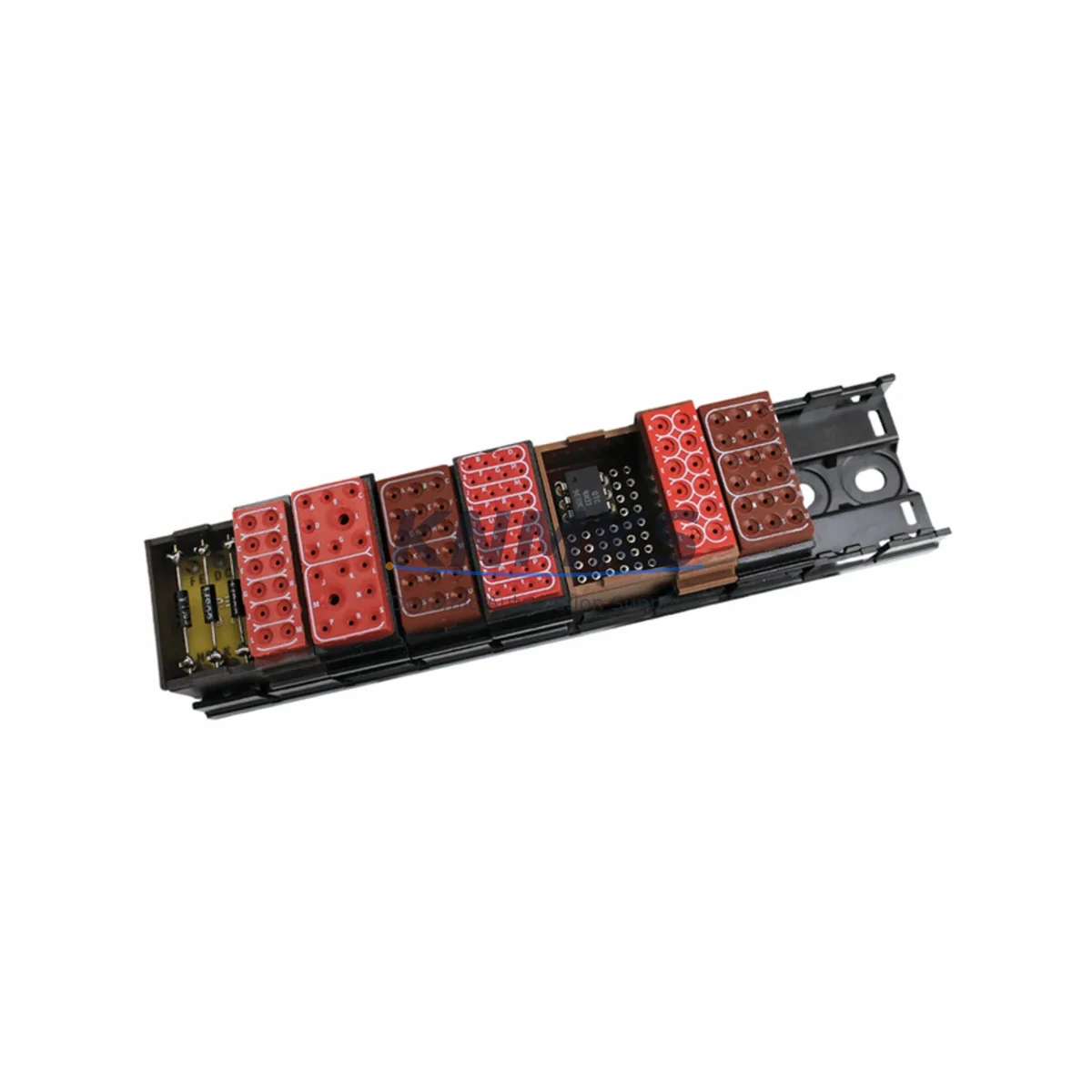

The ABB TRL810K2 is an original S800 I/O terminal unit designed for use within ABB’s AC800M Distributed Control System architecture. As a field-proven DCS terminal module, the TRL810K2 serves as the critical interface between field wiring and the S800 I/O modules, enabling reliable signal routing across process control loops in continuous manufacturing, power generation, oil & gas, pulp & paper, and chemical plant environments.

For maintenance engineers managing aging DCS infrastructure, the TRL810K2 represents one of the most frequently replaced components during annual shutdowns and corrective maintenance events. Its modular design allows for rapid field replacement without disturbing existing field wiring — a key advantage when minimizing production downtime is the primary objective. Procurement engineers sourcing this part should verify the revision level and confirm compatibility with the installed S800 I/O module variant before dispatch.

KNMKS supplies the ABB TRL810K2 as a tested, original spare with full functional verification prior to shipment. Each unit is backed by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial service conditions. Long-term supply continuity is maintained through established sourcing channels, ensuring availability even for legacy AC800M systems that have passed ABB’s standard product lifecycle.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the TRL810K2 terminal unit during a planned or emergency maintenance event, a thorough inspection of the surrounding control cabinet components is essential to prevent repeat failures and ensure system stability after restart. Maintenance engineers should treat the TRL810K2 replacement as an opportunity to audit the full I/O loop.

Begin by inspecting the associated AI810 or AO810 S800 analog I/O modules that plug directly into the terminal unit. Worn connector pins or oxidized contacts on these modules can cause intermittent signal errors that are often misdiagnosed as terminal unit failures. Simultaneously, verify the condition of the TB820V2 ModuleBus Modem or equivalent communication interface module, as a degraded ModuleBus connection will prevent the replaced terminal unit from being recognized by the AC800M controller after reinstallation.

Check the 24 VDC field power supply feeding the I/O cabinet — voltage sags or ripple exceeding specification can stress terminal connections and accelerate contact wear. If the cabinet uses SD821 or SD822 power supply modules, inspect their output voltage under load and replace any unit showing output deviation beyond ±2%. Field wiring connected to the TRL810K2 should be inspected for insulation integrity, correct ferrule crimping, and terminal torque compliance per ABB installation guidelines.

For cabinets with mixed I/O types, also inspect any installed signal isolators or signal conditioners on analog loops — particularly on thermocouple or RTD inputs where ground loops can introduce measurement errors after a terminal unit swap. Review the fuse protection on field power distribution bars; a blown fuse on a field supply rail is a common root cause of apparent terminal unit malfunction. Finally, if the system includes PROFIBUS DP or FOUNDATION Fieldbus segments, verify bus termination resistors and cable shielding continuity before returning the loop to service.

Site Replacement Workflow

Step 1 — Isolation and Documentation: Before removing the TRL810K2, capture a photograph of all field wiring connections and record terminal assignments against the as-built wiring schedule. Place the associated I/O module in forced manual mode via the AC800M engineering station to prevent process upsets during the swap.

Step 2 — Module Removal: Disconnect field wiring from the terminal unit in sequence, labeling each conductor. Release the S800 I/O module from the terminal unit and set aside for inspection. Remove the TRL810K2 from the DIN rail mounting.

Step 3 — New Unit Installation: Mount the replacement TRL810K2 on the DIN rail and verify secure seating. Reconnect field wiring per the documented terminal schedule, confirming correct torque on each terminal screw. Reattach the S800 I/O module.

Step 4 — System Verification: Power up the I/O loop and confirm module recognition in the AC800M controller. Verify all channel signal values against field reference instruments. Release the loop from forced manual mode and monitor for 15 minutes before returning to full automatic control.

This workflow is compatible with both hot-standby and simplex AC800M configurations and supports replacement of legacy TRL810 (non-K2) units where the K2 revision is a direct form-fit-function substitute, eliminating the need for wiring schedule revisions in most installations.

Spare Parts Support FAQ

Q1: Is the TRL810K2 a direct replacement for the earlier TRL810 revision?
In most AC800M and S800 I/O installations, the TRL810K2 is a direct form-fit-function replacement for the original TRL810. The K2 revision incorporates minor design improvements but maintains full backward compatibility with existing S800 I/O modules and field wiring configurations. Always confirm the module variant with your system documentation before installation.

Q2: How is the TRL810K2 tested before shipment?
Each TRL810K2 unit supplied by KNMKS undergoes functional verification including connector integrity checks, continuity testing across all terminal positions, and visual inspection for physical damage. Units are packaged in anti-static protective packaging suitable for international air and sea freight.

Q3: What is the support terms coverage and what does it include?
All TRL810K2 units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and operational failures under normal industrial service conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Support requests are processed with a target replacement dispatch within 5 business days.

Q4: Can KNMKS support long-term supply for legacy AC800M systems?
Yes. KNMKS maintains ongoing sourcing for ABB S800 series components including the TRL810K2, supporting customers with multi-year maintenance contracts, annual shutdown procurement plans, and emergency stock requirements. Contact our team to discuss consignment stock arrangements or scheduled delivery programs for your facility.
