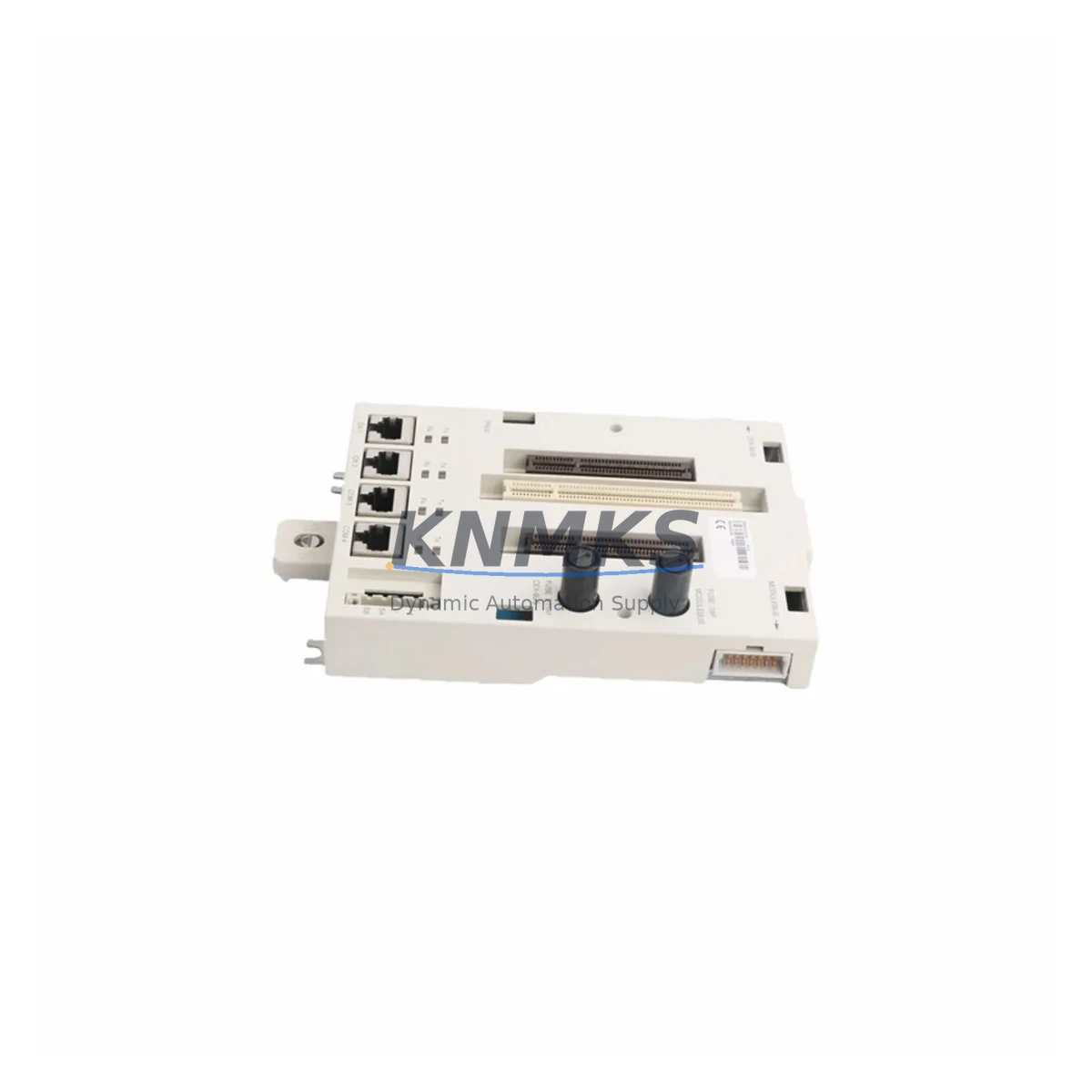

ABB TP830-3BSE018114R1 Fail-Safe Controller Base Module

Overview

ABB TP830-3BSE018114R1 Fail-Safe Controller Base Module: Fault Protection and Critical Industrial Reliability

The ABB TP830-3BSE018114R1 is a high-integrity controller base module engineered for the AC800M Distributed Control System platform — one of ABB’s most widely deployed DCS architectures in continuous process industries. Designed to serve as the structural and electrical backbone of the AC800M controller assembly, the TP830-3BSE018114R1 provides the mechanical mounting interface, internal bus connectivity, and power distribution rail that keep the entire controller stack operational under demanding field conditions.

In critical industrial environments — including petrochemical refineries, thermal power stations, mineral processing plants, water treatment facilities, and continuous manufacturing lines — controller base module failures represent one of the highest-risk single points of failure in the control architecture. A compromised base module can cascade into loss of I/O communication, controller redundancy breakdown, and unplanned process shutdown. The TP830-3BSE018114R1 is built to eliminate this risk through robust mechanical construction, stable internal bus signaling, and full compatibility with ABB’s AC800M redundancy and safety frameworks.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The TP830-3BSE018114R1 does not operate in isolation — its reliability is directly tied to the integrity of the surrounding control cabinet ecosystem. In AC800M-based DCS cabinets, the base module interfaces with the PM865 or PM866 processor module, which handles real-time control execution and redundancy switchover logic. A degraded base module connection to the processor can cause intermittent communication faults, false redundancy alarms, or complete controller failover — all of which disrupt process continuity.

On the power supply side, the SD802F or SD803F power supply modules feed regulated 24 VDC to the base module’s power rail. Voltage ripple, transient surges, or supply interruptions at this interface are a leading cause of controller resets in high-load cabinet environments. Pairing the TP830-3BSE018114R1 with a properly rated SD802F and a dedicated surge protection device on the incoming AC feed significantly reduces the risk of power-induced controller trips.

For I/O expansion, the base module supports connection to AI810, AO810, DI810, and DO810 series I/O modules via the AC800M S800 I/O bus. In high-EMI environments — such as those adjacent to variable frequency drives, large motor starters, or high-current bus bars — proper cable shielding and grounding of the S800 bus cables is essential to prevent signal drift and spurious I/O state changes that could trigger safety interlock responses.

In safety-critical applications, the TP830-3BSE018114R1 is often deployed alongside the CI854 PROFIBUS DP communication interface module, which handles fieldbus connectivity to safety-rated field instruments and actuators. Maintaining the mechanical and electrical integrity of the base module ensures that the CI854’s communication channel remains stable, preventing loss of field device visibility during critical process phases.

For installations in dusty, humid, or high-vibration environments — common in mining, port operations, and heavy manufacturing — periodic inspection of the base module’s connector contacts and DIN rail mounting clips is recommended as part of a preventive maintenance schedule. Replacement with a pre-tested TP830-3BSE018114R1 spare during planned outages eliminates the risk of an unplanned failure during peak production.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous hydrocarbon processing, the AC800M platform with TP830-3BSE018114R1 base modules is used to manage reactor temperature control loops, compressor anti-surge systems, and emergency shutdown (ESD) interlock logic. The base module’s stable internal bus ensures that safety-critical I/O signals — including high-temperature trips and pressure relief valve commands — are transmitted without latency or corruption, even during electrical transients caused by large rotating equipment.

Thermal Power Generation: Boiler management systems and turbine control panels in coal, gas, and biomass power stations rely on AC800M controllers for coordinated burner management, steam drum level control, and turbine speed regulation. The TP830-3BSE018114R1 provides the structural foundation for these controllers, ensuring that redundancy switchover occurs within the sub-second window required to prevent boiler trips and turbine runaway events.

Mining and Mineral Processing: Conveyor control systems, crusher automation, and flotation cell management in open-pit and underground mining operations expose control hardware to extreme vibration, dust ingress, and wide temperature swings. The TP830-3BSE018114R1’s robust mechanical construction and compliance with IEC 60068 environmental test standards make it a reliable choice for these demanding installations.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use AC800M-based DCS systems to manage pump sequencing, chemical dosing, and filtration process control. In these applications, controller availability directly impacts public health and regulatory compliance. Maintaining a stocked TP830-3BSE018114R1 spare ensures that any base module failure can be resolved within a single maintenance shift, minimizing treatment process interruption.

Metallurgy and Steel Production: Electric arc furnace control, rolling mill automation, and continuous casting process management in steel plants demand controller hardware that can withstand intense electromagnetic interference from high-current switching equipment. The TP830-3BSE018114R1, when installed in a properly shielded and grounded AC800M cabinet, maintains reliable internal bus communication even in these extreme EMI environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the TP830-3BSE018114R1?
The support terms confirmed by quotation cover all manufacturing defects, internal component failures, and functional non-conformance identified under normal operating conditions. If the module fails to perform its specified controller base functions within the confirmed support period, KNMKS will provide a replacement unit at no additional cost. The confirmed support period begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on each TP830-3BSE018114R1 unit?
Every TP830-3BSE018114R1 unit undergoes a full functional verification process before dispatch. This includes internal bus communication integrity testing, power rail continuity checks, connector contact resistance measurement, and visual inspection for mechanical damage. Only units that pass all test criteria are released for shipment, ensuring that the module is field-ready upon arrival.

Q3: Is the TP830-3BSE018114R1 compatible with all AC800M controller configurations?
The TP830-3BSE018114R1 is designed for use within the ABB AC800M DCS platform and is compatible with PM865 and PM866 processor modules, as well as S800 I/O expansion configurations. Compatibility with specific redundancy configurations or firmware versions should be verified against the AC800M hardware compatibility matrix. KNMKS technical support can assist with compatibility confirmation prior to order placement.

Q4: Can KNMKS support long-term or scheduled supply agreements for TP830-3BSE018114R1?
Yes. KNMKS maintains multi-region inventory of the TP830-3BSE018114R1 and can support both emergency replacement orders and scheduled procurement agreements for planned maintenance outages. Long-term supply agreements are available for customers requiring guaranteed stock allocation across multiple maintenance windows or multi-site AC800M installations. Contact our sales team to discuss volume pricing and supply scheduling.
