ABB TK801V012 3BSC950089R3 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB TK801V012 3BSC950089R3 Maintenance-Proven Spare Part for Factory Uptime

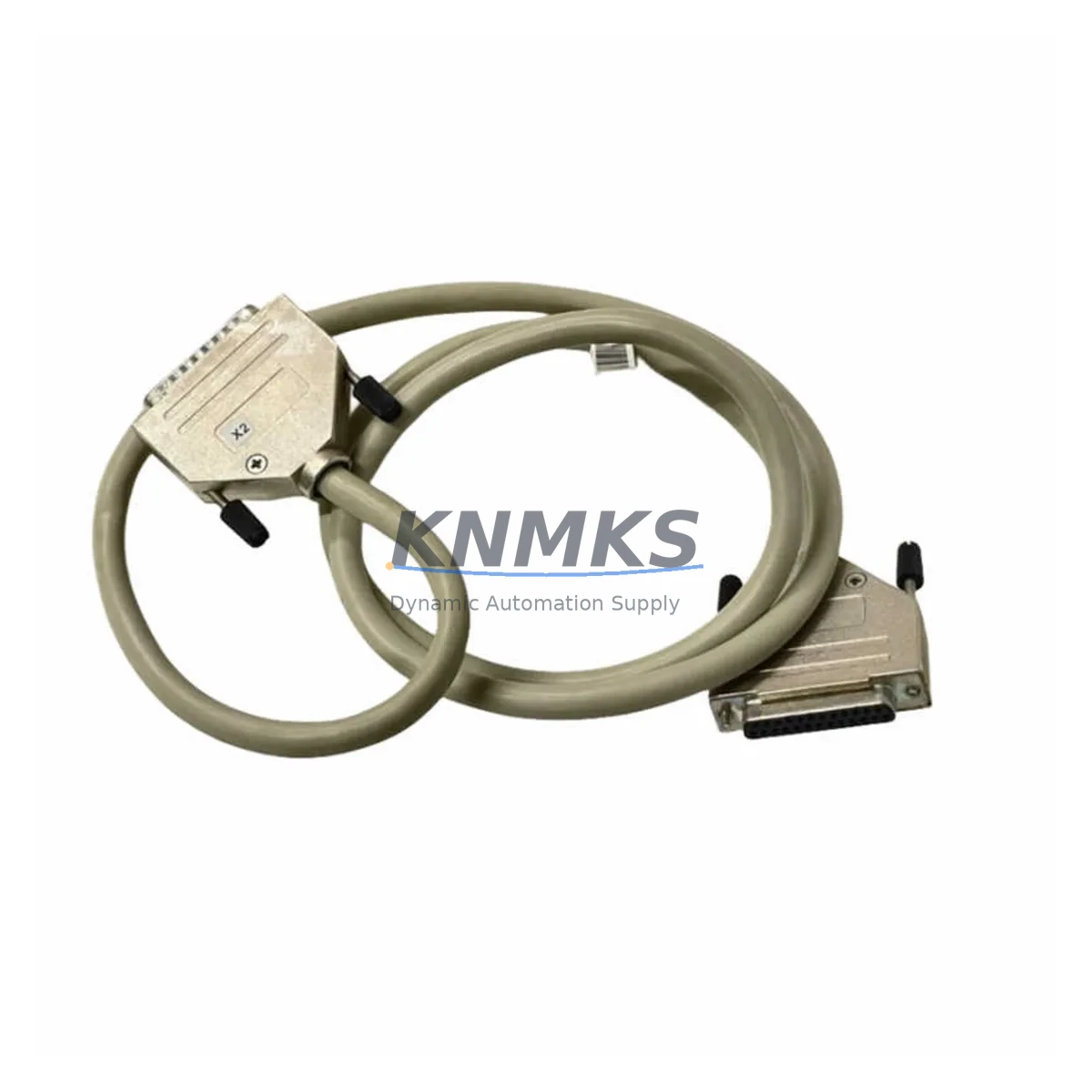

The ABB TK801V012 (part number 3BSC950089R3) is an original I/O extension cable engineered for the ABB AC800M distributed control system and S800 I/O field bus modules. In process industries — pulp & paper, oil & gas, power generation, and chemical plants — this cable forms the critical physical link between the AC800M controller backplane and remote S800 I/O clusters. A degraded or failed TK801V012 directly interrupts I/O communication, triggering process alarms, forcing manual overrides, and risking unplanned shutdowns. Stocking a verified replacement is the single most cost-effective insurance against extended downtime in AC800M-based control architectures.

Maintenance engineers working on AC800M cabinets recognize that cable integrity is frequently overlooked during routine inspections. Vibration, thermal cycling, and repeated cabinet access cause connector wear and shielding fatigue over time. When fault diagnostics on the S800 I/O bus point to intermittent communication errors or module dropouts, the TK801V012 extension cable is among the first components to inspect and swap. Having a pre-tested spare on the shelf eliminates the multi-week lead time associated with sourcing original ABB cables through standard procurement channels.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A disciplined spare parts strategy for AC800M installations extends well beyond the TK801V012 cable itself. When a maintenance team responds to an S800 I/O communication fault, the root cause may lie in the cable, but adjacent components in the same electrical circuit deserve simultaneous inspection to prevent repeat failures.

Start with the AC800M processor module (PM856 or PM864 series) — verify that the Modulebus port shows no physical damage and that firmware diagnostics report clean bus traffic after cable replacement. Next, check the S800 I/O cluster power supply (SD821 or SD822 series); an under-voltage condition on the I/O rail can mimic cable faults and accelerate connector wear. Inspect the TB820 Modulebus Modem if the installation uses extended bus segments — this modem regenerates the Modulebus signal and is a common failure point in older AC800M architectures.

Within the same control cabinet, examine the CI854 PROFIBUS DP communication interface or CI857 FOUNDATION Fieldbus HSE module if the process loop relies on fieldbus instruments; a degraded I/O extension cable can introduce ground loops that corrupt fieldbus signals. Terminal blocks and cable shields in the same trunking should be checked for continuity and proper grounding. For installations with safety-rated loops, verify that any AI895 or DI890 safety I/O modules connected downstream of the TK801V012 segment still pass their self-test diagnostics after the cable swap.

Procurement engineers should treat the TK801V012 as a consumable in high-cycle environments. Pairing it in a single purchase order with the TK801V006 (6 m variant) and TK801V003 (3 m variant) ensures coverage across different cabinet depths without emergency sourcing. A minimum stock of two TK801V012 units per AC800M node is the industry-standard recommendation for facilities targeting less than four hours mean time to repair on DCS faults.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the AC800M Control Builder diagnostic tool to confirm Modulebus communication errors on the affected I/O cluster. Note the error code and affected module addresses before any physical intervention.

Step 2 — Safe Isolation: Place the affected process loop in manual mode at the DCS operator station. Confirm with the shift supervisor that the loop is safe to interrupt. Do not de-energize the entire I/O cluster unless the process permits a full shutdown of that segment.

Step 3 — Cable Swap: Disconnect the TK801V012 at both the controller backplane end and the S800 I/O cluster end. Inspect both connectors for bent pins, corrosion, or cracked housings. Install the replacement cable, ensuring the locking tabs engage fully at both ends.

Step 4 — Verification: Re-enable the Modulebus segment from Control Builder. Confirm that all S800 I/O modules on the segment return to online status and that process values resume normal scanning. Check for any residual alarms related to the affected modules.

Step 5 — Documentation: Log the replacement in the plant CMMS with the cable serial number, date, and technician ID. Update the spare parts inventory to trigger a replenishment order for the consumed TK801V012 unit.

This workflow typically restores full I/O communication within 20–40 minutes, compared to 4–8 hours when the spare is not on-site and must be sourced urgently. Maintaining a pre-tested TK801V012 in the control room spare parts cabinet is the most direct way to protect process uptime in AC800M-based plants.

Spare Parts Support FAQ

Q1: Is this TK801V012 an original ABB cable or a compatible replacement?
This is an original ABB TK801V012 (3BSC950089R3) sourced from authorized distribution channels. Each unit undergoes continuity, shielding, and connector retention testing before shipment. A support terms confirmed by quotation is included from the date of invoice.

Q2: Which AC800M processor and S800 I/O module combinations are confirmed compatible?
The TK801V012 is compatible with all AC800M PM8xx series processors (PM851, PM856, PM860, PM861, PM864, PM866) and the full S800 I/O module range including AI810, AO810V2, DI810, DO810, DI811, DO814, and related variants. Confirm your specific module revision against the ABB S800 I/O System Product Guide (3BSE020924) before installation.

Q3: What is the long-term supply outlook for TK801V012?
ABB continues to support the AC800M and S800 I/O platform with spare parts availability. We maintain stock of TK801V012 and related Modulebus cables to support customers with long-lifecycle DCS installations. For facilities planning 5–10 year maintenance horizons, we recommend purchasing a buffer stock of 2–4 units per AC800M node to mitigate future procurement risk.

Q4: Can I order multiple units and receive them tested as a batch?
Yes. Batch orders are tested individually and shipped with a test report confirming continuity and shielding integrity for each cable. Lead time for standard stock orders is typically 3–7 business days. Express dispatch is available for urgent plant recovery situations. Contact our team to confirm current stock levels before placing a critical order.
