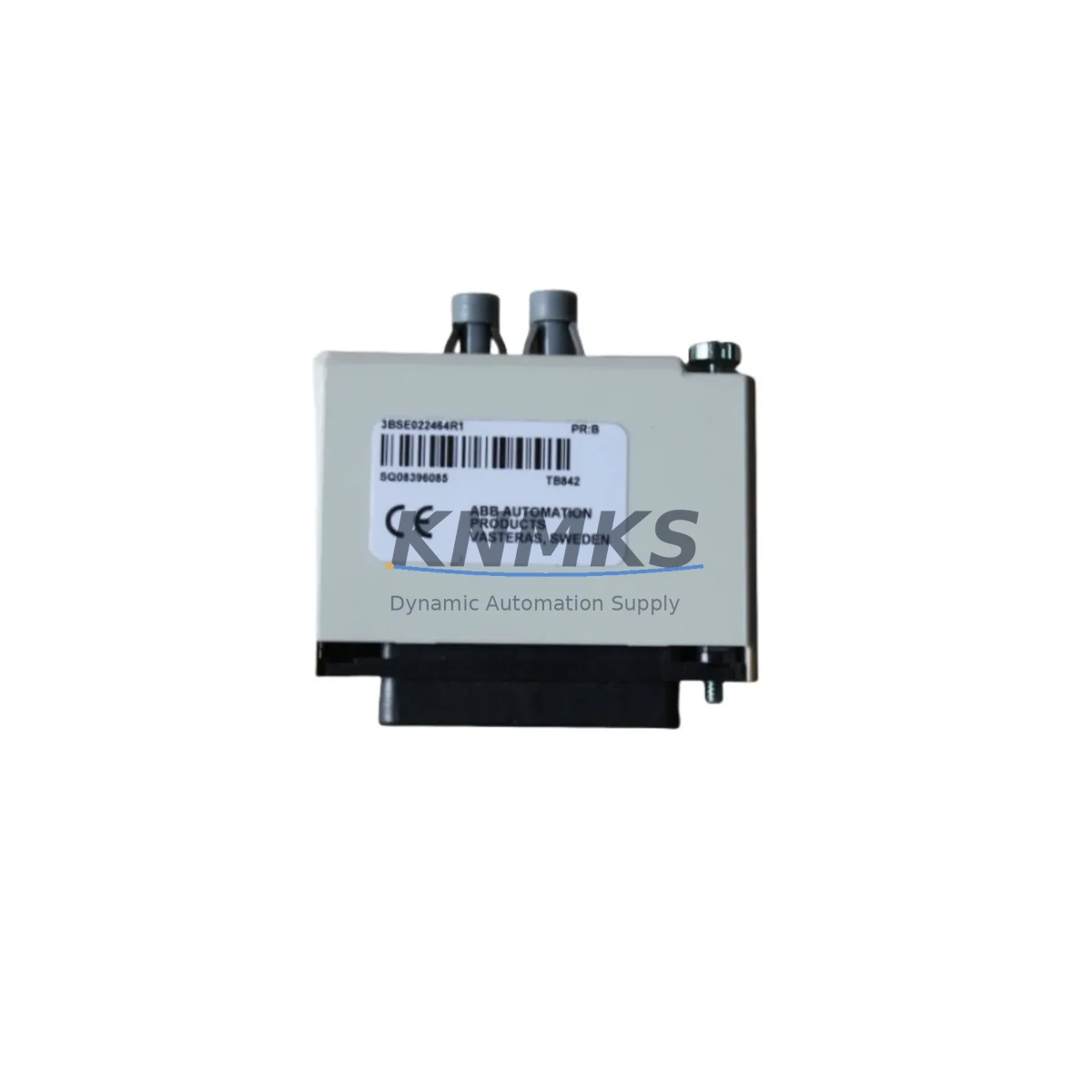

ABB TB842 Fail-Safe Optical ModuleBus for Industrial Control

Overview

ABB TB842 Fail-Safe Optical ModuleBus for Industrial Control Reliability

The ABB TB842 is a high-integrity Optical ModuleBus communication module engineered for the ABB AC800M Distributed Control System (DCS) platform. Designed to sustain uninterrupted signal transmission across the ModuleBus backplane, the TB842 plays a critical role in maintaining control loop continuity in environments where communication failure is not an option. Its fiber-optic signal path eliminates galvanic coupling, providing inherent immunity to ground loops, conducted interference, and high-frequency electromagnetic noise — conditions routinely encountered in petrochemical plants, power generation facilities, metallurgical smelters, and continuous process manufacturing lines.

In safety-critical installations, the TB842 serves as the optical backbone connecting AC800M controller modules to I/O clusters across extended cabinet distances. Unlike copper-based backplane interconnects, the optical medium is immune to surge transients generated by large motor starts, arc flash events, and high-voltage switching operations. This characteristic directly reduces the risk of spurious trips, signal drift, and communication timeouts that can cascade into unplanned shutdowns or, in worst-case scenarios, unsafe process states. For facilities operating under IEC 61511 functional safety requirements or equivalent national standards, the TB842’s deterministic communication behavior supports the integrity of safety instrumented functions (SIFs) without introducing additional failure modes.

Field experience across heavy industries confirms that the TB842 performs reliably in control cabinets subject to sustained vibration, wide thermal cycling (−25 °C to +70 °C operating range), and elevated humidity. Its compact DIN-rail-compatible form factor integrates directly into standard AC800M cabinet builds, reducing installation complexity and minimizing the risk of wiring errors during commissioning or replacement. Pre-shipment functional testing — covering optical link integrity, module recognition, and communication handshake verification — ensures that every unit dispatched from KNMKS inventory is ready for immediate field deployment.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust AC800M control cabinet architecture pairs the TB842 with complementary modules to achieve layered fault protection. The ABB PM864A or PM866K01 controller modules rely on the TB842’s optical link to maintain deterministic scan-cycle communication with remote I/O clusters — any degradation in this link directly impacts controller response time and, in redundant configurations, may trigger an unwanted switchover. To protect the 24 VDC supply rail feeding the backplane, a dedicated ABB SD831 or SD832 power supply module with active current limiting prevents voltage collapse during inrush events caused by simultaneous module initialization after a power restoration sequence.

On the I/O side, ABB AI810 analog input modules and ABB DI810 digital input modules connected via the TB842 optical link benefit from the module’s noise rejection, ensuring that 4–20 mA process signals and discrete field device states are transmitted without corruption even when variable-frequency drives (VFDs) or large contactors operate in adjacent cabinet sections. For installations requiring extended ModuleBus reach — common in large substation automation or distributed pump station control — the ABB TB843 optical ModuleBus module provides an additional segment, and the TB842 can be used in tandem to bridge controller and remote I/O enclosures separated by significant distances without signal attenuation.

In safety loop architectures, the TB842 is frequently deployed alongside ABB CI854A PROFIBUS DP communication interface modules, where the optical backplane ensures that safety-related process data from field transmitters reaches the controller without the latency or corruption risks associated with copper backplane interconnects under high EMI conditions. This combination is particularly valued in SIL-rated interlock systems where communication reliability is a quantified element of the overall safety integrity calculation.

Critical Industrial Safety Applications

The TB842 is actively deployed across a broad spectrum of critical industrial environments. In petrochemical and refinery operations, it supports continuous process control loops for distillation columns, reactor temperature management, and emergency shutdown (ESD) system communication — applications where a single communication fault can trigger a full-plant trip with significant production and safety consequences. Its optical isolation is particularly valued in areas classified under ATEX or IECEx Zone 2, where minimizing electrical energy in the control system boundary is a design requirement.

In thermal and hydroelectric power generation, the TB842 maintains turbine governor control and boiler management system (BMS) communication integrity during load-following transients, where rapid changes in generator output create significant electromagnetic disturbances within the control room. Mining and mineral processing facilities use the TB842 in crusher control, conveyor drive management, and flotation cell automation, where dust ingress, mechanical vibration, and high-current motor switching create a demanding electromagnetic environment for any backplane communication component.

Water and wastewater treatment plants rely on the TB842 for SCADA-integrated pump station control and chemical dosing system automation, where the module’s resistance to humidity and condensation is as important as its EMI immunity. In port and marine terminal automation — including ship-to-shore crane control and bulk material handling — the TB842 supports reliable crane PLC communication in salt-air environments with high vibration loads. Across all these applications, the module’s support terms confirmed by quotation and KNMKS’s commitment to long-term spare parts availability ensure that maintenance teams can plan replacements without exposure to extended lead times or counterfeit component risks.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the TB842?
The support terms confirmed by quotation cover all manufacturing defects, optical link failures, and module communication faults identified under normal operating conditions consistent with ABB’s published environmental and electrical specifications. Support requests are supported by KNMKS’s technical team, and replacement units are dispatched from verified stock to minimize field downtime.

Q2: What pre-shipment tests are performed on each TB842 unit?
Every TB842 unit undergoes optical link continuity verification, module identification handshake testing with an AC800M controller, and visual inspection for connector and housing integrity before dispatch. Test records are retained and can be provided upon request for quality audit purposes.

Q3: Is the TB842 compatible with all AC800M controller variants?
The TB842 is compatible with the full range of ABB AC800M controller modules, including PM851, PM856, PM860, PM861, PM864, PM864A, PM866, and PM866K01 variants. Compatibility with specific firmware revisions should be confirmed against ABB’s published hardware compatibility matrix for the target system version.

Q4: Can KNMKS support long-term supply agreements for the TB842?
Yes. KNMKS maintains dedicated inventory for critical ABB AC800M spare parts, including the TB842, and can support scheduled supply agreements covering 12–36 month horizons. This service is designed for facilities with planned maintenance cycles or multi-site standardization programs that require guaranteed component availability without reliance on spot-market sourcing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

TB842
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB TB842
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
