ABB TB840A 3BSE037760R1 Migration-Ready Modulebus Modem

Overview

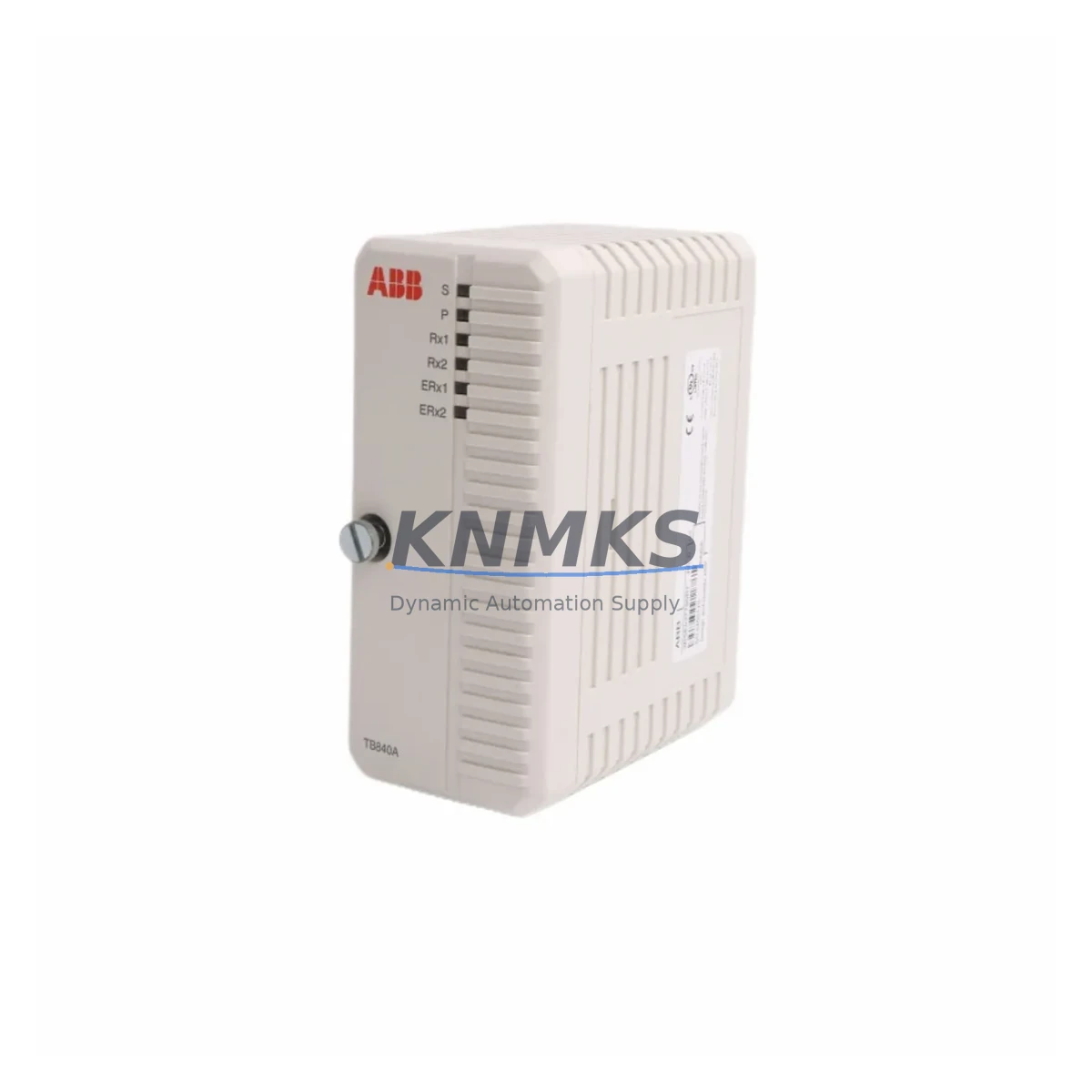

ABB TB840A 3BSE037760R1 Migration-Ready Modulebus Cluster Modem for Legacy Control Systems

The ABB TB840A (3BSE037760R1) is a Modulebus Cluster Modem designed for use within the ABB AC800M distributed control system platform. As a critical communication bridge between the PM8xx controller family and remote I/O clusters, the TB840A enables high-speed, deterministic data exchange across the Modulebus network. For facilities operating aging AC800M installations — particularly those built around the PM803F, PM856, or PM860 controllers — the TB840A represents a validated, migration-ready replacement that eliminates the need for full system redesign.

Procurement engineers and automation specialists managing legacy DCS or hybrid PLC/DCS architectures frequently encounter the TB840A as a bottleneck component during unplanned shutdowns. Its role in cluster communication means that a failed or degraded modem can isolate entire I/O segments, triggering process interruptions across petrochemical, power generation, pulp and paper, and water treatment facilities. Stocking a verified spare — pre-tested and ready for immediate installation — is the most effective strategy for minimizing mean time to repair (MTTR) in these environments.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TB840A retrofit begins well before the replacement unit arrives on site. Engineers should start by documenting the existing cluster topology — identifying how many TB840A modems are active in the rack, which I/O modules they serve, and what node addresses are assigned. In a typical AC800M installation, the TB840A works in conjunction with AI810 analog input modules, DI810 digital input modules, and AO810V2 analog output modules mounted on S800 I/O clusters. These I/O modules communicate upstream through the TB840A modem, so any interruption to the modem’s operation directly affects process variable acquisition and control output.

Power budget verification is a mandatory pre-retrofit step. The SD802F or SD803F power supply modules feeding the AC800M rack must have sufficient headroom to support the replacement TB840A alongside existing modules. If the rack is operating near capacity, a power audit using the AC800M hardware configuration tool in Control Builder M will identify whether a supplementary power module is required before the swap.

For sites where the TB840A connects remote S800 I/O clusters via optical fiber, the fiber patch cables and ST-type connectors should be inspected for contamination or physical damage prior to installation. A degraded fiber link can cause intermittent communication faults that are difficult to distinguish from a faulty modem, leading to unnecessary module replacements. Cleaning and testing the fiber path before installing the new TB840A eliminates this diagnostic ambiguity.

In multi-cluster configurations, the TB807 baseplate and TB840 cluster modem baseplate assignments must be cross-referenced against the Control Builder M hardware configuration. Mismatched baseplate assignments are a common source of post-replacement communication failures. Ensure the replacement TB840A is configured with the identical node address as the removed unit — this is typically set via DIP switches on the module body and must match the address recorded in the project configuration file.

Where the AC800M system interfaces with an ABB 800xA distributed control system, the OPC server and aspect system connections should be verified after the TB840A replacement to confirm that all I/O tags are resolving correctly. In most like-for-like replacements, no 800xA configuration changes are required, but a tag scan and alarm review immediately after restart is recommended practice.

Downtime Control During System Migration

Minimizing process downtime during a TB840A replacement requires a structured hot-swap or planned-outage strategy. For processes that can tolerate a brief I/O cluster outage, the preferred approach is a planned maintenance window during which the affected cluster is taken offline, the TB840A is swapped, node address is verified, and the cluster is brought back online — typically achievable within 30 to 60 minutes by an experienced automation technician.

For continuous processes where even brief I/O loss is unacceptable, a redundant cluster architecture using a second TB840A in a redundant modem pair configuration provides seamless failover. If the existing installation does not include redundancy, the retrofit planning phase should evaluate whether adding a redundant TB840A and the associated TB840 baseplate is feasible within the available rack space and power budget.

Before initiating any replacement, the current Control Builder M project should be backed up and the running program logic verified against the archived version. This ensures that if a configuration discrepancy is discovered during commissioning, the original program state can be restored without relying on memory or informal documentation. The backup should include the hardware configuration, application program, and any SFC or function block library references used by the affected controller.

Post-replacement commissioning should follow a structured sequence: power-on the cluster, verify Modulebus link status LEDs on the TB840A, confirm I/O module communication in Control Builder M diagnostics, check process variable readings against field instruments, and release the affected control loops from manual override. This sequence protects against premature loop release and ensures that any residual configuration issues are caught before the process returns to automatic control.

All units supplied by KNMKS undergo pre-shipment functional testing to verify Modulebus communication integrity, power consumption within specification, and LED status indication. This testing reduces the risk of receiving a non-functional unit and eliminates the need for bench testing on arrival, allowing direct installation during the maintenance window.

Retrofit Support FAQ

Q: Is the TB840A 3BSE037760R1 a direct replacement for the TB840 3BSE008516R1?
A: The TB840A is the updated revision of the TB840 and is backward compatible with the same baseplates and AC800M controller firmware versions. In most installations, the TB840A can replace the TB840 without any configuration changes beyond verifying the node address setting. Confirm the baseplate type (TB807 or TB840 baseplate) is present before installation.

Q: What commissioning steps are required after installing the replacement TB840A?
A: After physical installation, verify the DIP switch node address matches the original unit, power on the cluster, and confirm Modulebus link status in Control Builder M diagnostics. Check that all downstream I/O modules (AI810, DI810, AO810V2, etc.) are communicating correctly before releasing control loops to automatic. A full I/O scan and alarm review is recommended before returning the process to normal operation.

Q: Does KNMKS provide pre-shipment testing for the TB840A?
A: Yes. Every TB840A unit is functionally tested prior to shipment to verify Modulebus communication, power draw, and status LED operation. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: What is the typical lead time and stock availability for the TB840A 3BSE037760R1?
A: KNMKS maintains stock of the TB840A 3BSE037760R1 to support urgent spare part requirements. Standard orders ship within 1–3 business days. For large-quantity or multi-site procurement, contact our sales team to confirm availability and arrange consolidated shipment.
