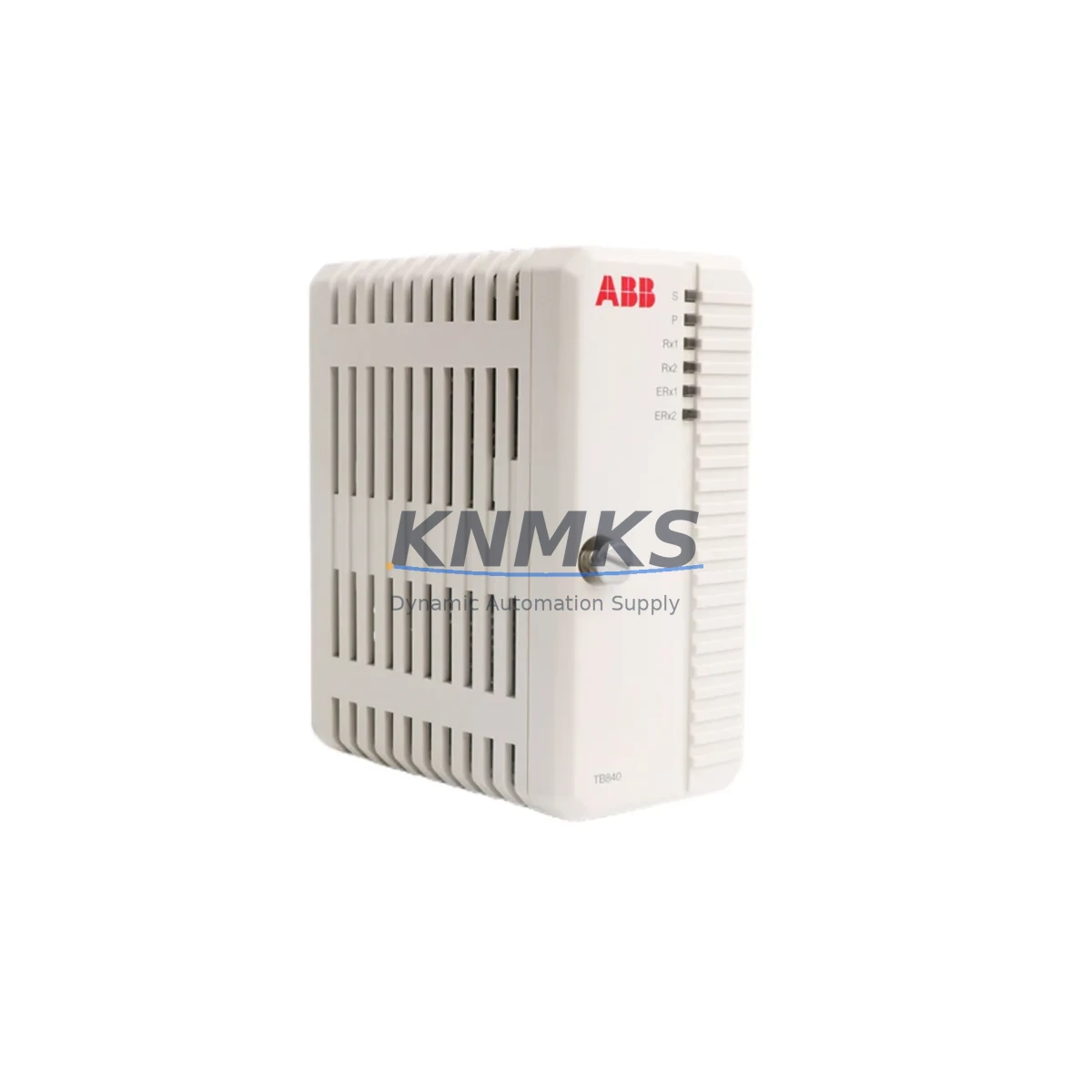

The ABB TB840 (3BSE021456R1) is a Redundancy Module designed for the AC800M Controller platform — ABB’s flagship DCS/PLC system widely deployed in power generation, oil & gas, chemical processing, pulp & paper, and heavy manufacturing. This module enables bumpless switchover between redundant controller pairs, ensuring continuous process operation even during a primary controller fault. For maintenance engineers managing critical production lines, having a verified original TB840 spare on the shelf is not optional — it is a fundamental requirement of any serious uptime strategy.

At KNMKS, every TB840 3BSE021456R1 unit is sourced from authorized supply chains, inspected upon receipt, and function-tested prior to shipment. Each unit ships with a support terms confirmed by quotation and full traceability documentation, giving procurement engineers the confidence they need when qualifying a spare parts supplier for long-term contracts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a TB840 3BSE021456R1 is flagged during a routine control cabinet inspection or after an unplanned switchover event, the replacement scope should never be limited to the module alone. A disciplined maintenance engineer will use this opportunity to audit the entire redundancy chain and associated power infrastructure.

Begin with the AC800M controller modules themselves — the PM864A or PM865 paired with the TB840 should be checked for firmware currency and hardware revision compatibility. A redundancy module mismatch between primary and standby controllers is a common root cause of failed switchovers that only surfaces under fault conditions. Next, inspect the SD821 or SD822 power supply modules that feed the controller rack; degraded capacitors in aging power supplies can cause voltage sag during switchover transients, masking the true fault source.

The TB807 or TB811 I/O terminal bases connected downstream of the controller should be verified for secure termination — loose field wiring on analog input channels is frequently disturbed during cabinet vibration events that also stress the redundancy module connectors. If the plant uses CI854 or CI857 PROFIBUS/PROFINET communication interface modules, confirm that the fieldbus master configuration correctly handles controller switchover without dropping device connections; some older GSD file configurations require a watchdog timeout adjustment after a TB840 replacement.

For plants running S800 I/O modules (such as the AI810, AO810, or DI810) on the AC800M backplane, verify that the I/O cluster addressing is intact after the redundancy module swap — address conflicts introduced during maintenance are a leading cause of post-replacement commissioning delays. Finally, review the TK212A or TK213A optical fiber cables used for the redundancy link; fiber connectors degrade over time in high-vibration or high-humidity environments and should be cleaned and inspected whenever the TB840 is removed from service.

Stocking a TB840 3BSE021456R1 alongside a matched set of PM864A/PM865 controller spares, SD821 power supply, and CI854 communication module gives your maintenance team a complete redundancy restoration kit — reducing mean time to repair (MTTR) from days to hours.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the standby controller is in hot-standby state and the redundancy link LED on the existing TB840 is showing a fault indication. Download the current controller application and configuration backup via ABB Control Builder M before any hardware change.

Step 2 — Safe isolation: The AC800M redundancy architecture allows the TB840 to be replaced without shutting down the primary controller. Initiate a manual switchover to confirm the standby controller assumes control cleanly, then isolate the primary controller rack for maintenance. Do not remove the TB840 while the primary controller is in the active state without a confirmed standby.

Step 3 — Module swap: Remove the faulty TB840 by releasing the front locking lever and sliding the module from the backplane slot. Insert the replacement TB840 3BSE021456R1, ensuring the backplane connector seats fully. The module does not require firmware flashing — it is configured automatically by the AC800M controller upon power-up.

Step 4 — Redundancy link verification: After insertion, observe the TB840 status LEDs. The redundancy link should establish within 60 seconds under normal conditions. Verify in Control Builder M that both controllers show “Redundant” status before returning the system to automatic switchover mode.

Step 5 — Documentation: Record the replacement in the plant maintenance management system (CMMS) with the new module serial number, installation date, and post-replacement test results. Update the spare parts inventory to trigger a reorder for the consumed TB840 unit.

This workflow is compatible with AC800M systems running firmware versions 5.x through 6.x and applies equally to greenfield replacements and legacy system life-extension projects where original ABB hardware must be maintained to preserve software certification and insurance compliance.

Spare Parts Support FAQ

Q1: Is the TB840 3BSE021456R1 compatible with all AC800M controller variants?
The TB840 is designed for use with the AC800M PM8xx controller family, including PM861, PM864, PM864A, PM865, and PM866 modules. Compatibility with specific firmware versions should be confirmed against the ABB AC800M Hardware Unit Manual. KNMKS technical support can assist with compatibility verification prior to order placement.

Q2: What testing is performed before shipment?
Every TB840 3BSE021456R1 unit undergoes visual inspection, connector integrity check, and functional power-on verification before dispatch. Units are packed in anti-static ESD bags with foam cushioning to prevent transit damage. A test report is available upon request for quality-critical procurement processes.

Q3: Can KNMKS support long-term or blanket purchase orders for TB840 spares?
Yes. KNMKS maintains stock of TB840 3BSE021456R1 and can support annual maintenance contracts, blanket POs, and scheduled delivery programs. Long-term supply agreements are available for plants requiring guaranteed spare availability across multi-year maintenance cycles. Contact [email protected] to discuss volume pricing and lead time commitments.

Q4: What is the support terms coverage and return policy?
All TB840 3BSE021456R1 units are covered by a support terms confirmed by quotation from the date of shipment. Support terms covers manufacturing defects and functional failures under normal operating conditions. DOA (Dead on Arrival) units are replaced or refunded within 5 business days of confirmed fault report. KNMKS does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental range.
