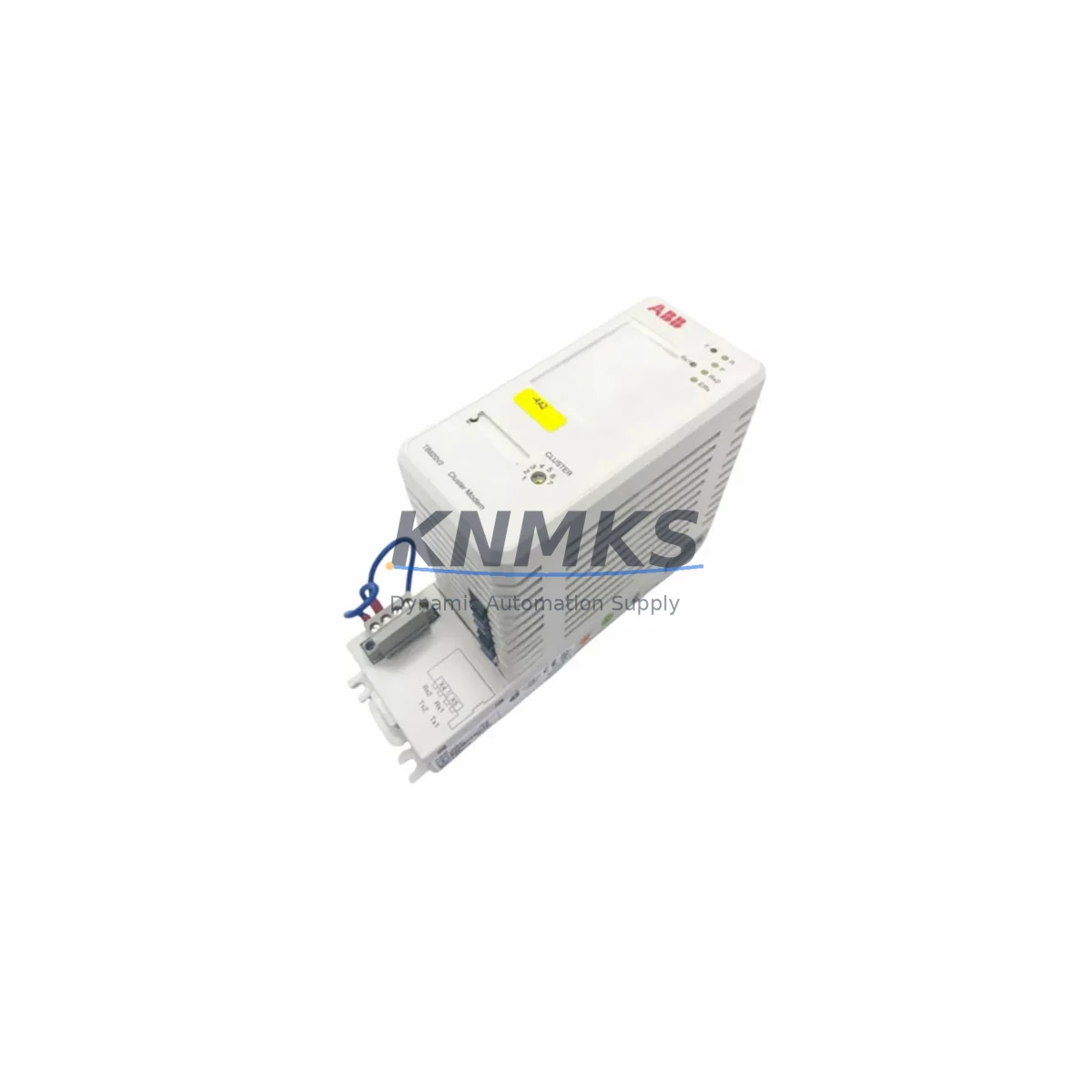

ABB TB820V2 3BSE013208R1 Migration-Ready Modulebus Modem

Overview

ABB TB820V2 3BSE013208R1 Migration-Ready Modulebus Modem for Legacy Control Systems

The ABB TB820V2 (part number 3BSE013208R1) is a Modulebus Cluster Modem designed for use within the ABB S800 I/O system, operating in conjunction with the AC800M process controller platform. As legacy ABB Advant and MOD 300 control architectures reach end-of-support milestones, the TB820V2 has become a critical migration component for engineering teams executing phased upgrades of distributed control systems in power generation, pulp and paper, oil and gas, and chemical processing facilities.

This unit enables the Modulebus communication link between the AC800M controller and remote S800 I/O clusters, supporting up to 12 S800 I/O modules per cluster. It is a direct replacement for the earlier TB820 (3BSE013208R1 predecessor variants) and is fully backward-compatible with existing S800 I/O station wiring, terminal block layouts, and module addressing schemes. Engineering teams migrating from older ABB Master controllers or Advant OCS platforms will find the TB820V2 a reliable bridge component that preserves existing field wiring investments while enabling the transition to the AC800M control architecture.

Each unit supplied by KNMKS is pre-tested prior to shipment, covered by a support terms confirmed by quotation, and dispatched from multi-region stock to support both emergency replacement scenarios and planned outage windows. In-stock availability is confirmed at time of order.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TB820V2 retrofit begins well before the maintenance window opens. Engineering teams should start by auditing the existing S800 I/O station configuration in ABB Control Builder M, documenting the cluster address assigned to each TB820 unit, the number and type of I/O modules installed on each backplane, and the current firmware version running on the AC800M CPU module — typically a PM856 or PM864 in mid-generation installations.

The Modulebus link from the AC800M to the S800 cluster is established through a CI857 Modulebus Interface or CI858 Modulebus Interface module seated in the AC800M controller rack. Before replacing the TB820V2, confirm that the CI857 or CI858 interface is functioning correctly and that the Modulebus cable — a shielded twisted-pair running between the interface and the TB820V2 — shows no continuity faults. A faulty cable is a common root cause of cluster communication loss that is sometimes misdiagnosed as a failed TB820V2.

On the I/O side, the S800 station backplane — typically a TB807 or TB810 for smaller clusters, or a TB811 for larger configurations — must be inspected for corrosion on the module connector pins. I/O modules such as the AI810 analog input, DI810 digital input, DO810 digital output, and AO810 analog output should be reseated and their address switches verified against the Control Builder M hardware configuration before the TB820V2 is swapped. This prevents address conflicts that can cause the new modem to fail its initialization sequence.

Power supply capacity is another critical checkpoint. The S800 station draws 24 VDC from a dedicated SD821, SD822, or SD823 power supply module. When a cluster has been expanded over time with additional I/O modules, the original power supply may be operating near its rated output. Calculate the total current draw of all installed I/O modules and confirm that the power supply has at least 20% headroom before installing the replacement TB820V2.

For sites migrating from older ABB Advant OCS or Master controllers to the AC800M platform, the TB820V2 is often introduced as part of a phased migration where the new AC800M controller is installed in parallel with the legacy system. In this scenario, the TB820V2 and its associated S800 I/O cluster are commissioned on the new AC800M while the legacy controller continues to manage other process areas, allowing a controlled cutover with minimal production impact.

Downtime Control During System Migration

Minimizing downtime during a TB820V2 replacement requires a structured approach that protects the existing program logic, preserves field control continuity, and reduces the risk of commissioning errors under time pressure.

Before the maintenance window, export a full backup of the AC800M application from Control Builder M, including all hardware configuration files, function block diagrams, and I/O signal lists. This backup is the recovery baseline if the replacement unit does not initialize correctly. Confirm that the backup can be successfully loaded into a test environment before the outage begins.

During the swap, power down only the affected S800 I/O station — not the entire AC800M controller rack — to preserve control of other process areas. Remove the failed or end-of-life TB820V2 from the leftmost slot of the S800 station, insert the replacement unit, and restore station power. The AC800M should detect the new TB820V2 within 30 seconds and re-establish the Modulebus link automatically if the cluster address DIP switches are set correctly.

After the link is restored, verify all I/O module status LEDs on the S800 station, confirm that all process signals are reading correctly in the AC800M operator interface or connected HMI, and check the Control Builder M diagnostic view for any hardware fault messages. If the site uses an ABB System 800xA DCS, confirm that the 800xA connectivity server has re-established communication with the affected I/O cluster before releasing the process area back to automatic control.

For planned outages, KNMKS recommends ordering the replacement TB820V2 at least two weeks in advance to allow time for pre-installation inspection, DIP switch pre-configuration, and a bench test against a spare AC800M or test rack if available. This preparation reduces the active swap time to under 30 minutes in most installations.

Retrofit Support FAQ

Q1: Is the TB820V2 (3BSE013208R1) a direct drop-in replacement for the original TB820?
Yes. The TB820V2 is the current production revision of the TB820 Modulebus Cluster Modem and is mechanically and electrically compatible with all S800 I/O station backplanes. No wiring changes are required. Verify that the cluster address DIP switches on the replacement unit are set to match the original unit before installation.

Q2: What AC800M firmware version is required for the TB820V2?
The TB820V2 is compatible with AC800M firmware versions 5.x and 6.x. For installations running firmware below 5.1, an upgrade is recommended before replacing the TB820V2 to ensure full diagnostic and redundancy features are available. Firmware upgrade procedures are documented in ABB Technical Note TN2006-001.

Q3: Does KNMKS perform pre-shipment testing on the TB820V2?
Yes. Every TB820V2 unit supplied by KNMKS undergoes a functional test prior to shipment, verifying Modulebus communication initialization, power-up self-test completion, and LED status indication. A test report is available on request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q4: What is the lead time and stock availability for the TB820V2 (3BSE013208R1)?
KNMKS maintains multi-region stock of the TB820V2 to support both emergency replacement and scheduled outage requirements. In-stock units are typically dispatched within 24–48 hours of order confirmation. For large-quantity orders or long-term supply agreements, contact the KNMKS sales team to discuss stocking arrangements and volume pricing.
