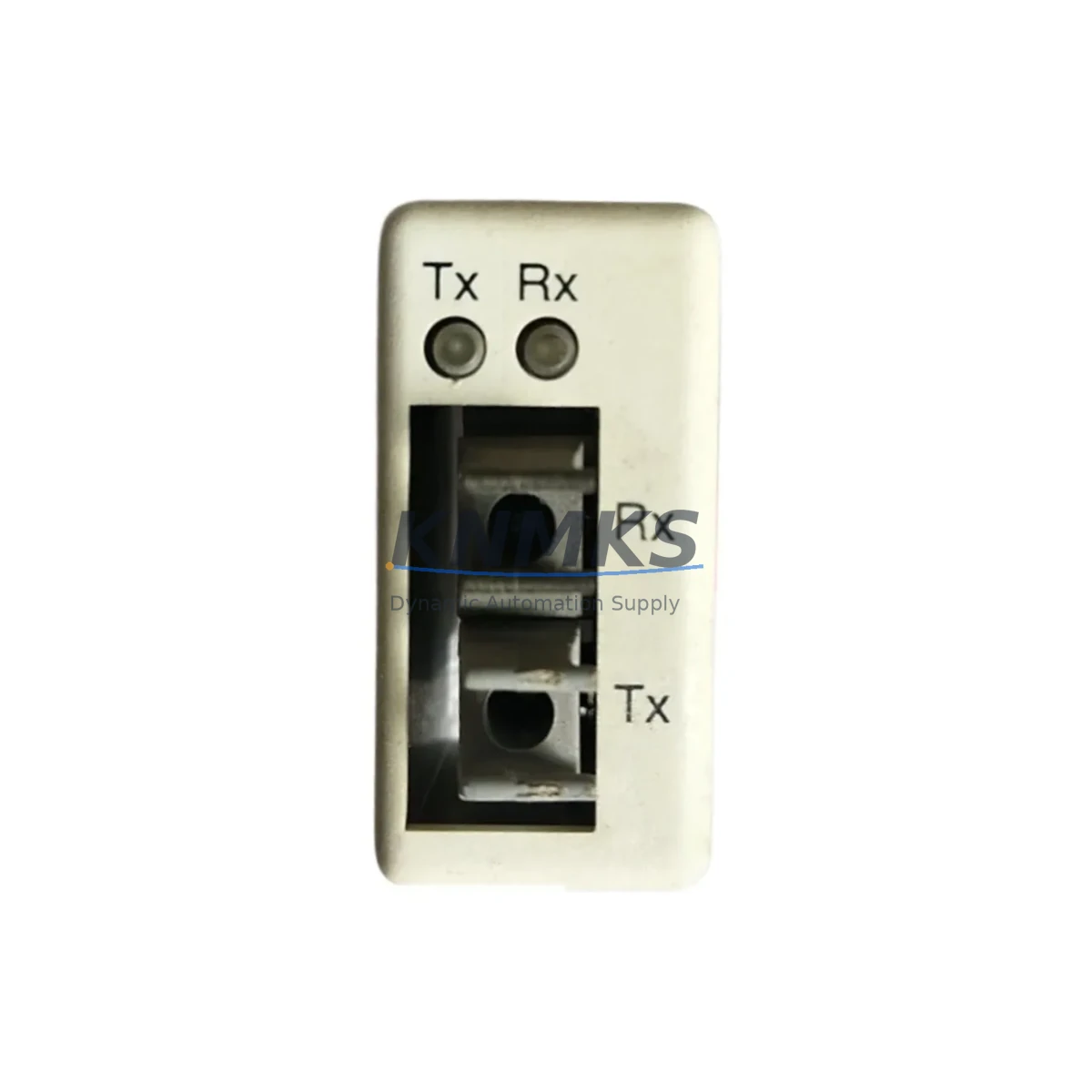

ABB TB810 3BSE008560R1 Migration-Ready Modulebus Optical Port

Overview

ABB TB810 3BSE008560R1 Migration-Ready Modulebus Optical Port for Legacy Control Systems

The ABB TB810 (3BSE008560R1) is a Modulebus Optical Port Interface module designed for the AC800M controller platform. As industrial facilities worldwide accelerate the retirement of aging DCS and PLC infrastructure, the TB810 has become a critical component in legacy system migration projects — bridging older Modulebus-based I/O architectures with modern AC800M controller backplanes. Whether you are replacing a failed unit in an operating plant, upgrading a control cabinet from an obsolete S800 I/O configuration, or extending the service life of an existing AC800M system, the TB810 3BSE008560R1 provides a verified, drop-in compatible solution with full protocol support and no firmware re-flashing required in most standard configurations.

In retrofit and upgrade scenarios, the TB810 is typically installed alongside companion modules such as the TB811 3BSE008560R1 (redundant Modulebus port) and the CI854A 3BSE030220R1 PROFIBUS DP Communication Interface, which together form the communication backbone of a modernized AC800M control node. Engineers replacing legacy PM864A 3BSC050197R1 processor modules or decommissioning older PM810V2 controllers will find the TB810 essential for re-establishing Modulebus optical links to existing S800 I/O clusters without rewiring field termination assemblies. The module slots directly into the AC800M controller rack and is compatible with standard TP830 3BSE018105R1 power supply modules, ensuring that power budget calculations for the upgraded cabinet remain straightforward.

For projects involving communication protocol migration — particularly transitions from legacy serial or proprietary fieldbus topologies to PROFIBUS DP or Ethernet-based architectures — the TB810 serves as the optical physical layer that maintains Modulebus integrity while upstream communication modules handle protocol conversion. This is especially relevant when integrating with CI873AK 3BSE016237R1 PROFINET IO interface modules or when the control system is being extended with additional AI810 3BSE008516R1 analog input modules to accommodate new measurement points in an expanded process area.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TB810 retrofit begins well before the module arrives on site. The first step is a thorough audit of the existing AC800M node configuration: document the current slot assignments, verify the Modulebus segment topology (number of S800 I/O stations, fiber run lengths, and optical power budget), and confirm that the replacement TB810 3BSE008560R1 matches the hardware revision expected by the installed Control Builder M project. In many legacy installations, the TB810 is paired with a TB811 3BSE008560R1 for redundant Modulebus operation — if only one port has failed, the redundant unit may still be active, allowing a planned replacement without process interruption.

Terminal wiring on the S800 I/O side — including AI810 3BSE008516R1 analog input modules and DO810 3BSE008510R1 digital output modules — does not require modification during a TB810 swap, as the Modulebus optical interface is entirely internal to the controller rack. However, engineers should inspect the plastic optical fiber connectors at both the TB810 and the first S800 I/O station for contamination or mechanical damage, as degraded fiber connections are a common root cause of Modulebus communication faults that are incorrectly attributed to module failure.

For control cabinets undergoing broader modernization — such as replacing an aging PM864A 3BSC050197R1 processor with a current-generation controller — the TB810 retrofit is typically performed in conjunction with a power supply audit of the TP830 3BSE018105R1 rack PSU. Adding new I/O modules or communication interfaces (such as a CI854A 3BSE030220R1 PROFIBUS DP module for integration with third-party field devices) increases the rack’s total power draw, and the existing PSU must be verified to have sufficient headroom before commissioning the upgraded configuration.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live plant retrofit. For TB810 replacements in AC800M systems, the recommended approach is to pre-stage the replacement module, verify its hardware revision against the project documentation, and prepare a rollback plan before initiating the swap. Where the system supports hot-insertion (dependent on controller firmware version and site safety procedures), the TB810 can be replaced without a full controller shutdown, preserving the execution of the application program and maintaining HMI display continuity on connected PP865A 3BSE042560R1 operator panels.

Before removing the failed TB810, export a backup of the current Control Builder M project, including all hardware configuration files and I/O module address assignments. This ensures that if the replacement module requires any address or configuration adjustment, the original logic can be restored without manual re-entry. After installing the new TB810 3BSE008560R1, verify Modulebus communication status in the Control Builder M online view before returning the process loop to automatic control. Document the fiber optical power readings at commissioning as a baseline for future predictive maintenance.

For larger migration projects involving multiple controller nodes, a phased approach — replacing one TB810 per maintenance window — reduces cumulative risk and allows the engineering team to validate each node’s communication integrity before proceeding to the next. This strategy also allows spare TB810 units to be pre-tested in a workshop environment, reducing on-site commissioning time and the risk of introducing a second fault during the replacement procedure. All units supplied by KNMKS are functionally tested prior to shipment and covered by a support terms confirmed by quotation from the date of delivery.

Retrofit Support FAQ

Q1: Is the TB810 3BSE008560R1 a direct replacement for an existing TB810 in my AC800M system?
Yes. The TB810 3BSE008560R1 is the standard part number for the AC800M Modulebus Optical Port and is a direct hardware replacement for any TB810 unit installed in a compatible AC800M controller rack. No changes to the Control Builder M hardware configuration are required in standard replacement scenarios, provided the firmware version of the controller is compatible.

Q2: Do I need to reconfigure I/O module addresses after replacing the TB810?
In most cases, no. The Modulebus I/O module addresses (S800 station addresses) are set on the I/O modules themselves and are not stored in the TB810. After installing the replacement TB810 3BSE008560R1, the controller will re-establish communication with the existing S800 I/O cluster using the previously configured addresses. Verify communication status in Control Builder M online view after installation.

Q3: What pre-shipment testing is performed on TB810 units supplied by KNMKS?
All TB810 3BSE008560R1 modules supplied by KNMKS undergo functional verification testing prior to shipment, including Modulebus optical port integrity checks. Units are supplied with a support terms confirmed by quotation from the date of shipment. Expedited delivery options are available for urgent plant maintenance requirements — contact [email protected] or call +86 18359268345 for availability and lead time confirmation.

Q4: Can the TB810 be used in a redundant Modulebus configuration?
Yes. The AC800M platform supports redundant Modulebus operation using two TB810 (or TB810 + TB811) modules installed in the controller rack. In a redundant configuration, if the primary Modulebus optical link fails, the system automatically switches to the secondary link without interrupting process control. KNMKS maintains stock of both TB810 3BSE008560R1 and TB811 3BSE008560R1 to support redundant configuration upgrades and replacements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

TB810 3BSE008560R1
AC800M Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB TB810 3BSE008560R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
