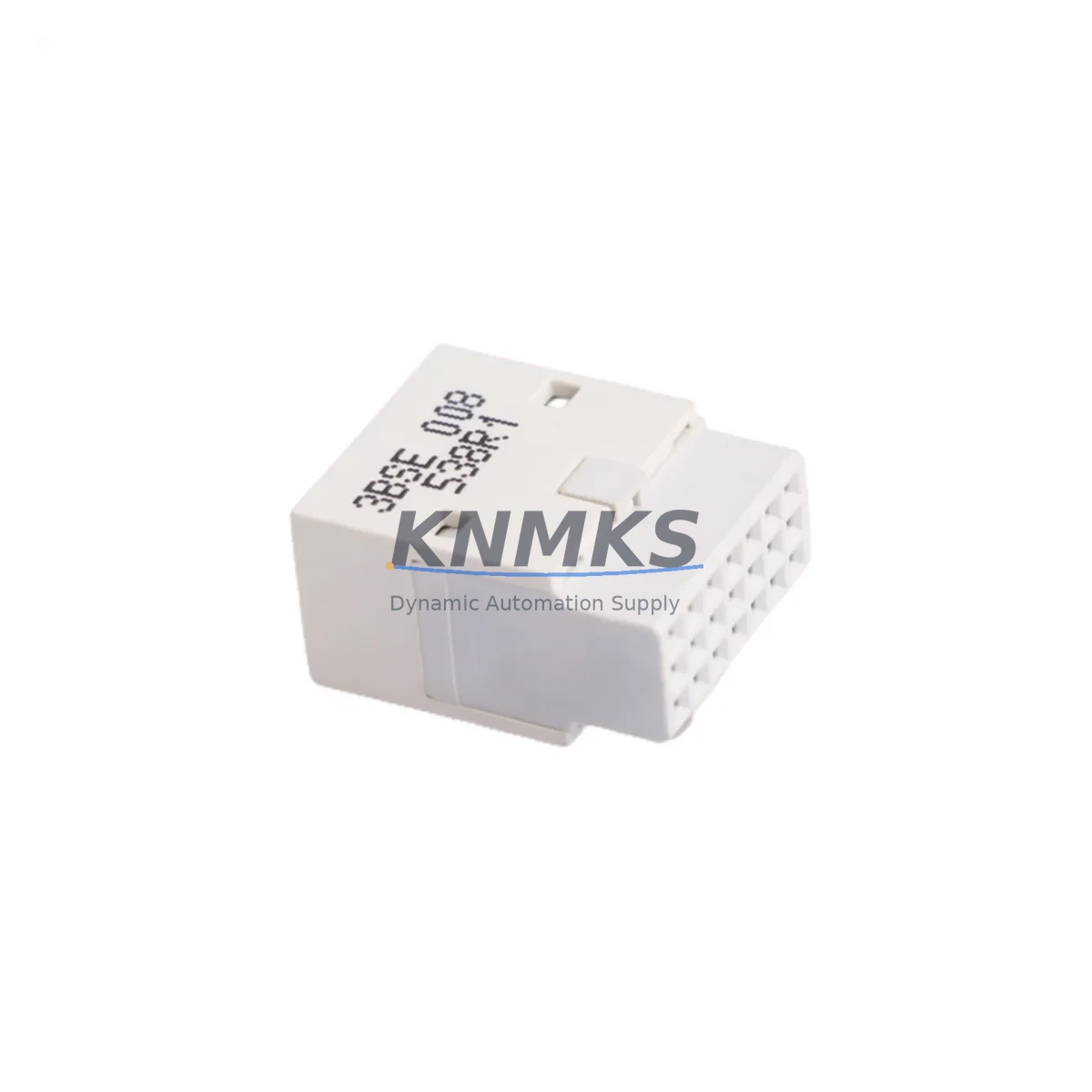

ABB TB807 3BSE008538R1 Migration-Ready Modulebus Terminator

Overview

ABB TB807 3BSE008538R1 Migration-Ready Modulebus Terminator: Legacy System Migration and Compatible Upgrade

The ABB TB807 (3BSE008538R1) is a Modulebus Terminator designed for use within the ABB AC800M Distributed Control System platform. As industrial facilities continue to modernize aging control infrastructure, the TB807 plays a critical role in maintaining signal integrity across the Modulebus backplane during both active operation and system migration. Whether you are replacing a failed terminator in a running plant, upgrading a legacy S800 I/O rack, or rebuilding a control cabinet after a partial system failure, the TB807 provides a verified drop-in solution that minimizes engineering risk and reduces unplanned downtime.

This module terminates the Modulebus communication line at the end of an S800 I/O station, preventing signal reflection that would otherwise corrupt data transmission between the PM861A or PM864A processor module and connected I/O modules such as the AI810 analog input module or DO810 digital output module. Correct termination is mandatory for stable Modulebus operation, and an absent or defective TB807 will typically manifest as intermittent communication faults, I/O module dropouts, or controller diagnostic alarms — symptoms that are often misdiagnosed as processor or fieldbus failures during initial troubleshooting.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit or partial upgrade of an AC800M-based control system, the TB807 is rarely replaced in isolation. A thorough migration assessment should account for the full station architecture. Engineers typically begin by auditing the TP830 termination panel and TB820V2 Modulebus Modem to confirm that all inter-station communication links remain intact after the terminator swap. In multi-rack configurations, each S800 I/O station requires its own TB807 at the terminal position — a detail that is frequently overlooked when spare parts are ordered reactively rather than proactively.

Power supply capacity is another critical checkpoint. The SD821 or SD822 power supply modules feeding the I/O rack must be verified against the total current draw of all installed modules, including any newly added AI835A HART analog input modules or DI810 digital input modules that may have been added as part of the broader upgrade scope. Insufficient power headroom is a common cause of intermittent faults that appear after a terminator replacement but are incorrectly attributed to the new component.

Terminal wiring should be documented before any module is removed. Field wiring connected to TB825 or TB840A termination boards must be photographed and labeled, as incorrect reconnection after a rack rebuild is a leading cause of extended commissioning time. Where the original wiring documentation is incomplete or unavailable, a point-by-point continuity check against the original I/O list is recommended before powering the station.

For systems migrating from older ABB Master series controllers to the AC800M platform, the TB807 is part of a broader hardware transition that also involves replacing legacy communication interfaces with CI854A PROFIBUS DP modules and updating HMI graphics in ABB 800xA to reflect the new I/O addressing scheme. Firmware compatibility between the PM8xx processor and the installed I/O module revisions should be confirmed in the ABB Product Compatibility Matrix before the migration window is opened.

Downtime Control During System Migration

Replacing the TB807 in a live production environment requires careful sequencing to protect program logic and maintain field control continuity. The recommended approach is to place the affected I/O station in manual fallback mode via the AC800M controller’s redundancy management before physically removing the terminator. This prevents the controller from generating unhandled I/O faults that could propagate to interlock logic or safety functions.

Where hot-swap capability is not available — typically in non-redundant single-controller configurations — the replacement window should be coordinated with the operations team to align with a scheduled process hold or low-throughput period. Pre-staging the replacement TB807, verifying its revision marking against the installed unit, and confirming that the Modulebus station address has not been altered by a previous technician are all steps that should be completed before the maintenance window begins.

After installation, the Control Builder M online diagnostic view should be used to confirm that the I/O station has re-established Modulebus communication and that all module status indicators return to normal. A full I/O force test on critical analog and digital channels is recommended before returning the station to automatic control. Total replacement time for an experienced technician, including pre-checks and post-commissioning verification, is typically under 30 minutes when the replacement unit is pre-tested and documentation is current.

All units supplied by KNMKS are tested for communication integrity and physical connector condition prior to dispatch. Each TB807 3BSE008538R1 is shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Retrofit Support FAQ

Q: Is the TB807 3BSE008538R1 a direct replacement for all earlier TB807 revisions?
A: Yes. The 3BSE008538R1 revision is backward compatible with all earlier TB807 hardware revisions used in AC800M S800 I/O stations. No firmware update or parameter change is required after installation.

Q: Do I need to reconfigure the Modulebus station address after replacing the TB807?
A: No. The TB807 is a passive terminator and does not hold any address configuration. Station addressing is managed by the Modulebus Modem (TB820V2) and the controller configuration in Control Builder M. However, it is good practice to verify the station count and address map in the online diagnostic view after replacement to confirm no configuration drift has occurred.

Q: What pre-shipment testing is performed on the TB807 units?
A: Each unit undergoes physical inspection, connector integrity verification, and functional communication testing before dispatch. Units that do not pass testing are not shipped. A support terms confirmed by quotation is provided on all units from the date of invoice.

Q: How quickly can the TB807 3BSE008538R1 be shipped, and is stock available?
A: KNMKS maintains ready stock of the TB807 3BSE008538R1 to support urgent replacement and planned retrofit projects. Standard lead time is 3–7 business days for international shipments. Contact [email protected] or call +86 18359268345 to confirm current availability and arrange expedited dispatch if required.
