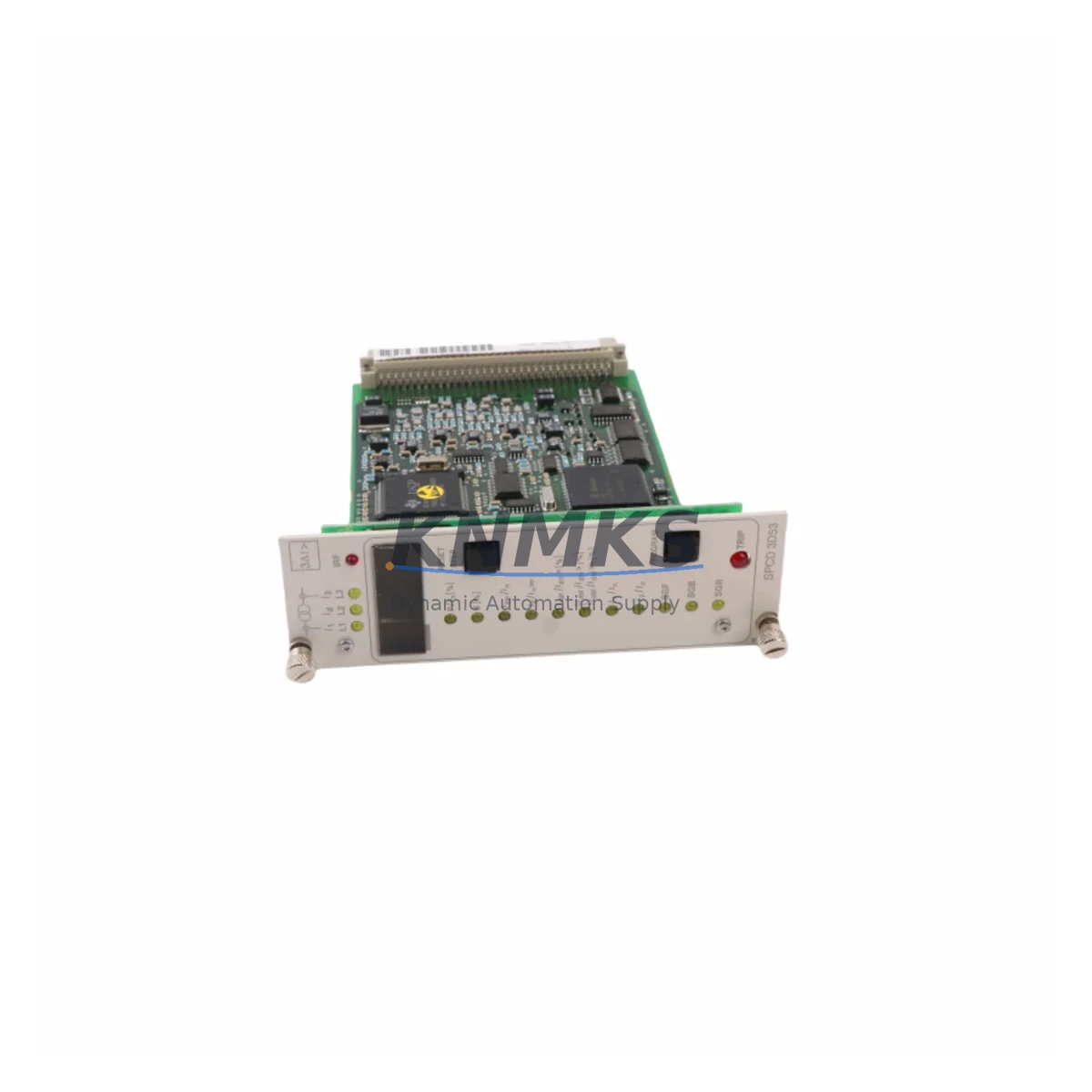

ABB SPCD-3D53-AB Maintenance-Proven Spare Part for Factory Uptime

The ABB SPCD-3D53-AB is a critical circuit board module within the AC800M Distributed Control System (DCS) platform — one of ABB’s most widely deployed process automation architectures across oil & gas, power generation, pulp & paper, and chemical processing facilities. When this board fails or degrades, the impact on production continuity is immediate. Sourcing a pre-tested, original-specification replacement is the fastest path to restoring control loop integrity and minimizing unplanned downtime.

At KNMKS, the SPCD-3D53-AB is stocked as a maintenance-ready spare, pre-shipment tested, and backed by a support terms confirmed by quotation. Our inventory supports both emergency same-day dispatch and scheduled annual maintenance procurement cycles. Whether you are managing a single-site outage or building a multi-site spare parts buffer, this module ships with full documentation and traceability.

Maintenance engineers working on AC800M cabinets will recognize the SPCD-3D53-AB as a board-level component that interfaces with the controller backplane and signal routing infrastructure. During fault isolation, it is essential to verify not only the board itself but the surrounding electrical environment — including the PM891 or PM865 processor module, the TB807 or TB811 I/O termination units, and the SD821 or SD822 power supply modules that feed the controller rack. A board failure is frequently preceded or accompanied by power rail instability or backplane connector degradation, and replacing the SPCD-3D53-AB without inspecting these adjacent components risks repeat failures within the same maintenance window.

For procurement engineers, the SPCD-3D53-AB represents a long-tail spare — a part that is no longer in active production from ABB but remains essential to the operational life of installed AC800M systems. KNMKS maintains multi-region stock specifically to address this supply gap, offering long-term supply agreements and priority allocation for customers managing large installed bases of AC800M controllers.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for AC800M-based control systems requires a systems-level view of the cabinet. When scheduling replacement of the SPCD-3D53-AB, maintenance teams should simultaneously inspect and, where appropriate, stock spares for the following components that operate within the same electrical and signal environment:

• PM891 / PM865 Processor Modules: The primary controller CPU that the SPCD-3D53-AB supports. Processor module health directly affects board-level stability. Inspect firmware version compatibility and backplane seating before and after board replacement.
• SD821 / SD822 Power Supply Modules: Rack power supply units feeding the AC800M controller. Voltage rail instability is a leading cause of circuit board degradation. Verify output voltage and ripple during the maintenance window.
• TB807 / TB811 I/O Termination Units: Field termination assemblies connected to the I/O modules in the same cabinet. Inspect for loose wiring, corrosion, and terminal torque compliance during any board-level replacement.
• CI857 / CI858 Communication Interface Modules: PROFIBUS or FOUNDATION Fieldbus communication modules that may share backplane slots with the SPCD-3D53-AB. Verify communication integrity after board replacement to confirm no address conflicts or bus errors.
• Backplane Connectors and Rack Chassis: Physical connector wear on the AC800M backplane is a common root cause of intermittent board faults. Inspect connector pins for oxidation and mechanical damage during the replacement procedure.
• Cabinet Fusing and Protection: Verify fuse ratings and condition on the 24 VDC distribution rail serving the controller rack. Blown or degraded fuses can cause partial power loss that mimics board-level failure.

Building a structured spare parts kit around the SPCD-3D53-AB — including at least one processor module spare, one power supply spare, and a set of termination unit spares — is the recommended approach for facilities operating AC800M systems beyond their original design life. KNMKS can support kit-based procurement with consolidated shipping and unified support terms coverage.

Site Replacement Workflow

Replacing the SPCD-3D53-AB on an active AC800M system requires a structured approach to minimize control loop disruption and ensure a clean return to service:

1. Pre-Replacement Verification: Confirm the fault is isolated to the SPCD-3D53-AB using AC800M diagnostic tools and event logs. Document the current system configuration, I/O mapping, and any active alarms before proceeding.
2. Safe Isolation: Follow site-specific lockout/tagout (LOTO) procedures. For hot-swap capable configurations, verify whether the AC800M rack supports live board replacement without full controller shutdown — this varies by firmware version and rack configuration.
3. Physical Replacement: Remove the faulty board using ESD-safe handling procedures. Seat the SPCD-3D53-AB replacement firmly into the backplane connector. Verify mechanical locking tabs are fully engaged.
4. Post-Installation Checks: Power up the rack and monitor the AC800M diagnostic LEDs for normal startup sequence. Verify all I/O channels return to expected states and confirm communication with the engineering workstation (typically via Control Builder M).
5. Functional Test: Run a loop check on all I/O channels associated with the replaced board. Confirm no new alarms are generated and that process values are within expected ranges before returning the system to automatic control.
6. Documentation: Record the replacement in the site maintenance log, including the new board serial number, date of installation, and post-replacement test results. Retain the faulty board for root cause analysis if required.

This workflow applies equally to scheduled annual maintenance replacements and emergency fault recovery scenarios. KNMKS provides technical support documentation with each shipment to assist site engineers unfamiliar with AC800M board-level replacement procedures.

Spare Parts Support FAQ

Q1: Is the SPCD-3D53-AB a direct drop-in replacement for the original ABB board in my AC800M system?
Yes. The SPCD-3D53-AB supplied by KNMKS is an original-specification spare that matches the form, fit, and function of the factory-installed board. No firmware modification or hardware adaptation is required for standard AC800M rack configurations. Compatibility should be confirmed against your specific rack revision and firmware version prior to installation.

Q2: What pre-shipment testing is performed on the SPCD-3D53-AB before dispatch?
Every SPCD-3D53-AB unit undergoes functional testing prior to shipment. This includes power-on verification, signal integrity checks, and visual inspection for physical defects. A test report is available upon request. The support terms confirmed by quotation cover functional failure under normal operating conditions from the date of shipment.

Q3: Can KNMKS support long-term supply of the SPCD-3D53-AB for multi-site maintenance programs?
Yes. KNMKS maintains multi-region inventory of the SPCD-3D53-AB and offers long-term supply agreements for customers managing large AC800M installed bases. Priority stock allocation, consolidated annual shipments, and kit-based procurement (bundling related spares) are all available. Contact [email protected] to discuss volume and scheduling requirements.

Q4: What should I do if the SPCD-3D53-AB replacement does not resolve the fault in my AC800M system?
If replacing the SPCD-3D53-AB does not restore normal operation, the fault is likely in an adjacent component — most commonly the backplane connector, the power supply module (SD821/SD822), or the processor module (PM891/PM865). KNMKS technical support can assist with fault isolation guidance. If the replacement board itself is suspected to be faulty, our support terms confirmed by quotation cover return and replacement at no additional cost.
