ABB SNAT634PAC Migration-Ready Pulse Amplifier for Legacy Control Systems

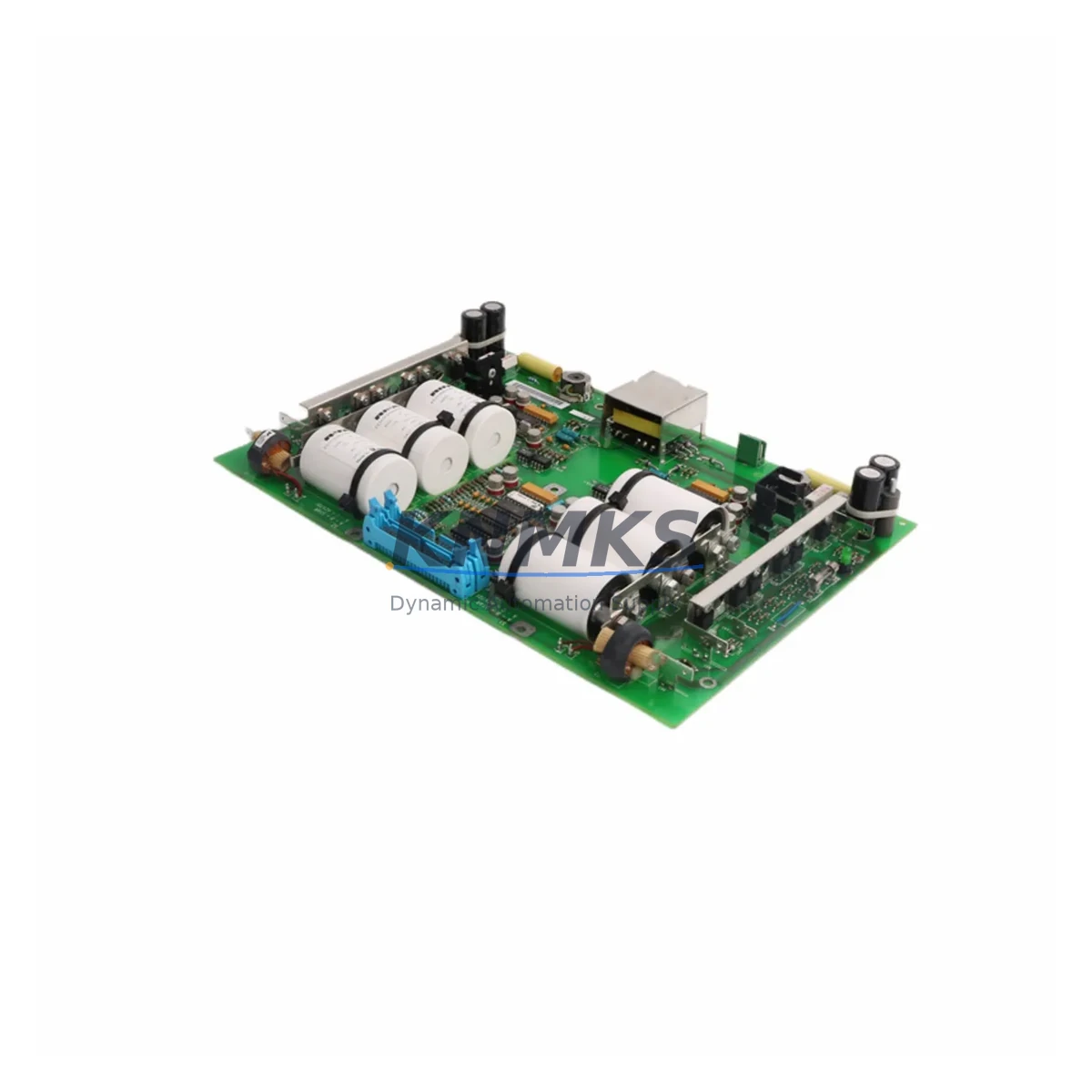

The ABB SNAT634PAC is a retrofit-ready pulse amplifier board engineered for direct replacement of discontinued SNAT-series pulse amplifier modules in legacy DC drive and industrial control systems. Originally deployed across a wide range of ABB DCS 400, DCS 500, and DCS 600 DC drive platforms, the SNAT634PAC remains a critical component for facilities operating aging automation infrastructure where full drive replacement is cost-prohibitive or operationally disruptive.

When planning a like-for-like replacement or a phased control system upgrade, engineers must verify several key parameters before commissioning the SNAT634PAC: encoder pulse input voltage compatibility (typically 5 V or 15 V differential), terminal block pinout alignment with the existing SNAT 634 PAC wiring harness, backplane slot assignment within the drive chassis, module address configuration via DIP switch or parameter settings in the drive’s control software, and firmware version compatibility with the host SDCS-CON-2 or SDCS-CON-4 control board. Failure to confirm these parameters before installation can result in encoder feedback faults, speed loop instability, or drive trip events during commissioning.

For sites running PROFIBUS DP communication between the drive and the plant DCS or PLC, the SNAT634PAC must be installed alongside a verified NPBA-12 PROFIBUS adapter or equivalent fieldbus interface module. Communication link integrity should be confirmed using the drive’s diagnostic tools before resuming production. Where DDCS fiber-optic links are used for master-follower drive configurations, the optical transceiver alignment and channel assignment must be re-validated after board swap to prevent synchronization errors across multi-drive systems.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SNAT634PAC retrofit begins with a thorough audit of the existing drive cabinet. Technicians should document the current SDCS-CON-2 or SDCS-CON-4 control board firmware version, as certain pulse amplifier functions are firmware-dependent and may require a parameter upload/download cycle using DriveWindow or DriveStudio software before and after the board replacement. The SDCS-PIN-51 I/O extension board, if installed in the same chassis, should be inspected for terminal integrity and signal isolation, as degraded I/O boards are a common secondary failure point in aging DCS 500 systems.

Power supply capacity within the control cabinet must be confirmed before installation. The SNAT634PAC draws its logic supply from the drive’s internal SDCS-POW-4 power supply board; if the existing power board is operating near its rated output, adding or replacing pulse amplifier boards may trigger undervoltage faults. In multi-drive panels where several DCS 600 units share a common 24 VDC bus, the aggregate current draw must be recalculated to ensure margin.

For systems where the original encoder cable has been in service for more than a decade, it is advisable to replace the encoder cable and verify signal integrity with an oscilloscope before commissioning the new SNAT634PAC. Degraded shielding or connector corrosion can introduce noise into the pulse train, causing erratic speed feedback and nuisance trips even with a new board installed. Where the motor encoder itself is suspect, a RTAC-01 resolver-to-encoder interface or equivalent signal conditioning module may be required to bridge legacy resolver feedback to the SNAT634PAC’s TTL input.

HMI screens linked to drive speed feedback, torque reference, and fault status should be reviewed after the retrofit. In systems using ABB Panel Builder or third-party SCADA platforms communicating over PROFIBUS, the drive’s GSD file and node address must remain consistent with the pre-retrofit configuration to avoid HMI communication loss. Where the control system includes a NPBA-12 PROFIBUS adapter or a NMBP-01 Modbus adapter, these fieldbus modules should be power-cycled and re-initialized after the SNAT634PAC is seated and the drive is restarted.

Downtime Control During System Migration

Minimizing production downtime during a SNAT634PAC replacement requires advance preparation. Before the maintenance window opens, the existing drive parameters should be uploaded and saved using DriveWindow or an equivalent parameter backup tool. This ensures that if the replacement board requires re-parameterization, the original speed loop tuning, current limits, acceleration ramps, and I/O assignments can be restored in minutes rather than hours.

The physical board swap itself is typically completed within 30 to 60 minutes for a trained technician familiar with the DCS 500 or DCS 600 chassis layout. The SNAT634PAC is a plug-in module; no soldering or field wiring modification is required if the original terminal harness is intact. After seating the board, the drive should be powered up in a no-load condition first, with encoder feedback verified at low speed before resuming full production load. This staged commissioning approach protects the motor, the driven machine, and the control system from unexpected behavior caused by any residual parameter mismatch.

Where the production process cannot tolerate even a brief interruption, a hot-standby strategy using a pre-configured spare DCS 500 or DCS 600 drive with the SNAT634PAC already installed and parameterized can reduce switchover time to under 15 minutes. This approach is particularly effective in continuous process industries such as paper, metals, and chemical manufacturing where drive faults carry significant production cost penalties.

Retrofit Support FAQ

Q: Is the SNAT634PAC a direct drop-in replacement for the original SNAT 634 PAC?
A: Yes. The SNAT634PAC is pin-compatible and mechanically interchangeable with the original SNAT 634 PAC module. The existing terminal harness and backplane connector can be reused without modification. A parameter verification step is recommended after installation to confirm encoder feedback scaling and speed loop response.

Q: What pre-shipment testing is performed on the SNAT634PAC?
A: Each unit undergoes full functional testing prior to dispatch, including encoder signal path verification, power supply rail checks, and backplane interface validation. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: Can the SNAT634PAC be used in a DCS 400 drive as well as DCS 500 and DCS 600 systems?
A: Compatibility depends on the specific drive variant and chassis generation. Please provide your drive type code and SDCS-CON board revision when enquiring, and our technical team will confirm suitability before order confirmation.

Q: What is the typical lead time and do you hold stock?
A: We maintain inventory of the SNAT634PAC to support urgent replacement requirements. Standard orders are dispatched within 1–3 business days. For large-quantity or project-based requirements, please contact our sales team to discuss availability and scheduling.
