ABB SDCS-POW-1C Migration-Ready Power Supply for Legacy DC Drives

Overview

ABB SDCS-POW-1C Migration-Ready Power Supply for Legacy DC Drives

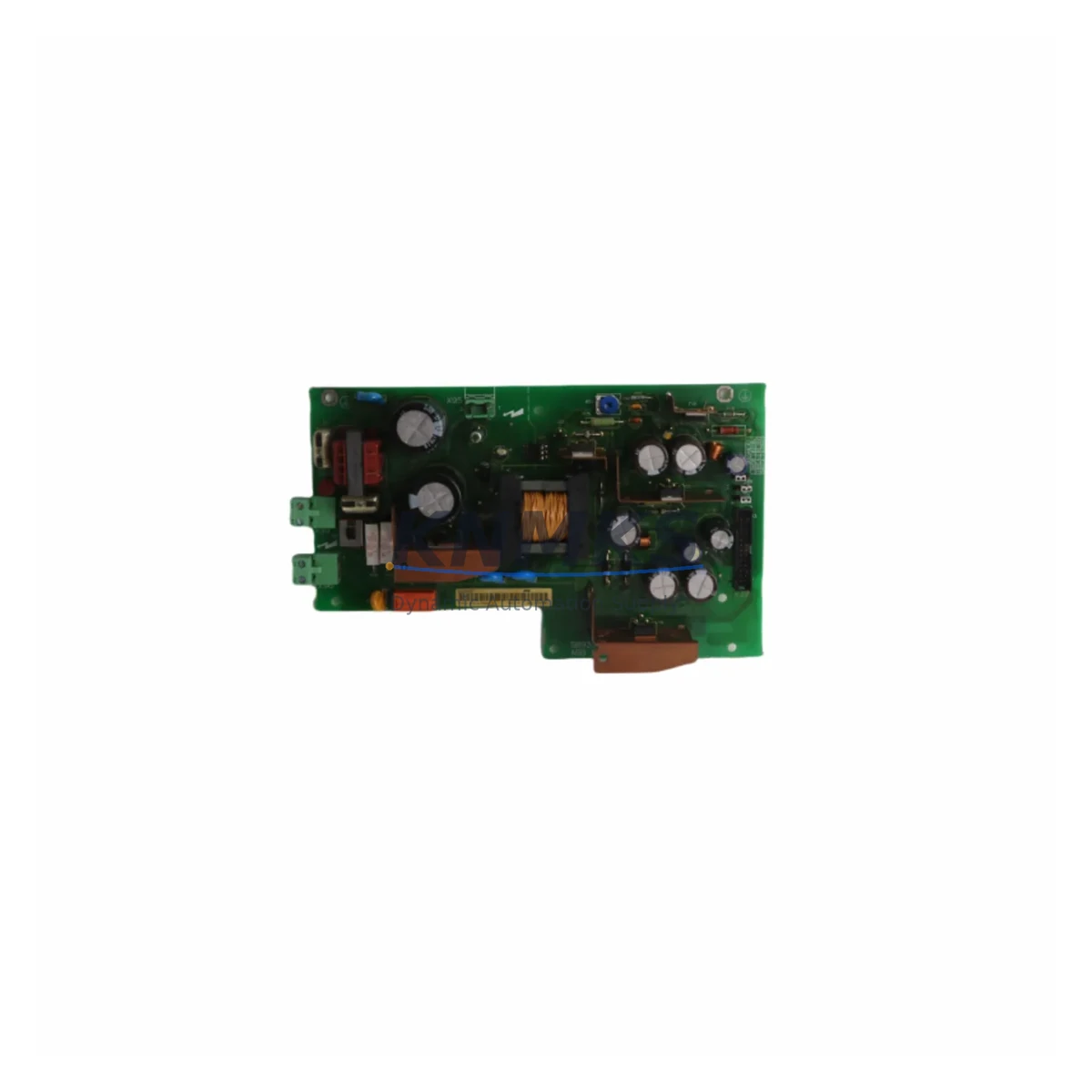

The ABB SDCS-POW-1C is a dedicated internal power supply module engineered for the DCS800 and DCS400 series DC drive platforms — two of the most widely deployed variable-speed drive families in legacy industrial automation environments. As original ABB DCS800 installations approach end-of-service milestones and spare parts availability tightens, the SDCS-POW-1C has become a critical component in both emergency replacement scenarios and planned retrofit programs. Whether you are managing a paper mill, a steel rolling line, a marine propulsion system, or a process plant with aging DC drive infrastructure, maintaining a verified stock of SDCS-POW-1C units is a fundamental element of any responsible spare parts strategy.

The SDCS-POW-1C provides regulated auxiliary power to the DCS800 drive’s internal control electronics, including the SDCS-CON-4 control board, the SDCS-PIN-51 pulse encoder interface, and the SDCS-FEX-2 field excitation module. A failure in the power supply rail directly impacts drive availability, often manifesting as a complete loss of control response, fault code F501 or F502 on the drive panel, or erratic behavior in the speed reference chain. In high-uptime production environments, sourcing a tested replacement unit within hours — rather than weeks — is the difference between a controlled maintenance window and an unplanned production stoppage.

This unit ships fully tested against ABB factory electrical specifications, with pre-shipment verification of output voltage rails, ripple tolerance, and thermal performance. Each SDCS-POW-1C is covered by a support terms confirmed by quotation from the date of dispatch, with documentation available upon request for maintenance records and audit compliance.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SDCS-POW-1C replacement begins well before the module arrives on site. Maintenance engineers should first confirm the drive frame size — the DCS800 is available in frames R3 through R8, and while the SDCS-POW-1C fits all standard frames, physical access to the power supply slot varies by enclosure layout. In larger installations where the DCS800 is mounted inside a dedicated control cabinet alongside an SDCS-CON-4 control board and an SDCS-FEX-2 field excitation module, the replacement sequence must account for safe isolation of the DC bus before any internal module is disturbed.

For sites running the DCS800 with a Profibus DP communication adapter (RPBA-01) or a DDCS fiber-optic link to an AC800M or Symphony Plus DCS, the power supply replacement does not affect the communication layer directly — but engineers should document the current parameter set using DriveWindow Light or DriveStudio before beginning work. This ensures that if the SDCS-CON-4 loses its parameter memory during the power interruption, the drive can be restored to its pre-maintenance configuration without manual re-entry of speed references, ramp times, and protection thresholds.

Sites that have already migrated from the older DCS400 platform to the DCS800 will find the SDCS-POW-1C familiar — the power architecture is consistent across the DCS800 family, and engineers who have previously worked with the SDCS-PIN-51 pulse encoder interface or the SDCS-DSL-4 serial link module will recognize the modular slot arrangement. For installations where the DCS800 is paired with an ACS800 AC drive in a coordinated drive system, the power supply replacement on the DC side should be scheduled to coincide with a planned production pause to avoid asymmetric drive behavior during the transition.

Where the existing installation includes a legacy ABB Advant Controller or a third-party PLC communicating via Modbus RTU or Profibus, the drive’s communication node address and baud rate settings should be recorded before power-down. These parameters are stored in the SDCS-CON-4 and are typically retained through a power cycle, but verification after the SDCS-POW-1C swap is a mandatory step in any commissioning checklist.

Downtime Control During System Migration

Minimizing unplanned downtime during a power supply replacement on a DCS800 drive requires a structured approach to both preparation and execution. The most effective strategy is to pre-stage a tested SDCS-POW-1C unit at the facility before any fault occurs — this converts a potential emergency shutdown into a planned maintenance event with a predictable recovery window, typically under two hours for an experienced drive technician.

Before initiating the swap, the drive’s current parameter set should be exported using DriveWindow Light and stored on a local maintenance laptop or a plant historian. The DC bus must be fully discharged — confirmed with a calibrated voltmeter — before the drive enclosure is opened. The SDCS-POW-1C module is secured by a standard connector and retaining clip; removal and reinsertion require no special tooling beyond standard ESD precautions.

After installation, the drive should be powered up in a controlled sequence: auxiliary power first, then main contactor. The operator panel or HMI screen — whether an ABB CDP312R panel or a SCADA terminal connected via OPC — should be monitored for fault codes during the first power-on cycle. If F501 or F502 faults appear, they typically clear after a parameter reset and a second power cycle. Speed reference signals from the upstream PLC or DCS should not be applied until the drive has completed its self-diagnostic routine and confirmed ready status on the control word.

For critical production lines where even a two-hour window is unacceptable, a hot-standby DCS800 drive with a pre-installed SDCS-POW-1C can be maintained in the control cabinet as a cold-swap spare, reducing recovery time to under 30 minutes including re-termination of the motor cables and field wiring.

Retrofit Support FAQ

Q: Is the SDCS-POW-1C a direct replacement for the SDCS-POW-1 and SDCS-POW-1B?
A: Yes. The SDCS-POW-1C is the current hardware revision and is backward compatible with earlier SDCS-POW-1 and SDCS-POW-1B installations. No wiring changes or parameter modifications are required for a direct swap in DCS800 and DCS400 drive frames.

Q: Does replacing the SDCS-POW-1C require a firmware update on the SDCS-CON-4 control board?
A: No firmware update is required for the power supply replacement itself. However, if the existing SDCS-CON-4 is running firmware below version 5.x, it is advisable to update the control board firmware during the same maintenance window to ensure full compatibility with current ABB DriveStudio diagnostic tools.

Q: What pre-shipment testing is performed on each SDCS-POW-1C unit?
A: Each unit undergoes output voltage verification across all regulated rails, ripple and noise measurement under simulated load, and thermal performance confirmation. A test report is available upon request for quality assurance documentation.

Q: What is the support terms coverage and lead time for the SDCS-POW-1C?
A: All units are covered by a support terms confirmed by quotation from the date of dispatch. Stock is maintained across multiple regional warehouses to support urgent dispatch requirements. Standard lead time for in-stock units is 1–3 business days to most destinations; expedited shipping is available for emergency requirements.
