ABB 3ADT315100R1001 Migration-Ready Power Supply for DC Drives

Overview

ABB 3ADT315100R1001 Migration-Ready Power Supply for Legacy DC Drive Systems

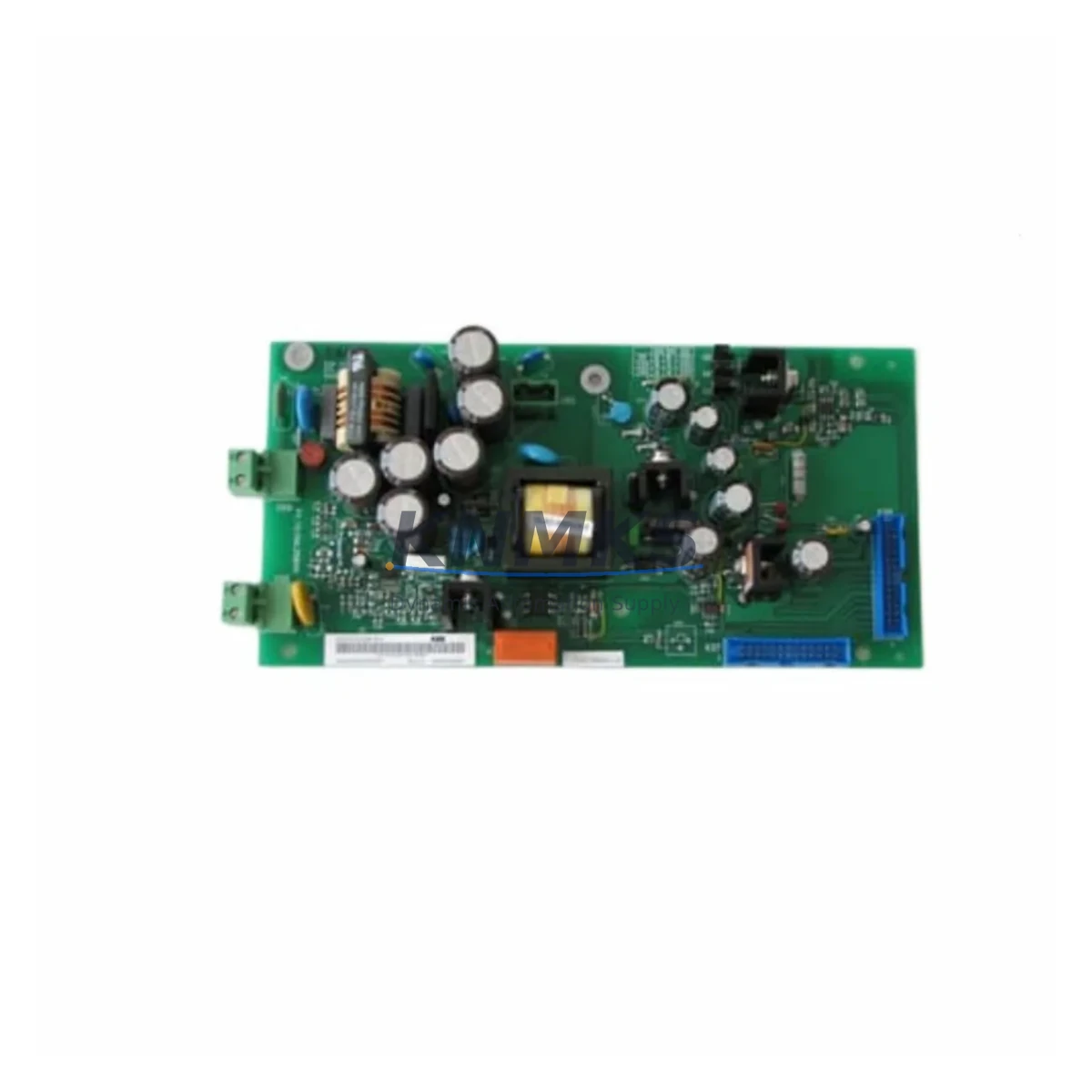

The ABB 3ADT315100R1001, also identified as the SDCS-POW-4-COAT, is a conformal-coated internal power supply board designed for the ABB DCS800 series DC drives. As legacy DCS500 and DCS400 platforms reach end-of-life and spare part availability tightens, the DCS800 has become the preferred migration target — and the 3ADT315100R1001 is a critical component in keeping those upgraded drives operational. Whether you are replacing a failed power board in an existing DCS800 installation or sourcing a verified spare to support a retrofit project, this module delivers the regulated auxiliary voltages required by the drive’s control electronics, gate driver circuits, and field supply subsystems.

Before proceeding with a board swap, engineers should confirm the drive’s firmware version using the DriveWindow or DriveStudio software tools. The SDCS-POW-4-COAT is compatible with DCS800 firmware revisions that support the SDCS control board family. If the host drive is running an older firmware baseline, a coordinated firmware update may be required alongside the power board replacement to ensure stable operation. The SDCS-CON-4 control board, which interfaces directly with this power supply, should also be inspected for corrosion or connector wear during the same maintenance window.

Terminal wiring on the 3ADT315100R1001 follows the standard DCS800 internal harness layout. Technicians should photograph and label all ribbon cable and discrete wire connections before removal. The board connects to the main control assembly via a keyed multi-pin connector, reducing the risk of incorrect reinstallation. However, the input AC supply connections and the field supply output terminals must be verified against the original drive wiring diagram, particularly in installations where the drive has been modified or repaired previously. Incorrect field supply polarity can damage the armature circuit, so continuity checks prior to energisation are strongly recommended.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A DCS800 retrofit project rarely involves a single component. In most legacy DC drive modernisation scenarios, the power supply board replacement is one step within a broader control cabinet upgrade. Engineers migrating from DCS500 platforms will typically need to address the SDCS-CON-4 control board, the SDCS-FEX-4 field excitation module, and the SDCS-IOB-3 I/O extension board as part of a complete drive-level overhaul. Each of these modules occupies a defined slot within the DCS800 internal architecture, and their combined functionality determines the drive’s ability to interface with upstream PLC systems and downstream motor feedback devices.

For installations where the DCS800 communicates with an ABB AC500 or AC800M PLC via DDCS or Profibus, the communication adapter module — typically a SDCS-COM-8 or equivalent fieldbus adapter — must be verified for compatibility with the updated control board firmware. Changes to the power supply board do not directly affect the communication stack, but a full drive restart after board replacement will trigger a parameter reload sequence, and any unsaved parameter sets should be backed up using DriveStudio before work begins.

In control cabinets where multiple DC drives share a common DC bus or a centralised field supply transformer, the replacement of the 3ADT315100R1001 in one drive should be coordinated with a review of the field supply wiring to adjacent drives. The SDCS-FEX-4 field excitation module, if present, provides independent field current regulation and should be tested for output stability after the power board is replaced. Additionally, if the cabinet includes a SNAT 601 or SNAT 617 pulse encoder interface board for speed feedback, the encoder signal integrity should be verified post-replacement to confirm that the new power board’s auxiliary supply rails are within specification.

HMI panels connected to the DCS800 via the drive’s serial port or fieldbus interface may display alarm codes during the replacement procedure. Operators should be briefed to expect transient communication faults during the maintenance window. Once the replacement board is installed and the drive is re-energised, the HMI parameter display should be used to confirm that the drive’s output voltage, field current, and armature current readings are within the expected operating range before returning the motor to service.

Downtime Control During System Migration

Minimising production downtime during a DC drive power board replacement requires advance preparation. The most effective approach is to pre-stage the 3ADT315100R1001 as a verified spare before the scheduled maintenance window, rather than sourcing the part reactively after a failure. A pre-tested board, confirmed against the drive’s serial number and firmware version, can reduce the physical swap time to under two hours in most DCS800 frame sizes.

Before de-energising the drive, the existing control program parameters should be exported using DriveStudio and saved to a secure location. The DCS800 stores its parameter set in non-volatile memory on the SDCS-CON-4 control board, not on the power supply board itself, so a power board replacement does not erase the parameter set. However, if the control board is also being replaced as part of the same maintenance event, a full parameter backup is essential. The backup file should include the motor nameplate data, speed reference scaling, current limits, field weakening curve, and any application-specific macro settings.

During reinstallation, the drive’s main contactor and field supply breaker should remain open until all internal connections have been verified. A phased energisation sequence — auxiliary supply first, then field supply, then armature enable — allows the technician to confirm each subsystem independently before applying full motor voltage. This approach protects both the replacement board and the motor from damage caused by wiring errors or residual faults in the armature circuit. Once the drive passes its no-load test, a controlled ramp-up under partial load should be performed before returning the system to full production speed.

Retrofit Support FAQ

Q1: Is the 3ADT315100R1001 a direct drop-in replacement for the SDCS-POW-4?
Yes. The 3ADT315100R1001 (SDCS-POW-4-COAT) is the conformal-coated version of the SDCS-POW-4 and is mechanically and electrically interchangeable within the DCS800 drive family. The conformal coating provides additional protection in environments with elevated humidity or airborne contaminants. No wiring modifications are required for a like-for-like swap.

Q2: What pre-shipment testing is performed on this board?
Each unit undergoes functional power-on verification and output voltage checks prior to shipment. Boards are inspected for physical damage, connector integrity, and coating condition. A test report is available upon request for critical infrastructure applications.

Q3: Can this board be used in a DCS800 that is being upgraded from a DCS500 platform?
The 3ADT315100R1001 is specific to the DCS800 drive platform and is not directly compatible with DCS500 hardware. In a DCS500-to-DCS800 migration, the entire drive unit is replaced, and the 3ADT315100R1001 would be sourced as a spare or replacement board for the new DCS800 host drive. Compatibility with the specific DCS800 frame size and current rating should be confirmed before ordering.

Q4: What is the support terms coverage and what does it include?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive’s rated parameters. Support requests are supported by our technical team, and replacement units are dispatched from stock to minimise system downtime.
